◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11723 - FTS AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#170267) — 32 parça

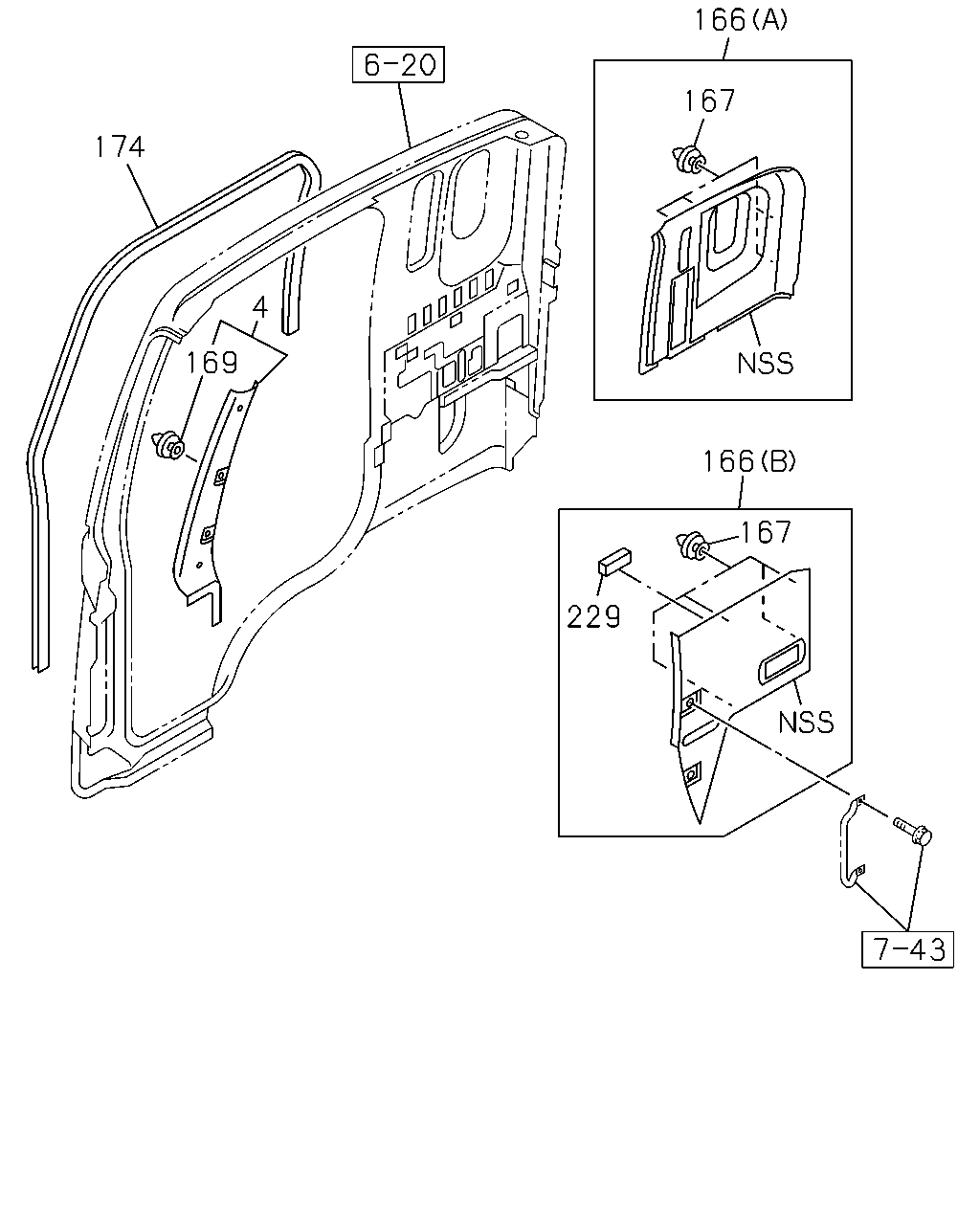

çizim 502869
174 4 169 166 167 166 167 229
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1511- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1511- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1511- ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-300-0 01 1 1511- ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1511- ●
166 TRIM; RR PILLAR
DRIVER ISRINGHAUSEN SEAT<SJA> (B) GRAY 		8-97407-460-1 01 1 1511- ●
166 TRIM; RR PILLAR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) GRAY 		8-97414-303-0 01 1 1511- ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1511- ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1511- ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 08 1 1511- ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1511- ● ●
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1511- ●
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1511- ●
174 FINISHER; BODY SIDE 8-98245-048-1 01 1 1511- ●
174 FINISHER; BODY SIDE 8-98245-049-1 01 1 1511- ●
229 SEAL
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98080-972-0 02 1 1511- ●
229 SEAL 8-98092-662-0 01 1 1511- ●
229 SEAL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98092-662-0 01 1 1511- ●

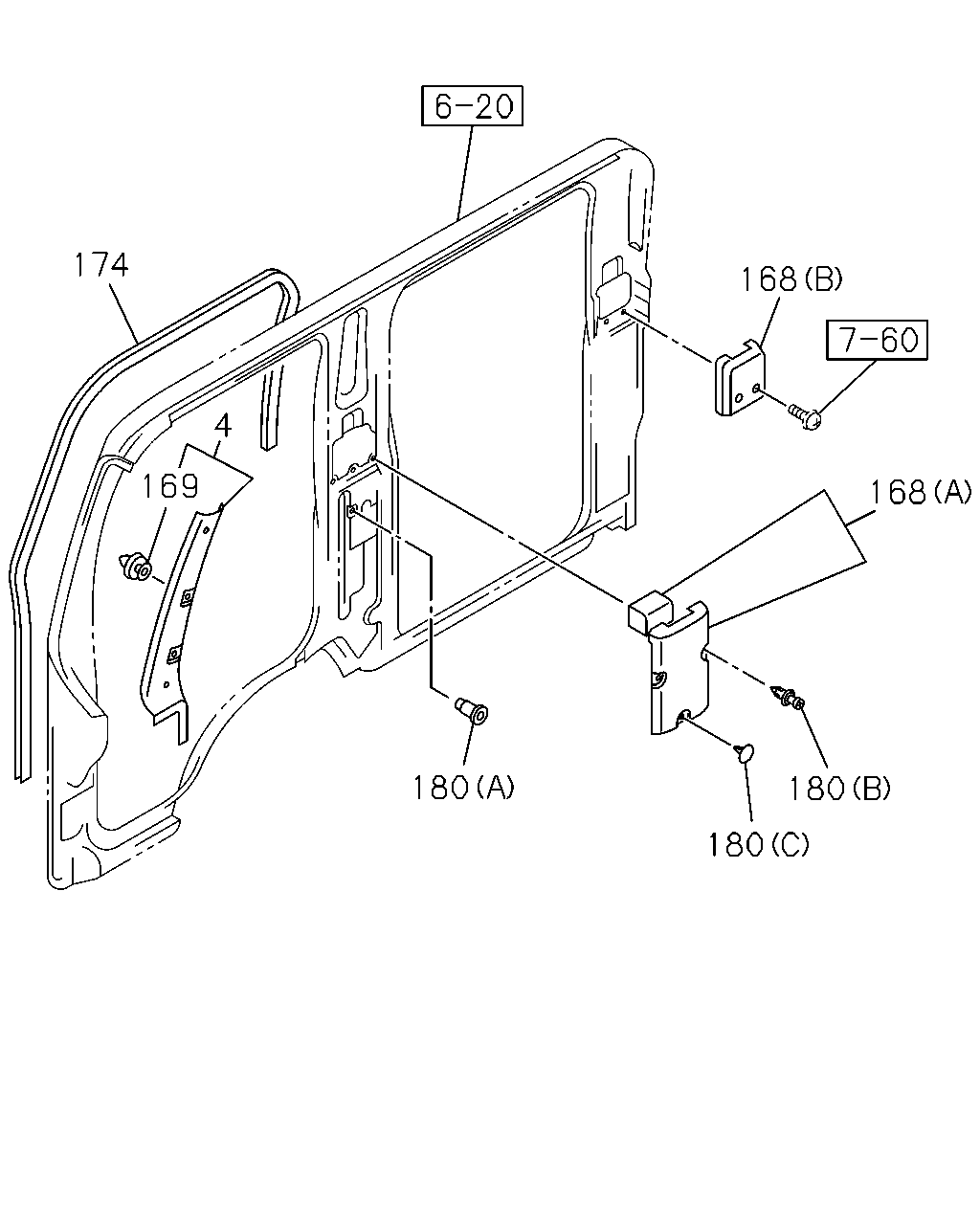

çizim 502922
168 168 174 180 180 180 169 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1511- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1511- ● ●
168 COVER; SEAT BELT RETRACTOR
(B) GRAY 		8-97405-192-3 02 1 1511- ●
168 COVER; SEAT BELT RETRACTOR
DRIVER ISRINGHAUSEN SEAT<SJA> (A) GRAY 		8-97405-191-2 01 1 1511- ●
168 COVER; SEAT BELT RETRACTOR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) W/SEAL GRAY 		8-97413-008-1 01 1 1511- ●
168 COVER; SEAT BELT RETRACTOR
(A) W/SEAL GRAY 		8-97413-008-1 01 1 1511- ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1511- ● ●
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1511- ●
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1511- ●
174 FINISHER; BODY SIDE 8-98245-048-1 01 1 1511- ●
174 FINISHER; BODY SIDE 8-98245-049-1 01 1 1511- ●
180 FASTENER; COVER
(A) 		8-97319-495-0 02 1 1511- ●
180 FASTENER; COVER
(B) GRAY 		8-97405-246-0 04 1 1511- ●
180 FASTENER; COVER
(C) GRAY 		8-97405-247-0 02 1 1511- ●
