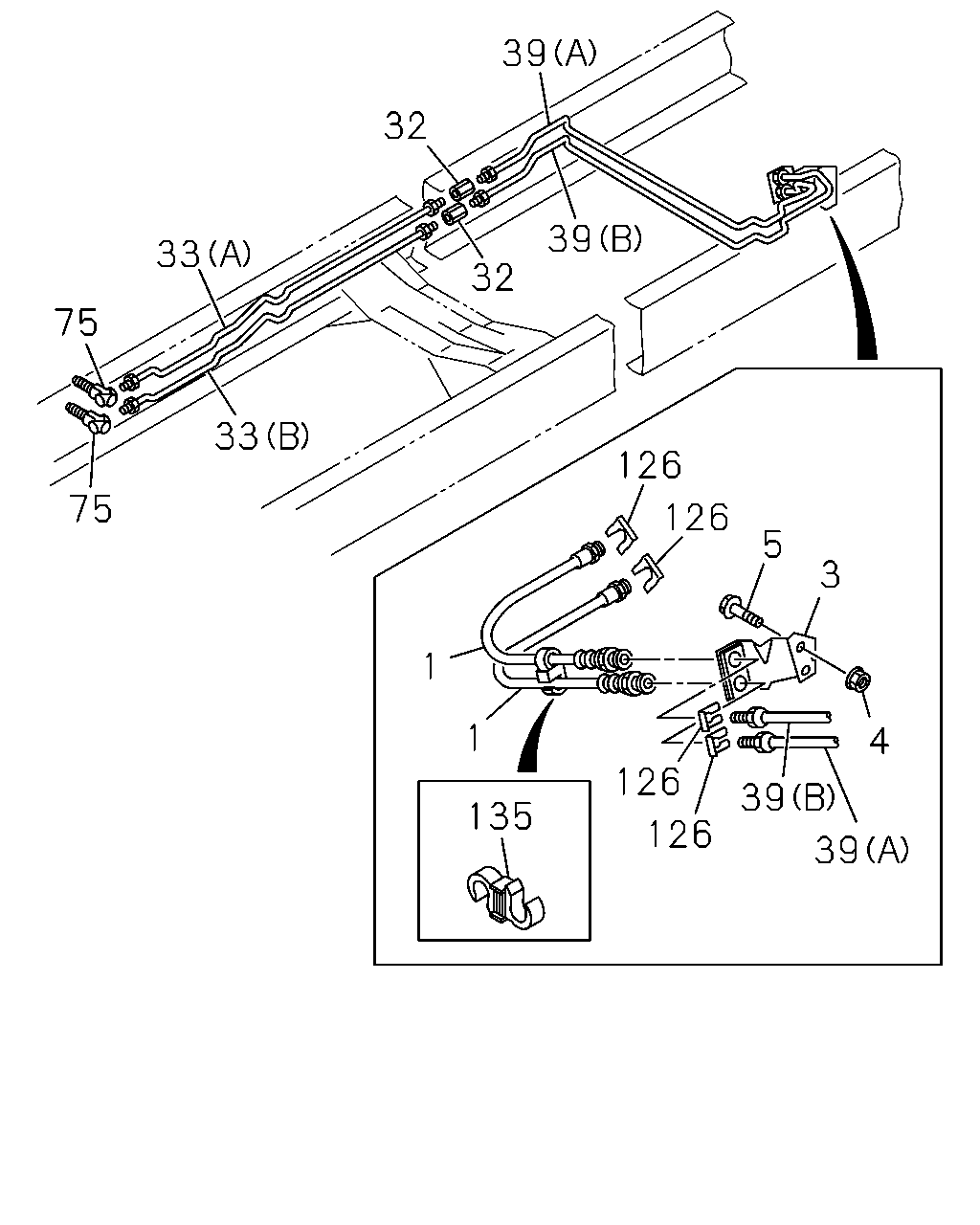

3-55 — BRAKE PIPING; OIL,REAR (#17026) — 26 parça

75 33 32 39 33 75 32 39 126 1 1 135 126 126 126 5 3 39 39 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK L=350	8-97138-885-0	02	1	1001-
3	BRACKET; FLEX HOSE,RR BRK	8-98065-999-2	01	1	1001-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE SOU	0-91180-108-0	02	1	1001-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1001-
32	UNION; OIL PIPE M10 STRAIGHT	0-92107-005-0	02	1	1001-
33	PIPE; OIL,UNION TO UNION (A) LH L=1892	8-98123-539-0	01	1	1001-
33	PIPE; OIL,UNION TO UNION (B) RH L=1910	8-98123-540-0	01	1	1001-
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) RH LINE L=1772	8-98106-486-0	01	1	1001-
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) LH LINE L=1710	8-98106-485-0	01	1	1001-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	1001-
126	CLIP; FLEX HOSE	8-97360-054-0	04	1	1001-
135	CLIP; FLEX HOSE ID=10 & 10	1-09709-277-1	01	1	1001-

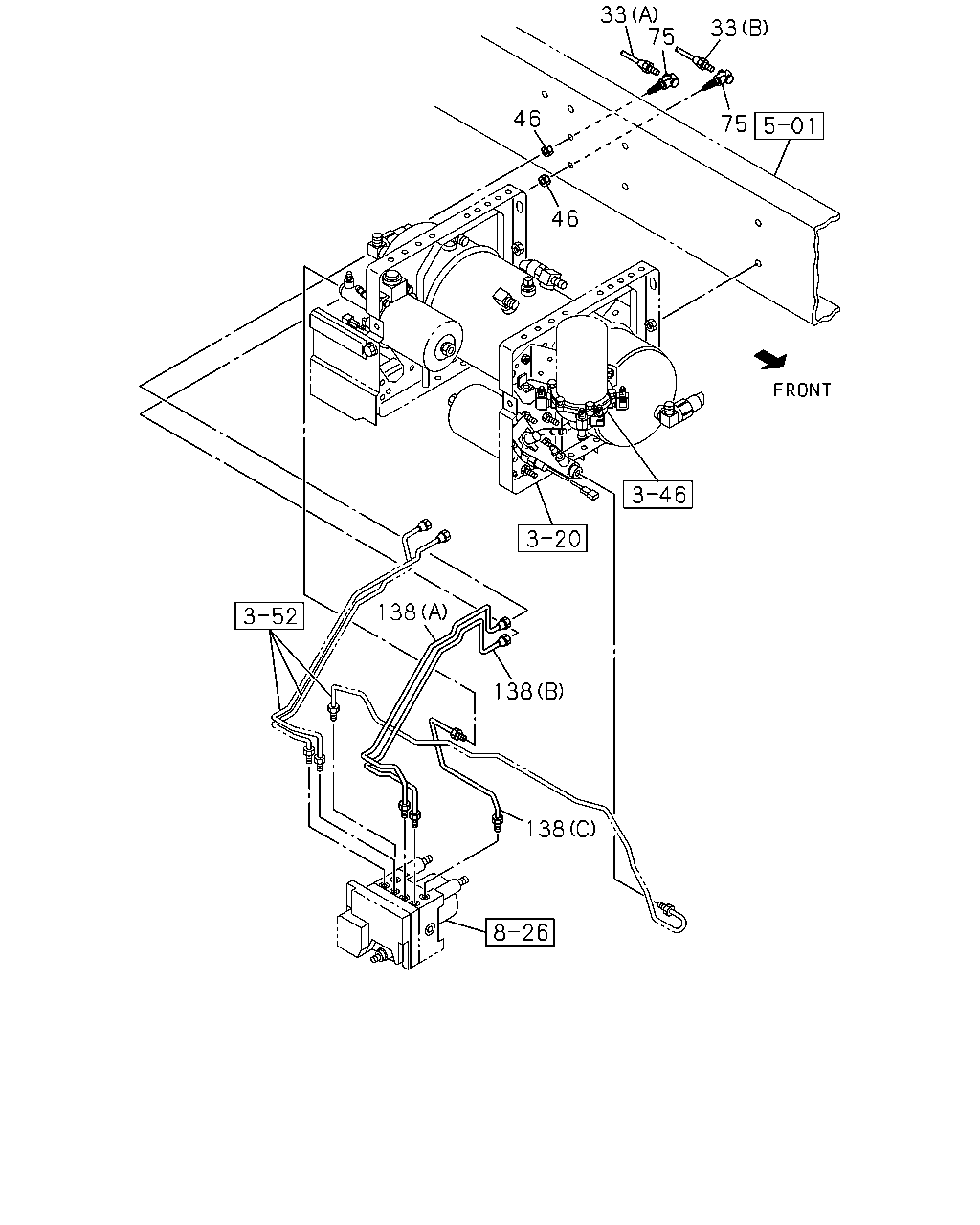

33 75 33 46 75 46 138 138 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	PIPE; OIL,UNION TO UNION (A) LH L=1892	8-98123-539-0	01	1	1001-
33	PIPE; OIL,UNION TO UNION (B) RH L=1910	8-98123-540-0	01	1	1001-
46	NUT; UNION,OIL PIPE M10 H=8 SOU	1-09400-029-0	02	1	1001-
75	UNION; OIL PIPE M10X2 ELBOW	8-98018-438-0	02	1	1001-
138	PIPE; HYDRAULIC UNIT (C) L=296	8-98066-107-0	01	1	1001-
138	PIPE; HYDRAULIC UNIT (A) LH L=657	8-98012-129-0	01	1	1001-
138	PIPE; HYDRAULIC UNIT (B) RH L=703	8-98012-146-0	01	1	1001-

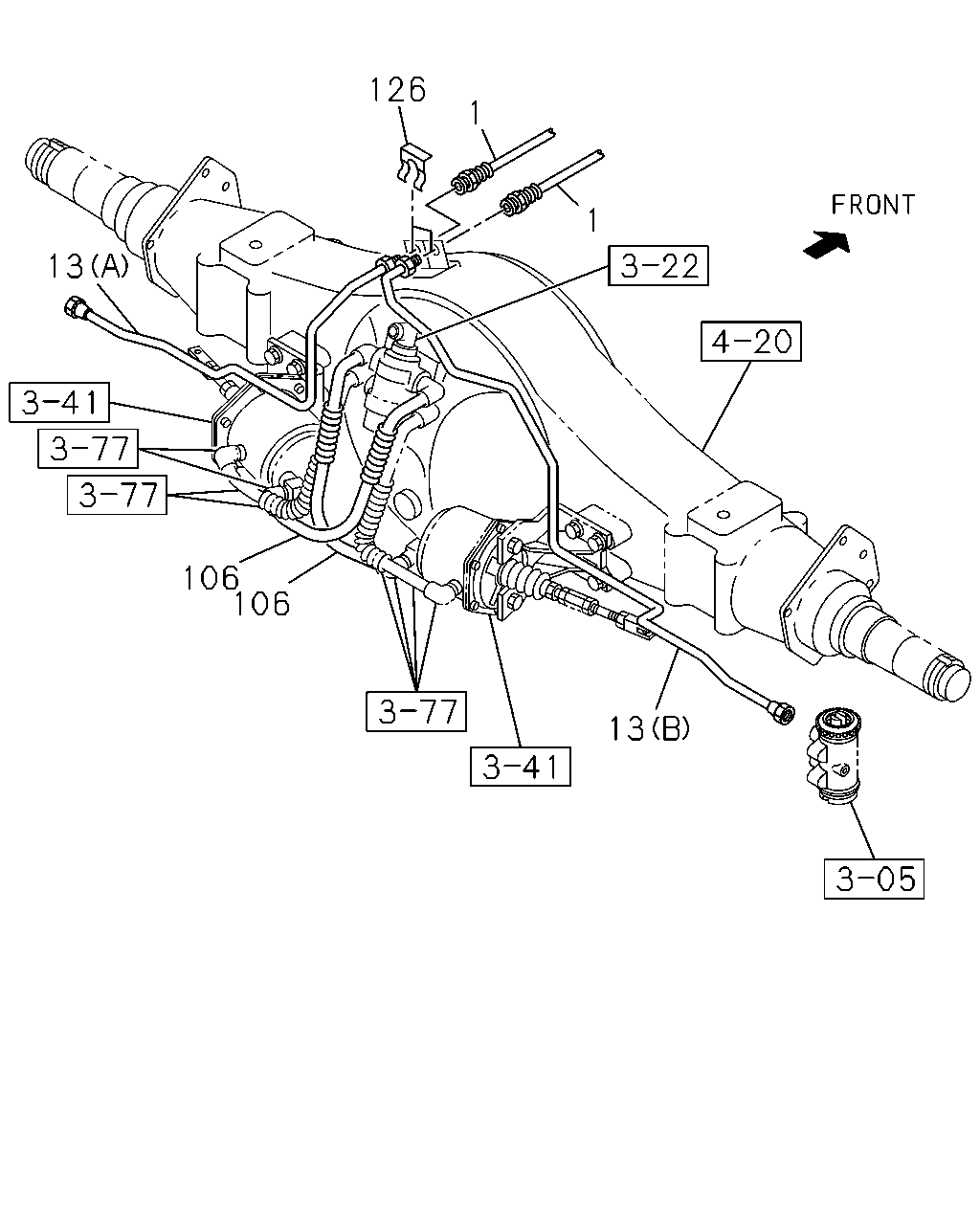

126 1 1 13 106 106 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK L=350	8-97138-885-0	02	1	1001-
13	PIPE; BRK,RR AXLE (A) LH LINE	8-98107-929-0	01	1	1001-1409
13	PIPE; BRK,RR AXLE (A) LH LINE	8-98281-558-0	01	1	1410-
13	PIPE; BRK,RR AXLE (B) RH LINE	8-98107-928-0	01	1	1001-1409
13	PIPE; BRK,RR AXLE (B) RH LINE	8-98281-557-0	01	1	1410-
106	TUBE; NYLON	8-98061-971-0	02	1	1001-
126	CLIP; FLEX HOSE	8-97360-054-0	04	1	1001-
