◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11723 - FTS AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#170258) — 4 parça

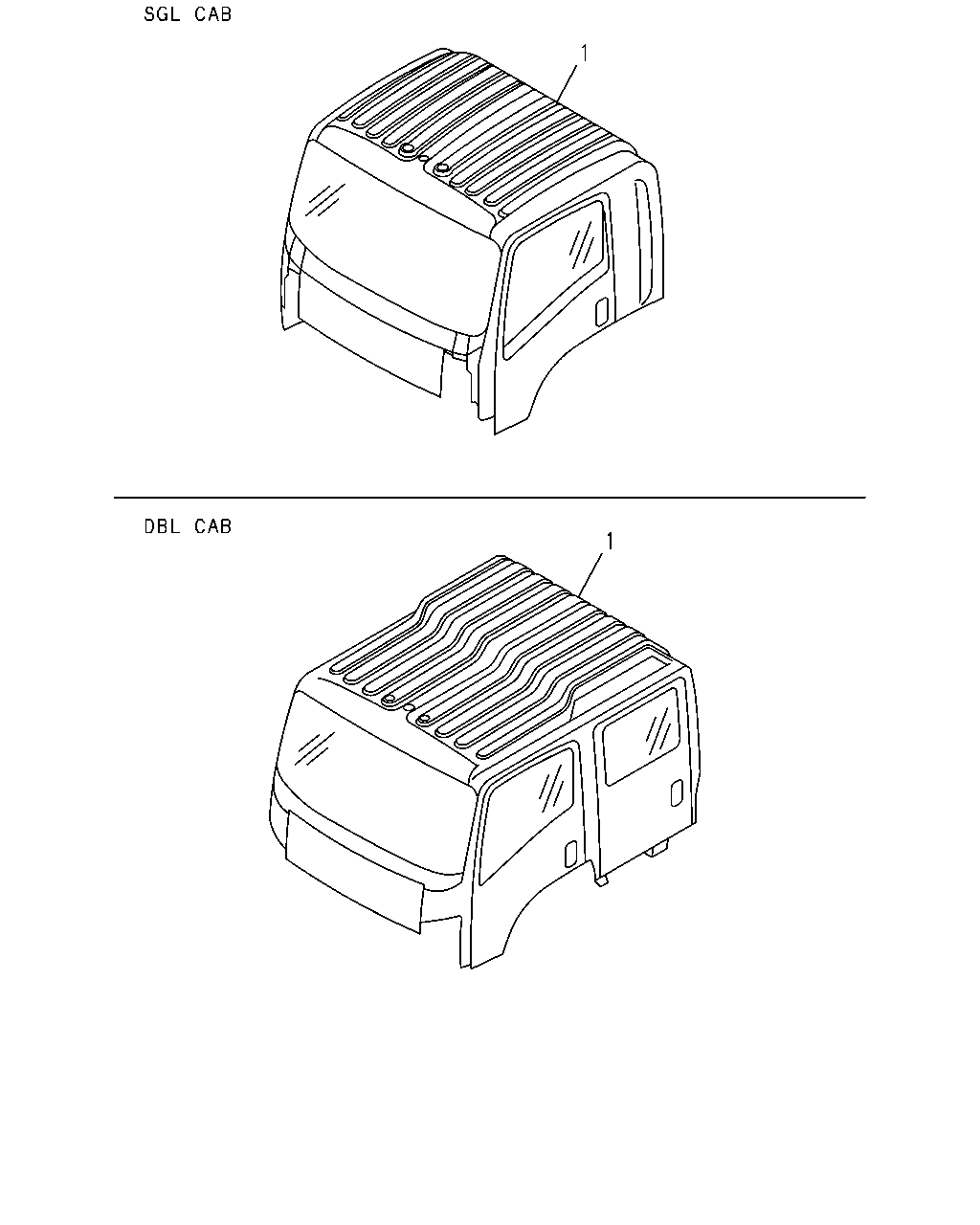

çizim 502819
1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) CUSTOM PACKAGE(YM8) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> AUSTRALIA EQUIPMENT(B13) FUEL TANK 200L FRAME SIDE<N20> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> LAMPS TWO ROOF MARKER<TEC> POWER WINDOW FRT DOOR<A32> FUEL TANK CAP KEY LOCK<N05> 2-SPEAKER SYSTEM BASE<U95> FLUORESCENT LAMP<6UC> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61861-386-0 01 1 1511- ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) CUSTOM PACKAGE(YM8) LCT2500 A/T ALLISON(Y5W) A/T<X9D> AUSTRALIA EQUIPMENT(B13) FUEL TANK 200L FRAME SIDE<N20> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> LAMPS TWO ROOF MARKER<TEC> POWER WINDOW FRT DOOR<A32> FUEL TANK CAP KEY LOCK<N05> 2-SPEAKER SYSTEM BASE<U95> FLUORESCENT LAMP<6UC> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61861-387-0 01 1 1511- ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) CUSTOM PACKAGE(YM8) MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> AUSTRALIA EQUIPMENT(B13) FUEL TANK 200L FRAME SIDE<N20> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> LAMPS TWO ROOF MARKER<TEC> POWER WINDOW FRT&REAR DOOR<A31> FUEL TANK CAP KEY LOCK<N05> 2-SPEAKER SYSTEM BASE<U95> FLUORESCENT LAMP<6UC> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61861-388-0 01 1 1511- ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) CUSTOM PACKAGE(YM8) LCT2500 A/T ALLISON(Y5W) A/T<X9D> AUSTRALIA EQUIPMENT(B13) FUEL TANK 200L FRAME SIDE<N20> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> LAMPS TWO ROOF MARKER<TEC> POWER WINDOW FRT&REAR DOOR<A31> FUEL TANK CAP KEY LOCK<N05> 2-SPEAKER SYSTEM BASE<U95> FLUORESCENT LAMP<6UC> EXC. MIRROR O/S UNDER VIEW<RR9>,ASH TRAY PASSENGERDOOR<8LX> 		1-61861-389-0 01 1 1511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
