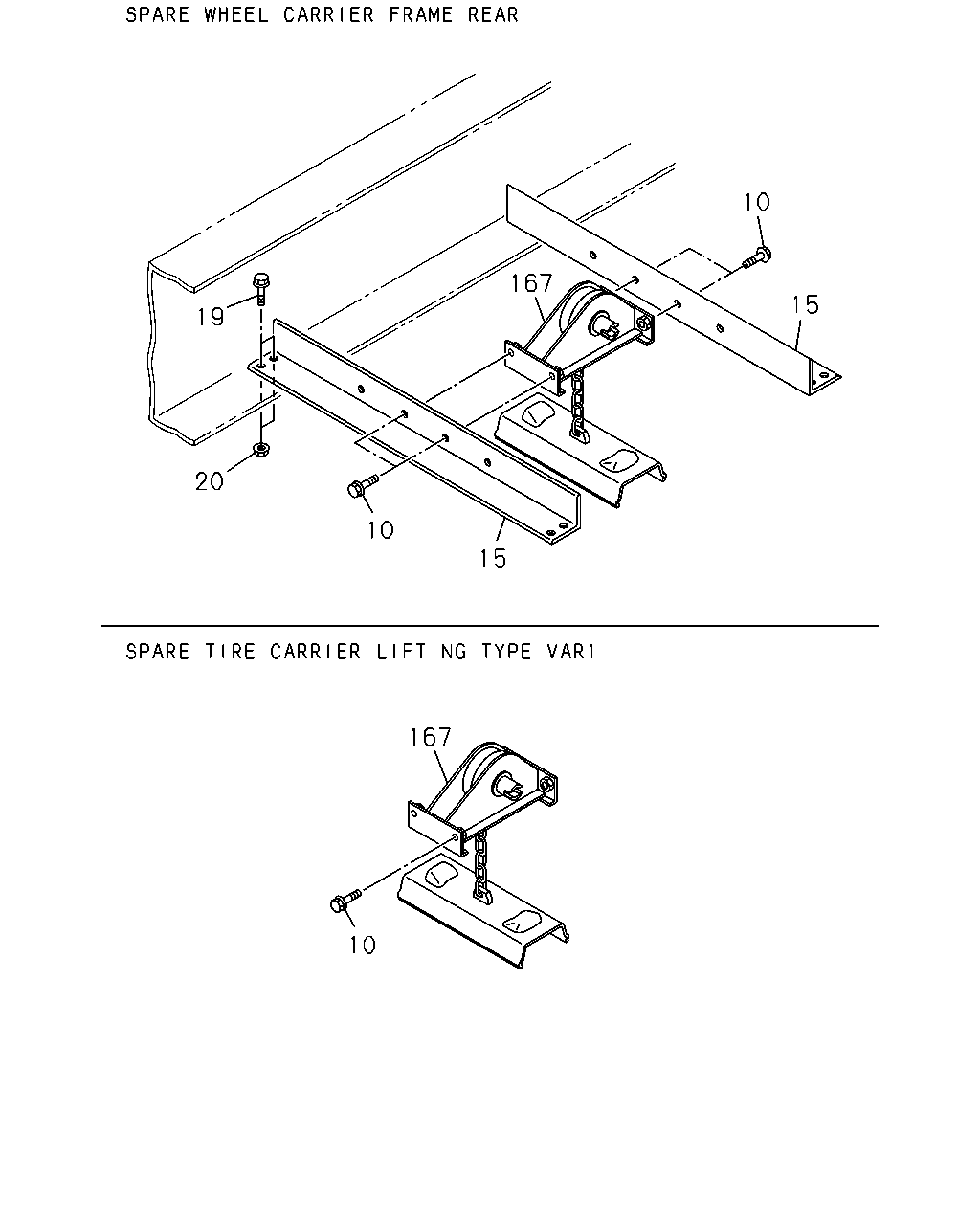

5-30 — SPARE TIRE CARRIER AND COVER (#170255) — 7 parça

10 15 167 15 10 20 19 10 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	BOLT; TIRE HANGER M12X30 FLANGE	0-28651-230-0	04	1	1511-	●	●
15	MEMBER; CROSS,SPARE TIRE TIRE 10R22.5-14 SPECIAL AUSTRALIA VAR2(5E1),TIRE 10R22.5-14 EXP RIBLUG(5P3) SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-394-0	02	1	1511-	●	●
15	MEMBER; CROSS,SPARE TIRE TIRE 11R22.5-148/145K EXP SPECIAL AUSTRALIA(5R2) SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-395-1	02	1	1511-	●	●
19	BOLT; C/MBR TIRE 10R22.5-14 SPECIAL AUSTRALIA VAR2(5E1),TIRE 10R22.5-14 EXP RIBLUG(5P3) SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28051-025-0	08	1	1511-	●	●
19	BOLT; C/MBR TIRE 11R22.5-148/145K EXP SPECIAL AUSTRALIA(5R2) SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE	0-28051-030-0	08	1	1511-	●	●
20	NUT; C/MBR SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91180-210-0	08	1	1511-	●	●
167	HANGER; TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	1-53630-208-3	01	1	1511-	●	●
