5-20 — BATTERY CARRIER (#170254) — 53 parça

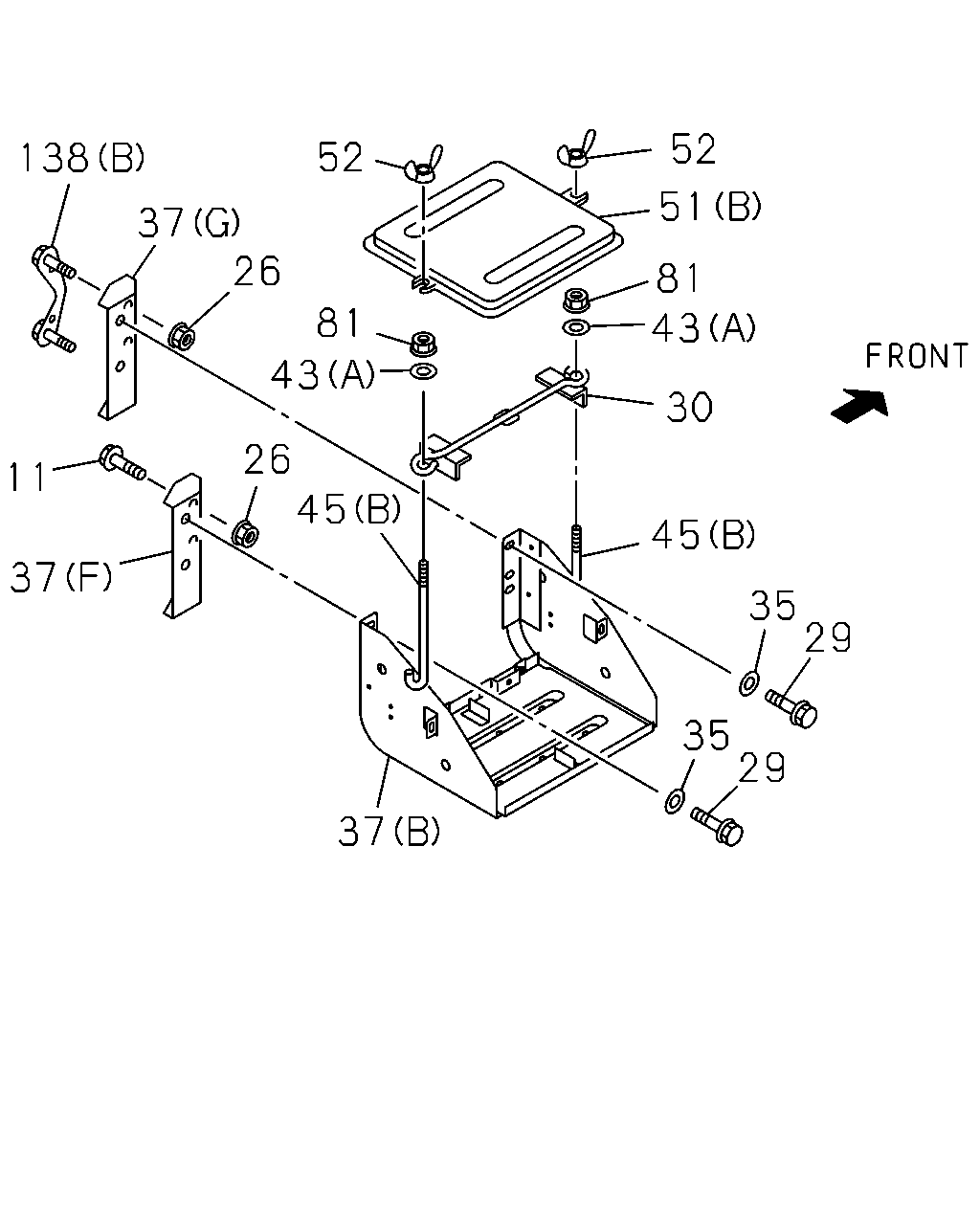

52 51 43 81 30 45 29 35 29 35 37 37 11 26 37 52 81 43 26 45 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1511-	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1511-	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	1511-		●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1511-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1511-	●	●
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	1511-	●
37	BRACKET; BATTERY (E)	8-98162-291-0	01	1	1511-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (C)	8-98261-637-0	01	1	1511-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-98054-924-1	01	1	1511-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-98054-925-1	01	1	1511-	●
37	BRACKET; BATTERY (F)	8-98074-285-0	01	1	1511-		●
37	BRACKET; BATTERY (G)	8-98074-286-0	01	1	1511-		●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (B)	8-97384-068-2	01	1	1511-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (B)	8-97384-067-2	01	1	1511-		●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	1511-	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	1511-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1511-	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1511-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1511-	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1511-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1511-	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
138	STUD (A)	8-98255-710-0	01	1	1511-	●
138	STUD (B)	8-98121-393-0	01	1	1511-		●

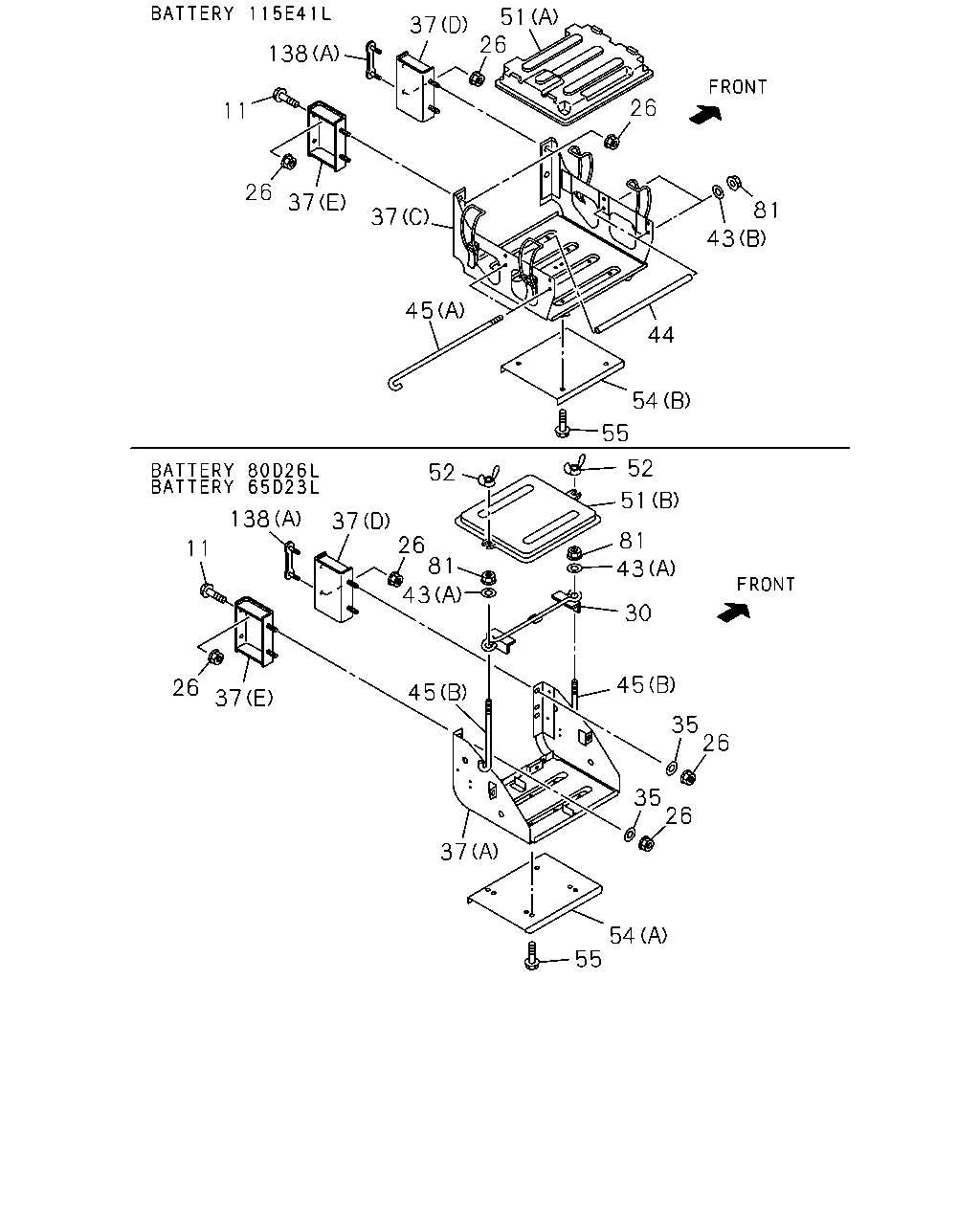

115 138 11 26 37 37 37 51 26 26 81 43 44 54 55 45 52 52 51 81 43 30 45 35 26 26 35 54 55 37 45 43 26 81 37 138 11 26 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1511-	●	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1511-	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	1511-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1511-	●	●
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	1511-	●
37	BRACKET; BATTERY (E)	8-98162-291-0	01	1	1511-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (C)	8-98261-637-0	01	1	1511-	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-98054-924-1	01	1	1511-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-98054-925-1	01	1	1511-	●
37	BRACKET; BATTERY (F)	8-98074-285-0	01	1	1511-		●
37	BRACKET; BATTERY (G)	8-98074-286-0	01	1	1511-		●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (B)	8-97384-068-2	01	1	1511-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (B)	8-97384-067-2	01	1	1511-		●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	1511-	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	1511-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1511-	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1511-	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	1511-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1511-	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	1511-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	1511-	●	●
54	PROTECTOR; HEAT,BATTERY BATTERY 115E41L<8MA> (B)	1-53619-140-1	01	1	1511-	●
54	PROTECTOR; HEAT,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A)	1-53619-139-1	01	1	1511-	●
55	BOLT; HEAT PROTECTOR M8X10 FLANGE	0-28050-810-0	04	1	1511-	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
138	STUD (A)	8-98255-710-0	01	1	1511-	●
138	STUD (B)	8-98121-393-0	01	1	1511-		●
