Isuzu WW
▶
TRUCKS
▶
FTS
▶
11723 - FTS AUST/NZ EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

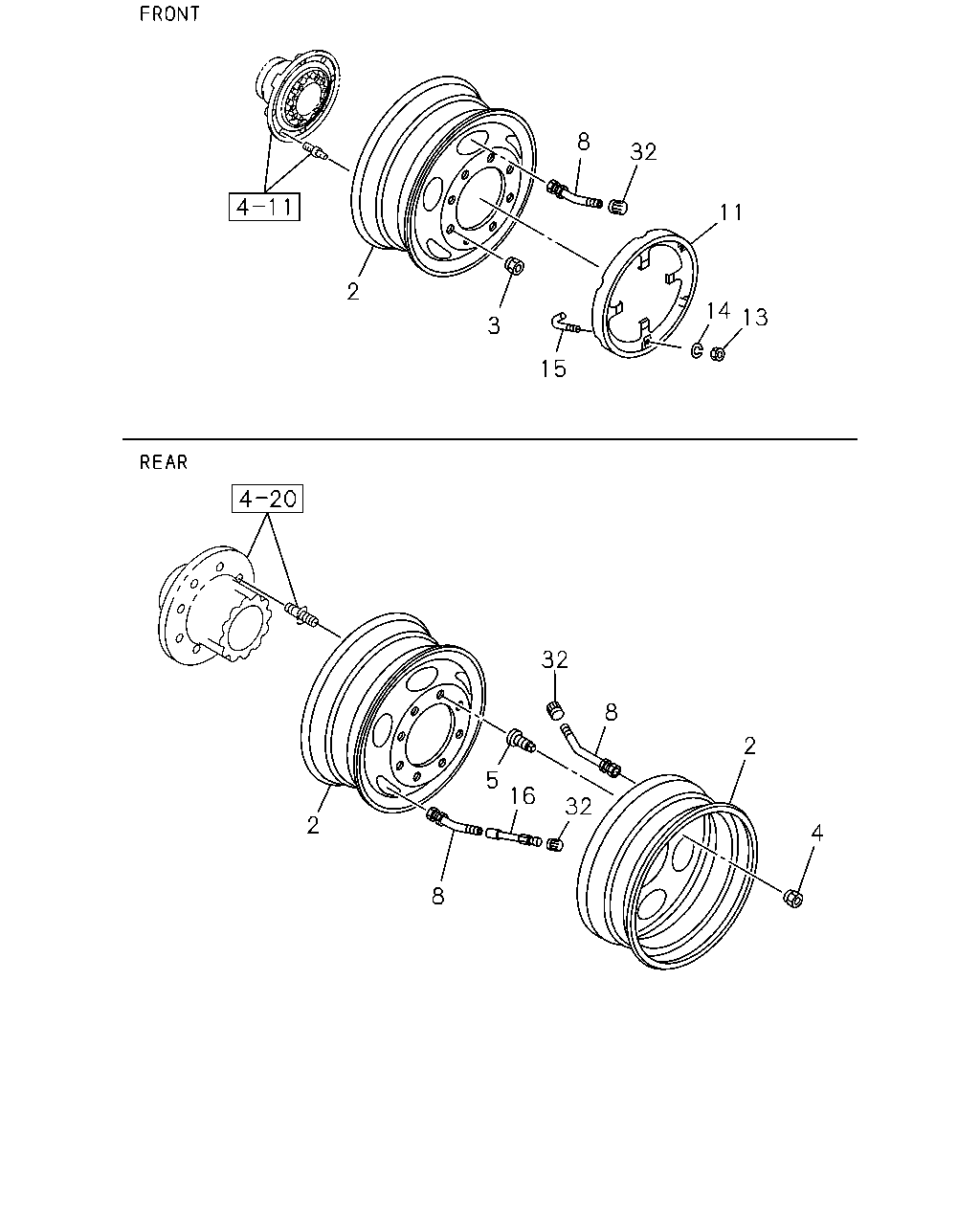

4-80 — ROAD WHEEL
(#170248) — 18 parça
Tümü
A - FGS5MS
B - FGS5WS
8
32
11
14
13
15
3
2
32
8
2
4
32
16
5
8
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR
8-98232-032-0
06
1
1511-
●
●
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE
8-98232-032-0
01
1
1511-
●
●
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> SPARE
8-98232-031-0
01
1
1511-
●
●
2
WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> FRONT,REAR
8-98232-031-0
06
1
1511-
●
●
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
08
1
1511-
●
●
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
08
1
1511-
●
●
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
08
1
1511-
●
●
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
08
1
1511-
●
●
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
08
1
1511-
●
●
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
08
1
1511-
●
●
8
VALVE; TIRE
FRONT,REAR
1-42370-048-0
06
1
1511-
●
●
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> SPARE
1-42370-048-0
01
1
1511-
●
●
11
STEP; DISC WHEEL SIDE
DISC WHEEL STEP<W66>
1-43139-002-2
02
1
1511-
●
●
13
NUT; STEP DISC
DISC WHEEL STEP<W66> M10
0-91110-510-0
06
1
1511-
●
●
14
WASHER; LK,STEP DISC
DISC WHEEL STEP<W66> ID=10.2
0-91510-810-0
06
1
1511-
●
●
15
BOLT; STEP DISC
DISC WHEEL STEP<W66>
8-98245-130-0
06
1
1511-
●
●
16
HOLDER; TIRE VALVE,DISC WHEEL
L=170
8-98167-052-0
02
1
1511-
●
●
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>
1-42374-001-0
05
1
1511-
●
●
