4-65 — REAR LEAF SPRING (#170247) — 29 parça

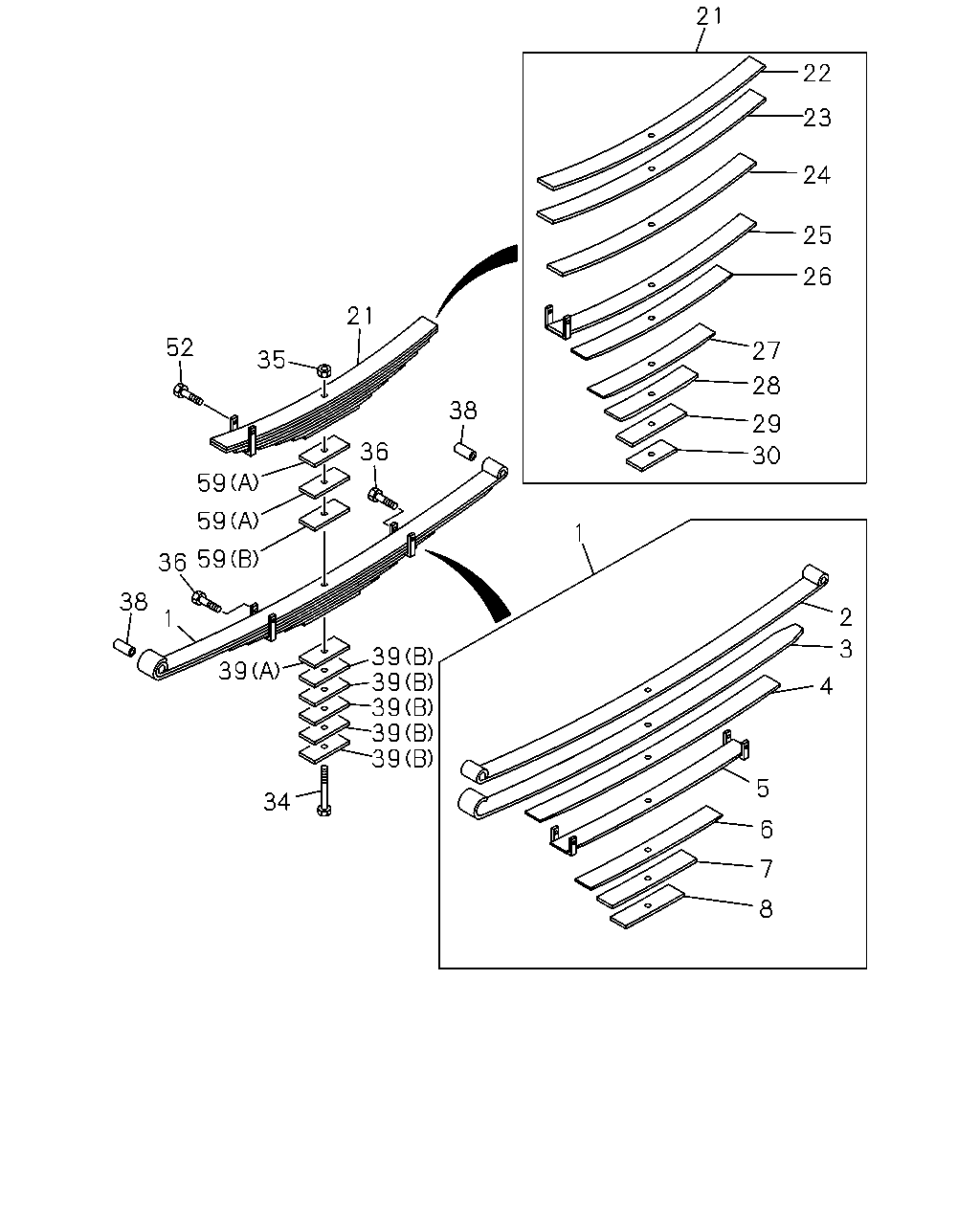

çizim 501097
21 22 23 24 25 26 27 29 28 30 2 3 4 5 6 7 8 1 38 21 36 35 52 59 59 59 36 38 1 39 34 39 39 39 39 39
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-285-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-286-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-287-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-288-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-289-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-290-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-291-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-292-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-293-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-294-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-295-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-296-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-297-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-298-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-299-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-300-0 01 1 -
29 SPRING; LEAF,NO 8,RR SUB
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-301-0 01 1 -
30 SPRING; LEAF,NO 9,RR SUB
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-302-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=240 ASM PART: A = 8-98034-467-0 		1-51356-280-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=290 ASM PART: B = 8-98207-953-0 		8-98209-863-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X99 ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		1-09000-328-0 02 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		9-51351-019-0 02 1 -
39 SEAT; LEAF SPR,RR MAIN
(A), T=6 ASM PART: A = 8-98034-467-0 		1-51377-249-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
(B), T=9 ASM PART: B = 8-98207-953-0 		8-98051-107-0 05 1 -
39 SEAT; LEAF SPR,RR MAIN
(A), T=11 ASM PART: B = 8-98207-953-0 		8-98209-853-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X99 ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		1-09000-328-0 01 1 -
59 SEAT; RR SPRING,SUB
(A), T=6 ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		1-51377-249-0 02 1 -
59 SEAT; RR SPRING,SUB
(B), T=9 ASM PART: A = 8-98034-467-0, B = 8-98207-953-0 		8-98051-107-0 01 1 -
