◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11723 - FTS AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#170244) — 38 parça

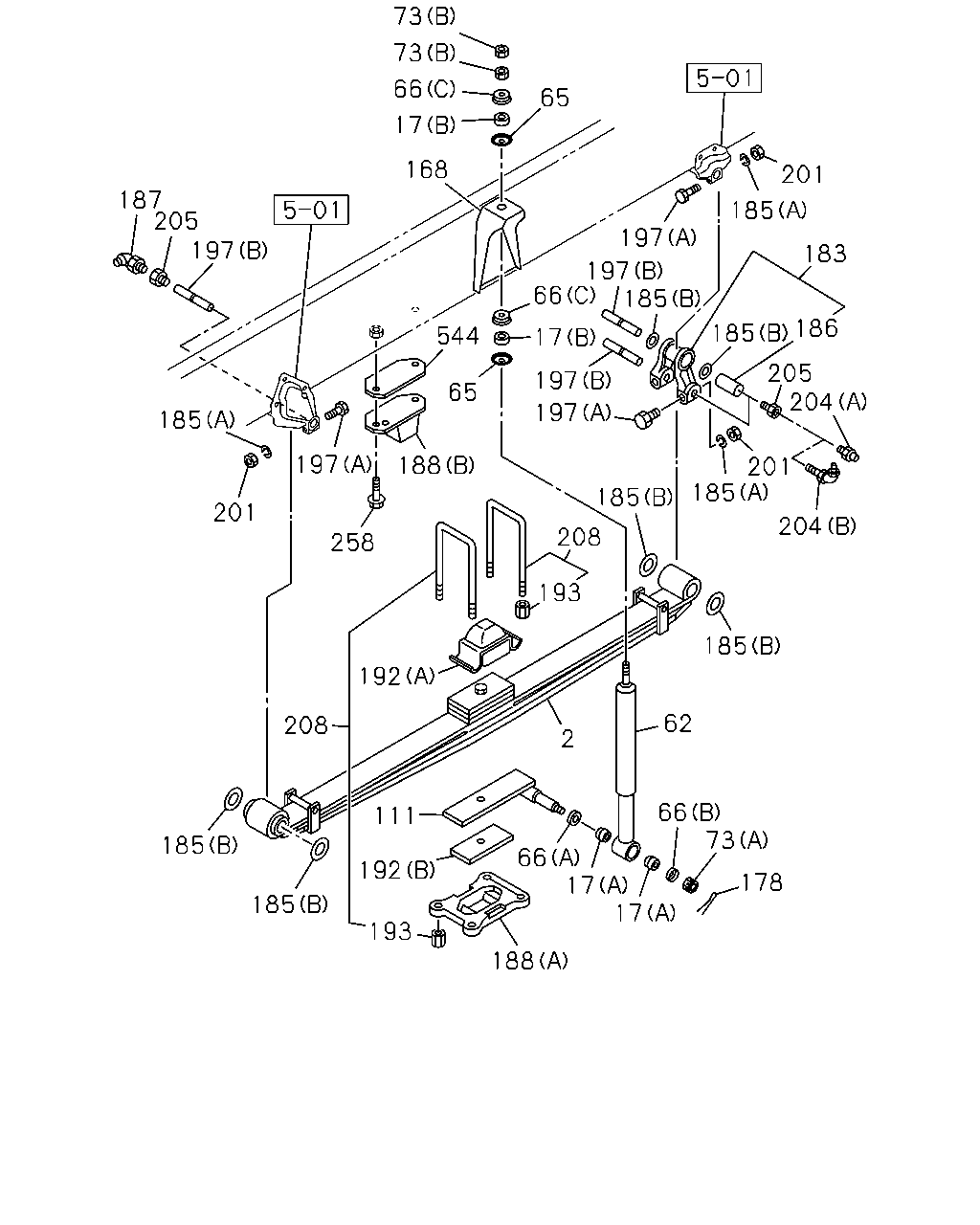

çizim 501119
73 65 73 17 66 187 197 205 185 197 544 65 201 188 258 208 197 197 17 66 197 197 185 201 183 186 185 204 205 201 185 204 185 185 193 62 66 73 2 111 192 185 193 185 188 66 17 17 178 208 168 185 192
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. A/T<X9D> 		8-98207-954-0 02 1 1511- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MANUAL TRANSMISSION<X9C> 		8-98027-963-1 02 1 1511- ● ●
17 BUSHING; RUBBER,S/ABS
(A) 		1-51631-009-1 04 1 1511- ● ●
17 BUSHING; RUBBER,S/ABS
(B) 		9-51631-050-0 04 1 1511- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-180-4 02 1 1511- ● ●
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 1511- ● ●
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 1511- ● ●
66 WASHER; LK,S/ABS SETTING
(B) ID=17 		1-51631-020-0 02 1 1511- ● ●
66 WASHER; LK,S/ABS SETTING
(C) ID=16.8 		1-51631-022-0 04 1 1511- ● ●
73 NUT; BRKT,SHOCK
(B) M12 		8-98010-412-0 04 1 1511- ● ●
73 NUT; BRKT,SHOCK
(A) M16 SLOTTED 		8-98049-689-0 02 1 1511- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-743-0 01 1 1511- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-744-0 01 1 1511- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 1511- ● ●
178 PIN; SPLIT,S/ABS
OD=3.7 L=25 		0-81124-025-0 02 1 1511- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1511- ● ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1511- ● ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1511- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1511- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1511- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51173-038-0 02 1 1511- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-009-2 01 1 1511- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51174-008-2 01 1 1511- ● ●
192 PIECE; DIST
(A) 		1-51172-106-0 02 1 1511- ● ●
192 PIECE; DIST
(B) 		9-51377-038-0 01 1 1511- ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1511- ● ●
197 PIN; FRT SPR,FRT
(A) M12X80 		0-10856-280-0 12 1 1511- ● ●
197 PIN; FRT SPR,FRT
(B) 		1-51161-031-0 06 1 1511- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1511- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1511- ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1511- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1511- ● ●
208 U-BOLT SET; FRT SPRING
A/T<X9D> L=400 		1-87870-356-2 04 1 1511- ● ●
208 U-BOLT SET; FRT SPRING
MANUAL TRANSMISSION<X9C> L=380 		1-87870-488-1 04 1 1511- ● ●
258 BOLT; CUSHION,WIND UP
M8X35 FLANGE 		0-28050-835-0 04 1 1511- ● ●
544 BRACKET; RUBBER 1-51174-017-1 02 1 1511- ● ●
çizim 501286
82 344
BalonParca AdiParca NoAdetTipApplied Date A B
82 PIN; SPLIT,FRT S/ABS
OD=2.8 L=25 		9-08113-025-0 01 1 1511- ● ●
344 PIN; FRT S/ABS 9-43219-034-0 01 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
