4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#170240) — 144 parça

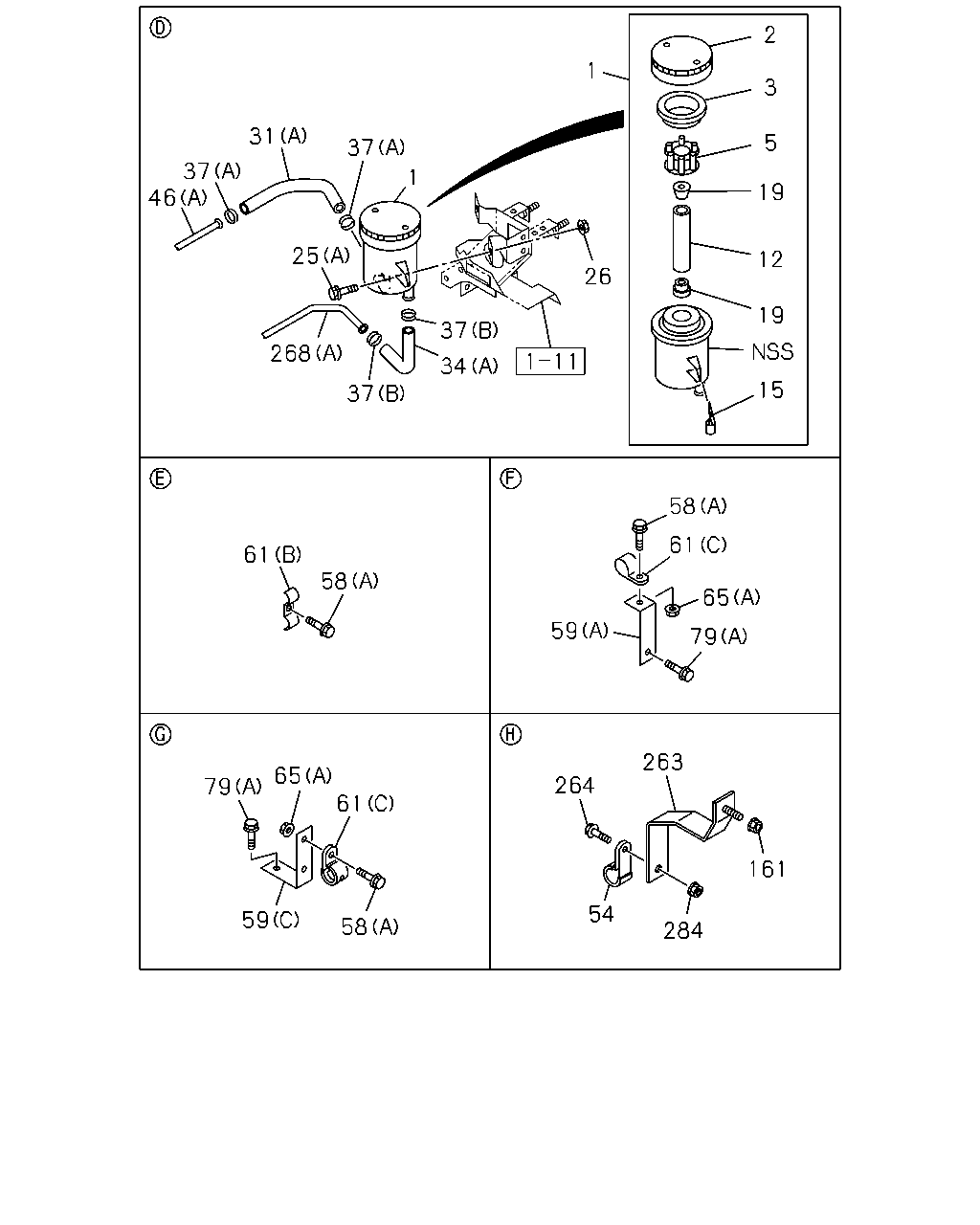

2 3 5 19 12 19 15 15 264 263 161 284 54 61 65 79 59 58 58 61 65 59 79 61 58 268 37 46 37 31 62 58 62 37 1 37 25 1 25 23 26 37 37 58 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1511-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1511-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1511-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1511-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1511-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1511-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1511-	●	●
23	BRACKET; OIL TANK,P/S	8-98125-268-0	01	1	1511-		●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
25	BOLT; OIL TANK BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	1511-		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	1511-	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	1511-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1511-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	1511-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1511-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1511-	●	●
37	CLIP; HOSE,P/S (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1511-		●
37	CLIP; HOSE,P/S (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1511-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2775	8-98111-272-0	01	1	1511-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2877	8-98182-043-0	01	1	1511-		●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1511-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	1511-	●	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	1511-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1511-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1511-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1511-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	1511-		●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
79	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	1511-	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
263	BRACKET; P/S PIPE	8-98246-643-0	01	1	1511-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98246-645-0	01	1	1511-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98246-641-0	01	1	1511-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1511-	●	●

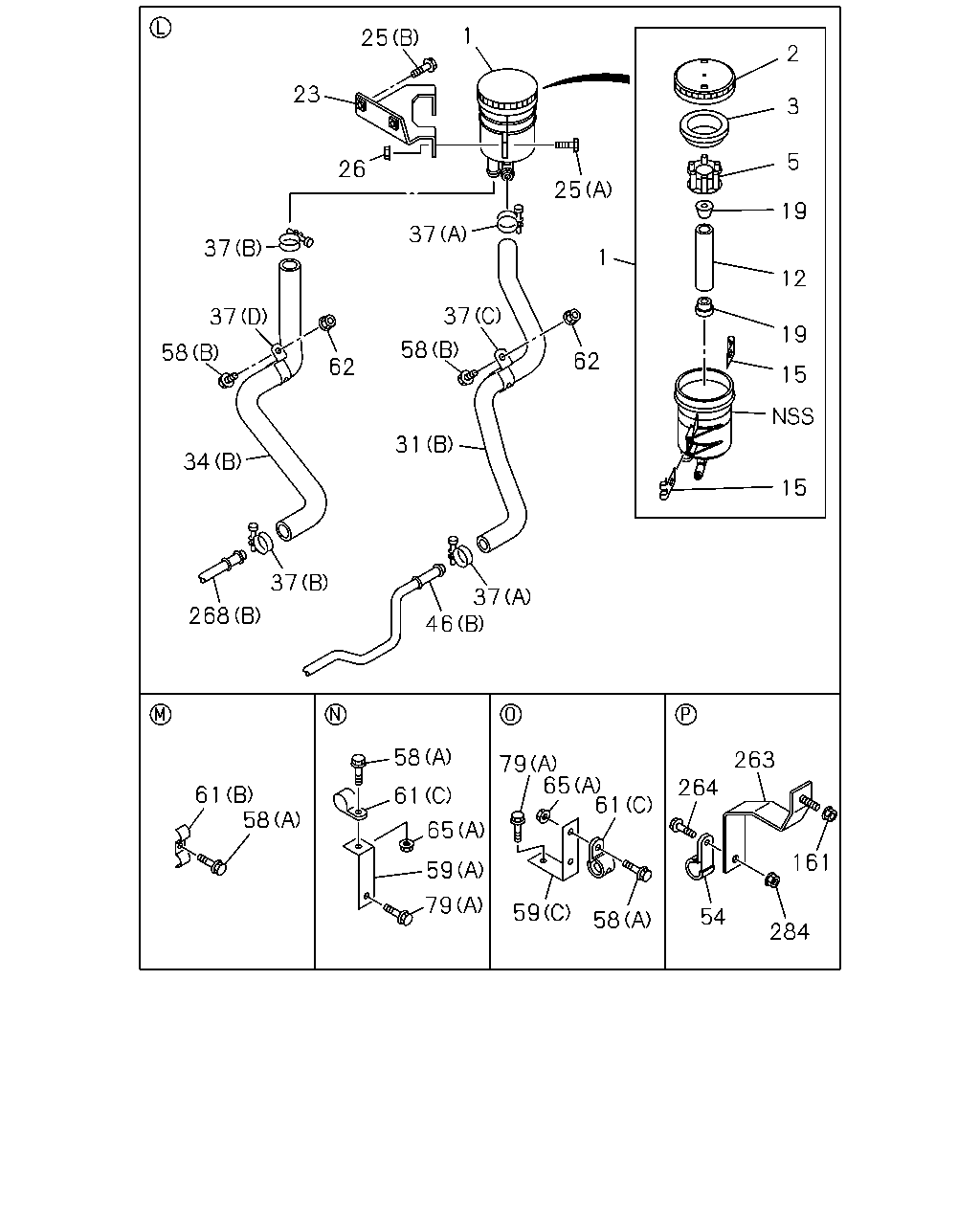

46 37 31 37 1 2 3 5 19 12 19 15 26 37 34 37 268 25 1 61 58 79 65 61 59 58 264 263 161 284 54 58 61 65 79 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1511-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1511-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1511-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1511-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1511-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1511-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1511-	●	●
25	BOLT; OIL TANK BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
25	BOLT; OIL TANK BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	1511-		●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	1511-	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	1511-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1511-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	1511-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1511-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1511-	●	●
37	CLIP; HOSE,P/S (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1511-		●
37	CLIP; HOSE,P/S (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1511-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2775	8-98111-272-0	01	1	1511-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2877	8-98182-043-0	01	1	1511-		●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1511-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	1511-	●	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	1511-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1511-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1511-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1511-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
79	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	1511-	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
263	BRACKET; P/S PIPE	8-98246-643-0	01	1	1511-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98246-645-0	01	1	1511-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98246-641-0	01	1	1511-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1511-	●	●

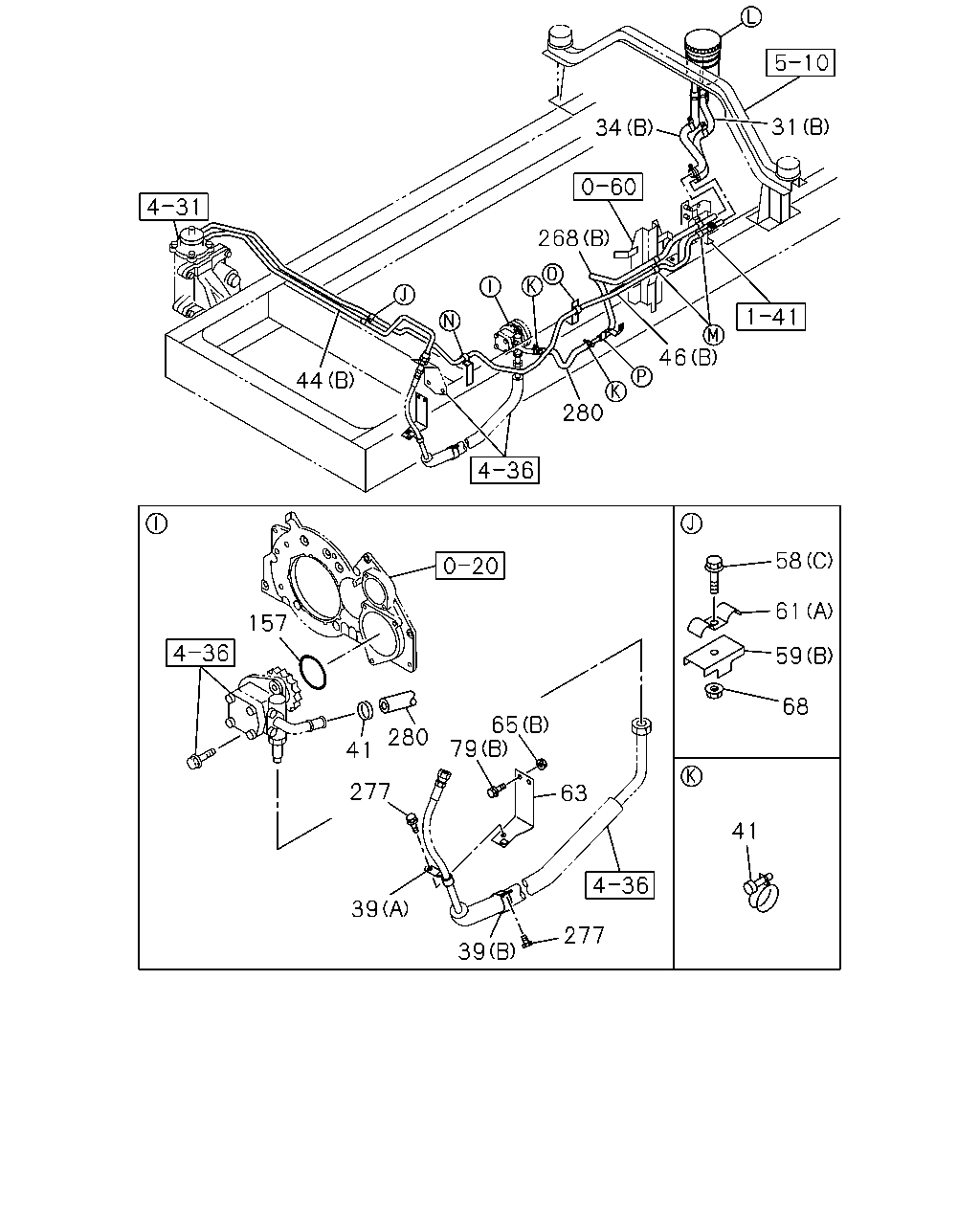

44 157 65 63 277 39 39 277 79 41 41 68 59 61 58 280 34 268 46 31 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	1511-	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	1511-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1511-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	1511-		●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1511-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1511-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1511-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-97623-288-0	01	1	1511-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98182-041-0	01	1	1511-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2775	8-98111-272-0	01	1	1511-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2877	8-98182-043-0	01	1	1511-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	1511-	●	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	1511-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1511-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1511-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1511-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-	●	●
63	BRACKET; CLIP,P/S	8-98215-731-0	01	1	1511-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
79	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	1511-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1511-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98246-645-0	01	1	1511-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98246-641-0	01	1	1511-		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98246-644-0	01	1	1511-	●	●

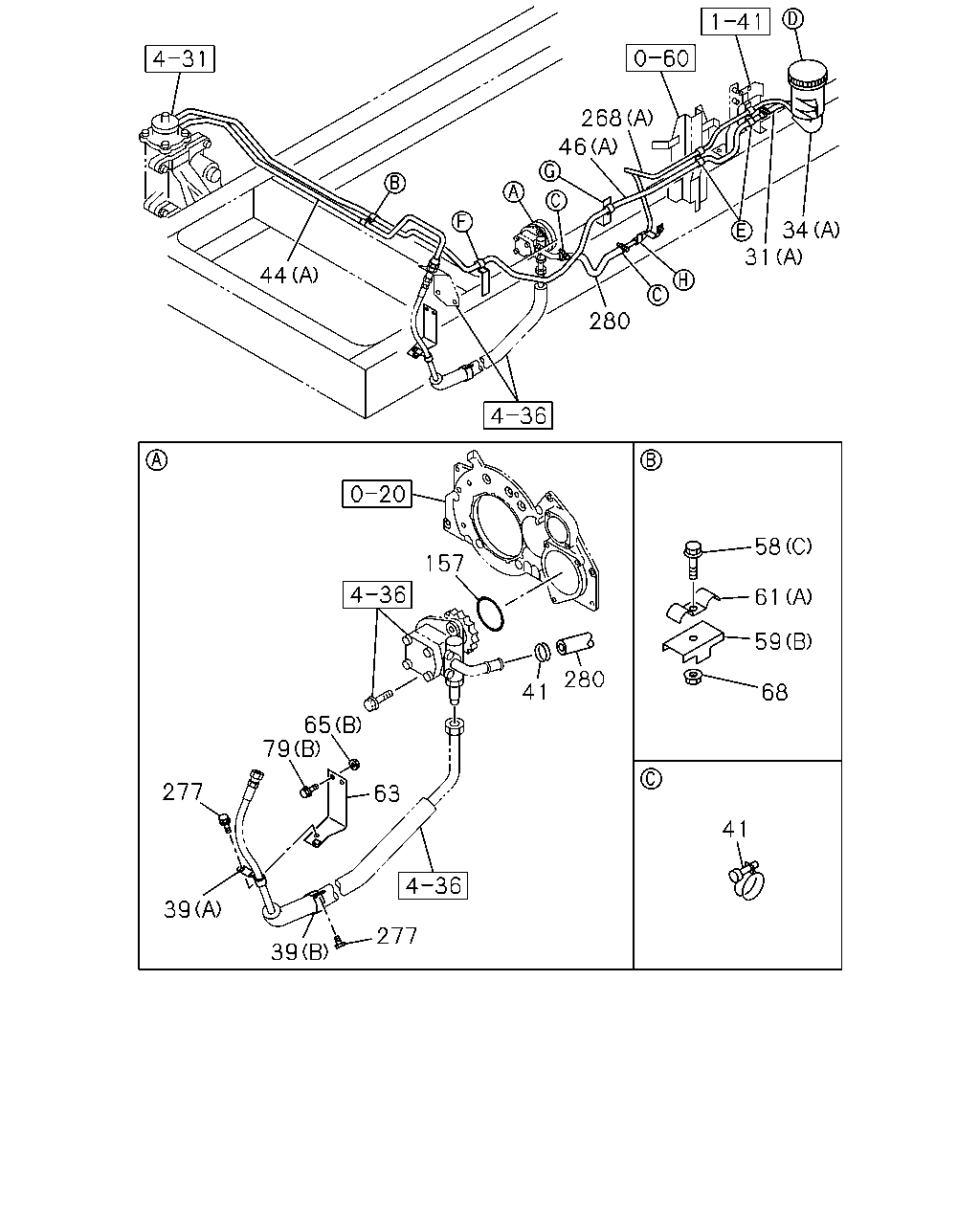

157 41 277 280 79 65 63 277 39 39 41 68 59 61 58 44 280 46 268 34 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	1511-	●
31	HOSE; P/S OIL TANK,INL (B)	8-98101-814-0	01	1	1511-		●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1511-	●
34	HOSE; P/S OIL TANK,OUTLET (B)	8-98101-815-0	01	1	1511-		●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1511-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1511-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1511-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (A)	8-97623-288-0	01	1	1511-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE (B)	8-98182-041-0	01	1	1511-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (A) L=2775	8-98111-272-0	01	1	1511-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK (B) L=2877	8-98182-043-0	01	1	1511-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	1511-	●	●
58	BOLT; CLIP (C) M8X40 FLANGE	0-28650-840-0	01	1	1511-	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1511-		●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1511-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1511-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-	●	●
63	BRACKET; CLIP,P/S	8-98215-731-0	01	1	1511-	●	●
65	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
65	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
79	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	02	1	1511-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1511-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98246-645-0	01	1	1511-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98246-641-0	01	1	1511-		●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98246-644-0	01	1	1511-	●	●
