◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11723 - FTS AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-15 - FRONT FINAL DRIVE ▶
4-15 — FRONT FINAL DRIVE (#170234) — 78 parça

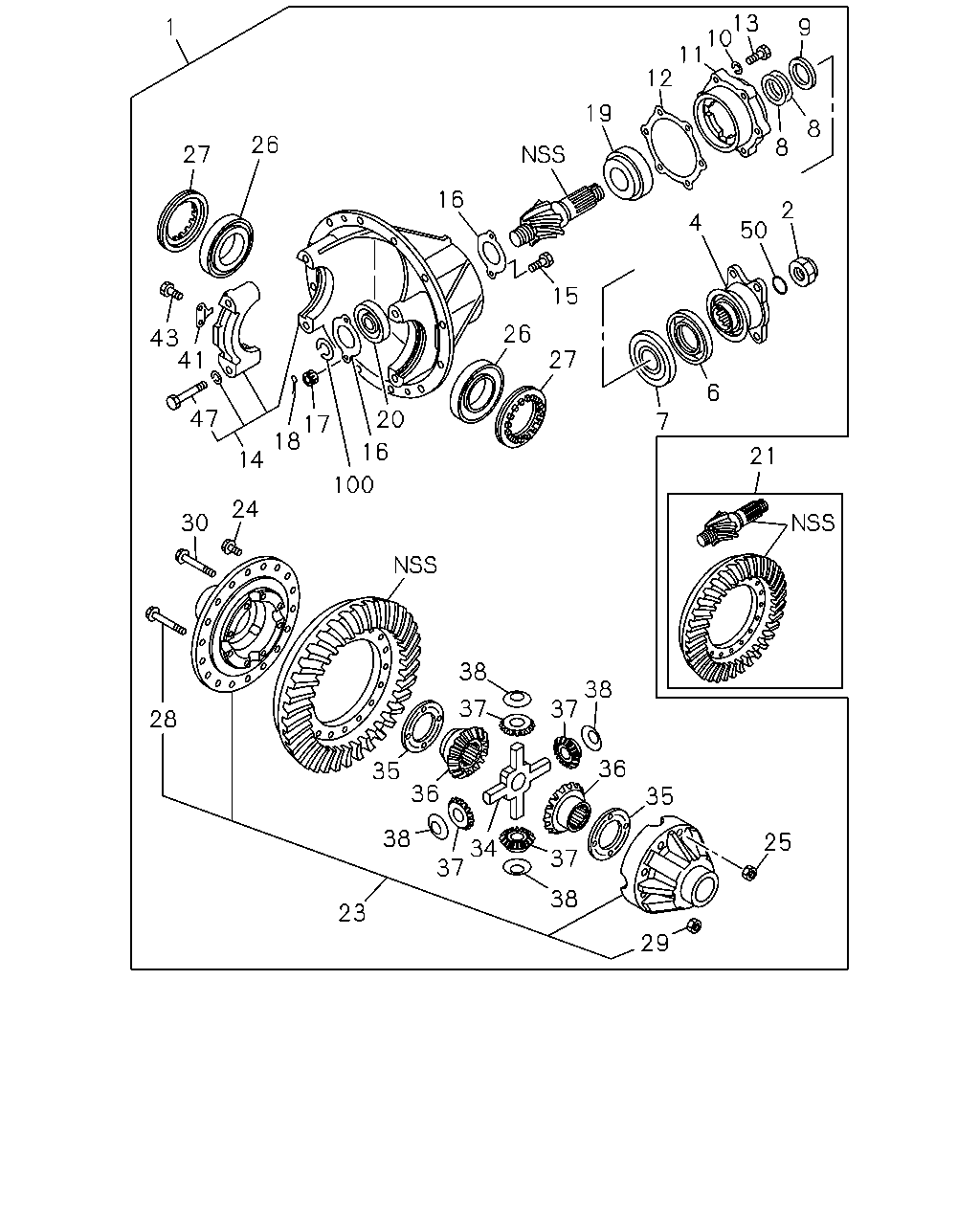

çizim 501604
1 27 26 43 41 47 16 19 12 11 10 13 9 8 8 2 50 4 15 27 26 20 17 16 18 14 24 30 100 28 6 7 21 38 37 37 38 36 35 25 29 38 37 34 37 36 35 38 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,FRT
FINAL GEAR 39/6 15.5"(W1T) 39/6 		1-41003-552-0 01 1 1511- ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR 39/7 15.5"(W3K) 39/7 		1-41003-260-0 01 1 1511- ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR 41/7 15.5"(W3S) 41/7 		1-41003-572-0 01 1 1511- ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR 43/7 15.5"(W1R) 43/7 		1-41003-305-0 01 1 1511- ● ●
2 NUT; FINAL DRIVE PINION
M36 FLANGE 		1-09449-083-0 01 1 1511- ● ●
4 COUPLING; FINAL DRIVE PINION 1-37245-415-0 01 1 1511- ● ●
6 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 1511- ● ●
6 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 1511- ● ●
7 BEARING; PINION,OUTER
JTEKT 		5-09812-062-1 01 1 1511- ● ●
7 BEARING; PINION,OUTER
NSK 		5-09812-063-0 01 1 1511- ● ●
8 SHIM; PINION,FINAL DRIVE
T=1.60 		1-41229-179-0 AR 1 1511- ● ●
8 SHIM; PINION,FINAL DRIVE
T=1.61 		1-41229-180-0 AR 1 1511- ● ●
8 SHIM; PINION,FINAL DRIVE
T=1.62 		1-41229-181-0 AR 1 1511- ● ●
8 SHIM; PINION,FINAL DRIVE
T=1.63 		1-41229-182-0 AR 1 1511- ● ●
8 SHIM; PINION,FINAL DRIVE
T=1.64 		1-41229-183-0 AR 1 1511- ● ●
8 SHIM; PINION,FINAL DRIVE
T=1.65 		1-41229-184-0 AR 1 1511- ● ●
8 SHIM; PINION,FINAL DRIVE
T=1.66 		1-41229-185-0 AR 1 1511- ● ●
8 SHIM; PINION,FINAL DRIVE
T=1.67 		1-41229-186-0 AR 1 1511- ● ●
8 SHIM; PINION,FINAL DRIVE
T=1.68 		1-41229-187-0 AR 1 1511- ● ●
8 SHIM; PINION,FINAL DRIVE
T=1.69 		1-41229-188-0 AR 1 1511- ● ●
8 SHIM; PINION,FINAL DRIVE
T=1.70 		1-41229-189-0 AR 1 1511- ● ●
9 COLLAR; DIST,PINION
T=10.7 		1-36355-031-0 01 1 1511- ● ●
9 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 1511- ● ●
9 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 1511- ● ●
9 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 1511- ● ●
9 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 1511- ● ●
9 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 1511- ● ●
9 COLLAR; DIST,PINION
T=11.9 		1-36355-043-0 01 1 1511- ● ●
9 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 1511- ● ●
9 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 1511- ● ●
10 WASHER; LK,FINAL PINION
ID=12.2 		0-91510-812-0 06 1 1511- ● ●
11 CAGE; FINAL PINION 1-41151-027-0 01 1 1511- ● ●
12 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 1511- ● ●
12 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 1511- ● ●
12 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 1511- ● ●
12 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 1511- ● ●
13 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 1511- ● ●
14 CARRIER ASM; FINAL DRIVE,FRT AXLE 1-41110-129-0 01 1 1511- ● ●
15 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-046-0 02 1 1511- ● ●
16 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 1511- ● ●
17 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1511- ● ●
18 PIN; SPLIT,RET 0-81122-012-0 02 1 1511- ● ●
19 BEARING; PINION,INNER
NSK 		1-09812-041-2 01 1 1511- ● ●
19 BEARING; PINION,INNER
JTEKT 		1-09812-042-1 01 1 1511- ● ●
20 BEARING; FINAL DRIVE PINION
NSK 		1-09810-073-2 01 1 1511- ● ●
20 BEARING; FINAL DRIVE PINION
JTEKT 		1-09810-074-1 01 1 1511- ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR 39/6 15.5"(W1T) 39/6 		1-41210-394-2 01 1 1511- ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR 39/7 15.5"(W3K) 39/7 		1-41210-391-2 01 1 1511- ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR 41/7 15.5"(W3S) 41/7 		1-41210-758-0 01 1 1511- ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR 43/7 15.5"(W1R) 43/7 		1-41210-392-2 01 1 1511- ● ●
23 CAGE ASM; DIFF,FINAL DRIVE 1-41510-343-0 01 1 1511- ● ●
24 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-1 16 1 1511- ● ●
25 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 04 1 1511- ● ●
26 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-1 01 1 1511- ● ●
26 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-1 01 1 1511- ● ●
26 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=33.3 		1-09812-062-2 01 1 1511- ● ●
26 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-249-0 01 1 1511- ● ●
27 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 1511- ● ●
27 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 1511- ● ●
28 BOLT; DIFF CAGE SETTING
M14X121 FLANGE 		1-09044-006-0 04 1 1511- ● ●
29 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 04 1 1511- ● ●
30 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 1511- ● ●
34 PIN; CROSS,DIFF PINION 1-41521-050-2 01 1 1511- ● ●
35 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-061-0 AR 1 1511- ● ●
35 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-062-0 AR 1 1511- ● ●
35 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-063-0 AR 1 1511- ● ●
35 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-064-0 AR 1 1511- ● ●
35 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-080-0 AR 1 1511- ● ●
35 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-081-0 AR 1 1511- ● ●
35 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-082-0 AR 1 1511- ● ●
36 GEAR; SIDE,DIFF
Z=16 		1-41561-149-0 02 1 1511- ● ●
37 GEAR; PINION DIFF
Z=10 		1-41551-049-0 04 1 1511- ● ●
38 WASHER; THRUST,PINION GEAR
ID=29 OD=60 		1-41562-119-0 04 1 1511- ● ●
41 PLATE; LK,ADJ NUT
T=2.3 		9-41124-015-0 02 1 1511- ● ●
43 BOLT; LK PLATE
M8X12 FLANGE 		8-94479-696-1 04 1 1511- ● ●
47 BOLT; BRG CAP
M16X100 FLANGE 		1-09070-047-0 04 1 1511- ● ●
50 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 1511- ● ●
100 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-214-0 01 1 1511- ● ●
