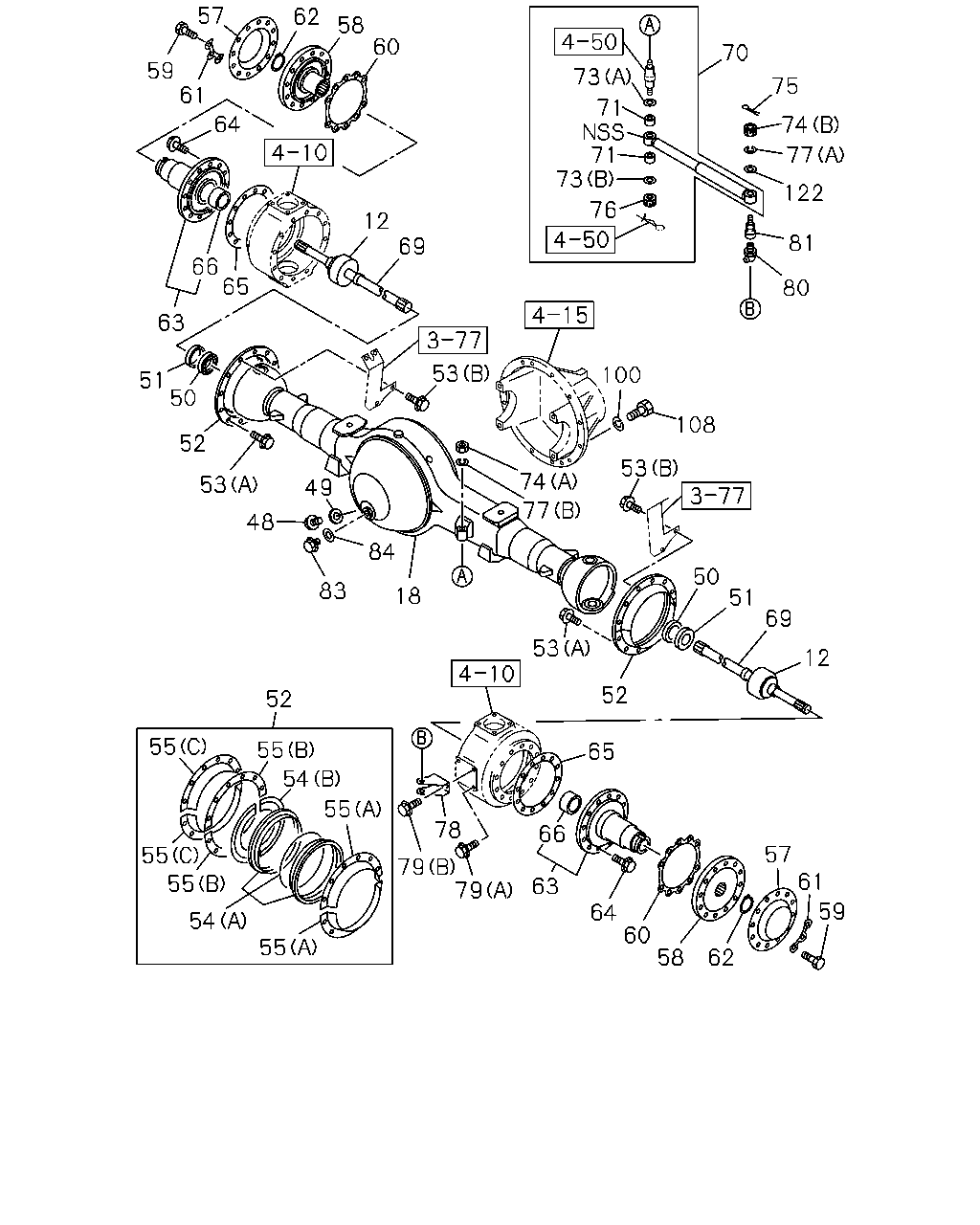

4-12 — FRONT DRIVE SHAFT (#170233) — 58 parça

57 62 59 64 61 58 66 60 65 63 12 51 52 50 69 53 53 83 18 52 53 48 84 49 74 53 108 100 52 50 51 69 12 80 81 122 77 74 75 70 73 73 71 55 55 54 55 55 55 54 55 79 79 66 63 64 65 60 57 61 59 71 76 77 58 62 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	JOINT ASM	1-43330-018-0	02	1	1511-	●	●
18	CASE; FRT AXLE	8-98205-337-0	01	1	1511-	●	●
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1511-	●	●
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1511-	●	●
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	1511-	●	●
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	1511-	●	●
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	1511-	●	●
53	BOLT; OIL SEAL (A) M8X12 FLANGE	0-28050-812-0	16	1	1511-	●	●
53	BOLT; OIL SEAL (B) M8X16 FLANGE	0-28050-816-0	08	1	1511-	●	●
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	1511-	●	●
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	1511-	●	●
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	1511-	●	●
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	1511-	●	●
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	1511-	●	●
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1511-	●	●
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1511-	●	●
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1511-	●	●
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1511-	●	●
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1511-	●	●
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	1511-	●	●
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	1511-	●	●
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1511-	●	●
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	12	1	1511-	●	●
64	BOLT; SPINDLE M12X70 FLANGE	0-28061-270-0	04	1	1511-	●	●
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	1511-	●	●
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	1511-	●	●
69	SHAFT; AXLE,FRT INNER	8-98203-700-0	01	1	1511-	●	●
69	SHAFT; AXLE,FRT INNER	8-98203-701-0	01	1	1511-	●	●
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	1511-	●	●
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	1511-	●	●
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	1511-	●	●
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	1511-	●	●
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	1511-	●	●
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	1511-	●	●
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	1511-	●	●
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	1511-	●	●
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	1511-	●	●
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	1511-	●	●
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	1511-	●	●
79	BOLT; BRKT (A) M12X20 FLANGE	0-28051-220-0	02	1	1511-	●	●
79	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	1511-	●	●
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-	●	●
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	1511-	●	●
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	1511-	●	●
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	1511-	●	●
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	1511-	●	●
108	BOLT; FRT FINAL DRIVE M12X60	0-10956-260-0	04	1	1511-	●	●
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	08	1	1511-	●	●
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	1511-	●	●

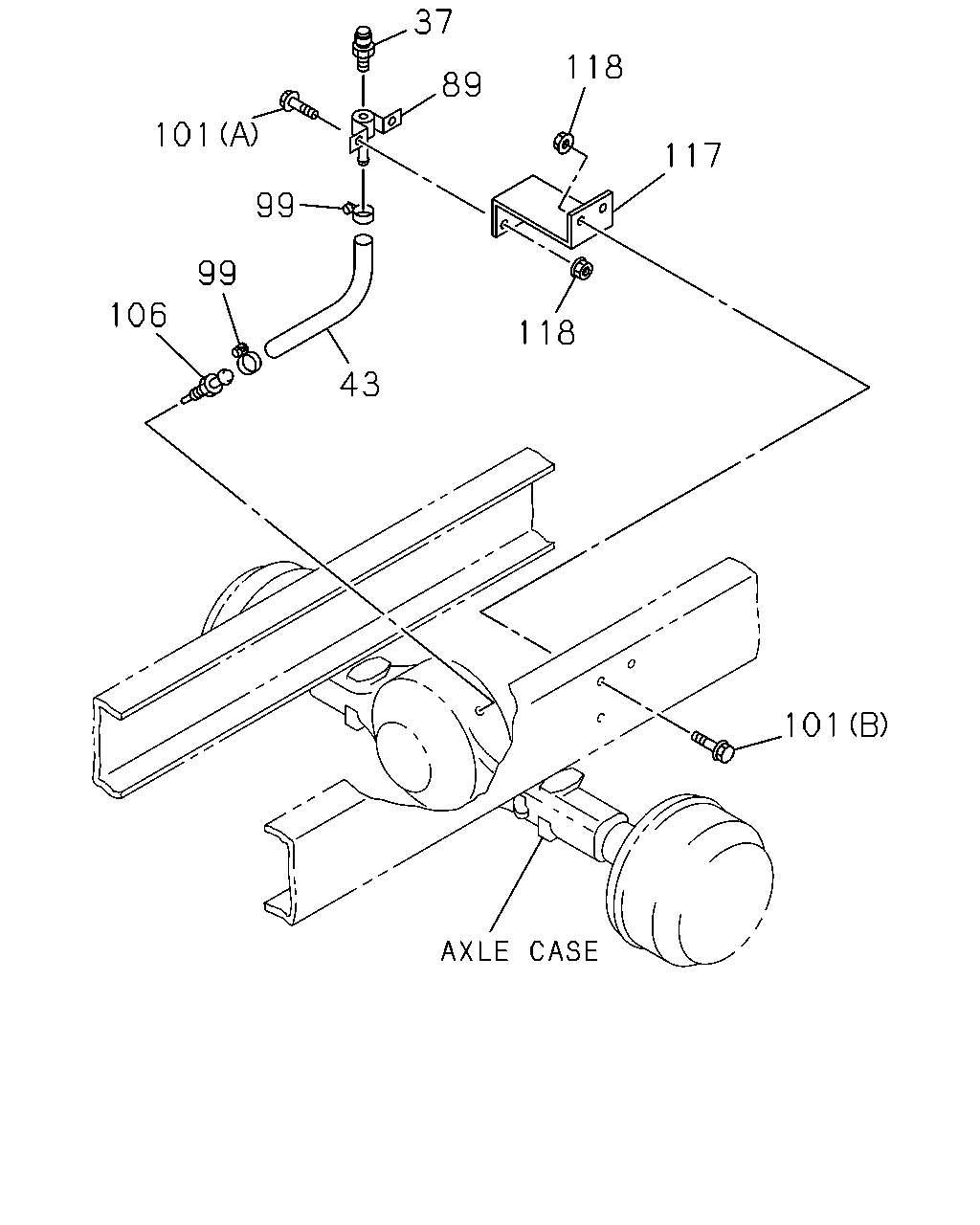

101 99 99 106 43 118 117 118 89 37 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BREATHER; FRT AXLE CASE	9-36122-013-0	01	1	1511-	●	●
43	HOSE; RUBBER,AIR BREATHER L=440 SERVICED BY L=3000	0-02857-300-0	01	1	1511-	●	●
89	ADAPTER; AIR BREATHER	1-09669-066-0	01	1	1511-	●	●
99	CLIP; RUBBER HOSE ID=15	1-09704-018-1	02	1	1511-	●	●
101	BOLT; BRKT,ADAPTER (A) M8X20 FLANGE	0-28050-820-0	02	1	1511-	●	●
101	BOLT; BRKT,ADAPTER (B) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
106	CONNECTOR; RUBBER HOSE	1-09669-081-0	01	1	1511-	●	●
117	BRACKET; ADAPTER,AIR BREATHER	1-42129-203-0	01	1	1511-	●	●
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
