8-15 — FIXING PARTS; WIRING HARNESS (#17023) — 151 parça

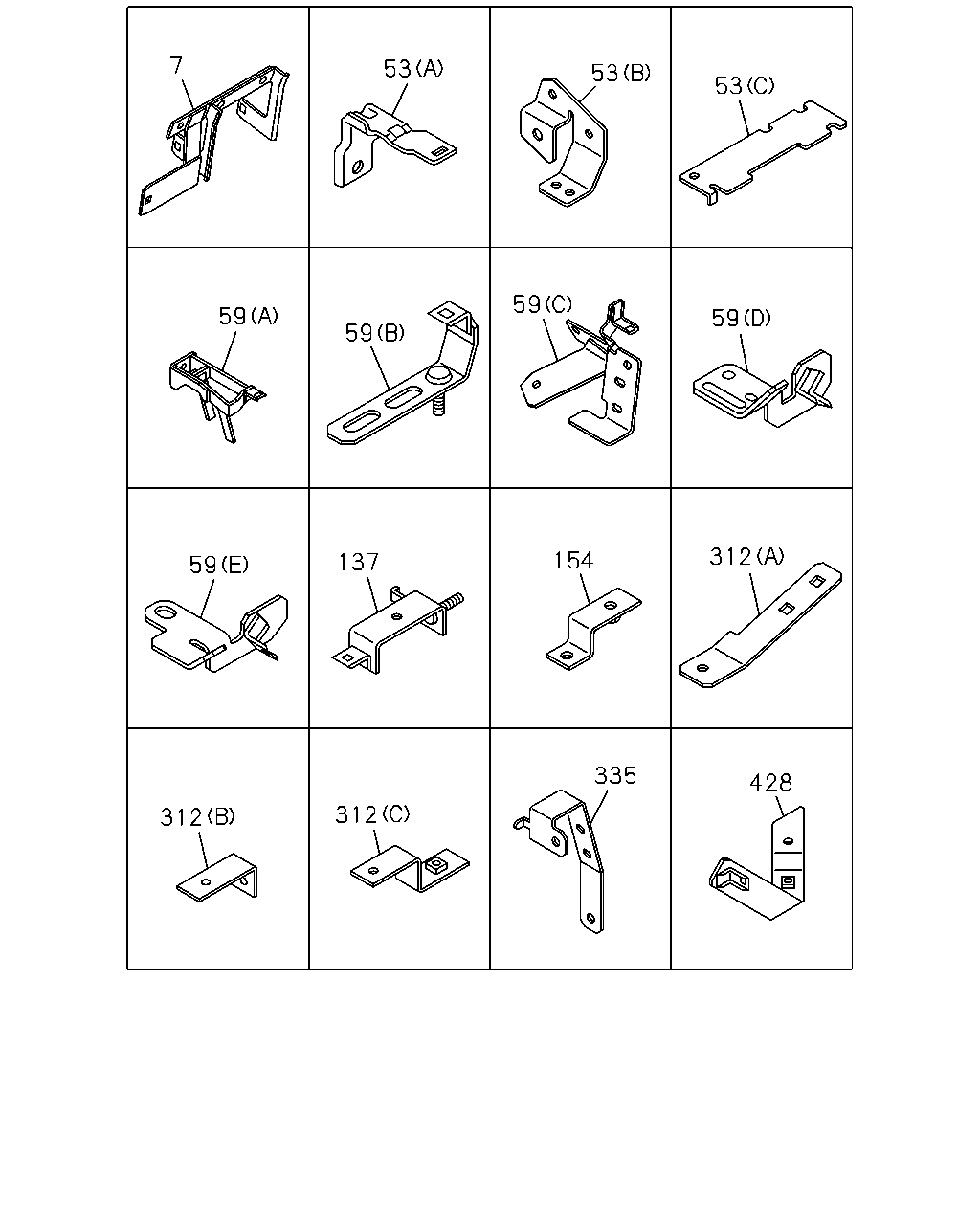

7 53 53 53 59 59 59 59 59 137 154 312 312 312 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1110-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1110-
53	BRACKET; HARNESS (C)	8-98127-093-0	01	1	1110-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98084-590-0	01	1	1110-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1110-1502
59	BRACKET; FRAME HARNESS (E)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (B)	8-98047-730-0	02	1	1110-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1110-
59	BRACKET; FRAME HARNESS MLD6A M/T(X5N) (A)	8-97627-325-0	01	1	1110-
59	BRACKET; FRAME HARNESS MZW6P M/T(RSZ) (A)	8-97609-264-2	01	1	1110-
137	BRACKET; HARNESS CLAMP	8-98018-251-1	01	1	1110-
154	BRACKET; STARTER EARTH CABLE	1-47465-518-0	01	1	1110-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1110-
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	1110-
312	BRACKET; CLIP HARNESS MZW6P M/T(RSZ) (A)	8-98097-366-0	01	1	1110-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1110-
428	BRACKET	8-97620-514-0	01	1	1110-

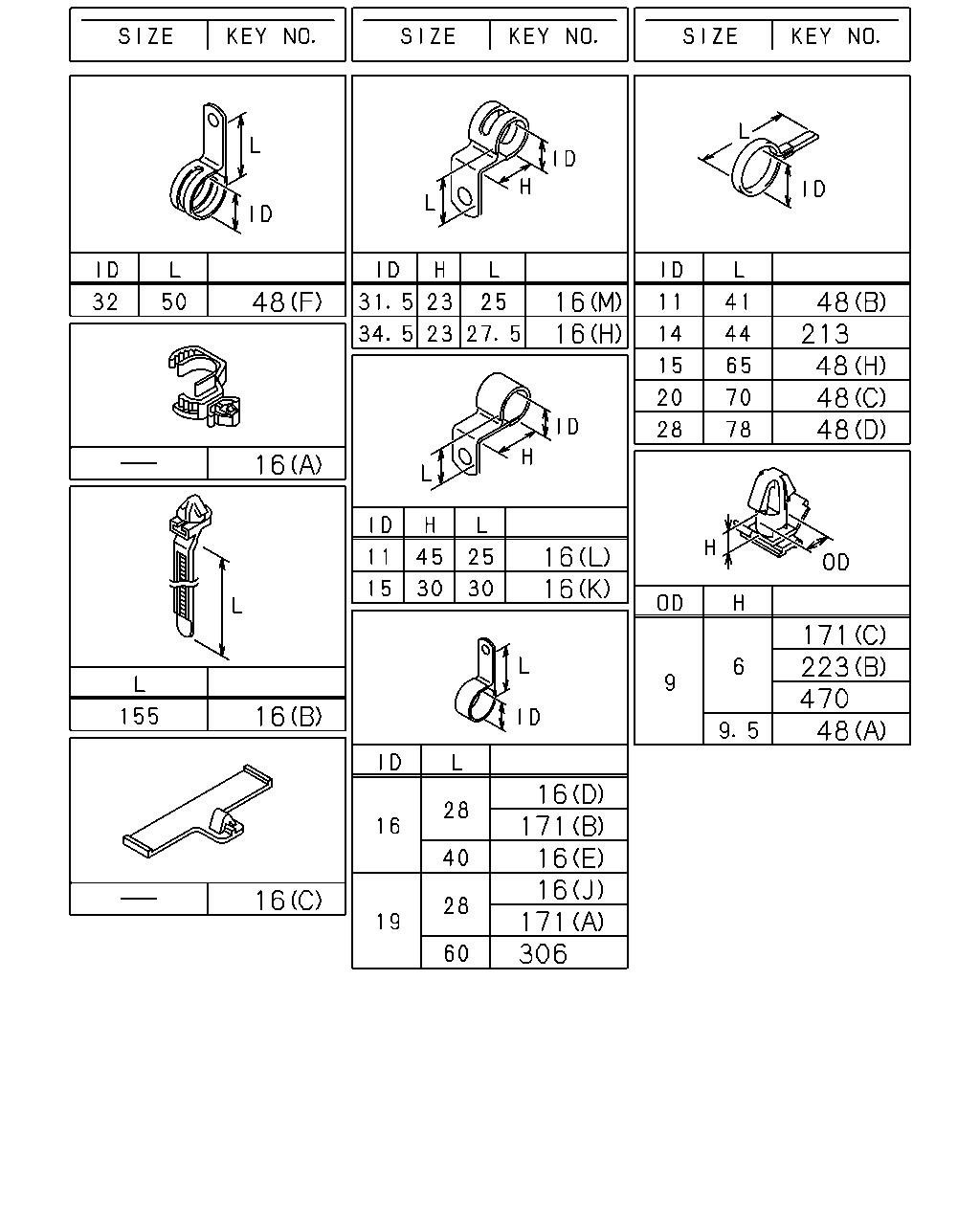

48 16 16 48 213 48 48 48 16 16 16 171 223 470 48 16 16 171 16 16 171 306 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (E) ID=16 L=40	0-95235-576-0	01	1	1110-
16	CLIP; HARNESS (J) ID=19 L=28	0-95235-856-0	01	1	1110-
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1110-
16	CLIP; HARNESS (K) ID=15 H=30 L=30	1-09700-832-0	02	1	1110-
16	CLIP; HARNESS (L) ID=11 H=45 L=25	1-09700-866-0	02	1	1110-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1110-
16	CLIP; HARNESS (M) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1110-
16	CLIP; HARNESS (M) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1110-
16	CLIP; HARNESS (N) L=175	1-09707-178-0	01	1	1110-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1110-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	03	1	1110-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1110-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	02	1	1110-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	01	1	1110-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	1110-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1110-
48	CLIP; FRAME HARNESS (G) L=250	5-09707-030-1	01	1	1110-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1110-1201
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (A) OD=9 H=9.5	1-09709-179-0	01	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (H) ID=15 L=65	1-09700-466-0	04	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (C) ID=20 L=70	1-09700-485-0	05	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	06	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (H) ID=15 L=65	1-09700-466-0	05	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (C) ID=20 L=70	1-09700-485-0	08	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (H) ID=15 L=65	1-09700-466-0	06	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=20 L=70	1-09700-485-0	09	1	1110-
171	CLIP; STARTER HARNESS MLD6A M/T(X5N) (A) ID=19 L=28	0-95235-856-0	01	1	1110-
171	CLIP; STARTER HARNESS MLD6A M/T(X5N) (B) ID=16 L=28	0-95235-556-0	01	1	1110-
171	CLIP; STARTER HARNESS MLD6A M/T(X5N) (C) OD=9 H=6	1-09709-178-0	01	1	1110-
171	CLIP; STARTER HARNESS MLD6A M/T(X5N) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1110-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1110-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1110-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1110-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1110-
306	CLIP; HARNESS,ELEC GOV ID=19 L=60	0-95235-896-0	01	1	1110-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1110-

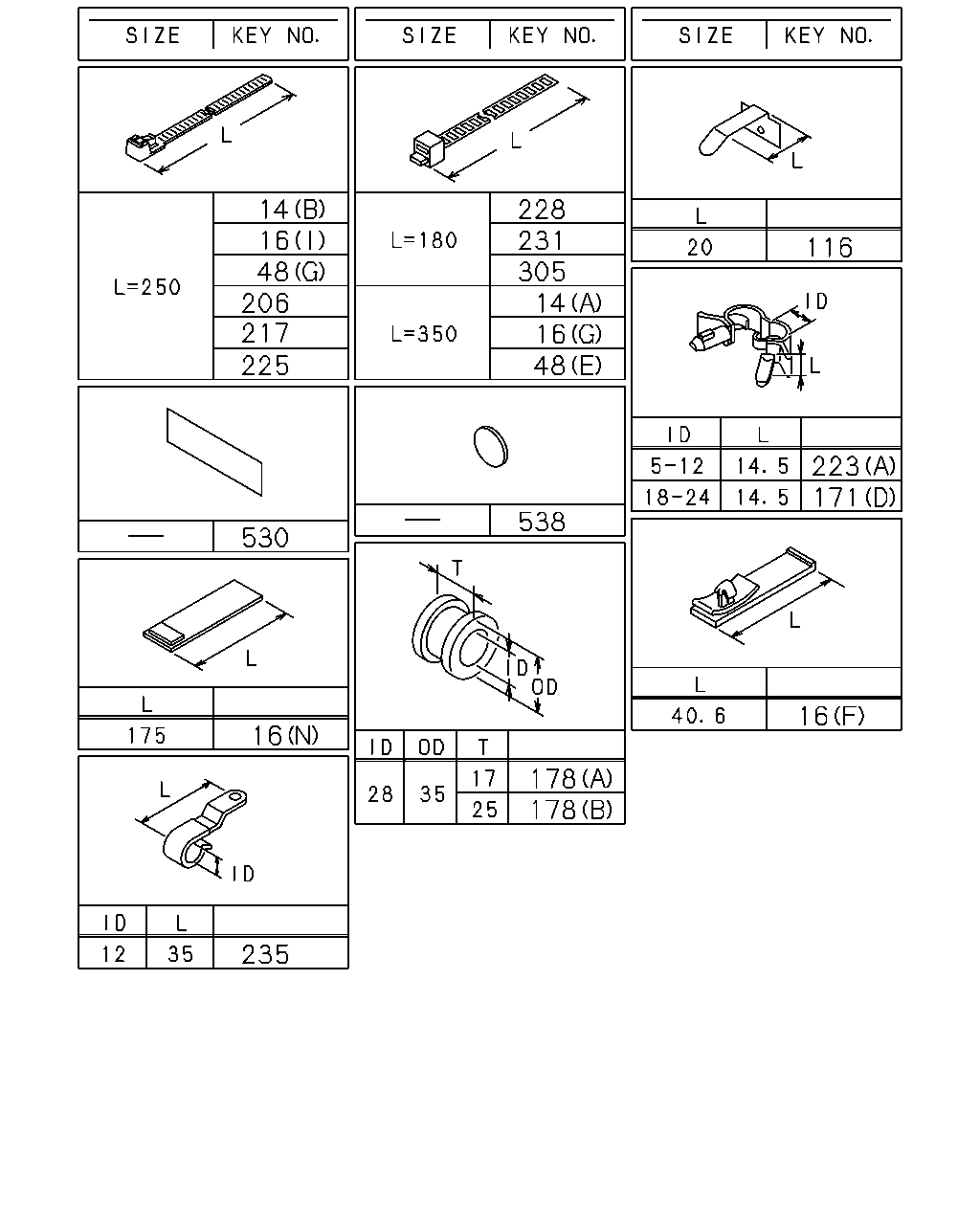

14 16 48 206 217 225 228 231 305 14 16 48 116 223 171 538 530 16 16 178 178 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	01	1	1110-1205
14	CLIP; BAND,HARNESS (B) L=250	8-98216-430-0	01	1	1206-
14	CLIP; BAND,HARNESS MLD6A M/T(X5N) (A) L=350	1-09707-183-0	01	1	1110-
16	CLIP; HARNESS (E) ID=16 L=40	0-95235-576-0	01	1	1110-
16	CLIP; HARNESS (J) ID=19 L=28	0-95235-856-0	01	1	1110-
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	1110-
16	CLIP; HARNESS (K) ID=15 H=30 L=30	1-09700-832-0	02	1	1110-
16	CLIP; HARNESS (L) ID=11 H=45 L=25	1-09700-866-0	02	1	1110-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1110-
16	CLIP; HARNESS (M) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1110-
16	CLIP; HARNESS (M) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1110-
16	CLIP; HARNESS (N) L=175	1-09707-178-0	01	1	1110-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1110-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	03	1	1110-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	1110-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1110-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1110-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	02	1	1110-
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	01	1	1110-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	1110-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1110-
48	CLIP; FRAME HARNESS (G) L=250	5-09707-030-1	01	1	1110-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1110-1201
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (A) OD=9 H=9.5	1-09709-179-0	01	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (H) ID=15 L=65	1-09700-466-0	04	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (C) ID=20 L=70	1-09700-485-0	05	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (C) ID=20 L=70	1-09700-485-0	06	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (H) ID=15 L=65	1-09700-466-0	05	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (C) ID=20 L=70	1-09700-485-0	08	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (H) ID=15 L=65	1-09700-466-0	06	1	1110-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=20 L=70	1-09700-485-0	09	1	1110-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1110-
171	CLIP; STARTER HARNESS MLD6A M/T(X5N) (A) ID=19 L=28	0-95235-856-0	01	1	1110-
171	CLIP; STARTER HARNESS MLD6A M/T(X5N) (B) ID=16 L=28	0-95235-556-0	01	1	1110-
171	CLIP; STARTER HARNESS MLD6A M/T(X5N) (C) OD=9 H=6	1-09709-178-0	01	1	1110-
171	CLIP; STARTER HARNESS MLD6A M/T(X5N) (D) ID=18-24 L=14.5	1-09709-298-0	01	1	1110-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	04	1	1110-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1110-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1110-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1110-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	1110-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1110-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1110-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	02	1	1110-
228	CLIP; COOLER HARNESS AIR CONDITIONER MANUAL CONTROL(C60) L=180	1-09707-162-1	01	1	1110-
231	CLIP; BAND,OIL PRESS L=180	1-09707-162-1	01	1	1110-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6A M/T(X5N) ID=12 L=35	5-09700-206-0	01	1	1110-
305	CLIP; ENG HARNESS L=180	1-09707-162-1	01	1	1110-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1110-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	17	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	1110-1305
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1110-

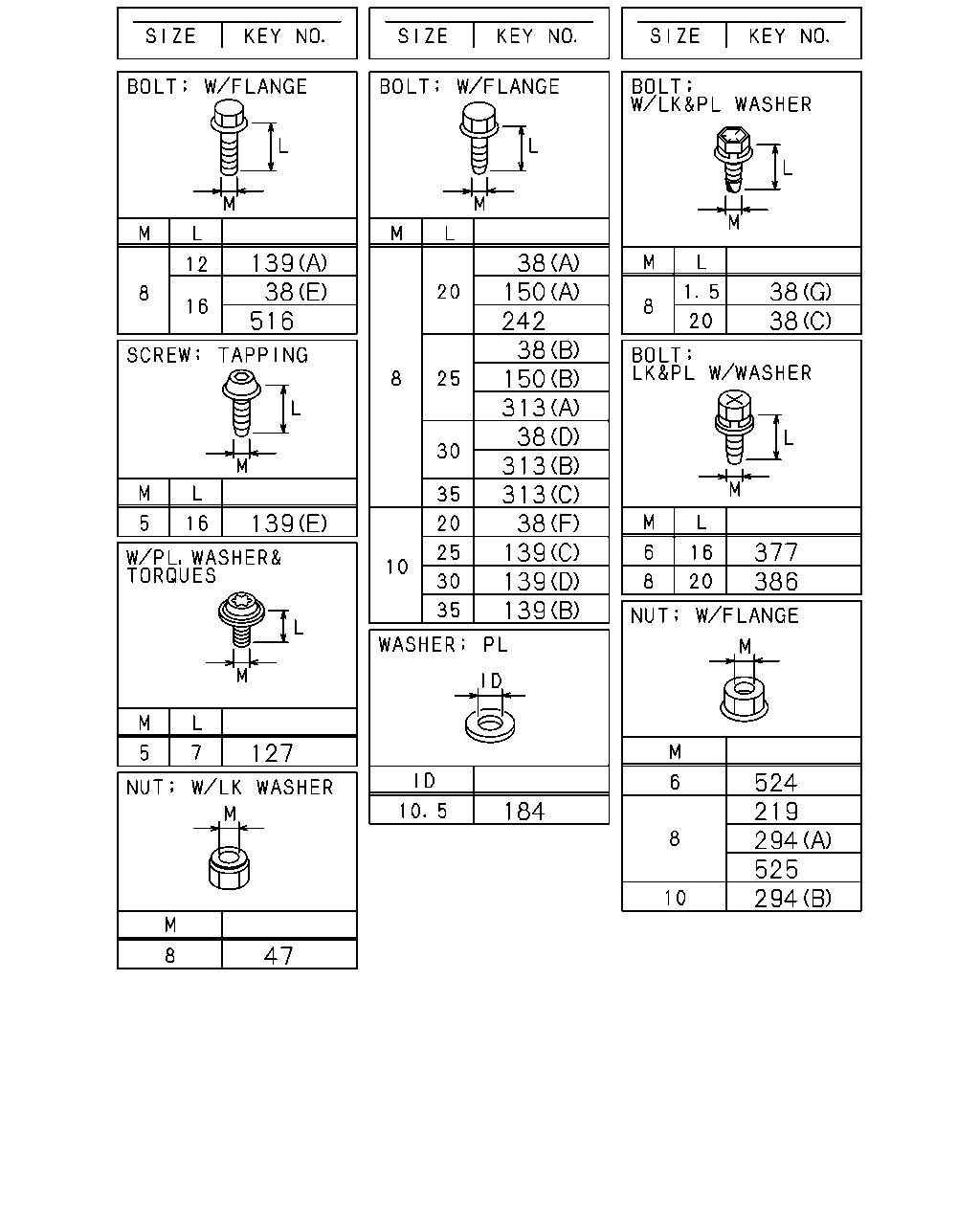

139 516 38 139 127 47 38 242 150 38 313 150 38 313 313 38 139 139 139 184 38 38 377 386 524 219 294 525 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (E) M8X16 FLANGE	0-28050-816-0	03	1	1110-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	03	1	1110-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	1110-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1110-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1110-1201
38	BOLT; CLIP,HARNESS (G) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1202-
38	BOLT; CLIP,HARNESS MLD6A M/T(X5N) (F) M10X20 FLANGE	0-28751-020-0	01	1	1110-
38	BOLT; CLIP,HARNESS MZW6P M/T(RSZ) (E) M8X16 FLANGE	0-28050-816-0	01	1	1110-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1110-
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1110-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1110-
139	BOLT; BRKT (D) M10X30 FLANGE	0-28651-030-0	01	1	1110-
139	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	01	1	1110-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1110-
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1110-
150	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1110-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1110-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1110-
242	BOLT; BRKT,HARNESS M8X20 FLANGE	0-28650-820-0	01	1	1110-
294	NUT (A) M8 FLANGE	0-91180-108-0	06	1	1110-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1110-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1110-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1110-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1110-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1110-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1110-
313	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1110-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1110-
386	BOLT; GRAND HARNESS M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1110-1202
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS MLD6A M/T(X5N) M8X16 FLANGE	0-28050-816-0	02	1	1110-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1110-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1110-
