3-77 — BRAKE PIPING; AIR,REAR (#170228) — 69 parça

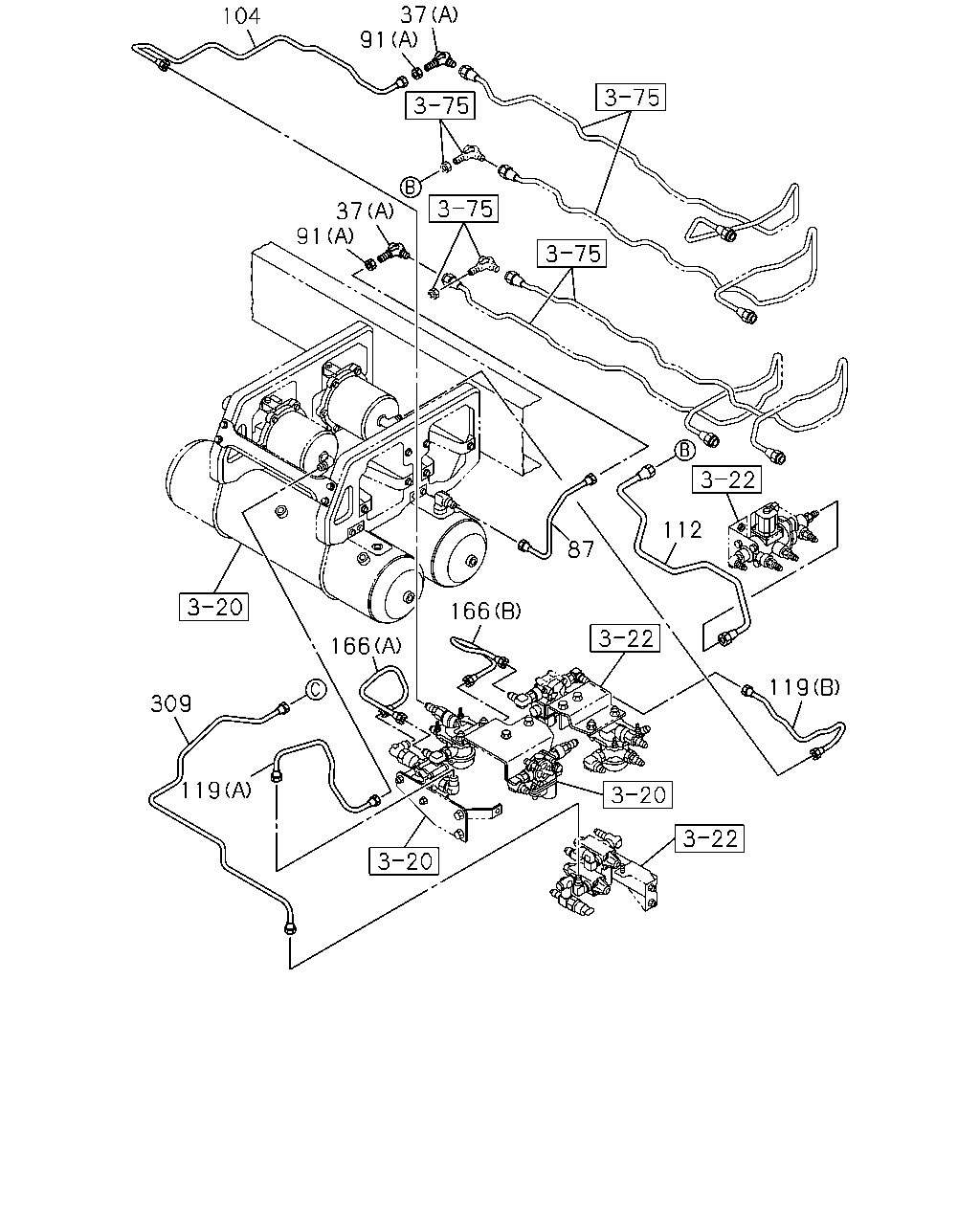

çizim 500972
37 119 166 166 119 309 87 112 91 37 91 104
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=42 		0-92123-010-0 01 1 1511- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1511- ● ●
37 UNION; AIR PIPE
(C) M16 		1-09654-148-1 01 1 1511- ● ●
87 PIPE; AIR,AIR TANK TO UNION
H.S.A SYSTEM<6EP> L=585 SERVICED BY L=600 		1-47428-868-0 01 1 1511- ●
87 PIPE; AIR,AIR TANK TO UNION
EXC. H.S.A SYSTEM<6EP> L=434 		8-98230-379-0 01 1 1511- ●
87 PIPE; AIR,AIR TANK TO UNION
H.S.A SYSTEM<6EP> L=580 SERVICED BY L=600 		1-47428-868-0 01 1 1511- ●
87 PIPE; AIR,AIR TANK TO UNION
EXC. H.S.A SYSTEM<6EP> L=364 		8-98233-894-0 01 1 1511- ●
91 NUT; PIPE UNION
(B) M12 		0-91111-512-0 01 1 1511- ● ●
91 NUT; PIPE UNION
(B) M12 		0-91111-512-0 01 1 1511- ● ●
91 NUT; PIPE UNION
(A) M16 		0-91111-516-0 03 1 1511- ● ●
104 PIPE; AIR,UNION TO UNION
EXC. H.S.A SYSTEM<6EP> L=1024 		8-98244-584-0 01 1 1511- ●
104 PIPE; AIR,UNION TO UNION
H.S.A SYSTEM<6EP> L=1287 SERVICED BY L=1300 		1-47428-877-0 01 1 1511- ● ●
104 PIPE; AIR,UNION TO UNION
EXC. H.S.A SYSTEM<6EP> L=1012 		8-98233-895-0 01 1 1511- ●
112 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=550 SERVICED BY L=550 		1-47428-867-0 01 1 1511- ●
112 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=513 SERVICED BY L=550 		1-47428-867-0 01 1 1511- ●
119 PIPE; AIR,VLV TO AIR MASTER
(A) L=468 		8-98230-353-0 01 1 1511- ● ●
119 PIPE; AIR,VLV TO AIR MASTER
(B) L=458 		8-98236-971-0 01 1 1511- ● ●
166 PIPE; AIR,RELAY VALVE TO UNION
(A) L=380 		8-98230-358-0 01 1 1511- ● ●
166 PIPE; AIR,RELAY VALVE TO UNION
(B) L=395 		8-98244-575-0 01 1 1511- ● ●
309 PIPE; AIR,MPV TO UNION
L=1226 SERVICED BY L=1250 		1-47428-876-0 01 1 1511- ●
309 PIPE; AIR,MPV TO UNION
L=1251 		8-98233-901-0 01 1 1511- ●

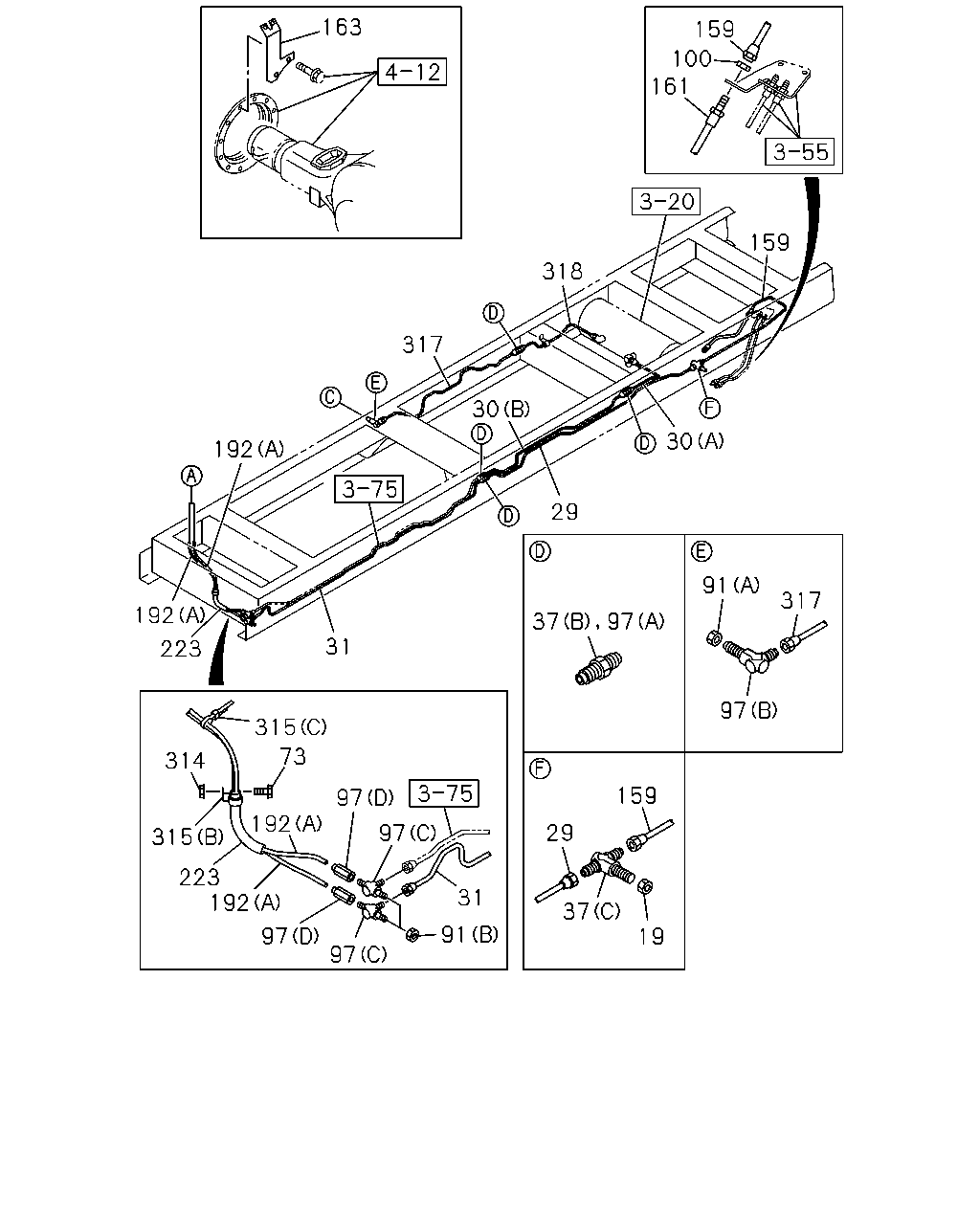

çizim 501572
192 192 192 192 97 97 97 97 97 97 91 318 223 163 159 100 161 159 30 29 30 317 31 37 159 19 37 29 31 223 315 314 315 73 317 91
BalonParca AdiParca NoAdetTipApplied Date A B
19 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1511- ● ●
29 PIPE; AIR,UNION TO UNION
L=2757 SERVICED BY L=2900 		1-47428-885-0 01 1 1511- ● ●
30 PIPE; AIR,AIR TANK TO JOINT
(A) L=519 SERVICED BY L=550 		1-47428-867-0 01 1 1511- ● ●
30 PIPE; AIR,AIR TANK TO JOINT
(B) L=1701 SERVICED BY L=1900 		1-47428-881-0 01 1 1511- ● ●
31 PIPE; AIR,UNION TO UNION
L=2366 		8-98244-619-0 01 1 1511- ● ●
37 UNION; AIR PIPE
(B) M16 L=42 		0-92123-010-0 01 1 1511- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1511- ● ●
37 UNION; AIR PIPE
(C) M16 		1-09654-148-1 01 1 1511- ● ●
73 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
91 NUT; PIPE UNION
(B) M12 		0-91111-512-0 01 1 1511- ● ●
91 NUT; PIPE UNION
(B) M12 		0-91111-512-0 01 1 1511- ● ●
91 NUT; PIPE UNION
(A) M16 		0-91111-516-0 03 1 1511- ● ●
97 UNION; AIR PIPE
(A) M16 L=42 		0-92123-010-0 01 1 1511- ● ●
97 UNION; AIR PIPE
(A) M16 L=42 		0-92123-010-0 01 1 1511- ● ●
97 UNION; AIR PIPE
(A) M16 L=42 		0-92123-010-0 01 1 1511- ● ●
97 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1511- ● ●
97 UNION; AIR PIPE
(C) M16 2WAY 		1-09650-182-1 02 1 1511- ● ●
97 UNION; AIR PIPE
(D) DIN8 & M16 STRAIGHT 		1-09660-875-0 02 1 1511- ● ●
100 NUT; UNION
M16 		0-91111-516-0 01 1 1511- ● ●
159 PIPE; AIR,UNION TO FLEX HOSE 8-98111-625-0 01 1 1511- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
A/T<X9D> L=580 		1-09363-764-0 01 1 1511- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
MANUAL TRANSMISSION<X9C> L=520 		1-09363-605-0 01 1 1511- ● ●
163 BRACKET; FLEX HOSE 8-98093-260-0 01 1 1511- ● ●
163 BRACKET; FLEX HOSE 8-98106-706-0 01 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98232-700-2 01 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1511- ● ●
314 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
315 CLIP
(C) L=350 		1-09707-183-0 01 1 1511- ● ●
315 CLIP
(B) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1511- ● ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1511- ● ●
317 PIPE; AIR,UNION,AIR TANK
L=1049 SERVICED BY L=1100 		1-47428-875-0 01 1 1511- ●
317 PIPE; AIR,UNION,AIR TANK
L=632 SERVICED BY L=660 		1-47428-869-0 01 1 1511- ●
318 PIPE; AIR,UNION TO AIR TANK
L=705 SERVICED BY L=730 		1-47428-871-0 01 1 1511- ● ●

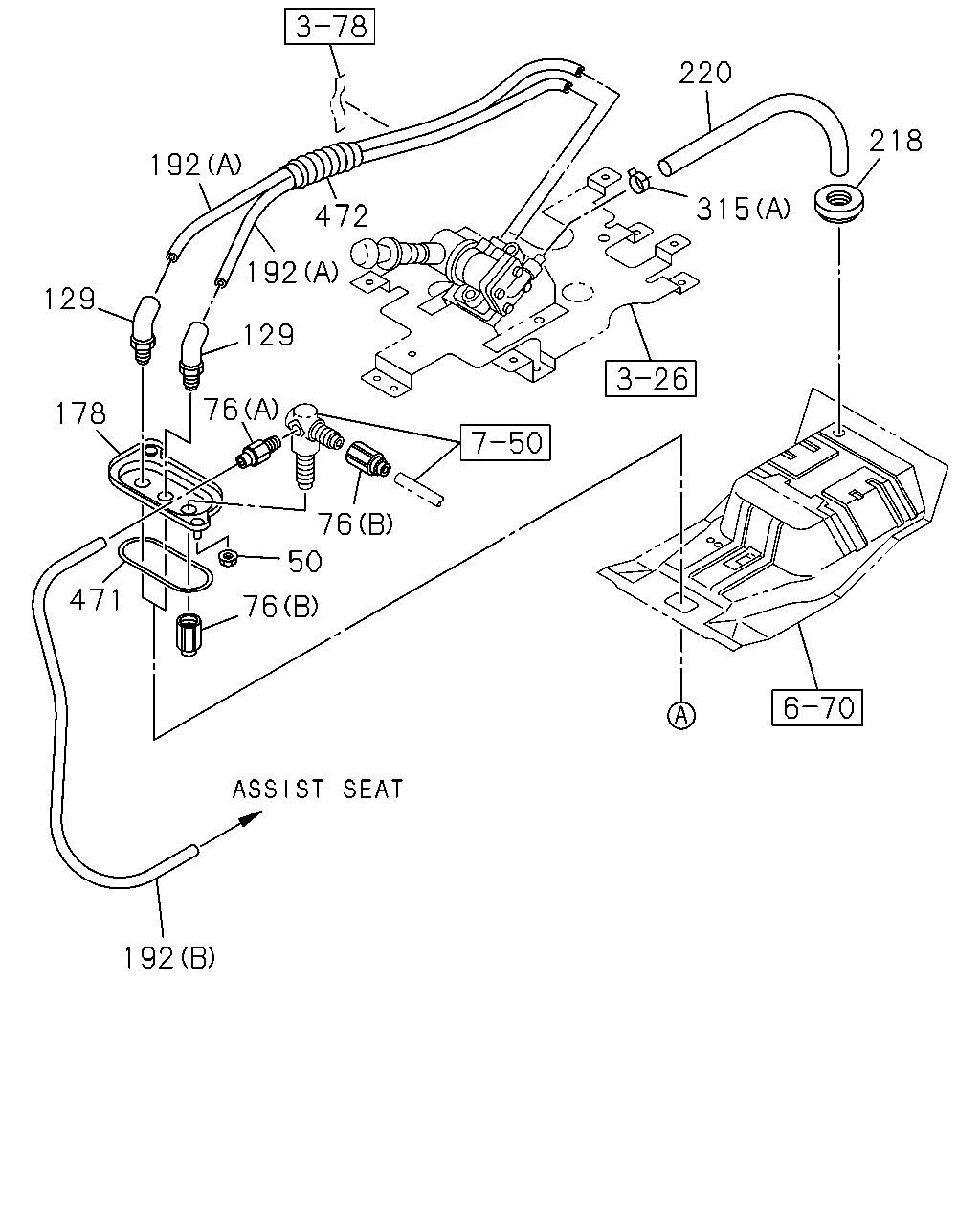

çizim 502479
220 218 315 192 129 178 471 192 76 76 129 192 472 76 50
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
76 ADAPTER; NYLON TUBE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 1511- ● ●
76 ADAPTER; NYLON TUBE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1511- ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1511- ● ●
178 BRACKET; UNION 8-98017-054-1 01 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98232-700-2 01 1 1511- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1511- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1511- ● ●
315 CLIP
(C) L=350 		1-09707-183-0 01 1 1511- ● ●
315 CLIP
(B) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1511- ● ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1511- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 1511- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1511- ● ●
