3-75 — BRAKE PIPING; AIR,FRONT (#170227) — 45 parça

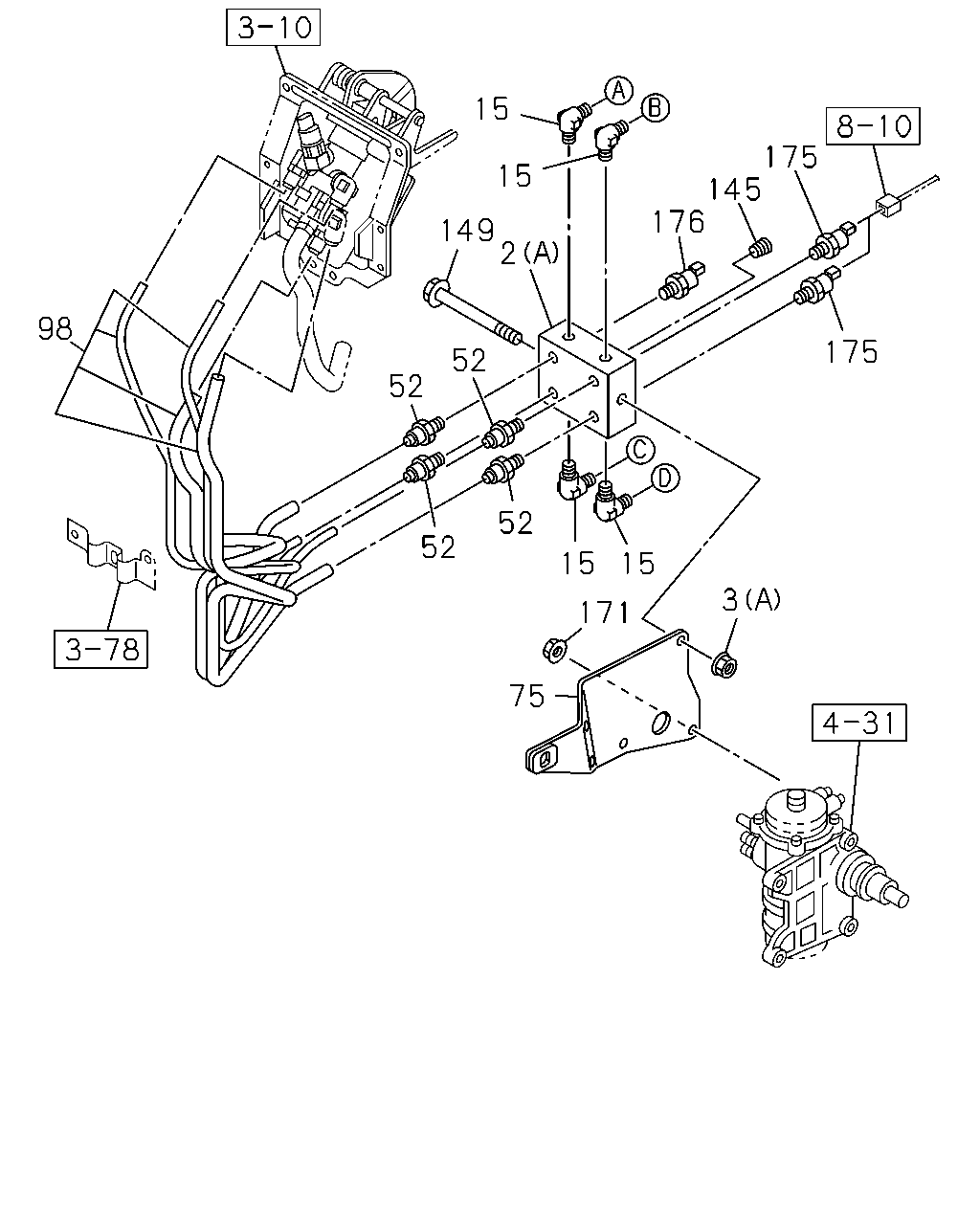

çizim 502302
98 52 52 52 52 149 2 15 15 176 145 175 175 15 15 171 3 75
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1511- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1511- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1511- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1511- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1511- ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1511- ● ●
75 BRACKET; UNION 8-98099-485-1 01 1 1511- ● ●
98 TUBE; NYLON 8-97625-675-0 01 1 1511- ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 1511- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1511- ● ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1511- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1511- ● ●

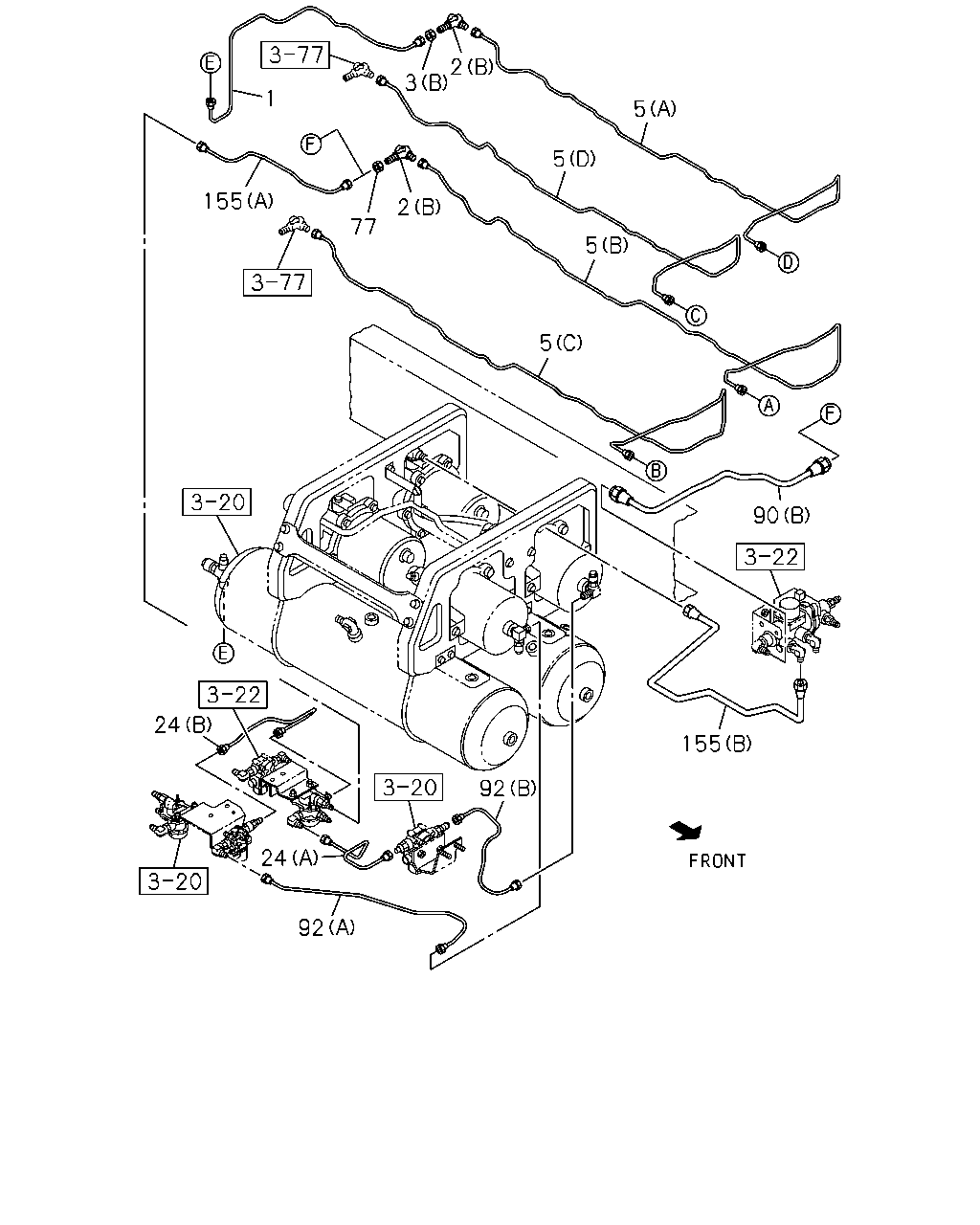

çizim 502403
92 24 24 92 155 90 155 77 2 5 5 5 5 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=1350 SERVICED BY L=1400 		1-47428-878-0 01 1 1511- ●
1 PIPE; AIR,AIR TANK TO UNION
L=1327 SERVICED BY L=1400 		1-47428-878-0 01 1 1511- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1511- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1511- ● ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1511- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1511- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
5 PIPE; AIR,UNION TO UNION
(A) L=3271 SERVICED BY L=3300 		1-47428-886-0 01 1 1511- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3061 SERVICED BY L=3300 		1-47428-886-0 01 1 1511- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2997 SERVICED BY L=3300 		1-47428-886-0 01 1 1511- ●
5 PIPE; AIR,UNION TO UNION
(D) L=3188 SERVICED BY L=3300 		1-47428-886-0 01 1 1511- ●
5 PIPE; AIR,UNION TO UNION
(C) L=3433 SERVICED BY L=3500 		1-47428-887-0 01 1 1511- ●
5 PIPE; AIR,UNION TO UNION
(A) L=3791 		8-98233-843-0 01 1 1511- ●
5 PIPE; AIR,UNION TO UNION
(B) L=3554 		8-98305-606-0 01 1 1511- ●
5 PIPE; AIR,UNION TO UNION
(D) L=3672 		8-98305-611-0 01 1 1511- ●
24 PIPE; AIR,RELAY VLV TO UNION
(A) L=392 		8-98230-357-0 01 1 1511- ● ●
24 PIPE; AIR,RELAY VLV TO UNION
(B) L=300 		8-98236-977-0 01 1 1511- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1511- ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> (B) L=586 SERVICED BY L=600 		1-47428-868-0 01 1 1511- ●
90 PIPE; AIR,UNION TO HSA VLV
(A) 		8-98244-620-0 01 1 1511- ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> (B) L=640 SERVICED BY L=660 		1-47428-869-0 01 1 1511- ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
(A) L=735 SERVICED BY L=800 		1-47428-872-0 01 1 1511- ● ●
92 PIPE; AIR,HSA VLV TO AIR MASTER
(B) L=458 		8-98230-351-0 01 1 1511- ● ●
155 PIPE; AIR,HSA VLV TO RELAY VLV
EXC. H.S.A SYSTEM<6EP> (A) L=468 		8-98245-408-0 01 1 1511- ●
155 PIPE; AIR,HSA VLV TO RELAY VLV
H.S.A SYSTEM<6EP> (B) L=663 SERVICED BY L=700 		1-47428-870-0 01 1 1511- ● ●
155 PIPE; AIR,HSA VLV TO RELAY VLV
EXC. H.S.A SYSTEM<6EP> (A) L=456 		8-98233-897-0 01 1 1511- ●

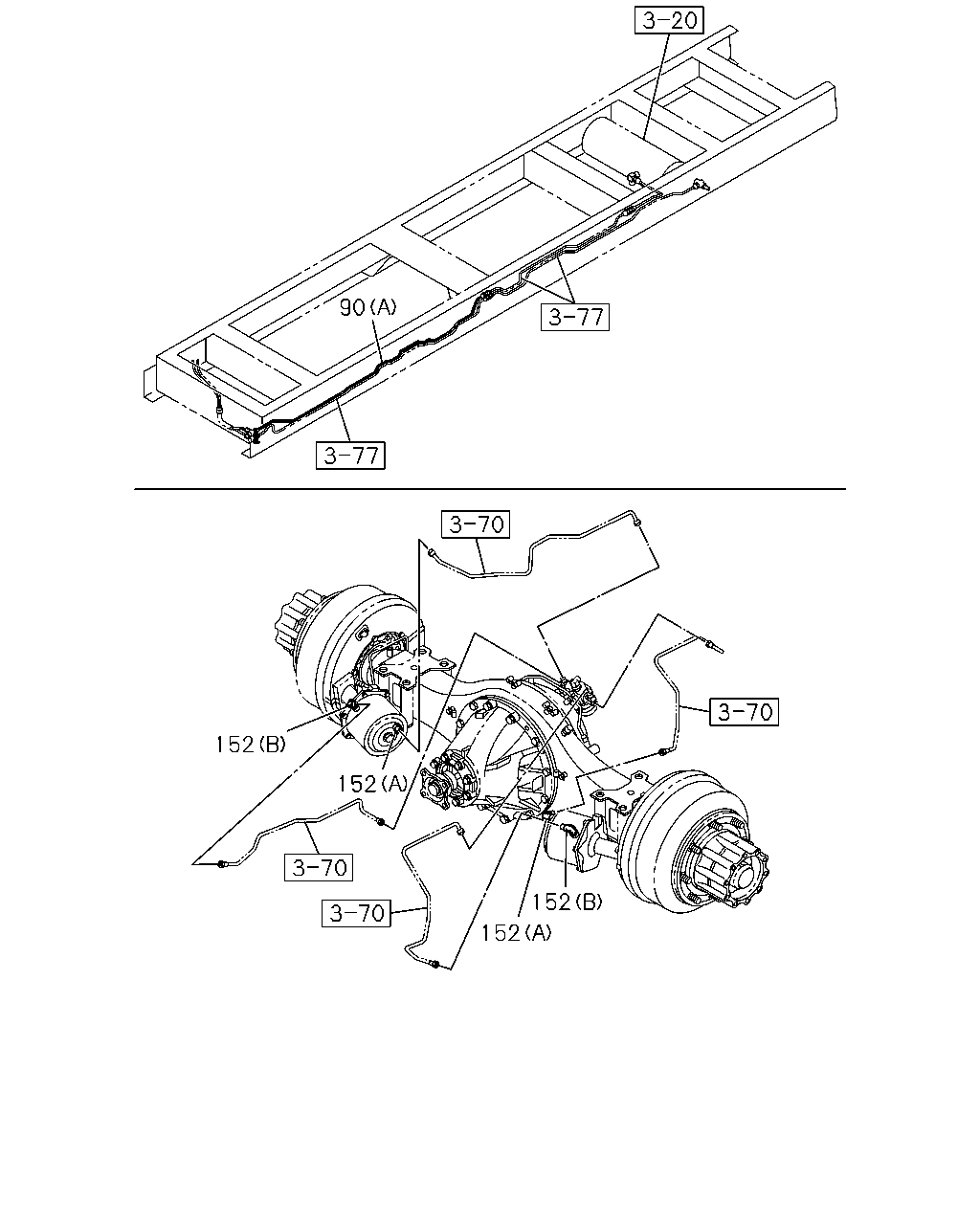

çizim 502454
90 152 152 152 152
BalonParca AdiParca NoAdetTipApplied Date A B
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> (B) L=586 SERVICED BY L=600 		1-47428-868-0 01 1 1511- ●
90 PIPE; AIR,UNION TO HSA VLV
(A) 		8-98244-620-0 01 1 1511- ● ●
90 PIPE; AIR,UNION TO HSA VLV
H.S.A SYSTEM<6EP> (B) L=640 SERVICED BY L=660 		1-47428-869-0 01 1 1511- ●
152 CONNECTOR; POWER CHAMBER
(A) M14 & PT1/4 ELBOW 		1-09650-432-0 02 1 1511- ● ●
152 CONNECTOR; POWER CHAMBER
(B) M14 & PT3/8 ELBOW 		1-09650-437-0 02 1 1511- ● ●
