◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11723 - FTS AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#170224) — 23 parça

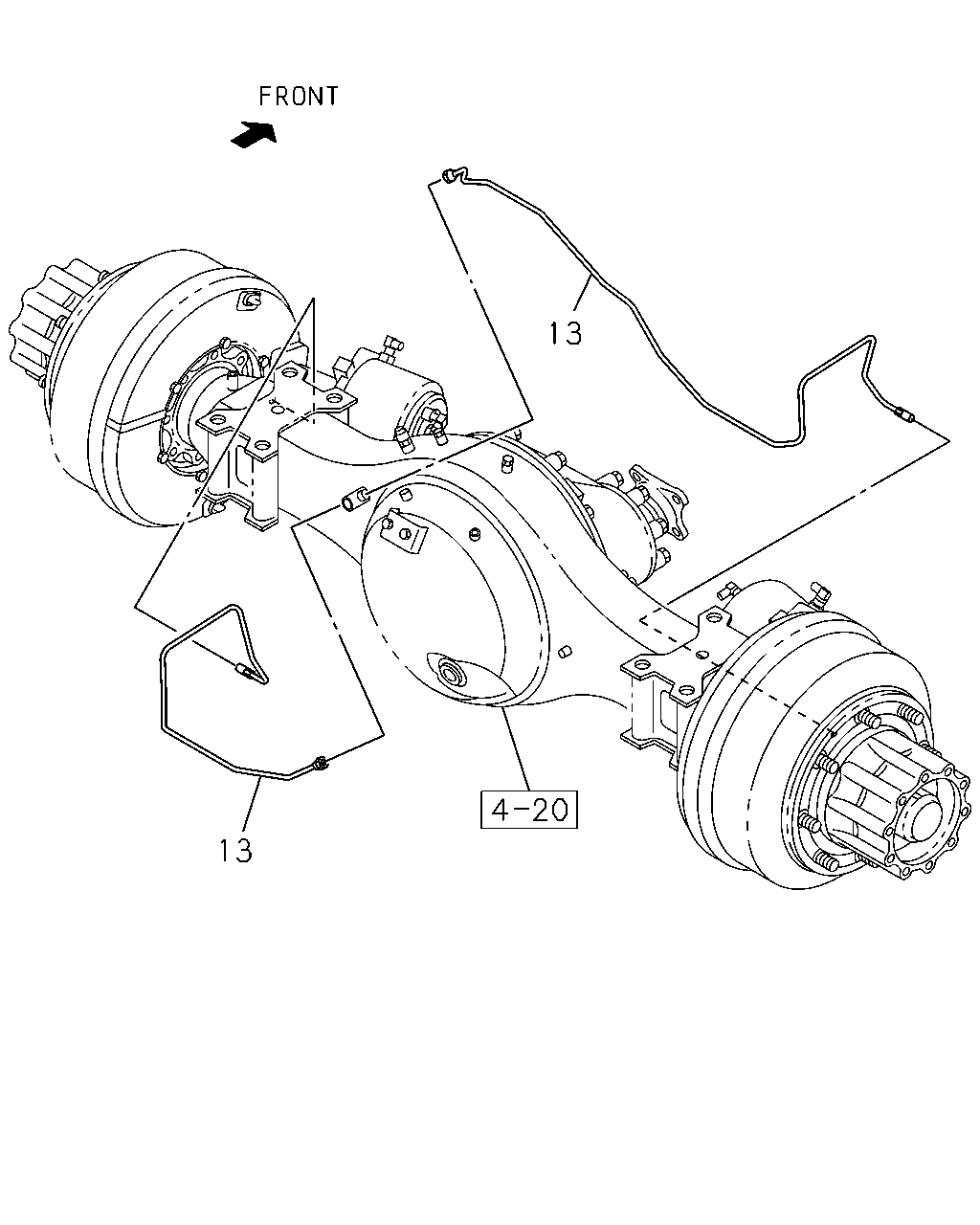

çizim 502152
13 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; BRK,RR AXLE 8-98081-701-0 01 1 1511- ● ●
13 PIPE; BRK,RR AXLE 8-98081-702-0 01 1 1511- ● ●

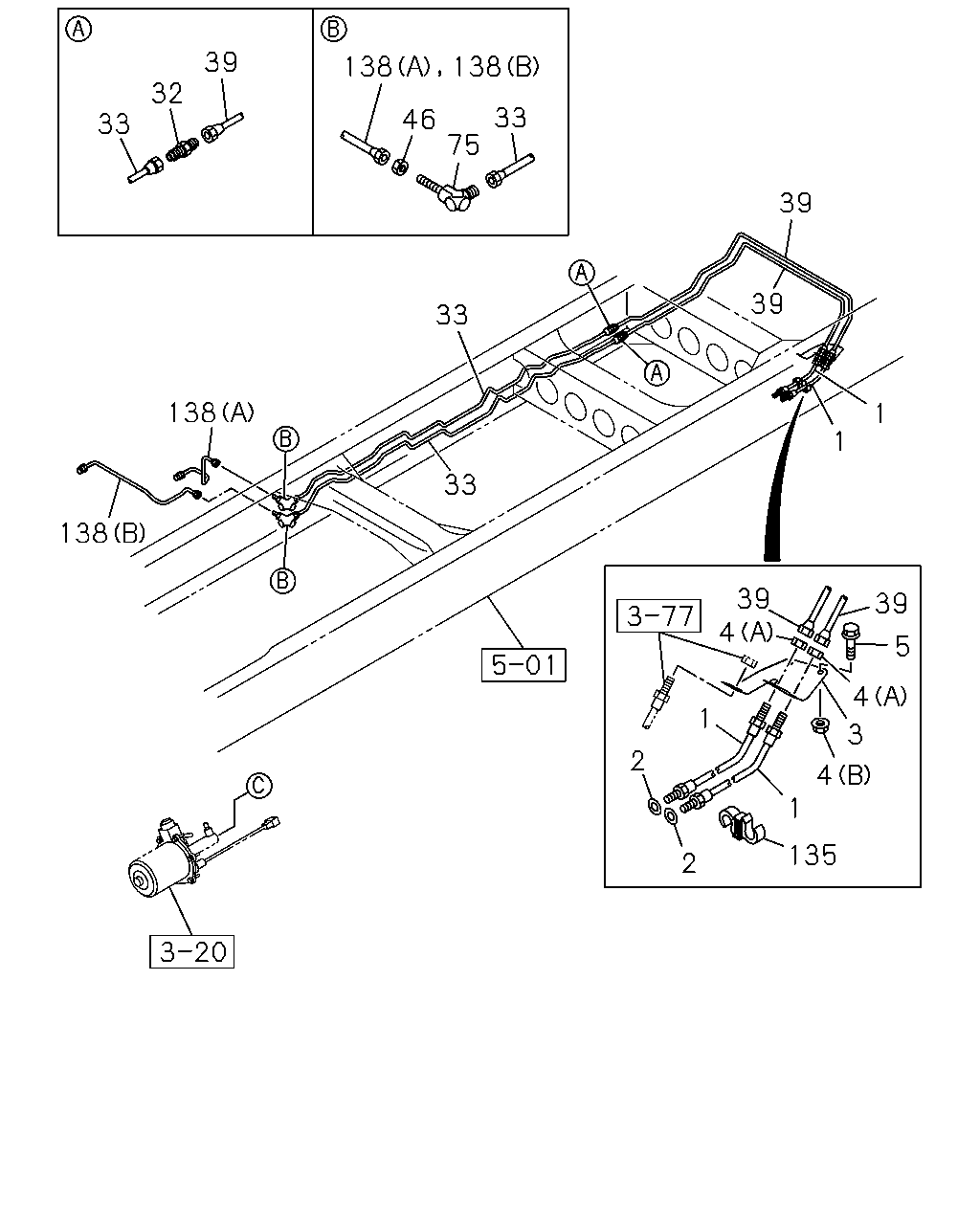

çizim 502287
33 32 39 138 138 46 33 75 138 138 33 33 39 39 1 1 2 2 1 135 4 3 4 5 39 39 4 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
A/T<X9D> L=780 		0-05212-780-0 02 1 1511- ● ●
1 HOSE; FLEX,RR BRK
MANUAL TRANSMISSION<X9C> L=770 		0-05212-770-0 02 1 1511- ● ●
2 GASKET; FLEX HOSE,RR BRK
ID=9 OD=17 		9-09920-472-0 02 1 1511- ● ●
3 BRACKET; FLEX HOSE,RR BRK 8-98093-620-0 01 1 1511- ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
(B) M12 		9-09840-280-0 02 1 1511- ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 02 1 1511- ● ●
33 PIPE; OIL,UNION TO UNION
L=1629 SERVICED BY L=1700 		1-47428-737-0 01 1 1511- ●
33 PIPE; OIL,UNION TO UNION
L=2109 SERVICED BY L=2200 		1-47428-740-0 01 1 1511- ●
33 PIPE; OIL,UNION TO UNION
L=2147 SERVICED BY L=2200 		1-47428-740-0 01 1 1511- ●
33 PIPE; OIL,UNION TO UNION
L=2130 SERVICED BY L=2200 		1-47428-740-0 01 1 1511- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1881 SERVICED BY L=2000 		1-47428-739-0 01 1 1511- ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
L=1773 SERVICED BY L=1820 		1-47428-738-0 01 1 1511- ● ●
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 02 1 1511- ● ●
75 UNION; OIL PIPE
M12 ELBOW 		8-97325-150-0 02 1 1511- ● ●
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 1511- ● ●
138 PIPE; HYDRAULIC UNIT
(A) L=261 		8-98244-179-0 01 1 1511- ●
138 PIPE; HYDRAULIC UNIT
(B) L=430 		8-98244-184-0 01 1 1511- ●
138 PIPE; HYDRAULIC UNIT
(A) L=234 		8-98233-916-0 01 1 1511- ●
138 PIPE; HYDRAULIC UNIT
(B) L=835 		8-98233-917-0 01 1 1511- ●
