3-52 — BRAKE PIPING; OIL,FRONT (#170223) — 45 parça

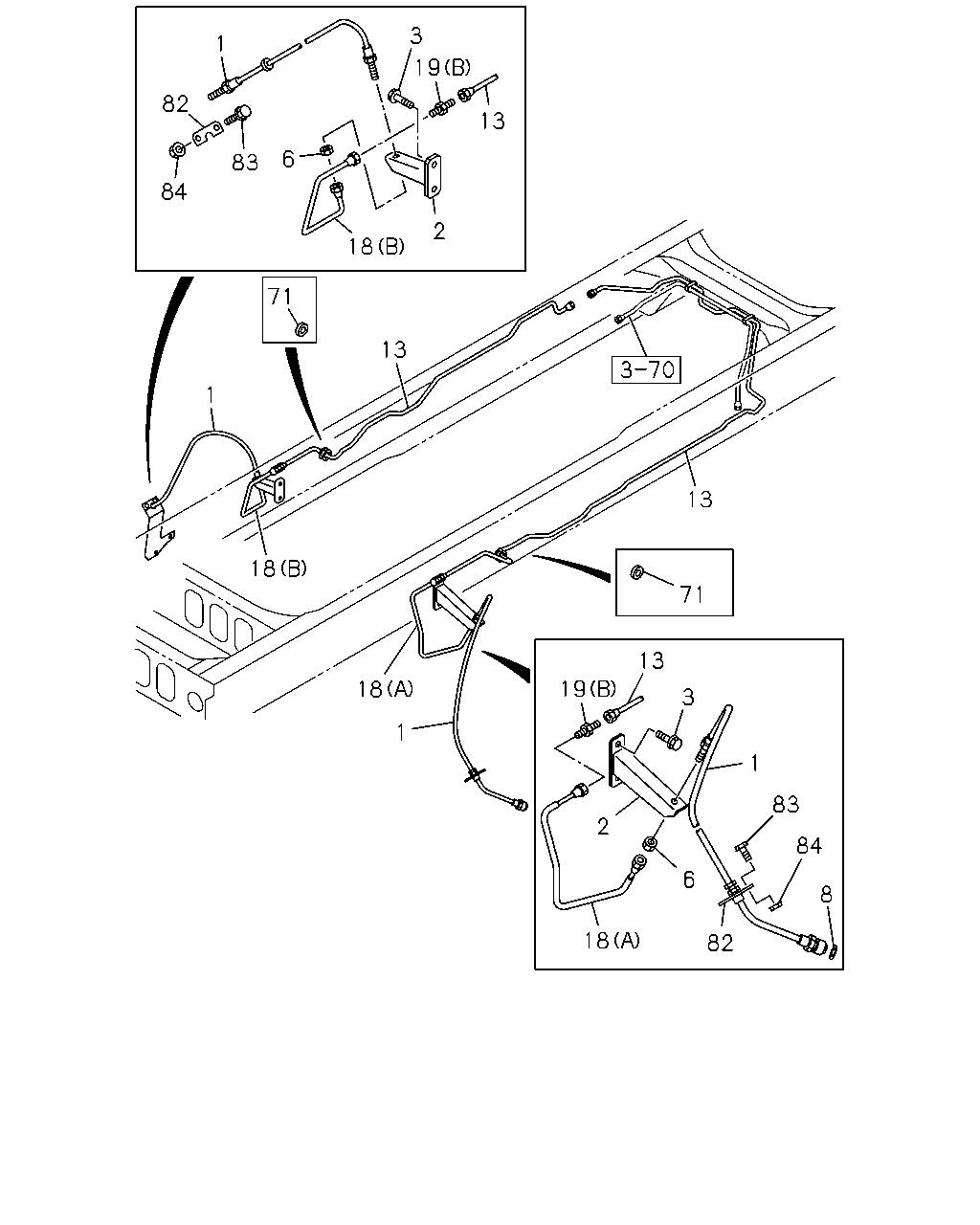

çizim 502074
82 84 83 18 2 13 19 3 6 1 71 13 1 18 13 71 18 1 19 13 3 2 18 82 6 1 83 84 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
L=838 		8-97623-930-0 02 1 1511- ● ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98130-817-0 01 1 1511- ● ●
2 BRACKET; FLEX HOSE,FRT BRK 8-97623-926-1 01 1 1511- ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1511- ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 1511- ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 1511- ● ●
13 PIPE; OIL,UNION TO UNION
L=2842 SERVICED BY L=2900 		1-47428-744-0 01 1 1511- ●
13 PIPE; OIL,UNION TO UNION
L=1467 SERVICED BY L=1500 		1-47428-735-0 01 1 1511- ●
13 PIPE; OIL,UNION TO UNION
L=1478 SERVICED BY L=1500 		1-47428-735-0 01 1 1511- ●
13 PIPE; OIL,UNION TO UNION
A/T<X9D> L=2824 SERVICED BY L=2900 		1-47428-744-0 01 1 1511- ●
13 PIPE; OIL,UNION TO UNION
MANUAL TRANSMISSION<X9C> L=2902 SERVICED BY L=3200 		1-47428-745-0 01 1 1511- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=467 		8-98244-595-0 01 1 1511- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=467 		8-98244-594-0 01 1 1511- ● ●
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 02 1 1511- ● ●
19 UNION; OIL PIPE
(A) M12 ELBOW 		8-97325-150-0 02 1 1511- ● ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1511- ● ●
82 PLATE; FLEX HOSE 1-47476-241-1 02 1 1511- ● ●
83 BOLT; PLATE
M8X20 FLANGE 		0-28650-820-0 04 1 1511- ● ●
84 NUT; PLATE
M8 FLANGE 		0-91180-108-0 04 1 1511- ● ●

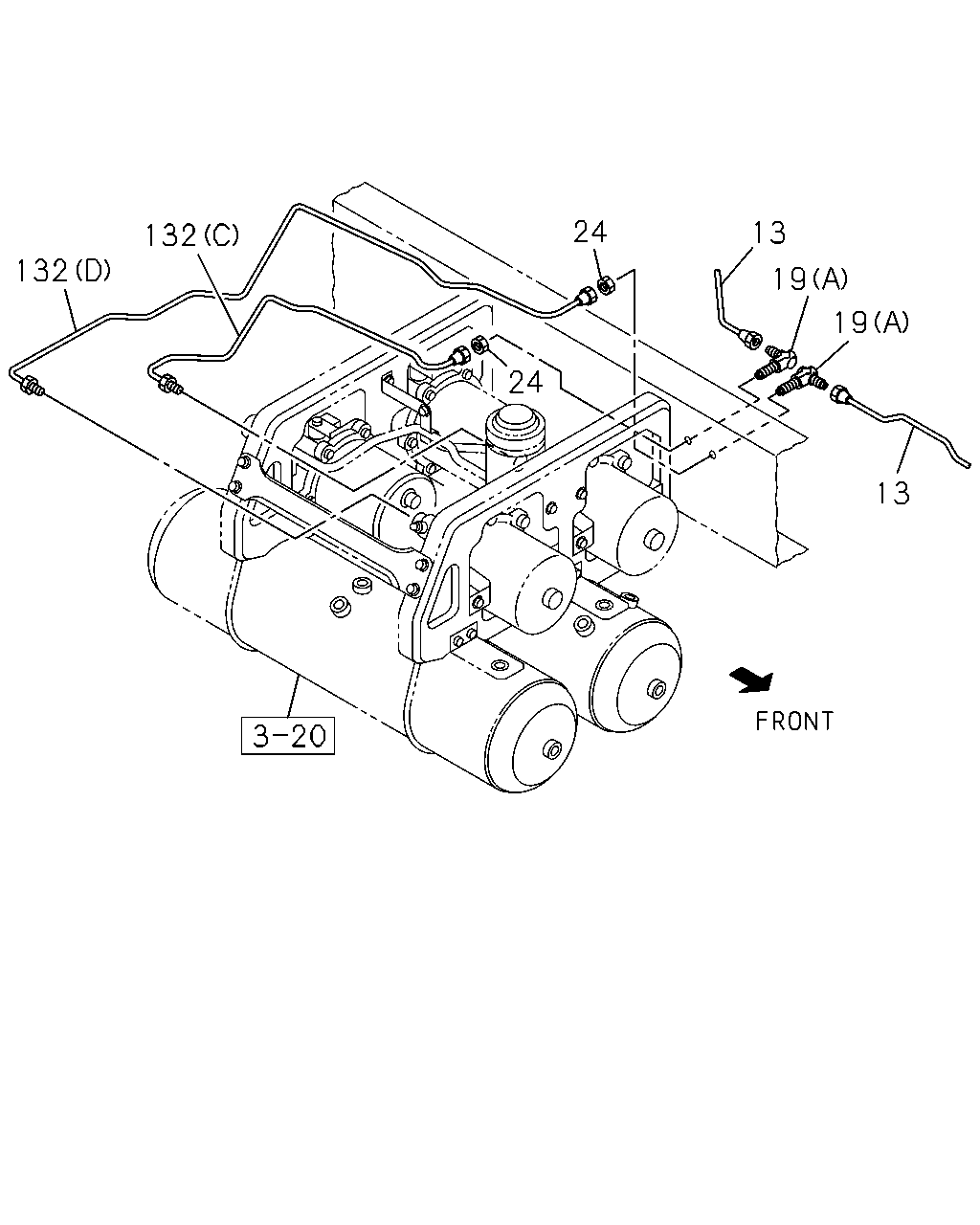

çizim 502100
132 132 24 24 13 19 19 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,UNION TO UNION
L=2842 SERVICED BY L=2900 		1-47428-744-0 01 1 1511- ●
13 PIPE; OIL,UNION TO UNION
L=1467 SERVICED BY L=1500 		1-47428-735-0 01 1 1511- ●
13 PIPE; OIL,UNION TO UNION
L=1478 SERVICED BY L=1500 		1-47428-735-0 01 1 1511- ●
13 PIPE; OIL,UNION TO UNION
A/T<X9D> L=2824 SERVICED BY L=2900 		1-47428-744-0 01 1 1511- ●
13 PIPE; OIL,UNION TO UNION
MANUAL TRANSMISSION<X9C> L=2902 SERVICED BY L=3200 		1-47428-745-0 01 1 1511- ●
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 02 1 1511- ● ●
19 UNION; OIL PIPE
(A) M12 ELBOW 		8-97325-150-0 02 1 1511- ● ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 02 1 1511- ● ●
132 PIPE; OIL,BRK,HYD UNIT
(B) L=492 		8-98237-542-0 01 1 1511- ●
132 PIPE; OIL,BRK,HYD UNIT
(A) L=322 		8-98237-544-0 01 1 1511- ●
132 PIPE; OIL,BRK,HYD UNIT
(D) L=876 		8-98233-912-0 01 1 1511- ●
132 PIPE; OIL,BRK,HYD UNIT
A/T<X9D> (C) L=489 		8-98233-914-0 01 1 1511- ●
132 PIPE; OIL,BRK,HYD UNIT
MANUAL TRANSMISSION<X9C> (C) L=567 		8-98233-915-0 01 1 1511- ●

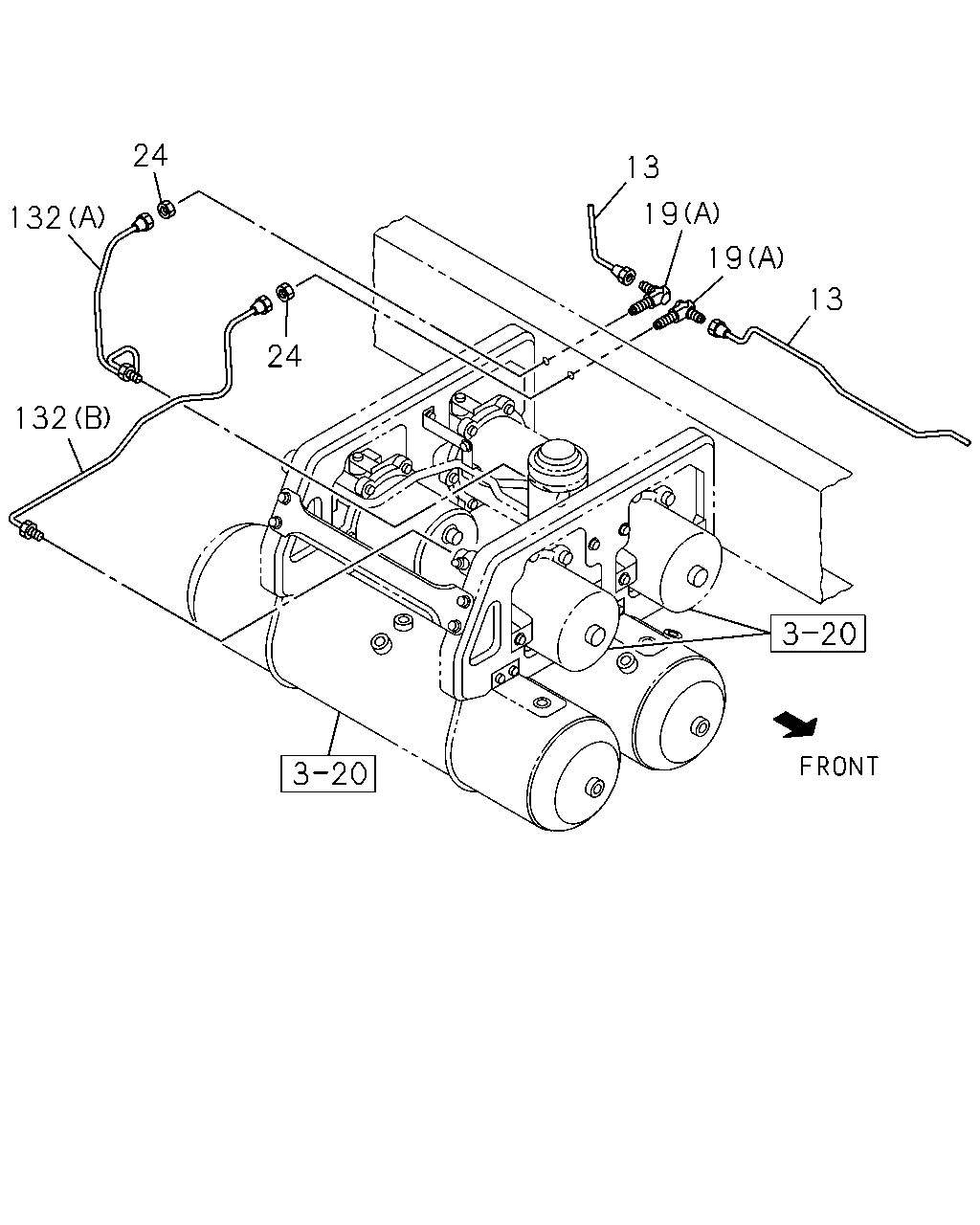

çizim 502201
24 132 132 13 19 19 13 24
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,UNION TO UNION
L=2842 SERVICED BY L=2900 		1-47428-744-0 01 1 1511- ●
13 PIPE; OIL,UNION TO UNION
L=1467 SERVICED BY L=1500 		1-47428-735-0 01 1 1511- ●
13 PIPE; OIL,UNION TO UNION
L=1478 SERVICED BY L=1500 		1-47428-735-0 01 1 1511- ●
13 PIPE; OIL,UNION TO UNION
A/T<X9D> L=2824 SERVICED BY L=2900 		1-47428-744-0 01 1 1511- ●
13 PIPE; OIL,UNION TO UNION
MANUAL TRANSMISSION<X9C> L=2902 SERVICED BY L=3200 		1-47428-745-0 01 1 1511- ●
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 02 1 1511- ● ●
19 UNION; OIL PIPE
(A) M12 ELBOW 		8-97325-150-0 02 1 1511- ● ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 02 1 1511- ● ●
132 PIPE; OIL,BRK,HYD UNIT
(B) L=492 		8-98237-542-0 01 1 1511- ●
132 PIPE; OIL,BRK,HYD UNIT
(A) L=322 		8-98237-544-0 01 1 1511- ●
132 PIPE; OIL,BRK,HYD UNIT
(D) L=876 		8-98233-912-0 01 1 1511- ●
132 PIPE; OIL,BRK,HYD UNIT
A/T<X9D> (C) L=489 		8-98233-914-0 01 1 1511- ●
132 PIPE; OIL,BRK,HYD UNIT
MANUAL TRANSMISSION<X9C> (C) L=567 		8-98233-915-0 01 1 1511- ●
