8-10 — WIRING HARNESS AND FUSE (#17022) — 90 parça

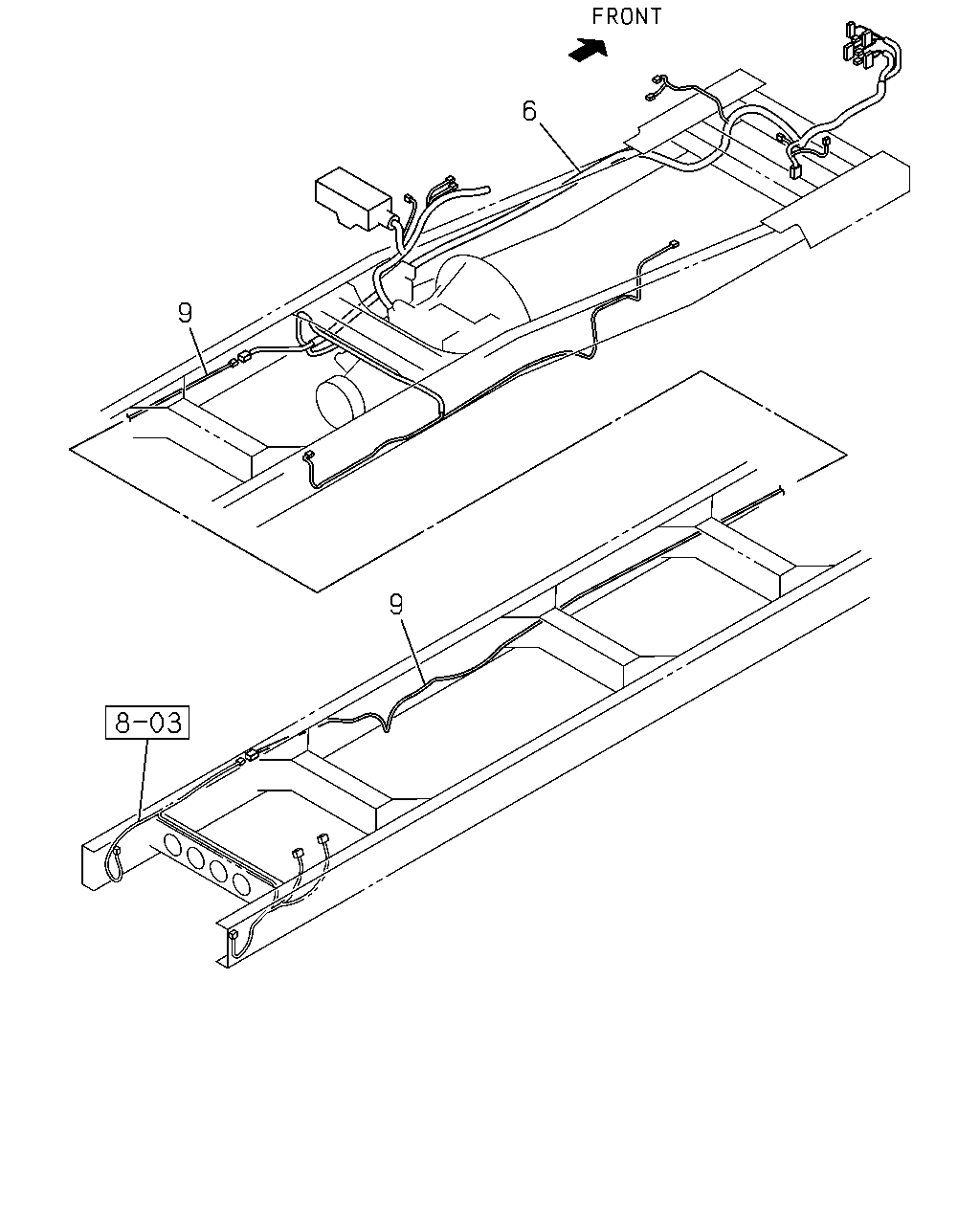

çizim 97788
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98178-646-2 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 3900MM(39W) 		8-98168-653-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		8-98168-654-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-655-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) 		8-98168-656-0 01 1 1110-
çizim 97804
4 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
IN HOUSE PRODUCTION<TKF> 		8-98065-666-0 01 1 1110-1203
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1204-
693 RELAY; FUSE BOX
IN HOUSE PRODUCTION<TKF> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1110-1203
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1204-

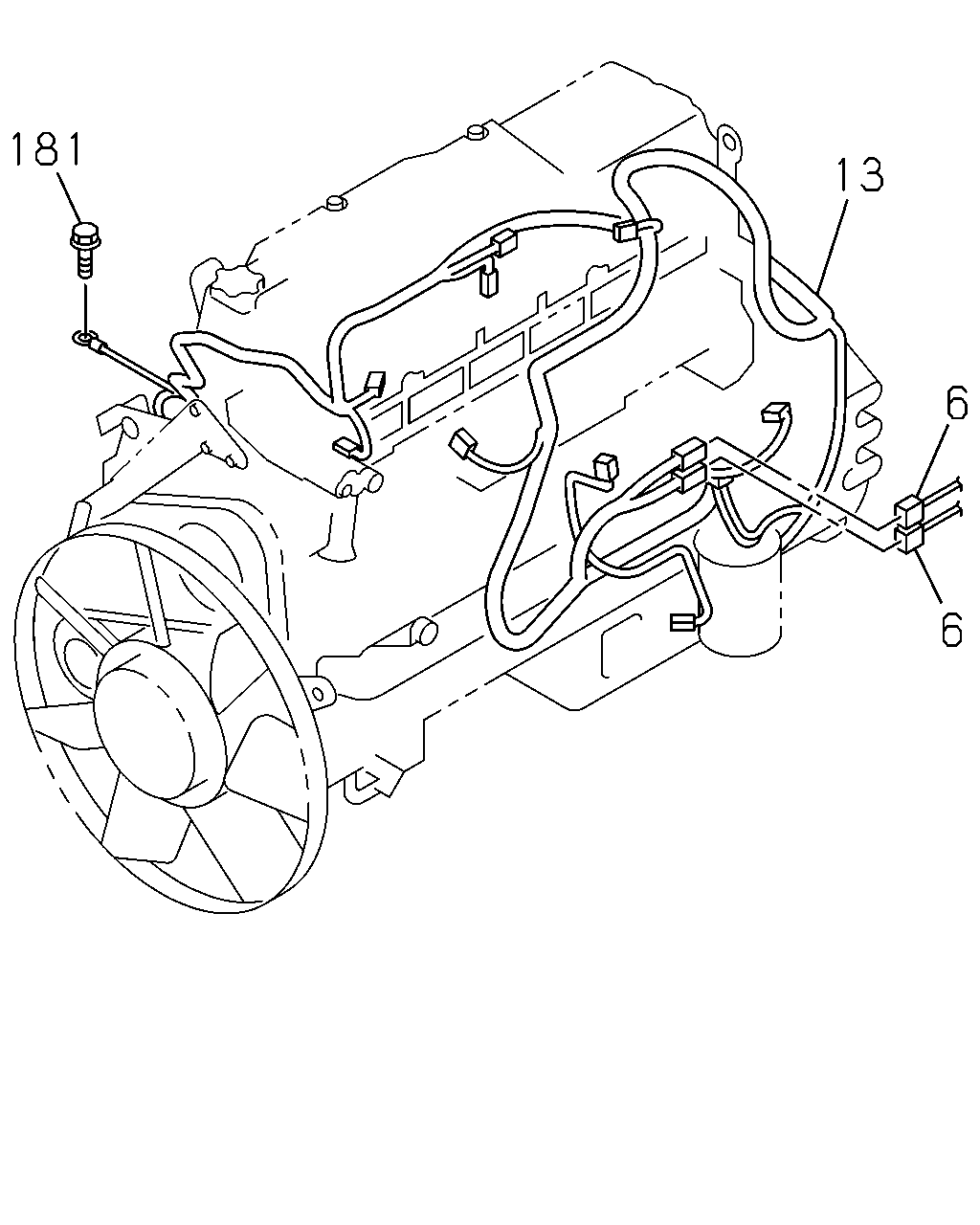

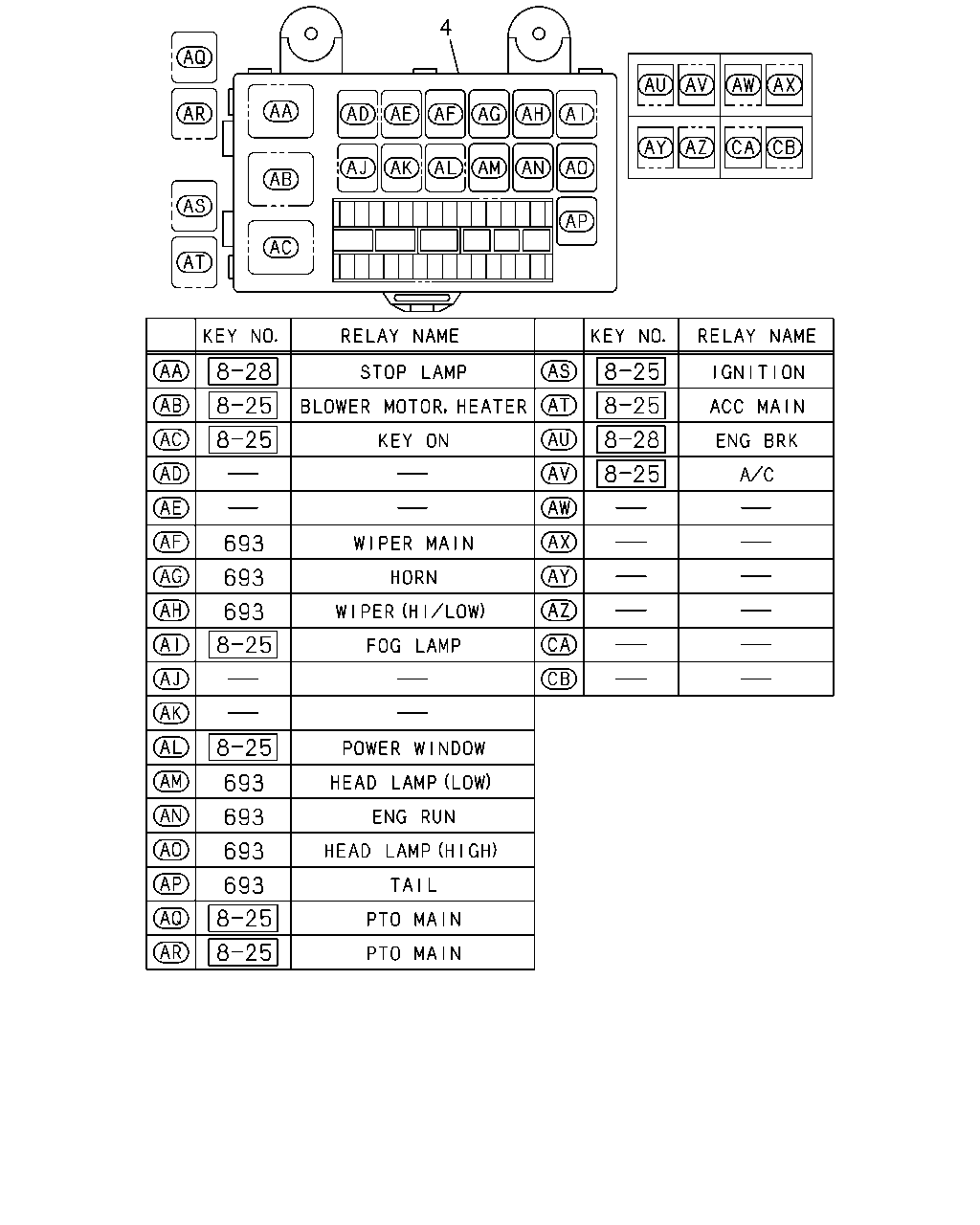

çizim 97855
181 13 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98178-646-2 01 1 1110-
13 HARNESS; ENG 8-98165-469-1 01 1 1110-
181 NUT; GLOW PLUG HARNESS
M4 FLANGE 		5-09440-007-0 01 1 1110-

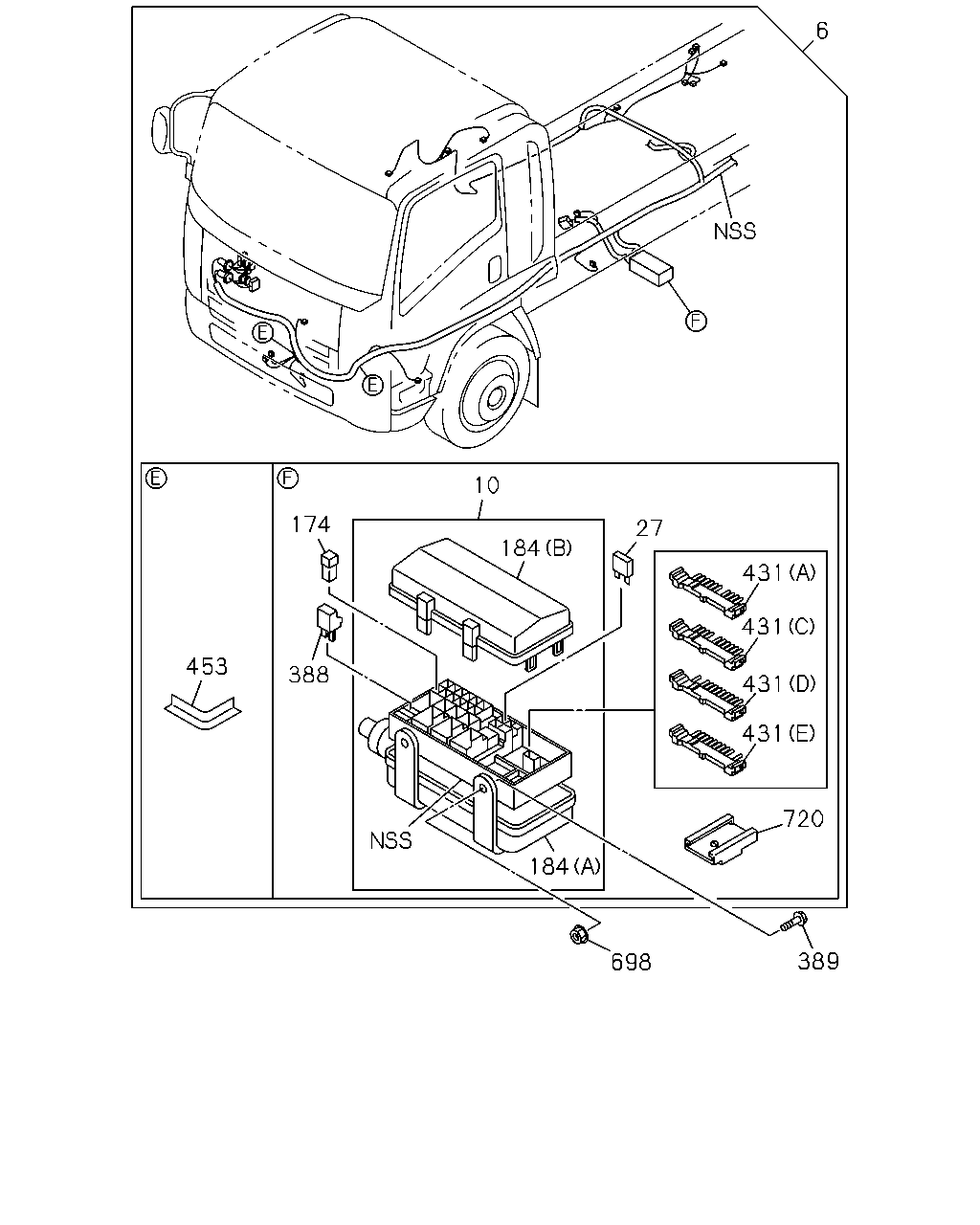

çizim 97872
6 10 174 27 184 431 431 453 388 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98178-646-2 01 1 1110-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1110-
27 FUSE UNIT
10A RED 		8-98054-257-0 02 1 1110-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1110-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1110-
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1110-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1110-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1110-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1110-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1110-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1110-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1110-
431 CONNECTOR; JOINT
IN HOUSE PRODUCTION<TKF> (B) WHITE 		8-98056-375-0 01 1 1110-1203
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1204-
431 CONNECTOR; JOINT
(E) 10P GREEN 		1-82698-579-0 01 1 1110-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1110-
431 CONNECTOR; JOINT
(A) 10P GREEN 		1-82699-599-0 01 1 1110-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1110-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1110-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1110-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 02 1 1110-

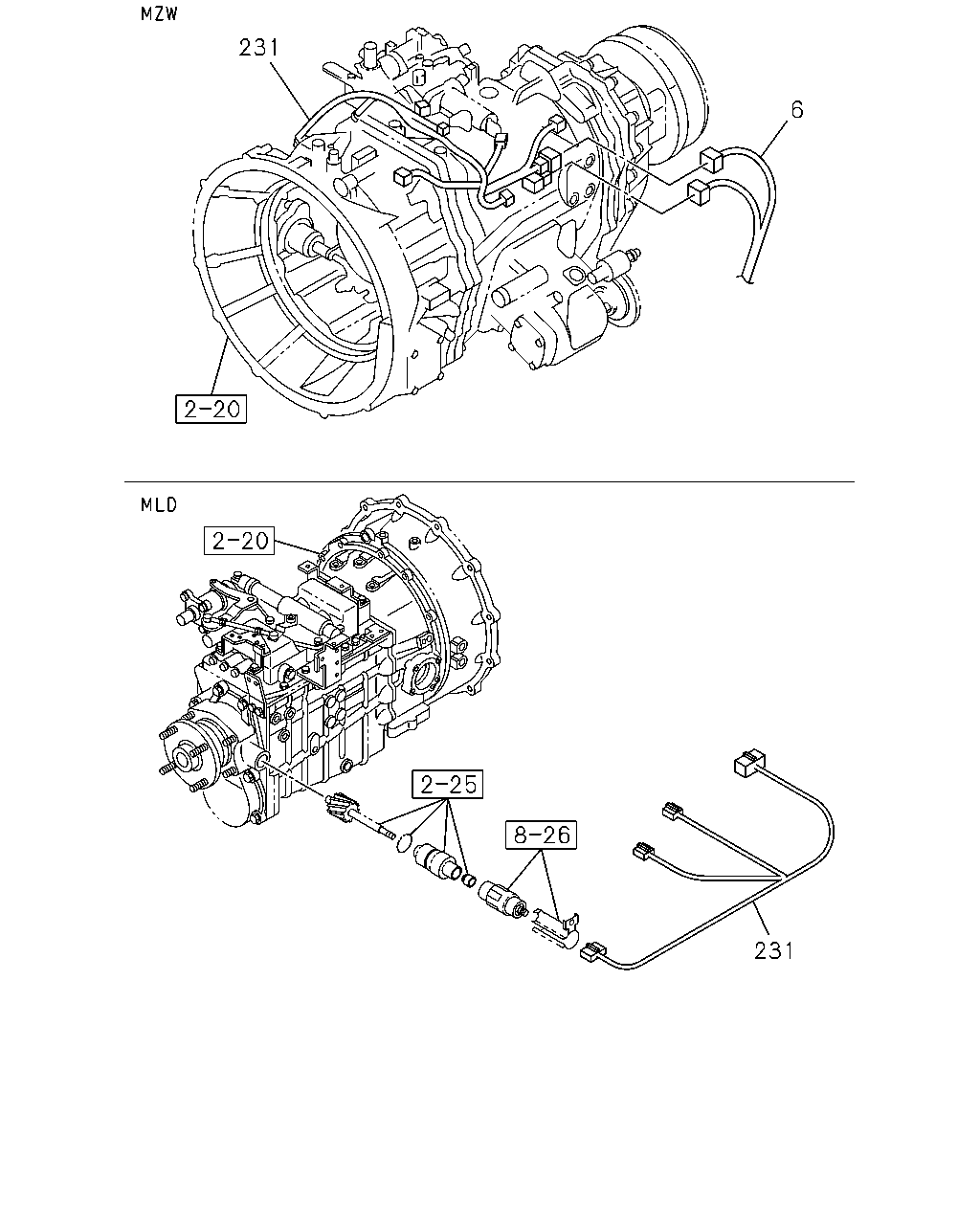

çizim 98010
231 6 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98178-646-2 01 1 1110-
231 HARNESS; TRANS
MLD6A M/T(X5N) 		8-98178-662-2 01 1 1110-
231 HARNESS; TRANS
MZW6P M/T(RSZ) 		8-98133-261-3 01 1 1110-1410
231 HARNESS; TRANS
MZW6P M/T(RSZ) 		8-98286-174-0 01 1 1411-

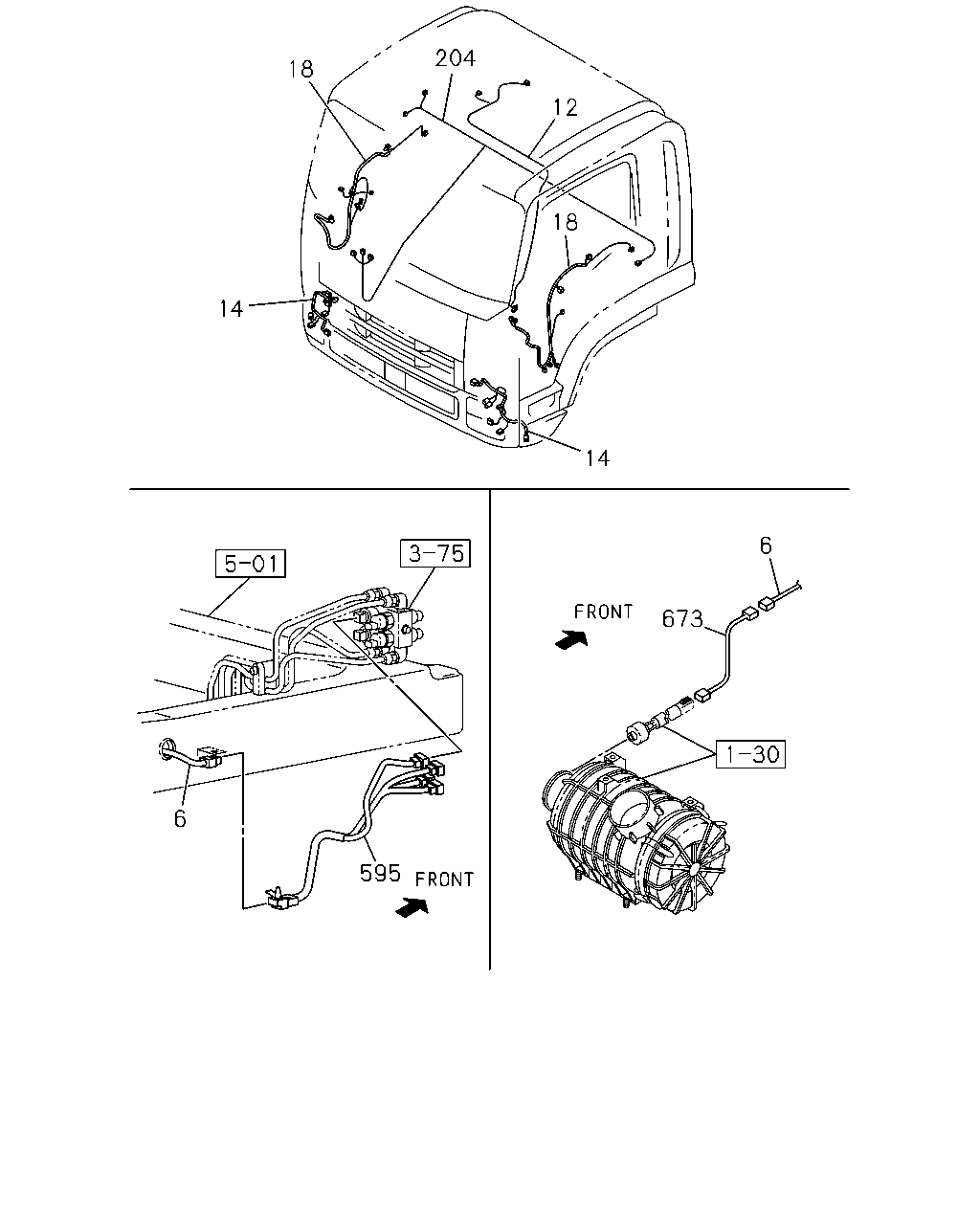

çizim 98020
204 18 12 18 14 14 6 673 6 595
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98178-646-2 01 1 1110-
12 HARNESS; ROOF 8-98041-949-2 01 1 1110-
14 HARNESS; HEADLAMP 8-98069-166-0 02 1 1110-1306
14 HARNESS; HEADLAMP 8-94270-986-0 02 1 1307-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-439-1 01 1 1110-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-440-1 01 1 1110-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98076-304-3 01 1 1110-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98076-305-3 01 1 1110-
204 HARNESS; CABLE,FLOOR 8-98085-274-0 01 1 1110-
595 HARNESS; WARNING,BRK 8-97620-487-1 01 1 1110-
673 HARNESS; EXT,SENSOR 8-98133-452-0 01 1 1110-

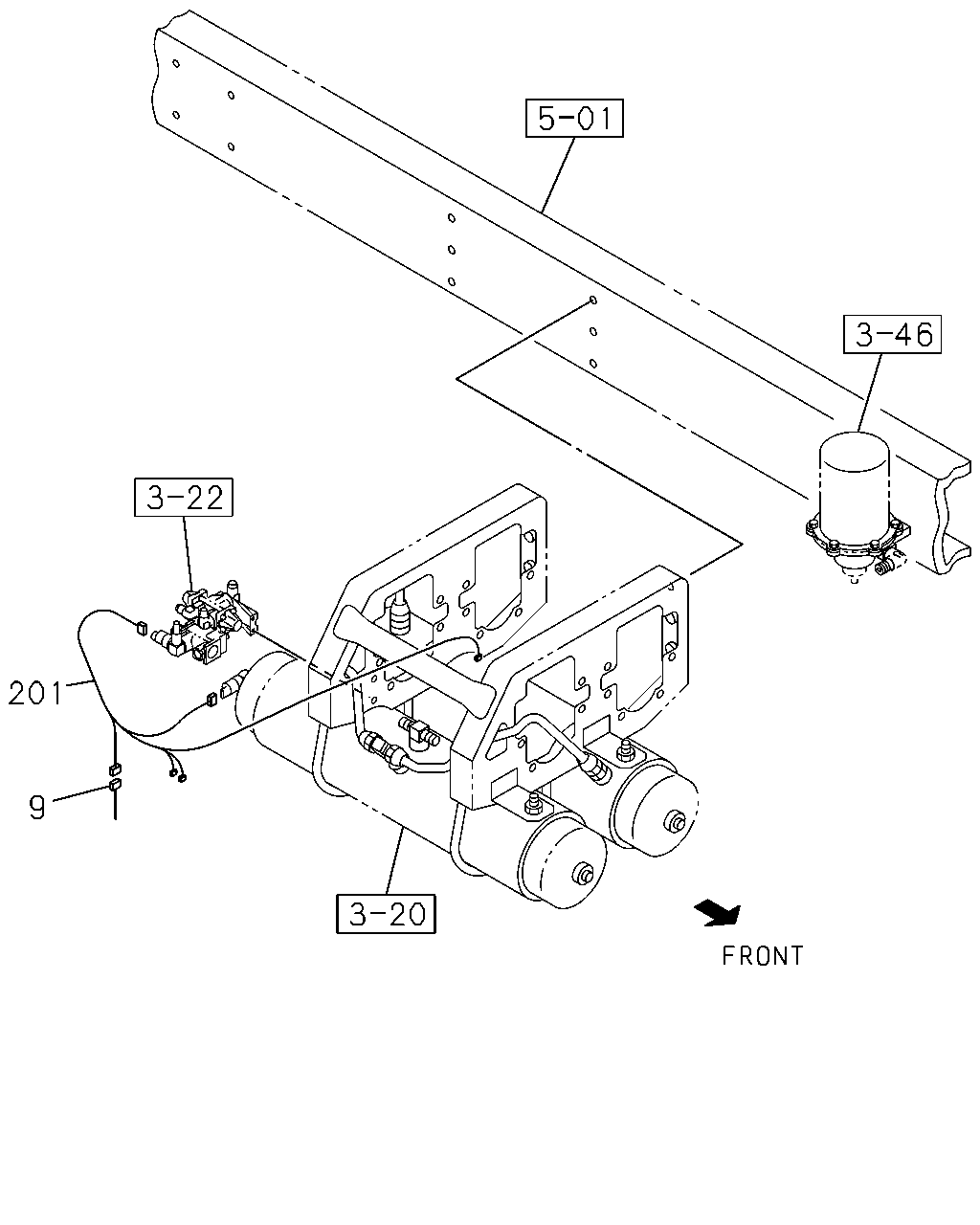

çizim 98022
201 9
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR
WHEEL BASE 3900MM(39W) 		8-98168-653-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) 		8-98168-654-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-655-0 01 1 1110-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) 		8-98168-656-0 01 1 1110-
201 HARNESS; AIR TANK 8-98178-658-2 01 1 1110-

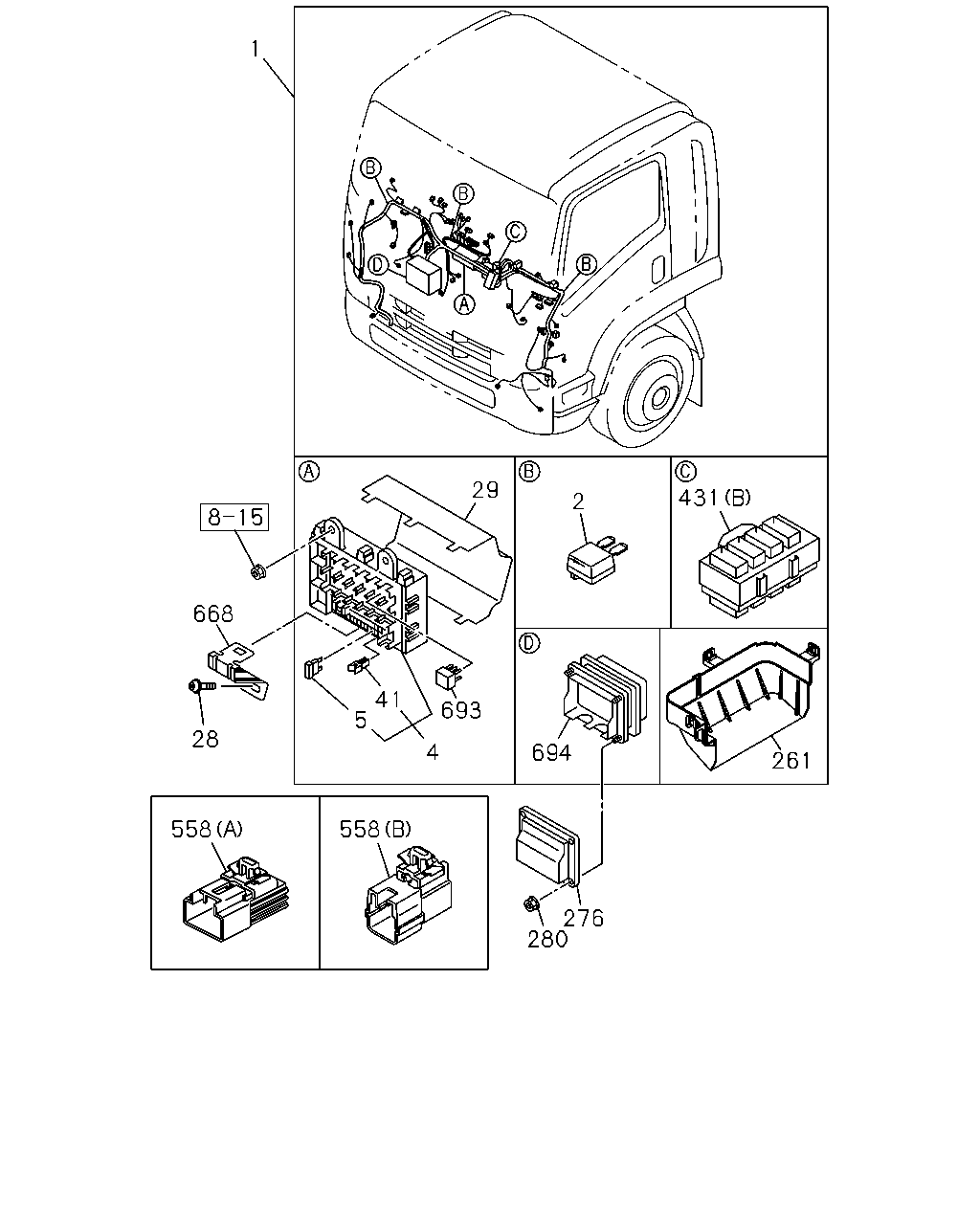

çizim 98080
1 431 29 2 668 41 5 693 28 4 694 261 558 558 276 280
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> 		8-98186-708-1 01 1 1110-1203
1 HARNESS; CAB 8-98186-708-1 01 1 1204-1504
1 HARNESS; CAB 8-98220-279-0 01 1 1505-
2 DIODE; CABLE HARNESS
IN HOUSE PRODUCTION<TKF> BLACK 2P-1.5A 		8-94422-639-1 01 1 1110-1203
2 DIODE; CABLE HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 1204-
4 BOX ASM; FUSE,HARNESS
IN HOUSE PRODUCTION<TKF> 		8-98065-666-0 01 1 1110-1203
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1204-
5 FUSE; FACIA HARNESS
IN HOUSE PRODUCTION<TKF> 10A RED 		8-98054-257-0 AR 1 1110-1203
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1204-
5 FUSE; FACIA HARNESS
IN HOUSE PRODUCTION<TKF> 15A BLUE 		8-98054-258-0 AR 1 1110-1203
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1204-
5 FUSE; FACIA HARNESS
IN HOUSE PRODUCTION<TKF> 20A YELLOW 		8-98054-259-0 AR 1 1110-1203
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1204-
5 FUSE; FACIA HARNESS
IN HOUSE PRODUCTION<TKF> 25A WHITE 		8-98062-982-0 AR 1 1110-1203
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1204-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1110-
29 COVER; FUSE BOX
IN HOUSE PRODUCTION<TKF> 		8-98056-968-0 01 1 1110-1203
29 COVER; FUSE BOX 8-98056-968-0 01 1 1204-
41 PULLER; FUSE
IN HOUSE PRODUCTION<TKF> 		8-98054-260-0 01 1 1110-1203
41 PULLER; FUSE 8-98054-260-0 01 1 1204-
261 COVER; CONNECTOR BOX
IN HOUSE PRODUCTION<TKF> 		8-98065-986-1 01 1 1110-1203
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1204-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1110-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1110-
431 CONNECTOR; JOINT
IN HOUSE PRODUCTION<TKF> (B) WHITE 		8-98056-375-0 01 1 1110-1203
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1204-
431 CONNECTOR; JOINT
(E) 10P GREEN 		1-82698-579-0 01 1 1110-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1110-
431 CONNECTOR; JOINT
(A) 10P GREEN 		1-82699-599-0 01 1 1110-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1110-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1110-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1110-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1110-
693 RELAY; FUSE BOX
IN HOUSE PRODUCTION<TKF> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1110-1203
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1204-
694 BOX ASM; CONNECTOR
IN HOUSE PRODUCTION<TKF> 		8-98057-771-0 01 1 1110-1203
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1204-
