2-75 — TRANSFER CONTROL (#170208) — 10 parça

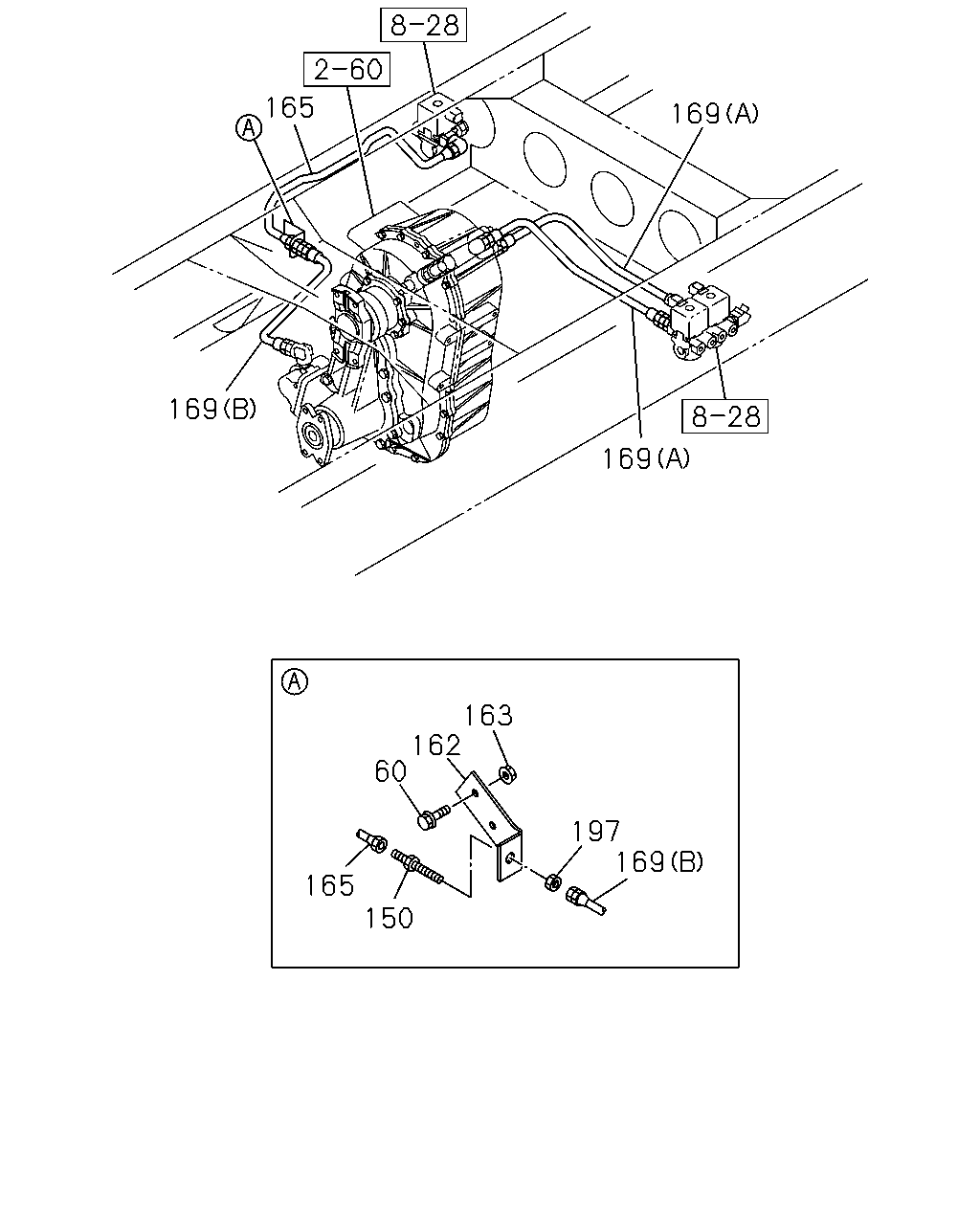

çizim 502256
165 169 169 169 163 162 60 165 150 197 169
BalonParca AdiParca NoAdetTipApplied Date A B
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
150 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 1511- ● ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98244-140-0 01 1 1511- ● ●
163 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
SERVICED BY L=800 		1-47428-812-0 01 1 1511- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE 1-47428-813-0 01 1 1511- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=330 		1-09363-636-0 02 1 1511- ● ●
169 HOSE; FLEX,TRANSFER CONT
A/T<X9D> (B) L=320 		1-09363-625-0 01 1 1511- ● ●
169 HOSE; FLEX,TRANSFER CONT
MANUAL TRANSMISSION<X9C> (B) L=280 		1-09363-672-0 01 1 1511- ● ●
197 NUT; UNION
M12 		9-09840-280-0 01 1 1511- ● ●
