2-61 — TRANSFER CASE AND GEAR SHIFTER (#170205) — 71 parça

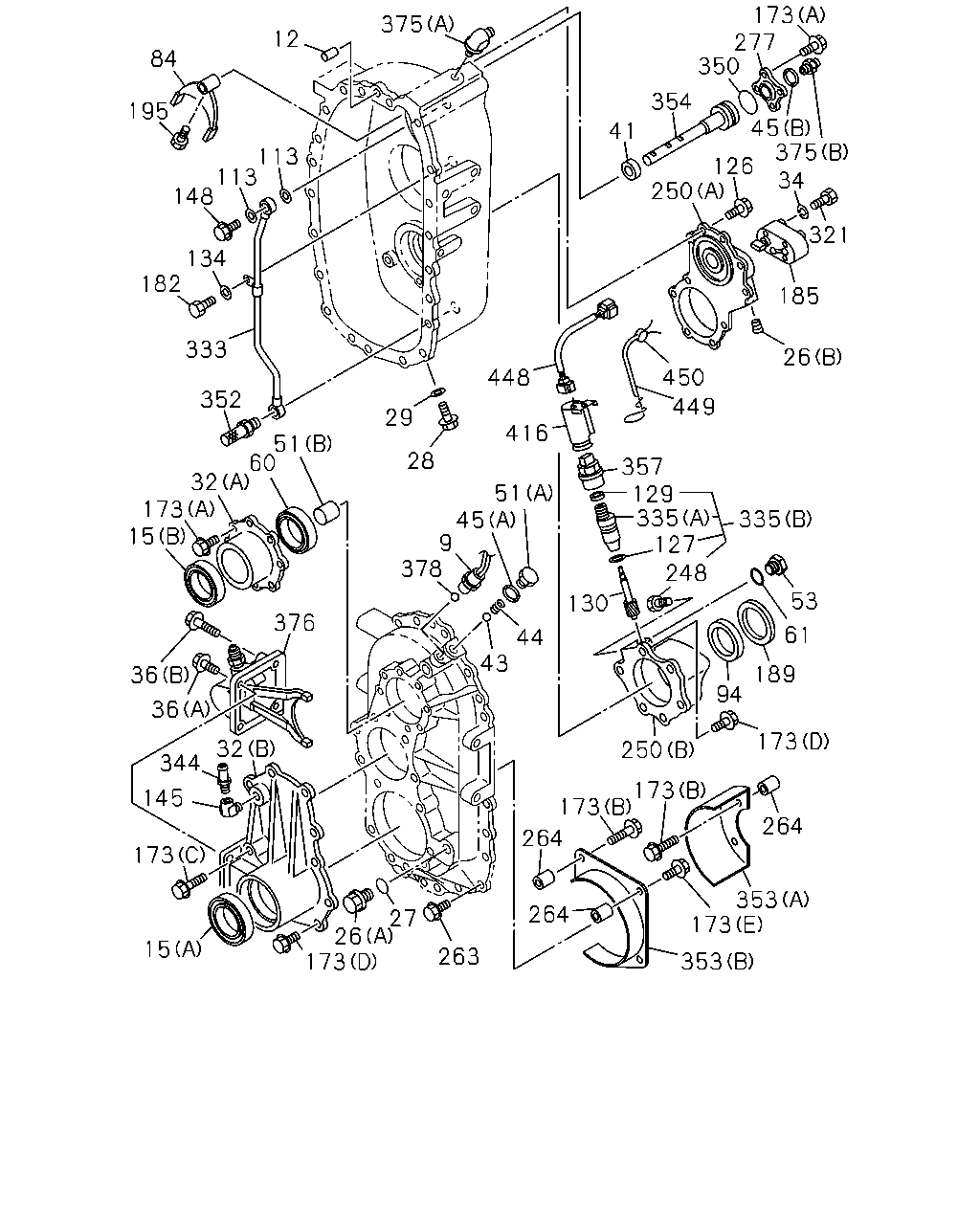

çizim 501006
353 353 173 264 264 173 173 264 250 173 94 61 248 53 189 335 127 335 129 357 130 44 43 449 450 26 185 321 34 375 45 126 250 41 354 350 277 173 263 27 26 173 15 173 145 32 344 36 376 36 15 173 32 60 51 29 28 45 9 378 51 416 448 352 333 182 134 148 113 113 12 375 84 195
BalonParca AdiParca NoAdetTipApplied Date A B
9 SWITCH; TRANSFER 1-82340-534-0 01 1 1511- ● ●
12 PIN; STRAIGHT,TRANSFER CASE
OD=12 L=20 		9-08161-220-0 02 1 1511- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). (A) 		1-09625-549-0 01 1 1511- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). (B) 		1-09625-552-0 01 1 1511- ● ●
26 PLUG; FILLER,TRANSFER CASE
(A) M24X17 FLANGE 		1-09604-023-0 01 1 1511- ● ●
26 PLUG; FILLER,TRANSFER CASE
(B) PT1/8 		1-09605-050-0 02 1 1511- ● ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1511- ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1511- ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1511- ● ●
32 COVER; TRANSFER CASE,FRT
(A) 		1-36121-029-0 01 1 1511- ● ●
32 COVER; TRANSFER CASE,FRT
(B) 		1-36121-030-0 01 1 1511- ● ●
34 WASHER; LK,COVER
ID=8.2 		0-91510-508-0 04 1 1511- ● ●
36 BOLT; SHIFT UNIT
(A) M10X25 FLANGE 		0-28151-025-0 03 1 1511- ● ●
36 BOLT; SHIFT UNIT
(B) M10X60 FLANGE 		0-28151-060-0 01 1 1511- ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-650-0 01 1 1511- ● ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 1511- ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 1511- ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). (B) 		1-09623-689-0 01 1 1511- ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). (A) ID=20.5 OD=28.0 		9-09571-420-0 01 1 1511- ● ●
51 PLUG; SHIFT ROD
(A) 		9-09862-175-0 01 1 1511- ● ●
51 PLUG; SHIFT ROD
(B) OD=24 L=31 		9-33545-011-1 01 1 1511- ● ●
53 PLUG; COVER
M16X12 		1-09604-009-0 01 1 1511- ● ●
60 SEAL; OIL,FRT COVER,UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-548-0 01 1 1511- ● ●
61 GASKET; COVER
ID=16.2 OD=24 		9-09571-416-0 01 1 1511- ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-011-2 01 1 1511- ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-553-0 01 1 1511- ● ●
113 GASKET; OIL,TRANSFER
ID=12.2 		8-98251-344-0 02 1 1511- ● ●
126 BOLT; RR COVER
M8X25 FLANGE 		0-28050-825-0 12 1 1511- ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-246-0 01 1 1511- ● ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 1511- ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=15 		1-33372-147-4 01 1 1511- ● ●
134 WASHER; PL
ID=10.5 OD=22 		0-91614-610-0 01 1 1511- ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
PT1/4 2WAY 		1-09660-693-0 01 1 1511- ● ●
148 BOLT; EYE,OIL PIPE
M12X27 FLANGE 		1-09675-085-0 01 1 1511- ● ●
173 BOLT; COVER
(A) M8X25 FLANGE 		0-28050-825-0 12 1 1511- ● ●
173 BOLT; COVER
(B) M10X45 FLANGE 		0-28151-045-0 03 1 1511- ● ●
173 BOLT; COVER
(C) M12X100 FLANGE 		0-28151-200-0 02 1 1511- ● ●
173 BOLT; COVER
(D) M12X30 FLANGE 		0-28151-230-0 15 1 1511- ● ●
173 BOLT; COVER
(E) M10X20 W/LK WASHER 		0-50551-020-0 02 1 1511- ● ●
182 BOLT; OIL PIPE,TRANSFER
M10X20 W/LK WASHER 		0-50551-020-0 01 1 1511- ● ●
185 PUMP ASM; OIL,TRANSFER 1-34150-071-1 01 1 1511- ● ●
189 COVER; DUST,OIL SEAL 1-33139-011-1 01 1 1511- ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 01 1 1511- ● ●
248 BOLT
M6X12.5 FLANGE 		8-98014-141-0 01 1 1511- ● ●
250 COVER; OIL PUMP,TRANSFER
(A) 		1-36121-028-0 01 1 1511- ● ●
250 COVER; OIL PUMP,TRANSFER
(B) 		1-36121-031-0 01 1 1511- ● ●
263 BOLT; TRANSFER CASE
M10X30 FLANGE 		0-28151-030-0 21 1 1511- ● ●
264 SPACER
L=28 		8-97108-653-0 03 1 1511- ● ●
277 COVER; SHIFT ROD,TRANSFER 1-36135-006-0 01 1 1511- ● ●
321 BOLT; PUMP HSG
M8X50 		0-10855-850-0 04 1 1511- ● ●
333 PIPE; OIL,TRANSFER 1-36161-029-0 01 1 1511- ● ●
335 BUSHING
(A) 		1-33373-074-0 01 1 1511- ● ●
335 BUSHING
(B) 		1-33373-076-0 01 1 1511- ● ●
344 CONNECTOR
L=45 		8-94338-874-0 01 1 1511- ● ●
350 RING; SNAP,RING GEAR 1-09623-688-0 01 1 1511- ● ●
352 FILTER; OIL 1-36289-001-0 01 1 1511- ● ●
353 BAFFLE
(A) 		1-36379-007-0 01 1 1511- ● ●
353 BAFFLE
(B) 		1-36379-008-0 01 1 1511- ● ●
354 ROD; AIR SHIFTER 1-36564-037-0 01 1 1511- ● ●
357 SENSOR; SPEED
25 PULSE 		8-98234-167-0 01 1 1511- ● ●
375 NIPPLE
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1511- ● ●
375 NIPPLE
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1511- ● ●
376 SHIFT UNIT; DIFF LOCK 1-48260-104-0 01 1 1511- ● ●
378 BALL; CONT SWITCH 9-00097-013-0 01 1 1511- ● ●
416 PROTECTOR; SENSOR 8-98119-901-0 01 1 1511- ● ●
448 HARNESS; SPEED SENSOR 1-82670-078-0 01 1 1511- ● ●
449 WIRE; LEAD SEAL 1-80249-010-0 01 1 1511- ● ●
450 SEAL; REED 1-15739-008-0 01 1 1511- ● ●

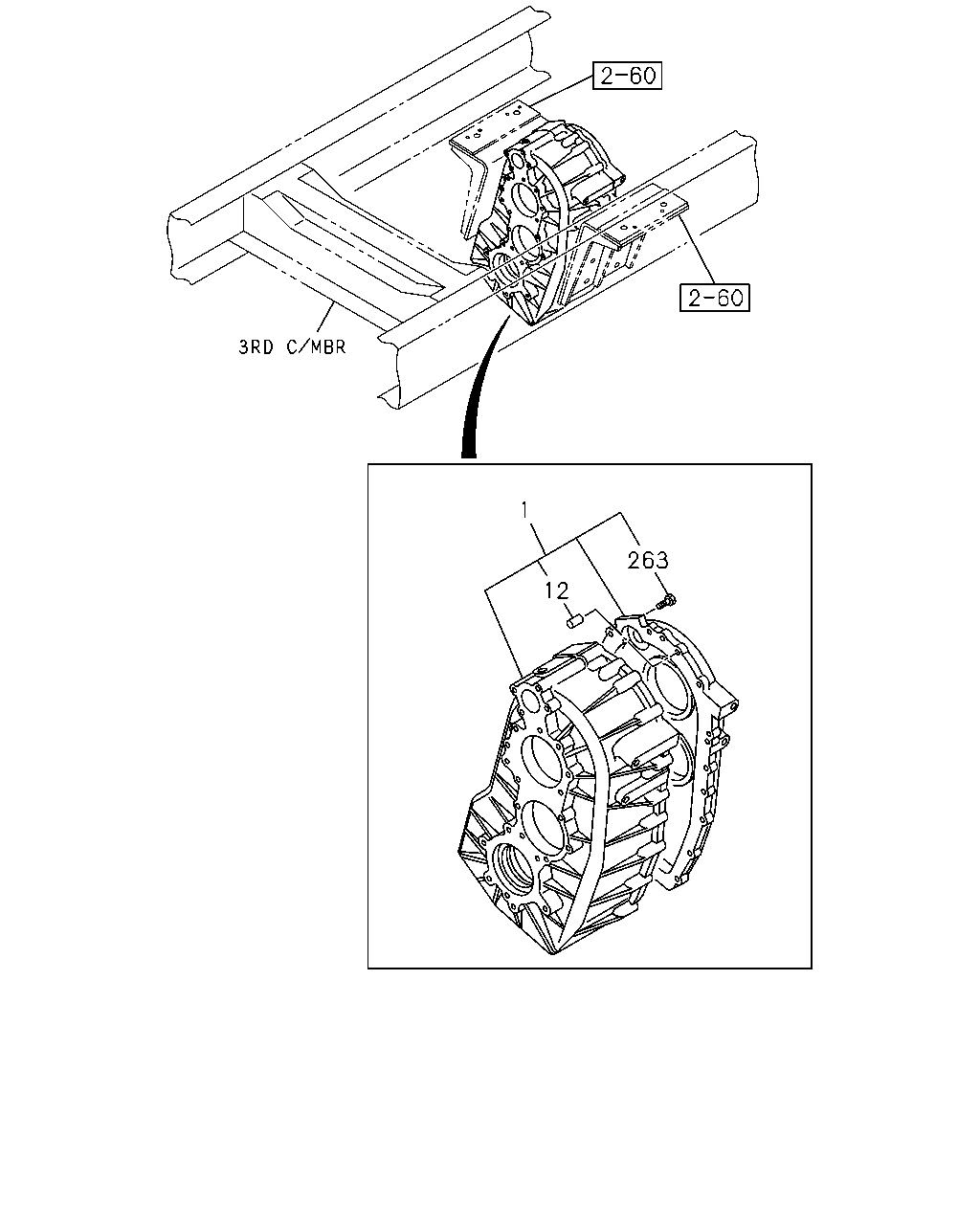

çizim 501410
263 12 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TRANSFER 1-36111-081-0 01 1 1511- ● ●
12 PIN; STRAIGHT,TRANSFER CASE
OD=12 L=20 		9-08161-220-0 02 1 1511- ● ●
263 BOLT; TRANSFER CASE
M10X30 FLANGE 		0-28151-030-0 21 1 1511- ● ●
