2-53 — TRANSMISSION OIL COOLER SYSTEM (#170201) — 37 parça

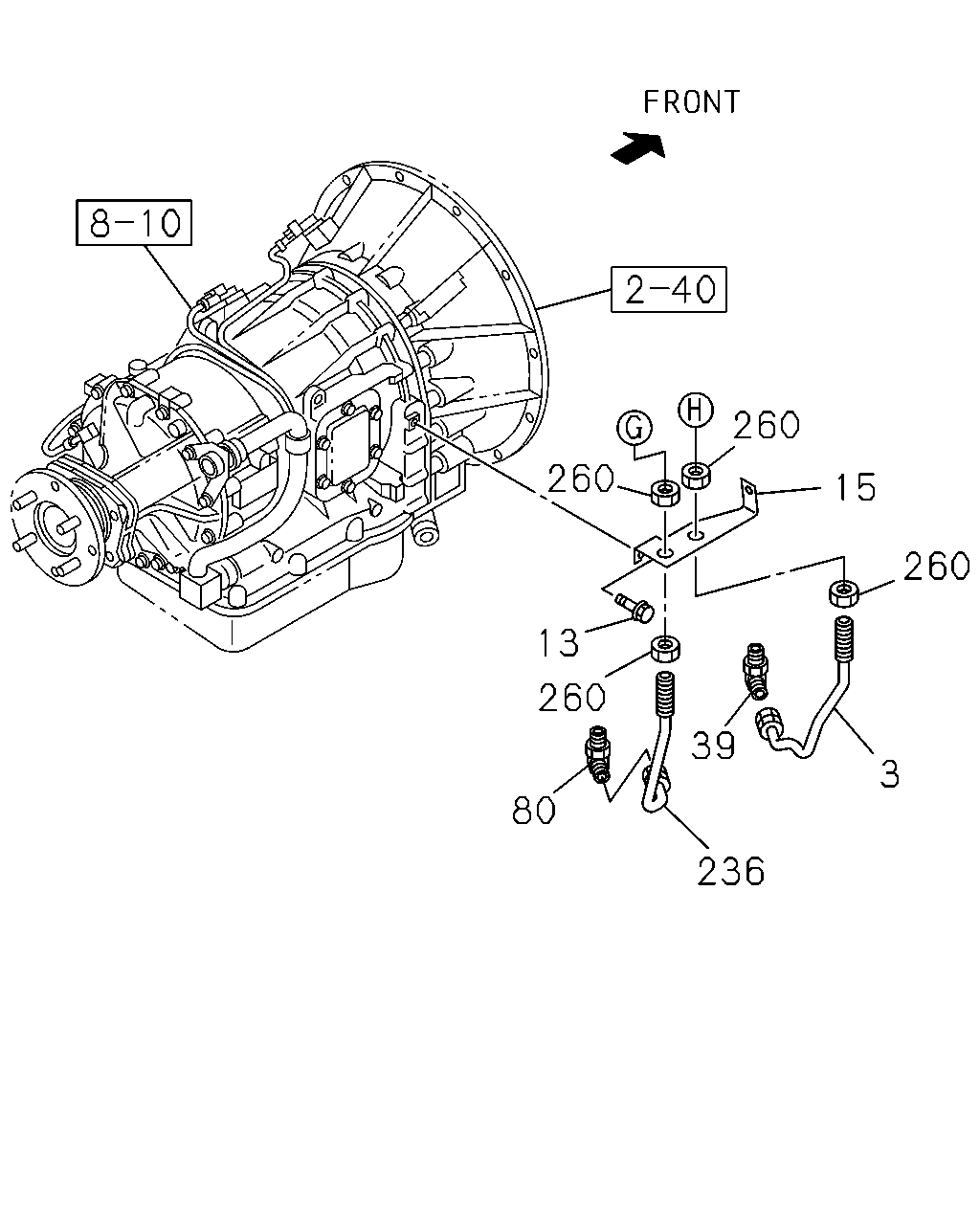

çizim 500897
260 3 236 80 39 260 260 13 260 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 PIPE; OIL,A/T TO OIL COOLER
LCT2500 A/T ALLISON(Y5W) 		8-98158-383-1 01 1 1511- ● ●
13 BOLT; BRKT
LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE 		8-98105-048-0 01 1 1511- ● ●
15 BRACKET; ATF PIPE
LCT2500 A/T ALLISON(Y5W) 		8-98075-836-0 01 1 1511- ● ●
39 CONNECTOR; FLEX HOSE,A/T
LCT2500 A/T ALLISON(Y5W) 		1-09661-766-1 01 1 1511- ● ●
80 UNION; FLEX HOSE
LCT2500 A/T ALLISON(Y5W) 		1-09661-766-1 01 1 1511- ● ●
236 PIPE; OIL,OIL COOLER TO A/T
LCT2500 A/T ALLISON(Y5W) 		8-98158-384-1 01 1 1511- ● ●
260 NUT
LCT2500 A/T ALLISON(Y5W) M30 		1-09400-166-0 04 1 1511- ● ●
çizim 500900
255 265
BalonParca AdiParca NoAdetTipApplied Date A B

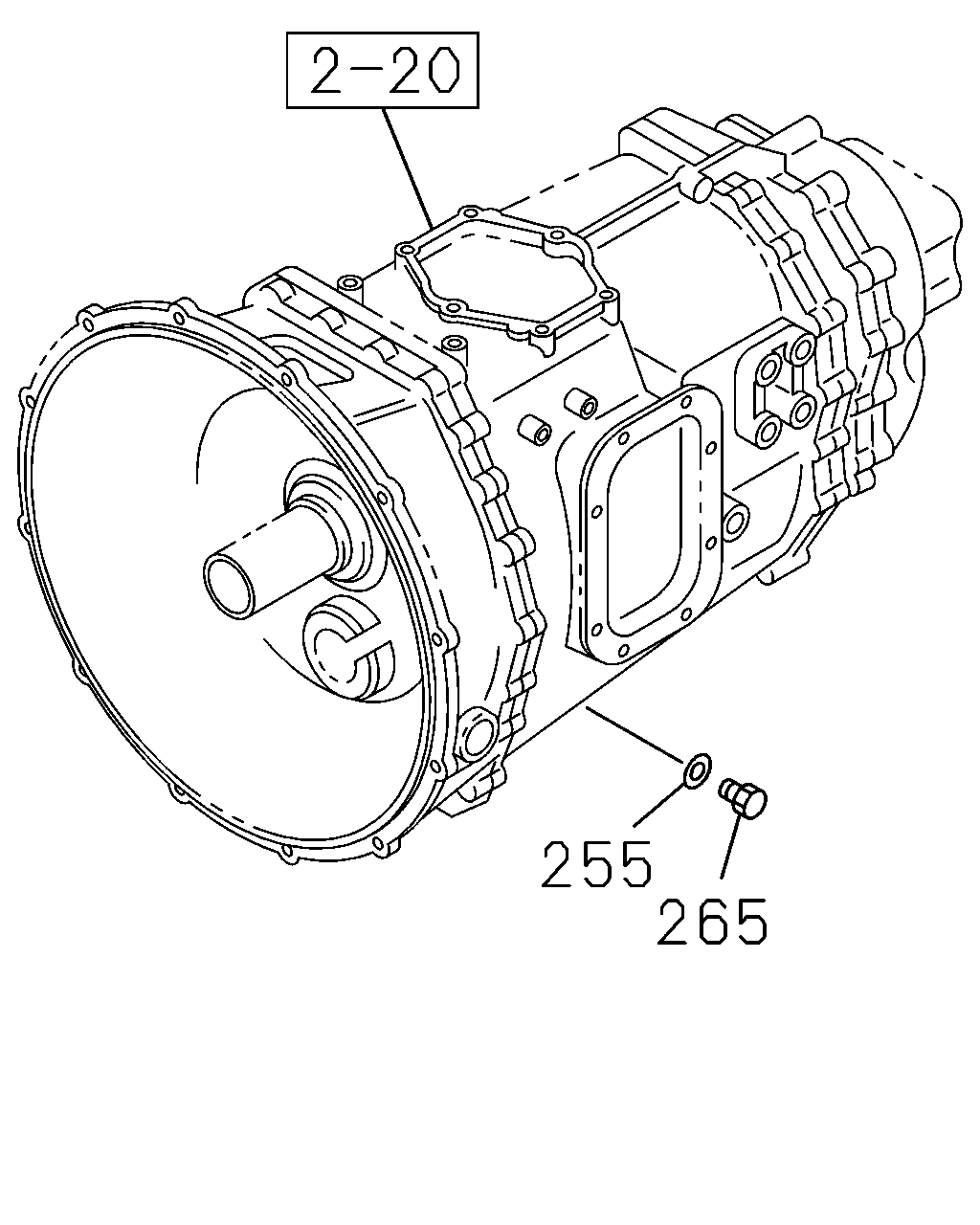

255 GASKET; SENSOR
MZW6P M/T(RSZ) ID=12.2 		9-09571-412-0 01 1 1511- ● ●
265 PLUG; HOLE
MZW6P M/T(RSZ) M12X9 		0-92002-412-0 01 1 1511- ● ●
çizim 500998

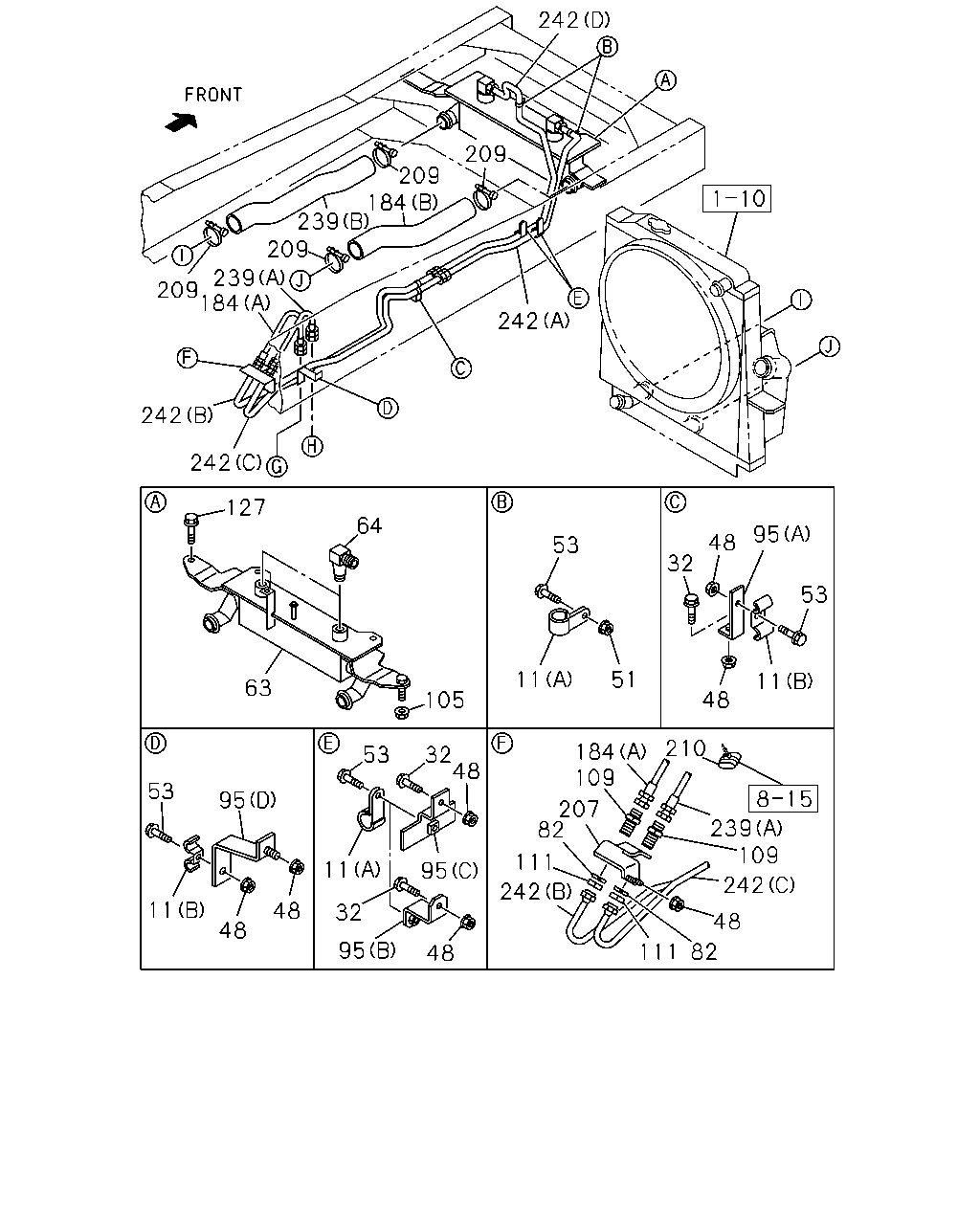

242 209 209 184 239 209 239 209 184 242 242 242 127 64 63 105 53 11 51 32 48 48 95 53 11 210 184 109 207 82 111 242 111 82 242 239 109 95 48 95 32 48 32 53 11 48 48 11 95 53 48
BalonParca AdiParca NoAdetTipApplied Date A B
11 CLIP; PIPE
A/T<X9D> (A) ID=19 L=20 		0-95235-836-0 04 1 1511- ● ●
11 CLIP; PIPE
A/T<X9D> (B) ID=19 & 19 		1-09701-324-0 02 1 1511- ● ●
32 BOLT; BRKT
A/T<X9D> M8X30 FLANGE 		0-28650-830-0 05 1 1511- ● ●
48 NUT; BRKT
A/T<X9D> M8 FLANGE 		0-91180-108-0 08 1 1511- ● ●
51 NUT; CLIP TO BRKT
A/T<X9D> M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
53 BOLT; CLIP,FLEX HOSE,A/T
A/T<X9D> M8X20 FLANGE 		0-28650-820-0 06 1 1511- ● ●
63 COOLER; OIL
A/T<X9D> 		8-98225-333-0 01 1 1511- ● ●
64 CONNECTOR; OIL COOLER
A/T<X9D> 		9-09903-722-0 02 1 1511- ● ●
82 WASHER; LK,UNION
A/T<X9D> ID=30.5 		9-09150-530-0 02 1 1511- ● ●
95 BRACKET; CLIP
A/T<X9D> (A) 		1-34656-009-0 02 1 1511- ● ●
95 BRACKET; CLIP
A/T<X9D> (B) 		1-47479-255-0 02 1 1511- ● ●
95 BRACKET; CLIP
A/T<X9D> (C) 		8-98089-351-0 01 1 1511- ● ●
95 BRACKET; CLIP
A/T<X9D> (D) 		8-98215-737-0 01 1 1511- ● ●
105 NUT; OIL COOLER
A/T<X9D> M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
109 UNION
A/T<X9D> M30 & M30 STRAIGHT 		1-09664-191-0 02 1 1511- ● ●
111 NUT; UNION
A/T<X9D> M30 		9-09840-252-1 02 1 1511- ● ●
127 BOLT; COOLER
A/T<X9D> M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
184 HOSE; FLEX,PIPE TO COOLER
A/T<X9D> (B) 		8-98098-559-1 01 1 1511- ● ●
184 HOSE; FLEX,PIPE TO COOLER
A/T<X9D> (A) 		8-98157-887-0 01 1 1511- ● ●
207 BRACKET; UNION
A/T<X9D> 		8-98234-301-0 01 1 1511- ● ●
209 CLIP; HOSE
A/T<X9D> ID=63 		1-09704-067-0 04 1 1511- ● ●
210 BAND; FLEX HOSE
A/T<X9D> L=175 		1-09707-178-0 01 1 1511- ● ●
239 HOSE; FLEX,COOLER TO PIPE
A/T<X9D> (B) 		8-98025-697-1 01 1 1511- ● ●
239 HOSE; FLEX,COOLER TO PIPE
A/T<X9D> (A) 		8-98233-757-0 01 1 1511- ● ●
242 PIPE; COOLER
A/T<X9D> (D) 		8-98215-732-0 01 1 1511- ● ●
242 PIPE; COOLER
A/T<X9D> (B) 		8-98233-659-0 01 1 1511- ● ●
242 PIPE; COOLER
A/T<X9D> (C) 		8-98233-660-0 01 1 1511- ● ●
242 PIPE; COOLER
A/T<X9D> (A) 		8-98233-661-0 01 1 1511- ● ●
