8-75 — CONDENSER (#1702) — 46 parça

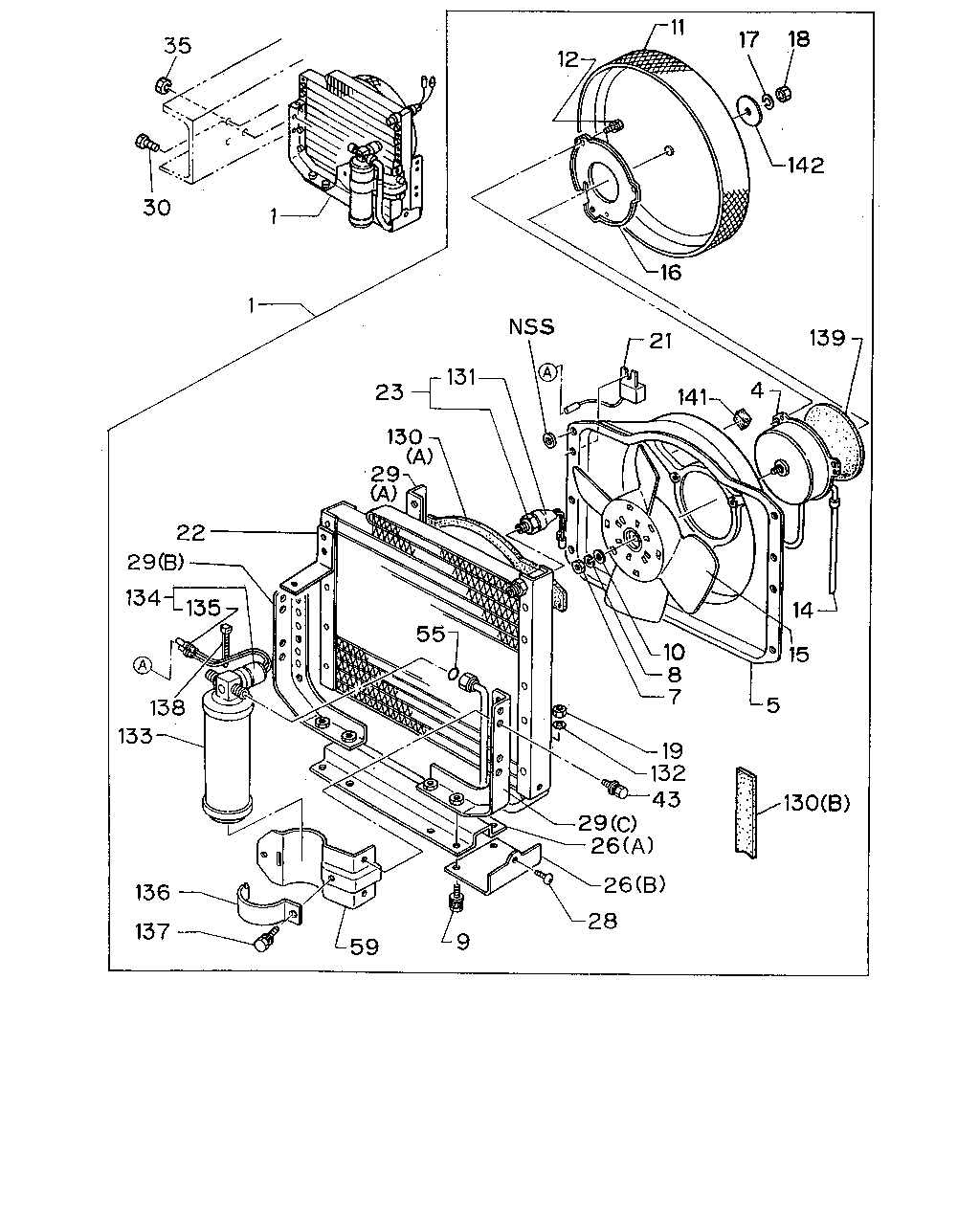

çizim 29146
35 30 1 1 12 11 17 18 142 139 16 21 141 4 131 23 130 29 22 29 134 135 138 133 136 137 59 9 28 26 26 29 43 132 19 55 10 8 7 14 15 5 130
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83534-062-7 01 1 9207- ● ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83561-059-0 01 1 9207-9410 ● ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83561-108-0 01 1 9411- ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-103-0 01 1 9207- ● ●
7 NUT; FAN
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-043-0 01 1 9207- ● ●
8 WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL<C60> ID=5 		1-83539-044-0 01 1 9207- ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL<C60> M8X22 		1-83579-198-0 07 1 9207- ● ●
10 WASHER; PL,FAN
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-045-0 01 1 9207- ● ●
11 COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-057-0 01 1 9207- ● ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-042-0 03 1 9207- ● ●
14 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83566-449-0 01 1 9207- ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-041-0 01 1 9207- ● ●
16 COVER; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-055-0 01 1 9207- ● ●
17 WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL<C60> ID=5 		1-83539-044-0 01 1 9207- ● ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-043-0 01 1 9207- ● ●
19 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL<C60> M8 		9-09110-408-0 01 1 9207- ● ●
21 CONDENSER
AIR CONDITIONER MANUAL CONTROL<C60> 		1-84132-007-0 01 1 9207- ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83534-063-3 01 1 9207- ● ●
23 SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONTROL<C60> 		1-82380-088-0 01 1 9207- ● ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL<C60> (B) 		1-83539-060-0 01 1 9207- ● ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL<C60> (A) 		1-83539-105-0 01 1 9207- ● ●
28 SCREW; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-047-0 03 1 9207- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL<C60> (A) 		1-83571-475-0 01 1 9207- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL<C60> (B) 		1-83571-476-0 01 1 9207- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL<C60> (C) 		1-83571-477-0 01 1 9207- ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL<C60> M10X25 W/LK WASHER 		0-50041-025-0 04 1 9207- ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL<C60> M10 		9-09110-510-0 02 1 9207- ● ●
43 BOLT; BRKT,CONDENSER
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-059-0 02 1 9207- ● ●
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL<C60> ID=7.65 		8-94113-332-0 01 1 9207- ● ●
59 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83571-479-0 01 1 9207- ● ●
130 LINING; CONDENSER
AIR CONDITIONER MANUAL CONTROL<C60> (A) 		1-83539-061-0 01 1 9207- ● ●
130 LINING; CONDENSER
AIR CONDITIONER MANUAL CONTROL<C60> (B) 		1-83539-104-0 01 1 9207- ● ●
131 COVER; SWITCH
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83579-200-0 01 1 9207- ● ●
132 WASHER; BRKT
AIR CONDITIONER MANUAL CONTROL<C60> ID=8 		1-14319-034-0 01 1 9207- ● ●
133 DRYER ASM; RECEIVER
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83535-045-1 01 1 9207-9410 ● ●
133 DRYER ASM; RECEIVER
AIR CONDITIONER MANUAL CONTROL<C60> 		8-97083-490-0 01 1 9411- ● ●
134 SWITCH; PRESSURE,DRYER
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83564-283-0 01 1 9207- ● ●
135 COVER; SWITCH,DRYER
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83579-429-0 01 1 9207- ● ●
136 BRACKET; DRYER
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83571-472-0 01 1 9207-9410 ● ●
136 BRACKET; DRYER
AIR CONDITIONER MANUAL CONTROL<C60> 		8-97084-632-0 01 1 9411- ● ●
137 BOLT; BRKT,DRYER
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-048-0 01 1 9207- ● ●
138 CLIP; DRYER
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83574-130-0 01 1 9207-9410 ● ●
138 CLIP; DRYER
AIR CONDITIONER MANUAL CONTROL<C60> L=140 		5-09707-008-0 01 1 9411- ● ●
139 SEAL; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-054-0 01 1 9207- ● ●
141 INSULATOR; SHROUD
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-056-0 03 1 9207- ● ●
142 COVER; SHROUD COVER
AIR CONDITIONER MANUAL CONTROL<C60> 		1-83539-058-0 01 1 9207- ● ●
