Isuzu WW
▶
TRUCKS
▶
FTS
▶
11723 - FTS AUST/NZ EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-39A - POWER ASSISTOR
▶
2-39A — POWER ASSISTOR
(#170197) — 27 parça
◀

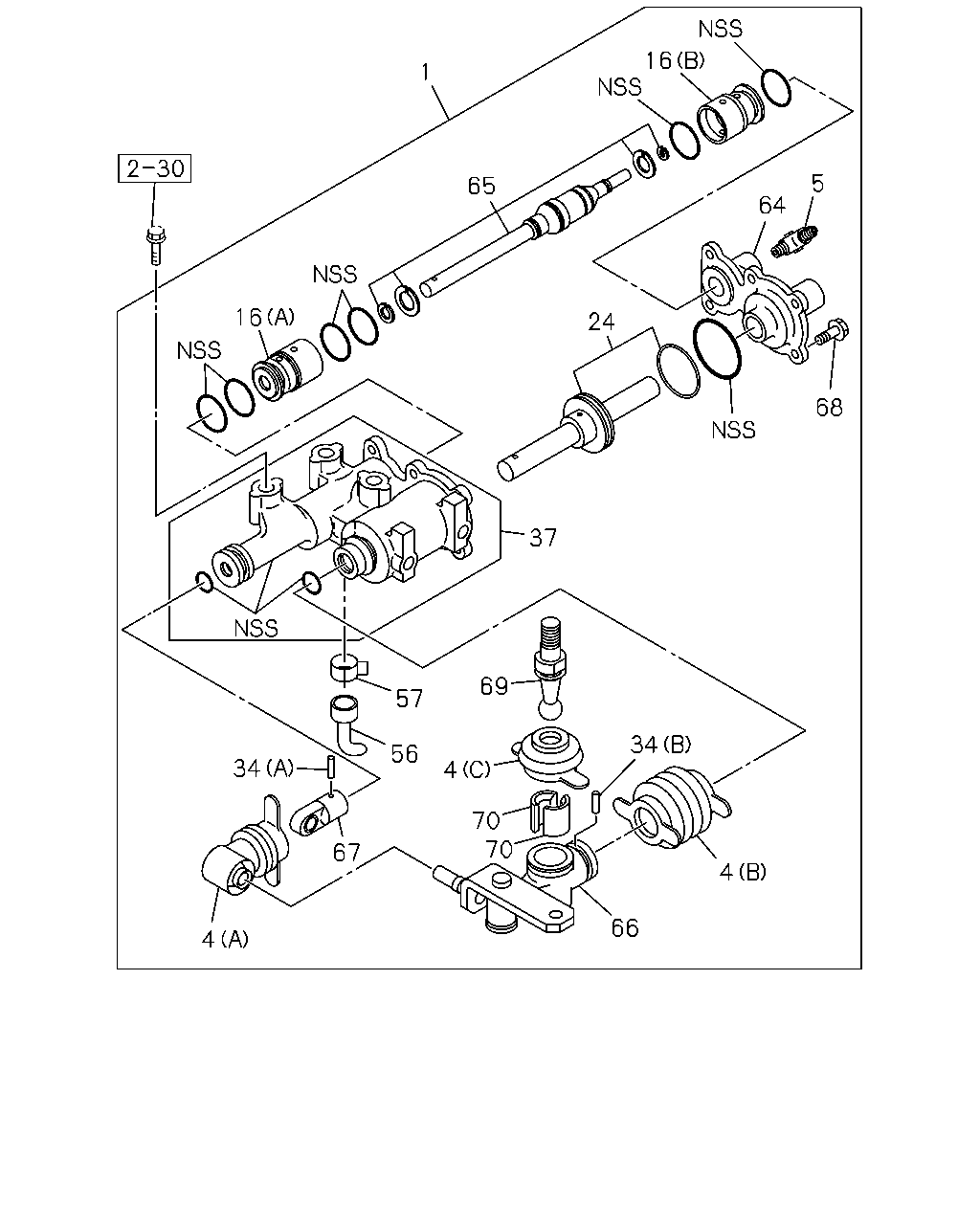

[239A] COMPONENT (20 parça)

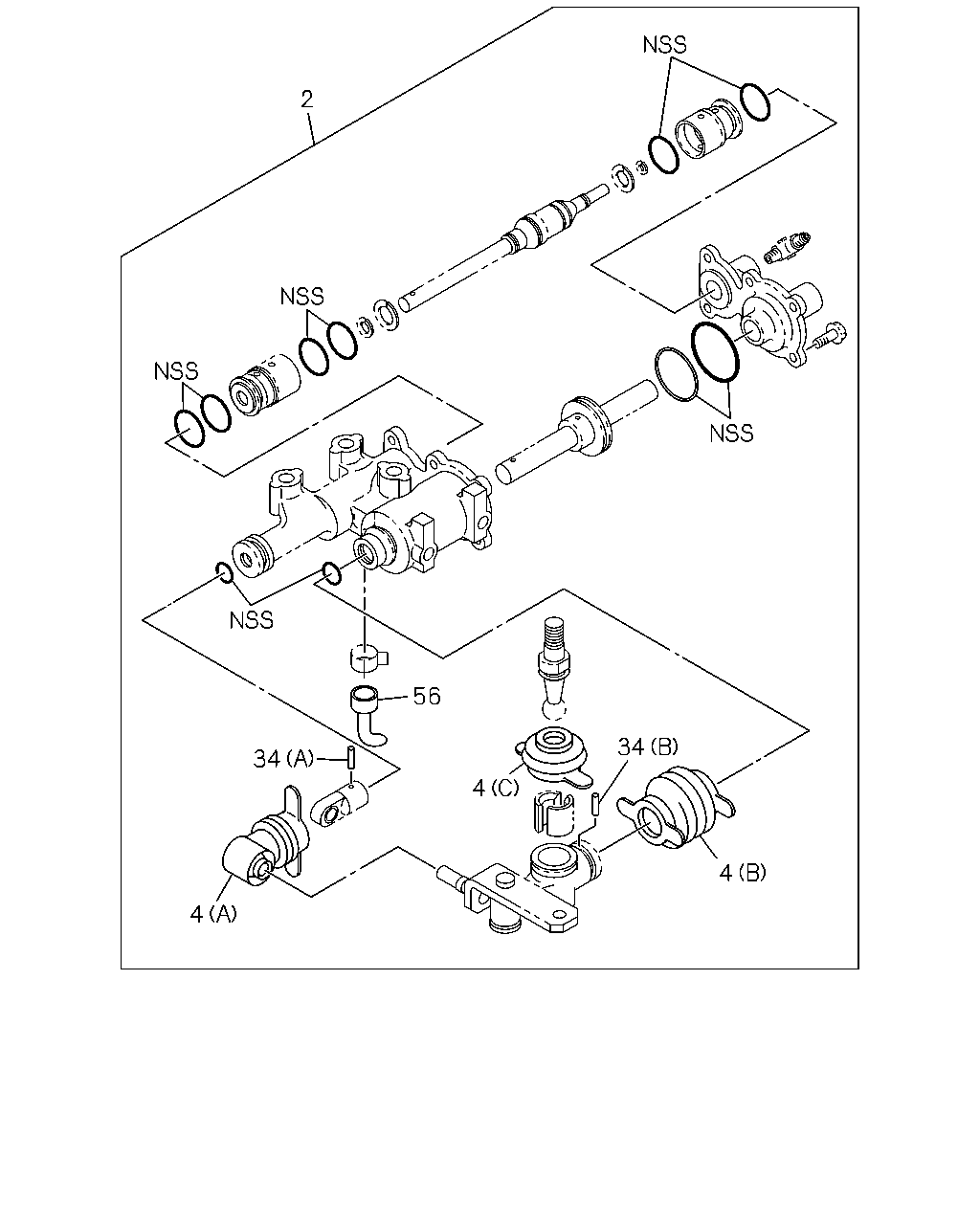

[239A] REPAIR KIT (7 parça)
▶
1
16
65
16
5
64
24
68
37
57
69
4
34
70
70
66
4
4
67
34
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ASSISTOR ASM; POWER,SHIFT
8-98022-843-0
01
1
1511-
4
BOOT; POWER SHIFTER
(A)
1-33739-843-0
01
1
1511-
4
BOOT; POWER SHIFTER
(B)
1-33739-844-0
01
1
1511-
4
BOOT; POWER SHIFTER
(C)
1-33739-847-0
01
1
1511-
5
CONNECTOR; CYL
M12 & PT1/8
0-92124-306-0
01
1
1511-
16
SEAT; VALVE
(A)
8-97388-032-0
01
1
1511-
16
SEAT; VALVE
(B)
8-97388-033-0
01
1
1511-
24
PISTON
1-33739-836-1
01
1
1511-
34
PIN; STRAIGHT,POWER SHIFTER
(B)
1-33739-885-0
01
1
1511-
34
PIN; STRAIGHT,POWER SHIFTER
(A)
1-33739-974-0
01
1
1511-
37
HOUSING; POWER SHIFTER
1-33739-969-0
01
1
1511-
56
HOSE; POWER SHIFTER
1-33739-848-0
01
1
1511-
57
CLAMP; HOSE
1-33739-849-0
01
1
1511-
64
COVER; HOUSING
1-33739-970-0
01
1
1511-
65
VALVE; POWER SHIFTER
8-97388-029-0
01
1
1511-
66
JOINT ASM; POWER SHIFTER
1-33739-972-0
01
1
1511-
67
JOINT; BALL,POWER SHIFTER
1-33739-973-0
01
1
1511-
68
BOLT; COVER
M6X12 FLANGE
1-33739-842-0
06
1
1511-
69
STUD; BALL,POWER SHIFTER
1-33739-846-0
01
1
1511-
70
SEAT; BALL STUD
1-33659-118-0
02
1
1511-
2
56
34
4
4
34
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; POWER SHIFTER
1-33738-028-0
01
1
1511-
4
BOOT; POWER SHIFTER
(A)
1-33739-843-0
01
1
1511-
4
BOOT; POWER SHIFTER
(B)
1-33739-844-0
01
1
1511-
4
BOOT; POWER SHIFTER
(C)
1-33739-847-0
01
1
1511-
34
PIN; STRAIGHT,POWER SHIFTER
(B)
1-33739-885-0
01
1
1511-
34
PIN; STRAIGHT,POWER SHIFTER
(A)
1-33739-974-0
01
1
1511-
56
HOSE; POWER SHIFTER
1-33739-848-0
01
1
1511-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
