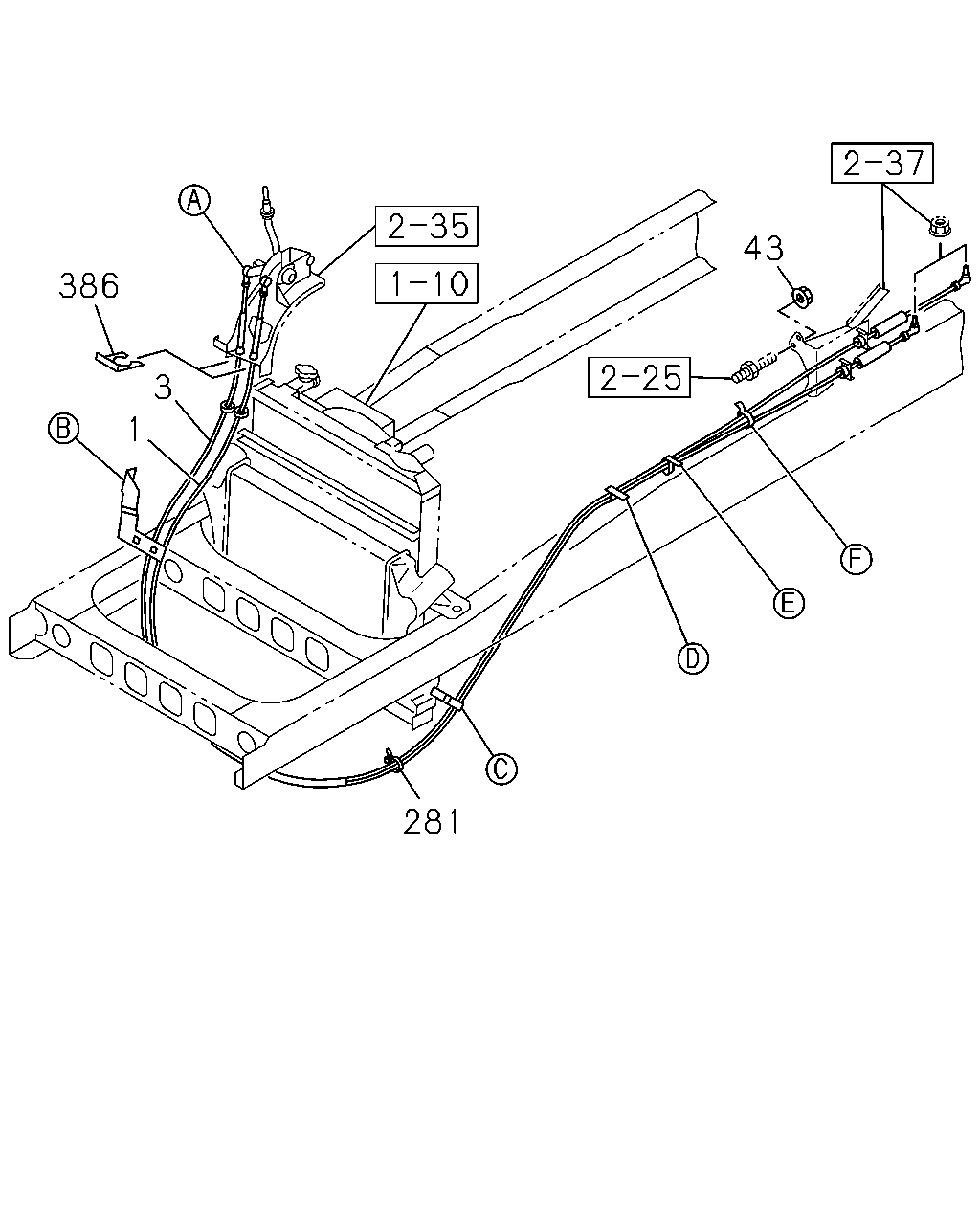

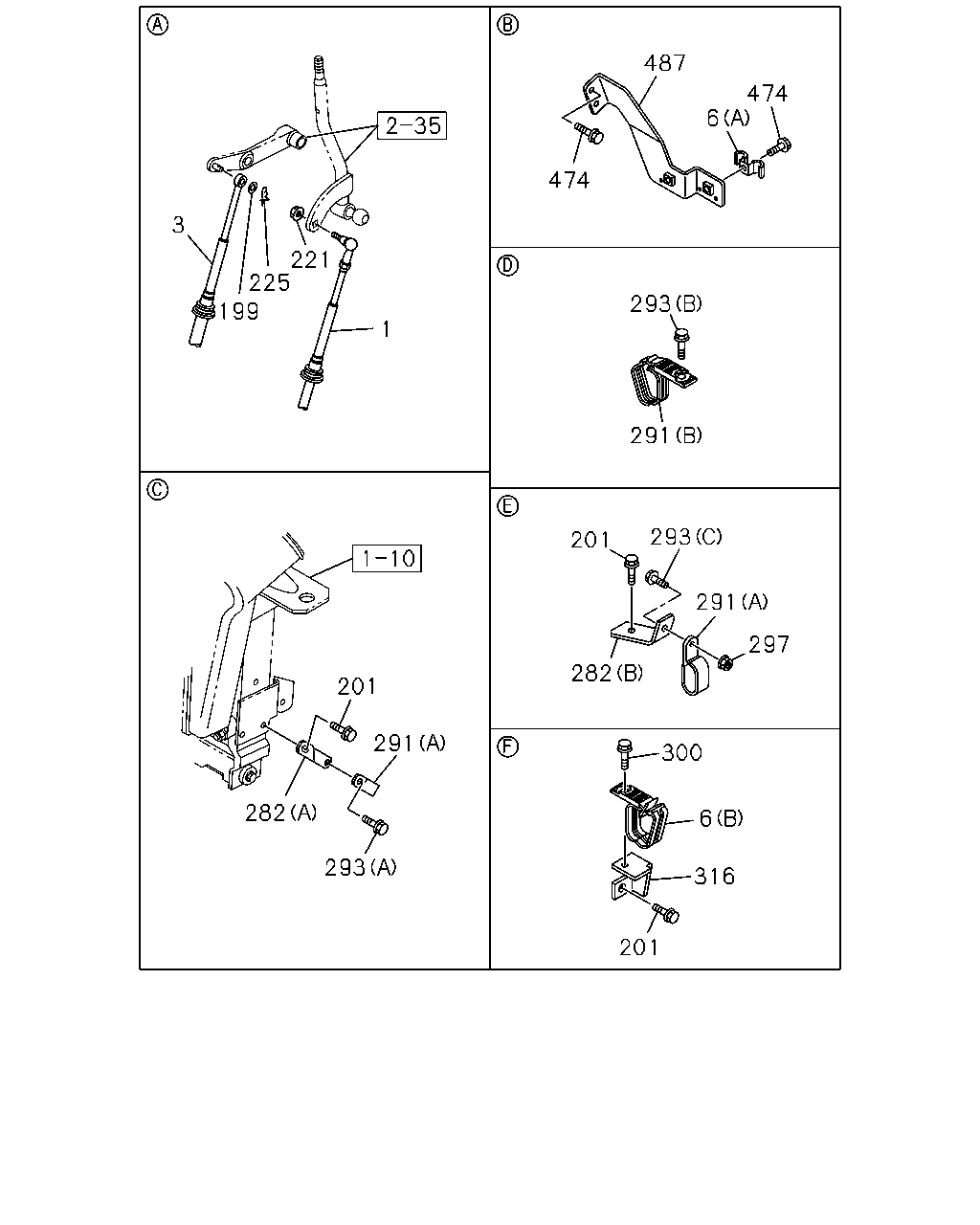

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#170195) — 82 parça

221 1 225 199 3 201 291 293 282 474 487 474 6 293 291 201 293 291 297 282 300 6 316 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3630	8-98125-510-2	01	1	1511-	●	●
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515	8-98050-357-5	01	1	1511-	●	●
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98074-066-3	01	1	1511-	●	●
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98050-361-3	01	1	1511-	●	●
6	CLIP; CABLE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1511-	●	●
6	CLIP; CABLE EXC. ASSISTOR SHIFT CONTROL<WX8> (C) ID=13 L=20	0-95235-236-0	01	1	1511-	●	●
6	CLIP; CABLE MZW6P M/T(RSZ) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
199	WASHER; PL,SELECT ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=16	0-91614-508-0	01	1	1511-	●	●
201	BOLT; BRKT MZW6P M/T(RSZ) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
201	BOLT; BRKT MZW6P M/T(RSZ) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
201	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
221	NUT; SHIFT WIRE TO LEVER ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	1511-	●	●
225	PIN; SELECT CABLE ASSISTOR SHIFT CONTROL<WX8> L=27.7	8-94111-137-0	01	1	1511-	●	●
282	BRACKET; TRANS SIDE MZW6P M/T(RSZ) (B)	1-82699-199-0	01	1	1511-	●	●
282	BRACKET; TRANS SIDE MZW6P M/T(RSZ) (A)	8-98098-265-2	01	1	1511-	●	●
282	BRACKET; TRANS SIDE LCT2500 A/T ALLISON(Y5W) (B)	1-82699-199-0	01	1	1511-	●	●
282	BRACKET; TRANS SIDE LCT2500 A/T ALLISON(Y5W) (A)	8-98216-877-0	01	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME MZW6P M/T(RSZ) (A) ID=11X2 L=16	0-95325-026-0	02	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME MZW6P M/T(RSZ) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2500 A/T ALLISON(Y5W) (C) ID=11 L=24	0-95235-045-0	03	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2500 A/T ALLISON(Y5W) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT MZW6P M/T(RSZ) (B) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT MZW6P M/T(RSZ) (C) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (C) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
300	BOLT; CLIP MZW6P M/T(RSZ) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
316	BRACKET; CLIP MZW6P M/T(RSZ)	8-98073-017-1	01	1	1511-	●	●
474	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER	0-51640-825-0	03	1	1511-	●	●
474	BOLT; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER	0-51640-825-0	02	1	1511-	●	●
487	BRACKET; CONT CABLE	8-98183-009-0	01	1	1511-	●	●

293 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
291	CLIP; SHIFT TO SELECT,FRAME MZW6P M/T(RSZ) (A) ID=11X2 L=16	0-95325-026-0	02	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME MZW6P M/T(RSZ) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2500 A/T ALLISON(Y5W) (C) ID=11 L=24	0-95235-045-0	03	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2500 A/T ALLISON(Y5W) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT MZW6P M/T(RSZ) (B) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT MZW6P M/T(RSZ) (C) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (C) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●

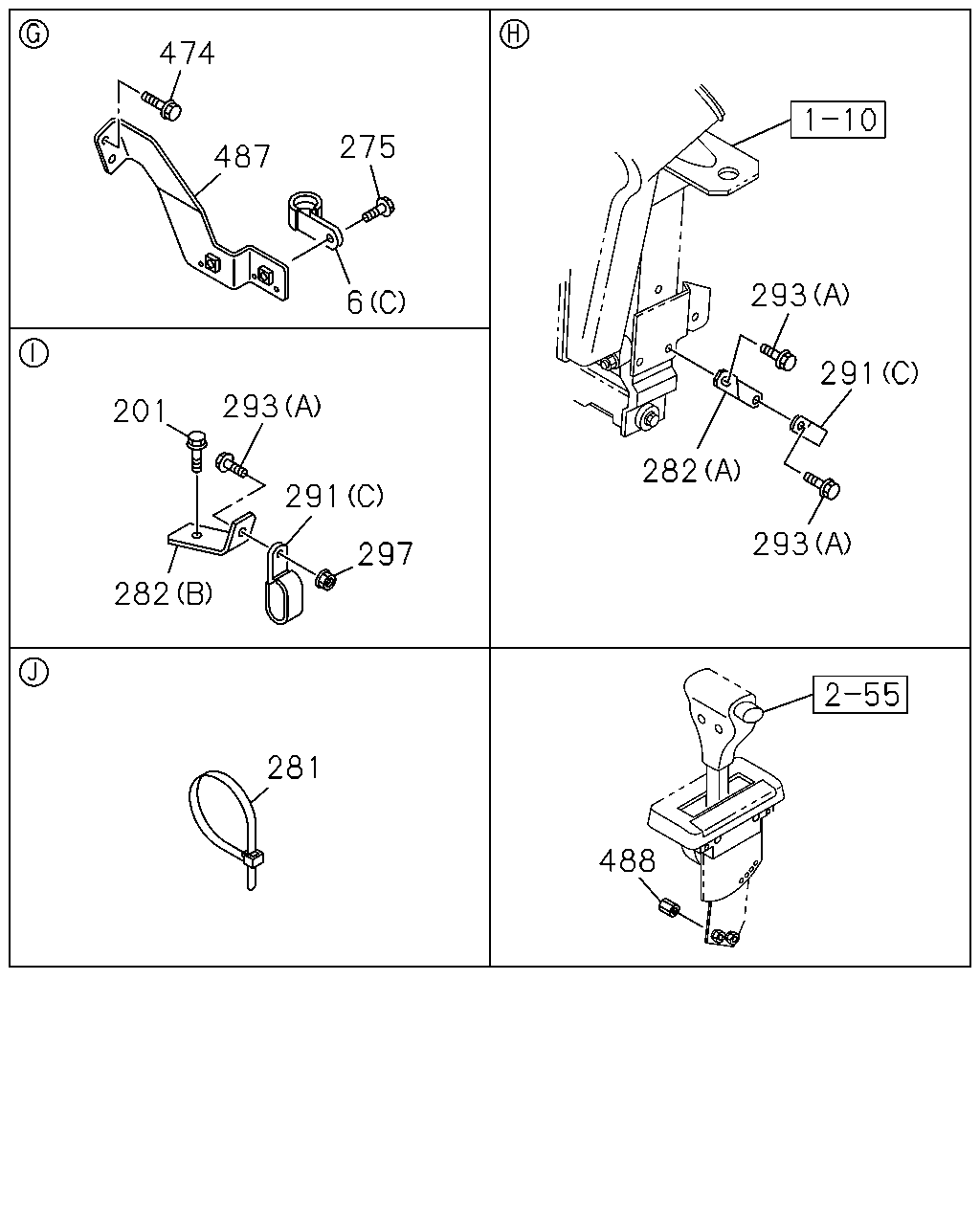

386 1 3 281 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3630	8-98125-510-2	01	1	1511-	●	●
1	CABLE; SHIFT,TRANS CONT MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515	8-98050-357-5	01	1	1511-	●	●
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775	8-98074-066-3	01	1	1511-	●	●
3	CABLE; SELECT,TRANS CONT MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720	8-98050-361-3	01	1	1511-	●	●
43	NUT; BRKT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
281	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=300	1-09707-001-1	01	1	1511-	●	●
281	CLIP; BAND MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=300	1-09707-001-1	01	1	1511-	●	●
386	CLIP; CONT CABLE & TUBE ASSISTOR SHIFT CONTROL<WX8>	1-09700-966-1	02	1	1511-	●	●

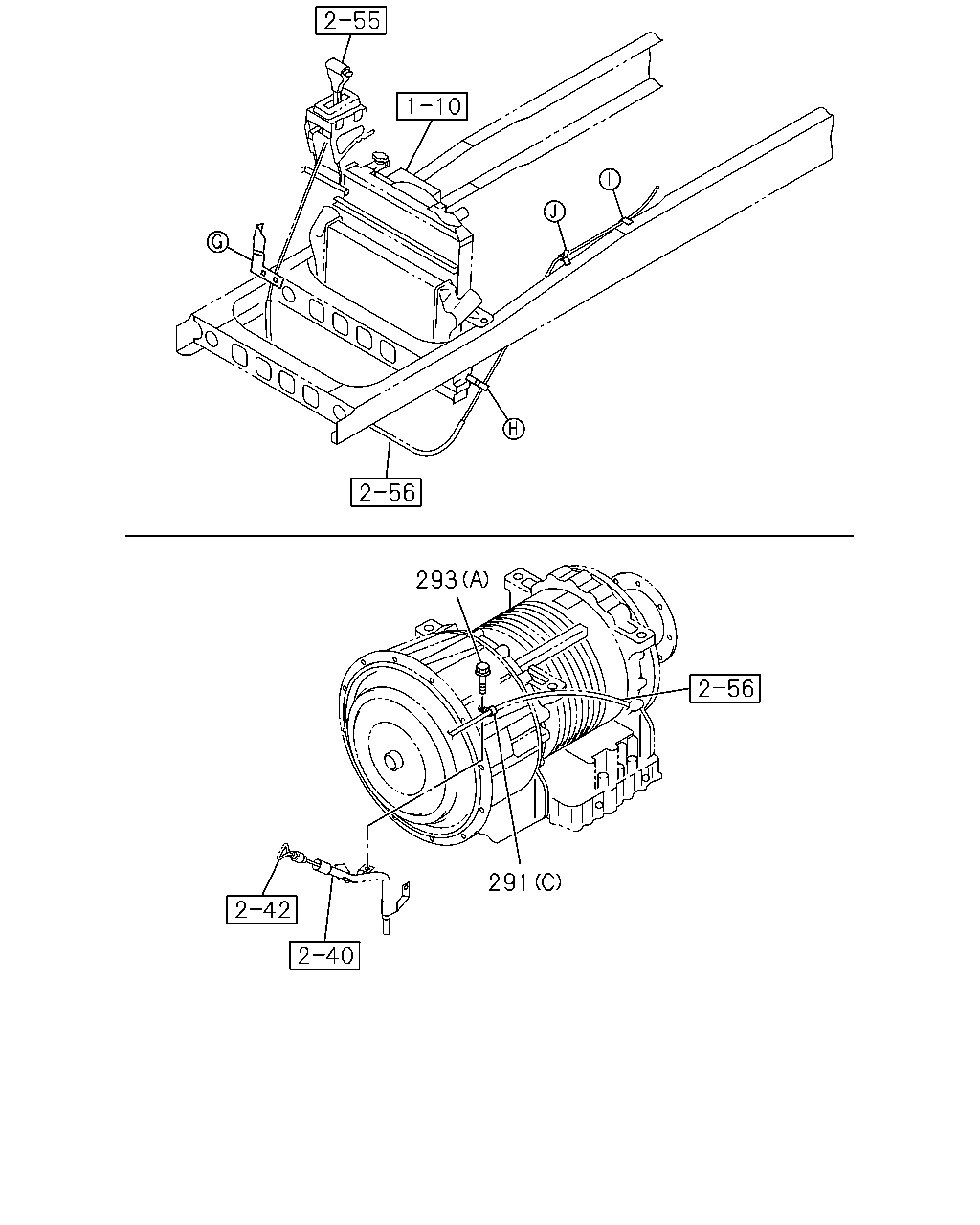

474 487 275 6 293 201 291 282 297 281 488 293 282 291 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; CABLE ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1511-	●	●
6	CLIP; CABLE EXC. ASSISTOR SHIFT CONTROL<WX8> (C) ID=13 L=20	0-95235-236-0	01	1	1511-	●	●
6	CLIP; CABLE MZW6P M/T(RSZ) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
201	BOLT; BRKT MZW6P M/T(RSZ) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
201	BOLT; BRKT MZW6P M/T(RSZ) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
201	BOLT; BRKT LCT2500 A/T ALLISON(Y5W) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
275	BOLT; CONT CABLE CLIP EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER	0-51640-825-0	01	1	1511-	●	●
281	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=300	1-09707-001-1	01	1	1511-	●	●
281	CLIP; BAND MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=300	1-09707-001-1	01	1	1511-	●	●
282	BRACKET; TRANS SIDE MZW6P M/T(RSZ) (B)	1-82699-199-0	01	1	1511-	●	●
282	BRACKET; TRANS SIDE MZW6P M/T(RSZ) (A)	8-98098-265-2	01	1	1511-	●	●
282	BRACKET; TRANS SIDE LCT2500 A/T ALLISON(Y5W) (B)	1-82699-199-0	01	1	1511-	●	●
282	BRACKET; TRANS SIDE LCT2500 A/T ALLISON(Y5W) (A)	8-98216-877-0	01	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME MZW6P M/T(RSZ) (A) ID=11X2 L=16	0-95325-026-0	02	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME MZW6P M/T(RSZ) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2500 A/T ALLISON(Y5W) (C) ID=11 L=24	0-95235-045-0	03	1	1511-	●	●
291	CLIP; SHIFT TO SELECT,FRAME LCT2500 A/T ALLISON(Y5W) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE	0-28050-816-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT MZW6P M/T(RSZ) (B) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT MZW6P M/T(RSZ) (C) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (B) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
293	BOLT; CLIP,SHIFT TO SELECT LCT2500 A/T ALLISON(Y5W) (C) M8X20 FLANGE	0-28050-820-0	01	1	1511-	●	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
474	BOLT; BRKT ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER	0-51640-825-0	03	1	1511-	●	●
474	BOLT; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER	0-51640-825-0	02	1	1511-	●	●
487	BRACKET; CONT CABLE	8-98183-009-0	01	1	1511-	●	●
488	NUT; CABLE EXC. ASSISTOR SHIFT CONTROL<WX8>	5-09400-048-0	02	1	1511-	●	●
