◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11723 - FTS AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30A - GEAR SHIFTER AND QUADRANT BOX ▶
2-30A — GEAR SHIFTER AND QUADRANT BOX (#170193) — 68 parça

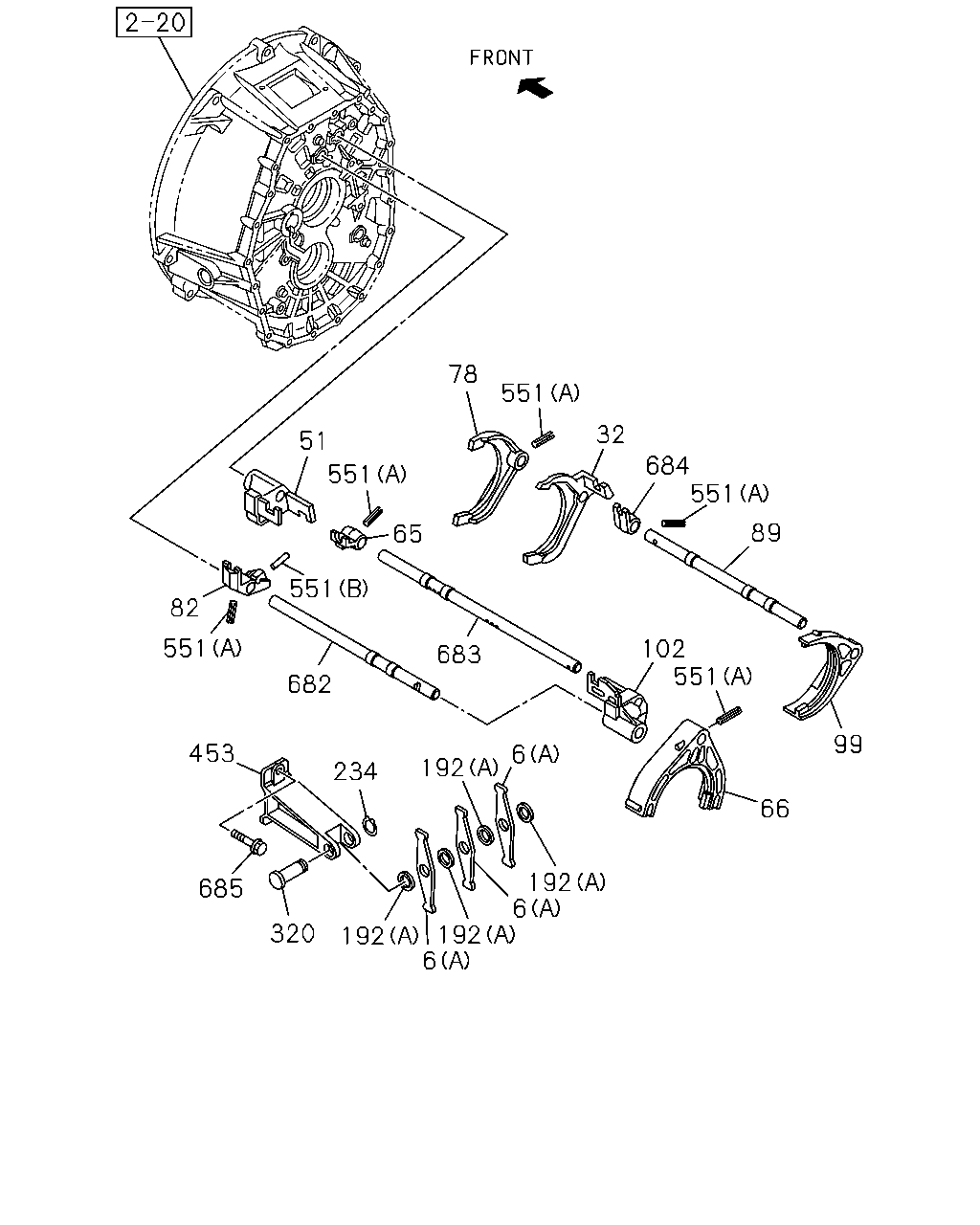

çizim 500627
78 51 65 551 551 683 682 551 82 453 234 320 685 192 6 192 6 192 192 66 6 102 551 99 89 551 684 32 551
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 1511-
6 LEVER; RELAY
(B) 		8-98022-855-0 01 1 1511-
32 ARM; SHIFT,1ST & 2ND 8-98236-424-1 01 1 1511-
51 BLOCK; SHIFT,1ST & 2ND 8-98074-457-1 01 1 1511-
65 BLOCK ASM; SHIFT,5TH & 6TH 8-97388-980-1 01 1 1511-
66 ARM; SHIFT,5TH & 6TH 8-97388-981-0 01 1 1511-
78 ARM; SHIFT,REV 8-97388-975-1 01 1 1511-
82 BLOCK; SHIFT,REV 8-97388-969-0 01 1 1511-
89 ROD; SHIFT,REV 8-98062-172-0 01 1 1511-
99 ARM; SHIFT,4TH & 3RD 8-98309-861-0 01 1 1511-
102 BLOCK; SHIFT,3RD & 4TH 8-97388-978-2 01 1 1511-
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 1511-
192 WASHER; PL
(B) 		8-97305-661-0 02 1 1511-
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1511-
320 SHAFT; LEVER 8-97377-928-0 01 1 1511-
453 BLOCK; RELAY LEVER 8-97377-927-1 01 1 1511-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1511-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1511-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1511-
682 ROD; SHIFT,REV,SUB 8-97388-974-0 01 1 1511-
683 ROD; SHIFT,5TH & 6TH 8-98062-173-1 01 1 1511-
684 BLOCK; SHIFT,REV,SUB 8-97388-970-0 01 1 1511-
685 BOLT; BLOCK
M8X30 FLANGE 		8-98034-764-0 02 1 1511-

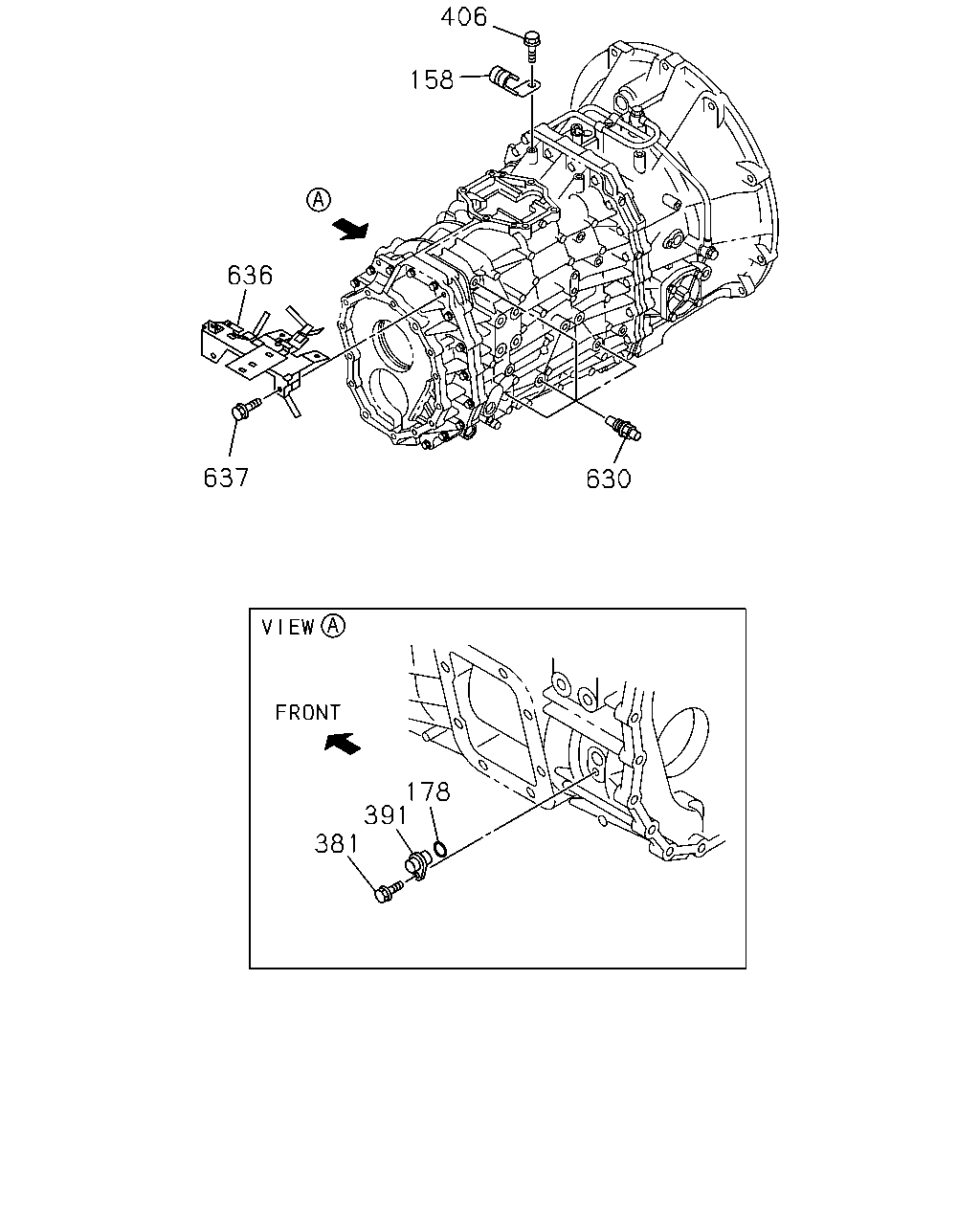

çizim 500840
406 158 630 636 637 178 391 381
BalonParca AdiParca NoAdetTipApplied Date
158 CLIP; HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1511-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1511-
381 BOLT
M6X16 FLANGE 		0-28650-616-0 01 1 1511-
391 PLUG; SW HOLE 8-97300-273-1 01 1 1511-
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1511-
630 DETENT ASM 8-98019-536-0 04 1 1511-
636 BRACKET; CLIP 8-97610-096-2 01 1 1511-
637 BOLT; BRACKET
M8X16 FLANGE 		0-28050-816-0 02 1 1511-

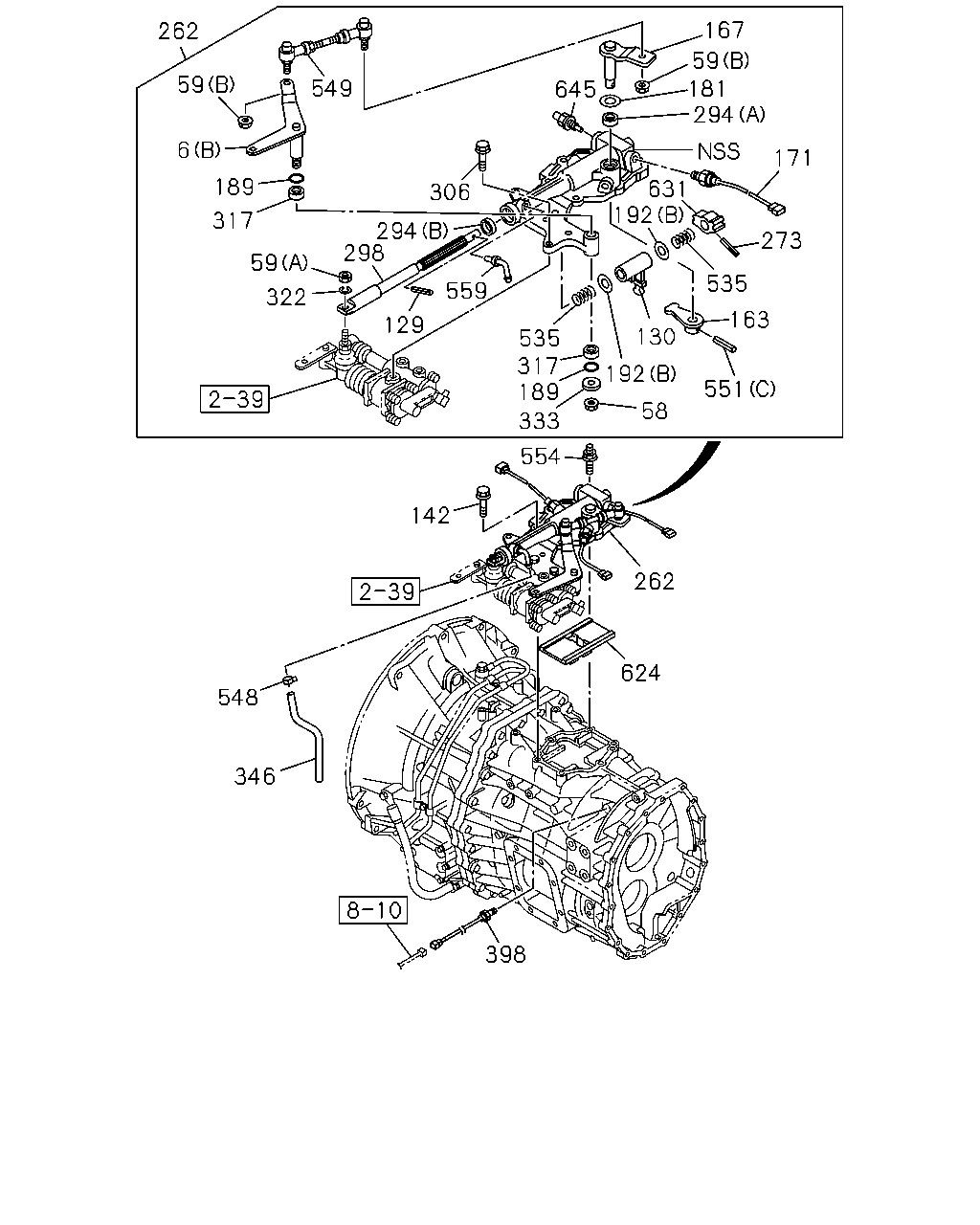

çizim 501340
398 346 548 624 262 142 554 333 189 58 551 192 317 535 130 163 535 273 171 294 181 59 167 645 306 294 298 322 59 317 189 6 59 262 549 631 192 559 129
BalonParca AdiParca NoAdetTipApplied Date
6 LEVER; RELAY
(A) 		8-97241-342-0 03 1 1511-
6 LEVER; RELAY
(B) 		8-98022-855-0 01 1 1511-
58 NUT
M10 FLANGE 		0-91180-110-0 01 1 1511-
59 NUT
(A) M12 		0-91110-512-0 01 1 1511-
59 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1511-
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1511-
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1511-
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 1511-
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1511-
167 LEVER; SELECT,EXTERNAL 8-98022-857-0 01 1 1511-
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1511-
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1511-
189 GASKET; SELECT LEVER,CONT BOX 1-09623-594-0 02 1 1511-
192 WASHER; PL
(A) ID=18.2 OD=29 		1-09503-032-0 04 1 1511-
192 WASHER; PL
(B) 		8-97305-661-0 02 1 1511-
262 BOX ASM; SHIFT CONT 8-98305-335-1 01 1 1511-
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 1511-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97305-662-0 01 1 1511-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97363-225-0 01 1 1511-
298 SHAFT; SHIFT LEVER 8-98305-342-0 01 1 1511-
306 BOLT; SHIFT ASSISTOR
M10X50 FLANGE 		0-28051-050-0 03 1 1511-
317 BUSHING; LEVER 1-09330-119-0 02 1 1511-
322 WASHER; LK 8-98031-750-0 01 1 1511-
333 WASHER; PL,LEVER
ID=10.5 		0-91610-710-0 01 1 1511-
346 HOSE; AIR 8-97309-855-0 01 1 1511-
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1511-
535 SPRING; LEVER 8-97385-713-0 02 1 1511-
548 CLIP; HOSE 8-97031-674-0 01 1 1511-
549 ROD; LINK 8-98022-841-0 01 1 1511-
551 PIN; SPRING
(C) L=25 OD=5 		1-09748-032-0 01 1 1511-
551 PIN; SPRING
(A) L=32 		8-97011-596-2 05 1 1511-
551 PIN; SPRING
(B) L=20 		8-97241-340-0 01 1 1511-
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1511-
559 PIPE; BREATHER 8-97358-318-0 01 1 1511-
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1511-
631 STOPPER; SPRING 8-97305-666-0 01 1 1511-
645 DETENT ASM 8-98019-536-0 01 1 1511-
