◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11723 - FTS AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#170180) — 108 parça

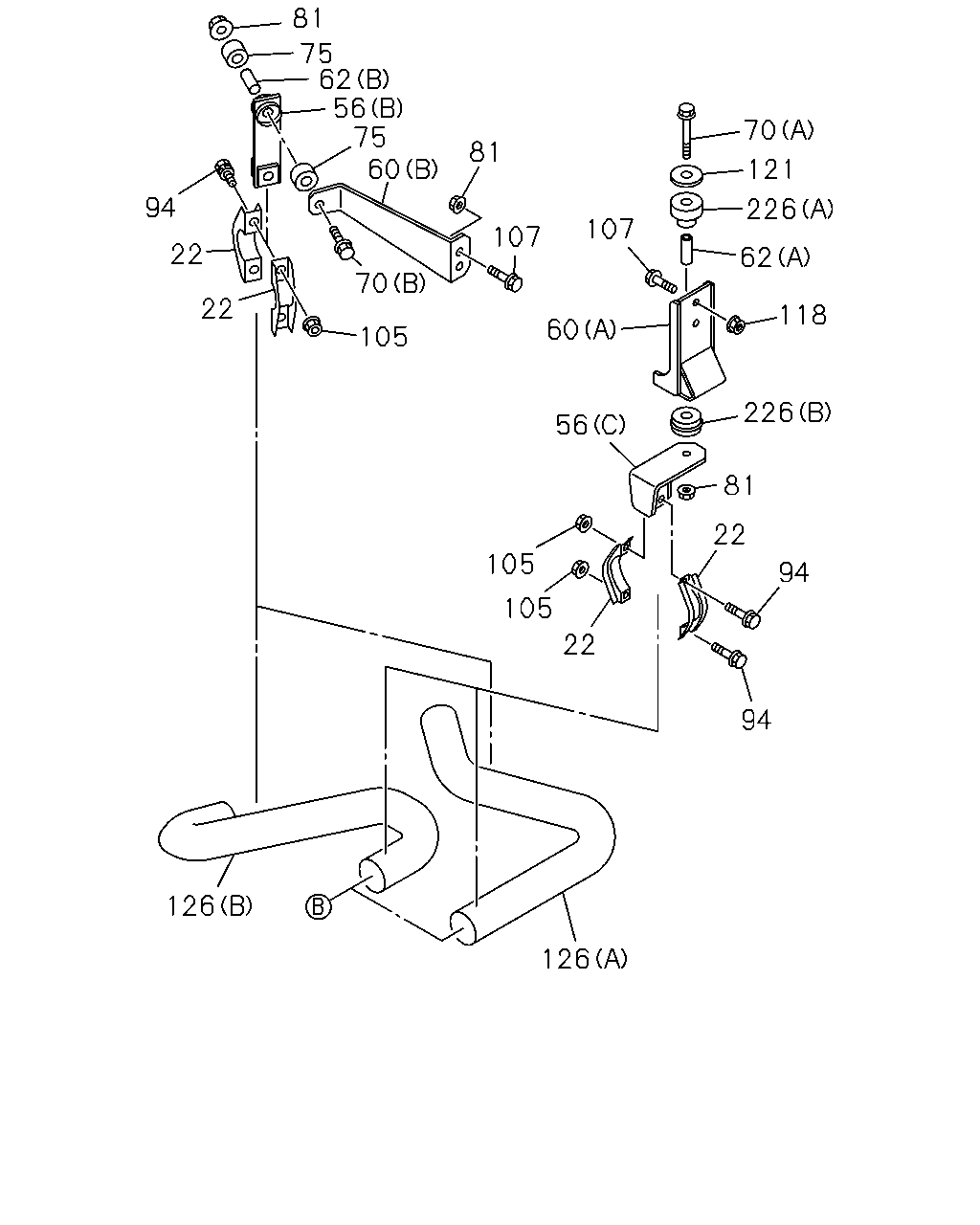

çizim 500762
94 94 22 81 22 105 105 126 56 118 226 62 226 121 70 107 60 107 81 60 70 105 75 56 62 75 81 22 22 94 126
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1511- ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98245-522-0 01 1 1511- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22152-324-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98245-536-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-528-1 01 1 1511- ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98307-101-0 01 1 1511- ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98104-021-0 01 1 1511- ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1511- ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1511- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1511- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 02 1 1511- ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1511- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1511- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 02 1 1511- ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 1511- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1511- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1511- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1511- ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 04 1 1511- ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1511- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1511- ● ●
126 PIPE; EXH,RR
(A) 		8-98307-099-0 01 1 1511- ●
126 PIPE; EXH,RR
(B) 		8-98069-920-0 01 1 1511- ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1511- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1511- ● ●
çizim 500773
175 562 17 81 62 226 121 81 107 60 226 56 36 70
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1511- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1511- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98245-522-0 01 1 1511- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22152-324-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98245-536-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-528-1 01 1 1511- ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98307-101-0 01 1 1511- ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98104-021-0 01 1 1511- ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1511- ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1511- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1511- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 02 1 1511- ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1511- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1511- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 02 1 1511- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 1511- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1511- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1511- ● ●
175 CONVERTER; CATALYST 8-98236-535-0 01 1 1511- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1511- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1511- ● ●
562 PLATE; STUD,BOLT
M12X35 		1-22131-963-0 02 1 1511- ● ●

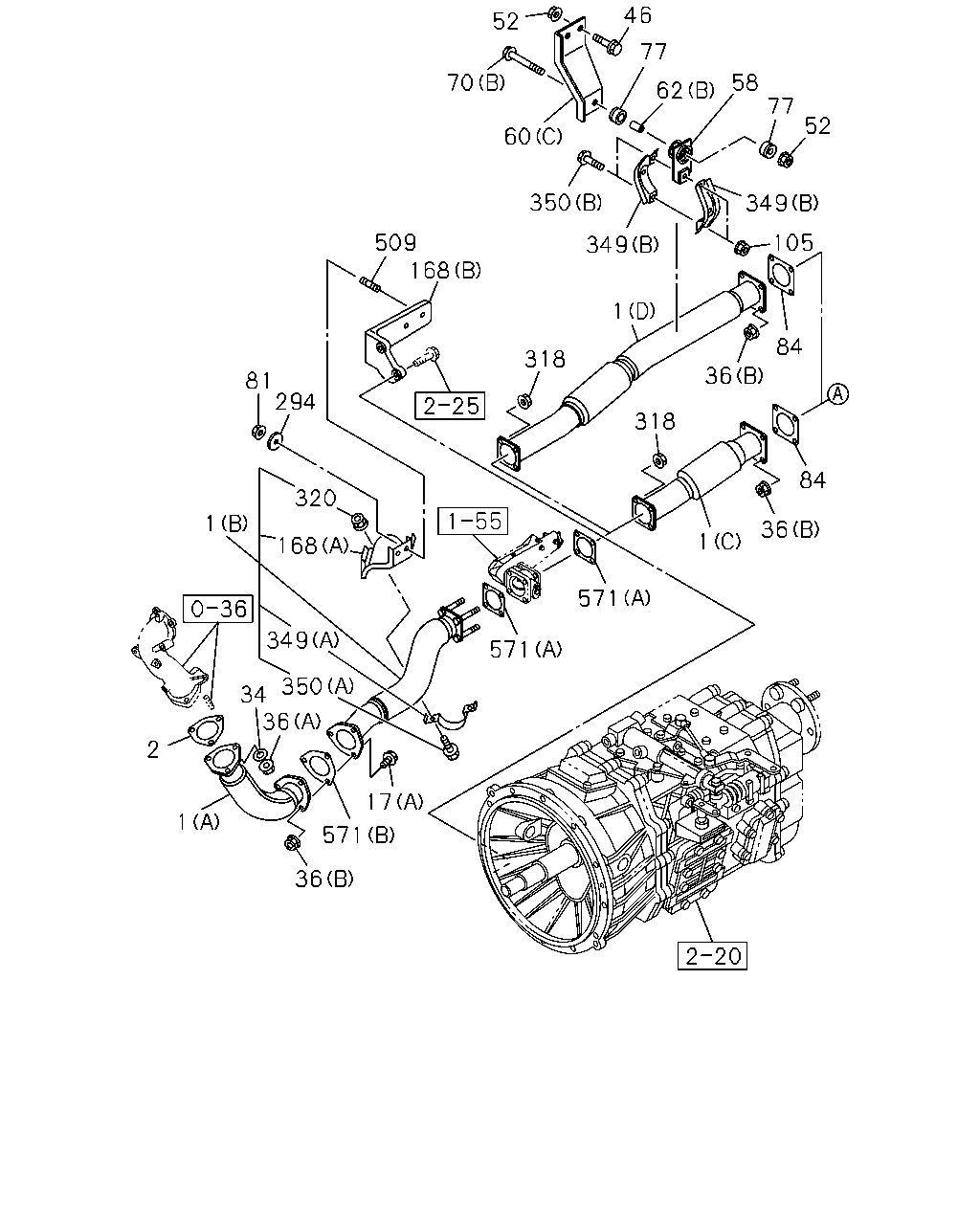

çizim 502045
52 46 77 62 58 77 52 349 105 70 60 350 349 1 84 36 84 36 1 318 318 168 509 81 294 320 1 168 571 571 349 350 34 36 17 571 2 1 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		8-98110-612-1 01 1 1511- ●
1 PIPE; EXH
(A) 		8-98234-511-0 01 1 1511- ● ●
1 PIPE; EXH
(B) 		8-98234-516-1 01 1 1511- ● ●
1 PIPE; EXH
(D) 		8-98322-666-0 01 1 1511- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1511- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1511- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1511- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1511- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1511- ● ●
46 BOLT; BRKT,EXH PIPE
M10X35 FLANGE 		0-28651-035-0 02 1 1511- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1511- ●
58 BRACKET; EXH PIPE,RR
L=94 		1-22131-575-0 01 1 1511- ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98307-101-0 01 1 1511- ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98104-021-0 01 1 1511- ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1511- ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1511- ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1511- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 02 1 1511- ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1511- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1511- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 02 1 1511- ●
77 RUBBER; CUSHION,BRKT
OD=40 		1-22159-094-0 02 1 1511- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 1511- ● ●
84 GASKET; EXH PIPE 8-98096-305-0 01 1 1511- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1511- ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 04 1 1511- ●
168 BRACKET; EXH PIPE,FRT
(A) 		8-98221-369-1 01 1 1511- ● ●
168 BRACKET; EXH PIPE,FRT
LCT2500 A/T ALLISON(Y5W) (B) 		8-98123-998-0 01 1 1511- ● ●
168 BRACKET; EXH PIPE,FRT
MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98120-492-0 01 1 1511- ● ●
168 BRACKET; EXH PIPE,FRT
MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98120-493-0 01 1 1511- ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1511- ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
349 CLAMP; EXH PIPE
(A) 		8-98115-162-0 01 1 1511- ● ●
349 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 1511- ●
350 BOLT; CLAMP,EXH PIPE
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1511- ● ●
350 BOLT; CLAMP,EXH PIPE
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1511- ●
509 STUD; BRKT
M10X25 L=40 		0-44011-025-0 02 1 1511- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1511- ● ●
