Isuzu WW
▶
TRUCKS
▶
FTS
▶
11723 - FTS AUST/NZ EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#170177) — 36 parça
Tümü
A - FGS5MS
B - FGS5WS
◀

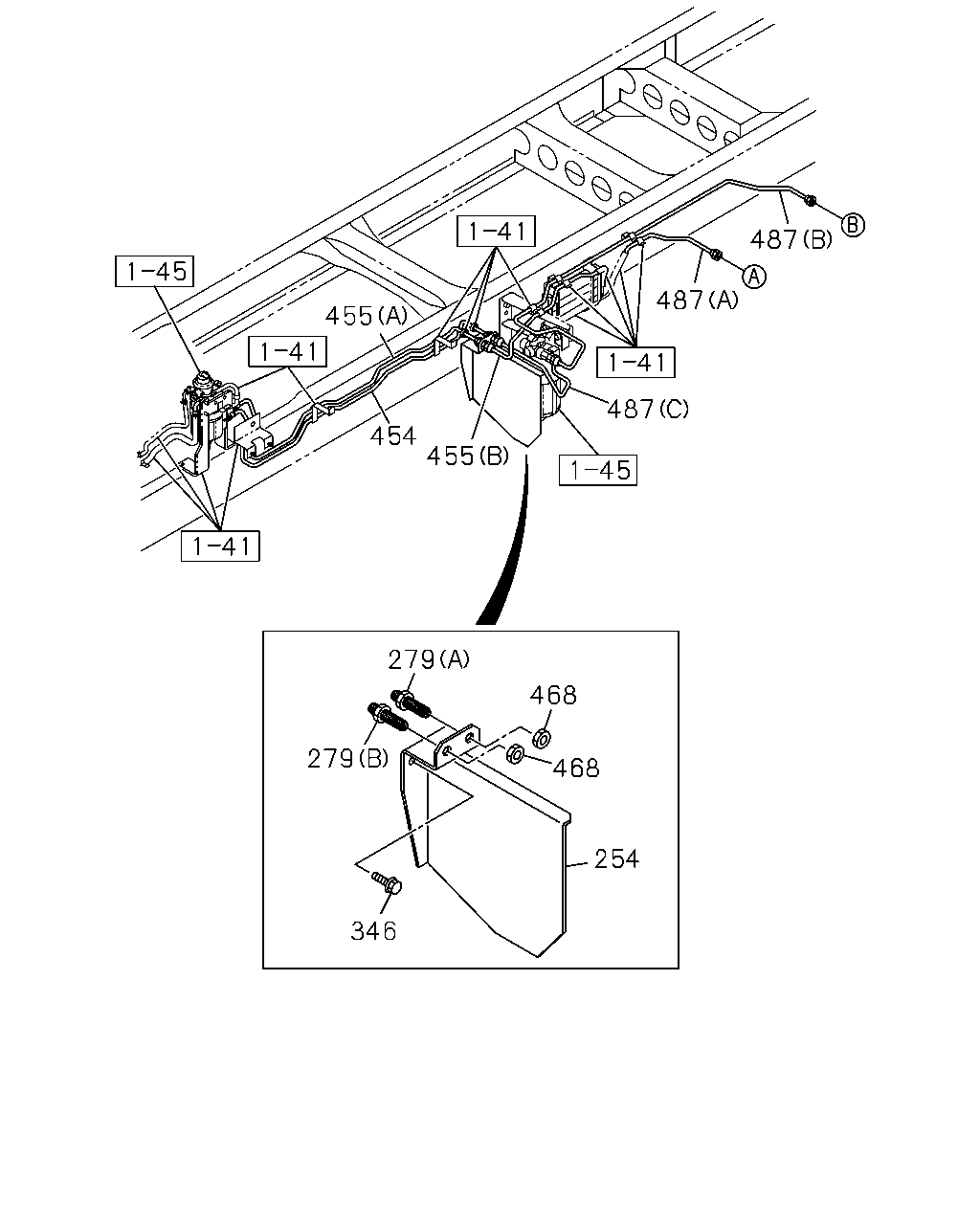

[140A] PIPING (12 parça)

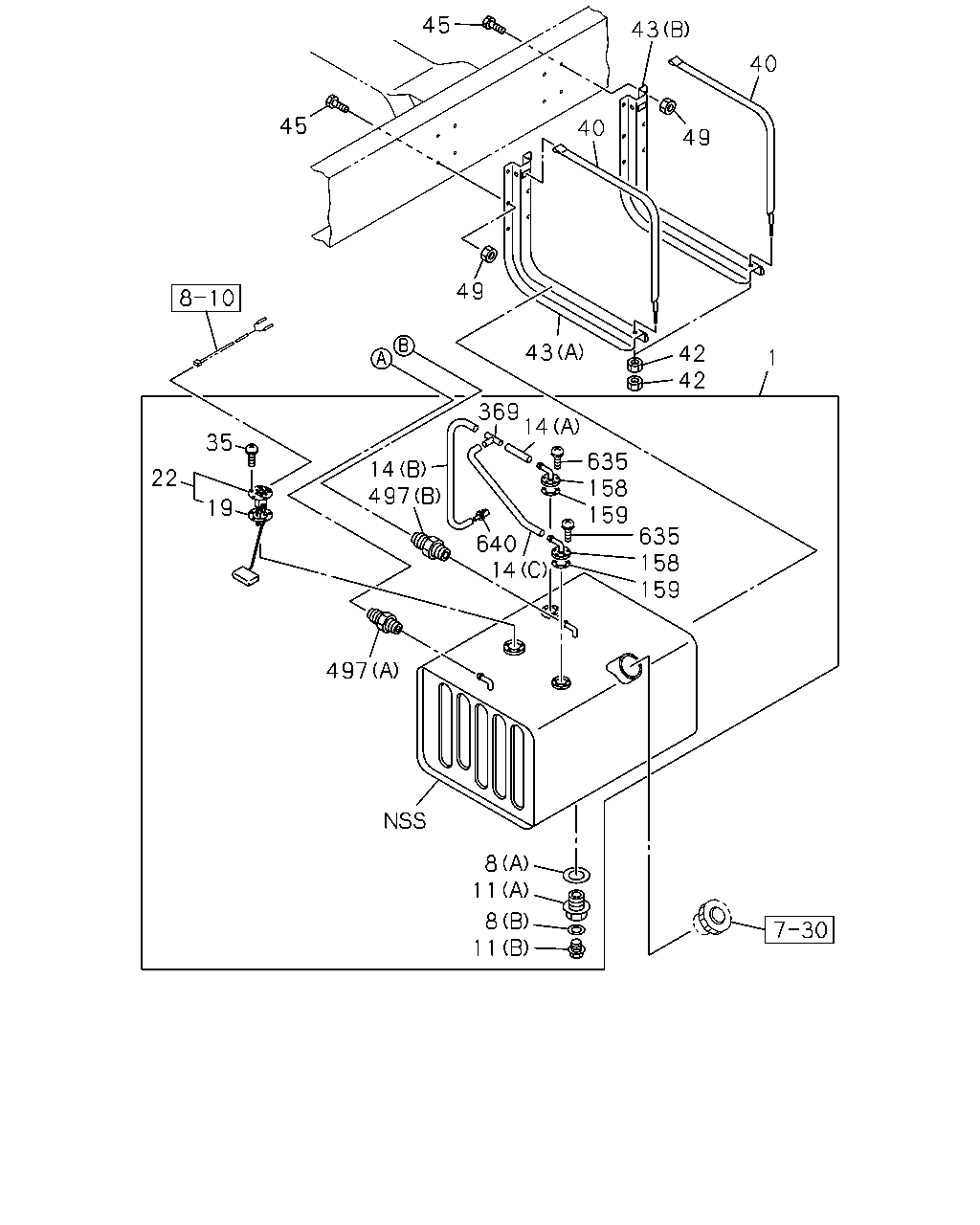

[140A] FUEL TANK (24 parça)
▶
487
487
487
455
454
455
346
279
279
468
468
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
254
GUARD
8-98306-552-0
01
1
1511-
●
●
279
UNION; FUEL PIPE
(A) M16 L=74
0-92123-310-0
01
1
1511-
●
●
279
UNION; FUEL PIPE
(B) M14 & M16 STRAIGHT
1-09654-316-1
01
1
1511-
●
●
346
BOLT; GUARD
M8X25 FLANGE
0-28650-825-0
02
1
1511-
●
●
454
PIPE; FUEL,DELIVERY
L=1567
8-98305-674-0
01
1
1511-
●
●
455
PIPE; FUEL,RETURN
(A) L=1485
8-98305-675-0
01
1
1511-
●
●
455
PIPE; FUEL,RETURN
(B) L=663
8-98305-681-0
01
1
1511-
●
●
468
NUT
M16
0-91111-516-0
01
1
1511-
●
●
468
NUT
M16
0-91111-516-0
01
1
1511-
●
●
487
PIPE; FUEL HOSE
(C) L=458
8-98244-219-0
01
1
1511-
●
●
487
PIPE; FUEL HOSE
(A) L=364
8-98305-684-0
01
1
1511-
●
●
487
PIPE; FUEL HOSE
(B) L=1828
8-98305-685-0
01
1
1511-
●
●
11
8
11
8
497
14
159
158
635
159
158
635
640
497
14
35
19
22
14
369
42
42
1
43
49
49
40
43
40
45
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
855X603X453 200L
8-98328-498-0
01
1
1511-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
(A) ID=30
8-98067-041-0
01
1
1511-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
(B) ID=14.2 OD=23.0
9-09572-014-0
01
1
1511-
●
●
11
PLUG; DRAIN,FUEL TANK
(A) M30
8-98067-038-0
01
1
1511-
●
●
11
PLUG; DRAIN,FUEL TANK
(B) M14X14
9-09862-156-0
01
1
1511-
●
●
14
HOSE; BREATHER,OUTLET
(A) L=90 SERVICED BY L=3000
0-01256-300-0
01
1
1511-
●
●
14
HOSE; BREATHER,OUTLET
(B) L=170 SERVICED BY L=3000
0-01256-300-0
01
1
1511-
●
●
14
HOSE; BREATHER,OUTLET
(C) L=540 SERVICED BY L=3000
0-01256-300-0
01
1
1511-
●
●
19
GASKET; FUEL TANK UNIT
ID=42 OD=71
5-83148-001-0
01
1
1511-
●
●
22
UNIT; FUEL TANK
8-98099-321-0
01
1
1511-
●
●
35
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
0-36220-512-0
05
1
1511-
●
●
40
BELT; SUPPORT,FUEL TANK
L=1070
8-98067-501-1
02
1
1511-
●
●
42
NUT; SUPPORT BELT
M12
0-91110-512-0
04
1
1511-
●
●
43
BRACKET; FUEL TANK
(A)
8-98010-733-0
01
1
1511-
●
●
43
BRACKET; FUEL TANK
(B)
8-98122-884-0
01
1
1511-
●
●
45
BOLT; BRKT,FUEL TANK
M12X40 FLANGE
0-28651-240-0
08
1
1511-
●
●
49
NUT; BRKT
M12 FLANGE
0-91180-212-0
08
1
1511-
●
●
158
VALVE; ROLL OVER & FLOAT
8-98067-039-0
02
1
1511-
●
●
159
SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
1-83149-003-0
02
1
1511-
●
●
369
JOINT; HOSE
8-98067-080-0
01
1
1511-
●
●
497
NIPPLE; FUEL PIPE
(A) M14 & PT1/4 STRAIGHT
1-09650-332-1
01
1
1511-
●
●
497
NIPPLE; FUEL PIPE
(B) M16 & NPTF3/8 STRAIGHT
1-09650-405-1
01
1
1511-
●
●
635
SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER
0-36220-512-0
10
1
1511-
●
●
640
VENTILATOR; HOSE,BREATHER
8-98092-398-0
01
1
1511-
●
●
