1-31 — AIR DUCT (#170175) — 109 parça

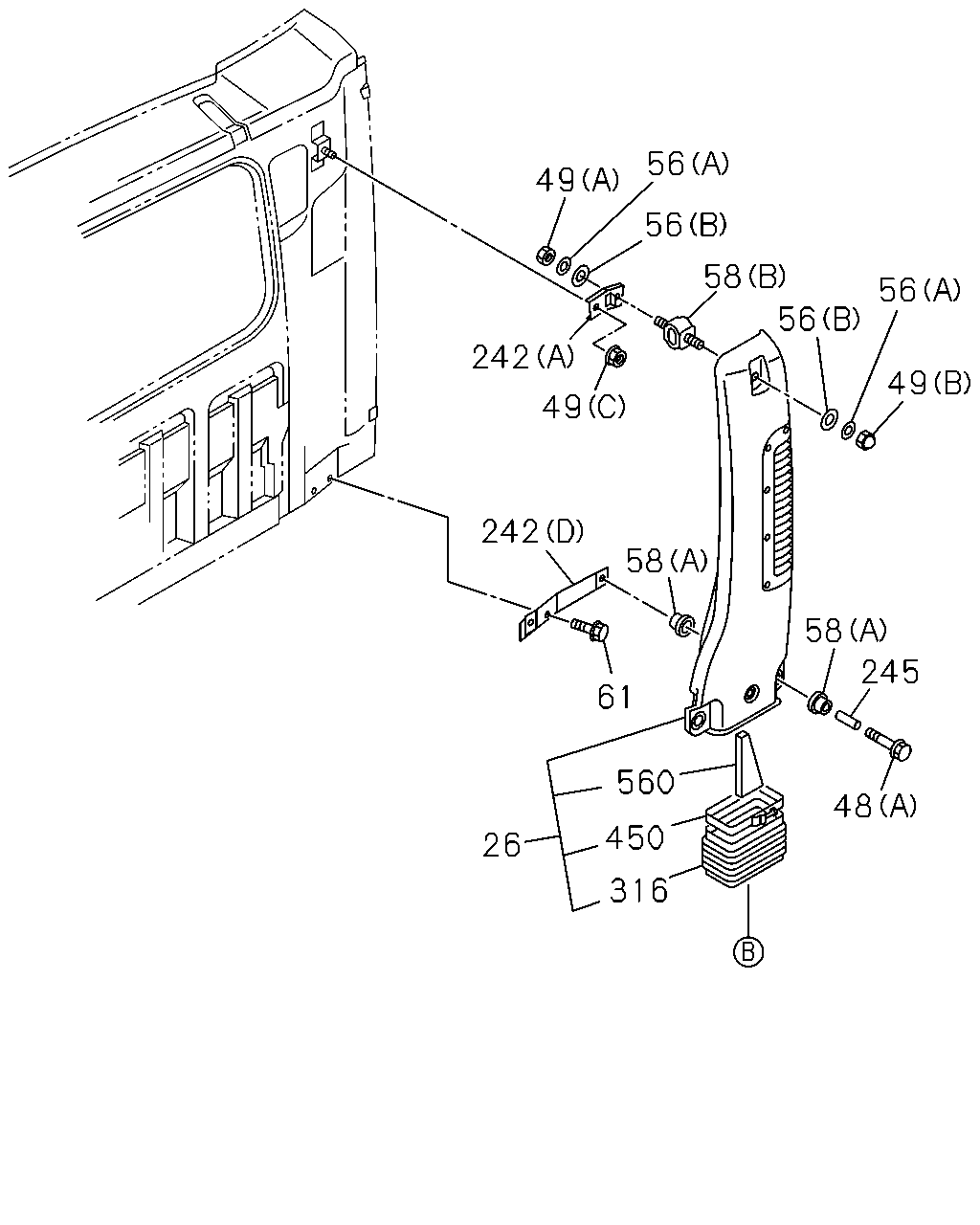

49 56 56 58 56 56 49 58 245 48 316 450 560 61 26 58 242 49 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	DUCT; AIR INT	8-98010-361-2	01	1	1511-
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	1511-
48	BOLT; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	1511-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-122-0	01	1	1511-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-126-0	01	1	1511-
49	NUT; AIR DUCT FTS WIDE SGL CAB(FG*M) (C) M8 FLANGE	8-94279-517-0	02	1	1511-
49	NUT; AIR DUCT FTS WIDE DBL CAB(FG*W) (C) M8 FLANGE	8-94279-517-0	01	1	1511-
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1511-
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1511-
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1511-
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1511-
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1511-
242	BRACKET; AIR DUCT (A)	8-98019-301-3	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (B)	8-98019-302-1	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (C)	8-98019-304-1	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (D)	8-98050-679-1	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (E)	8-98089-457-1	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (F)	8-98092-772-0	01	1	1511-
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1511-
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1511-
450	CLAMP; HOSE	9-09915-504-1	01	1	1511-
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1511-

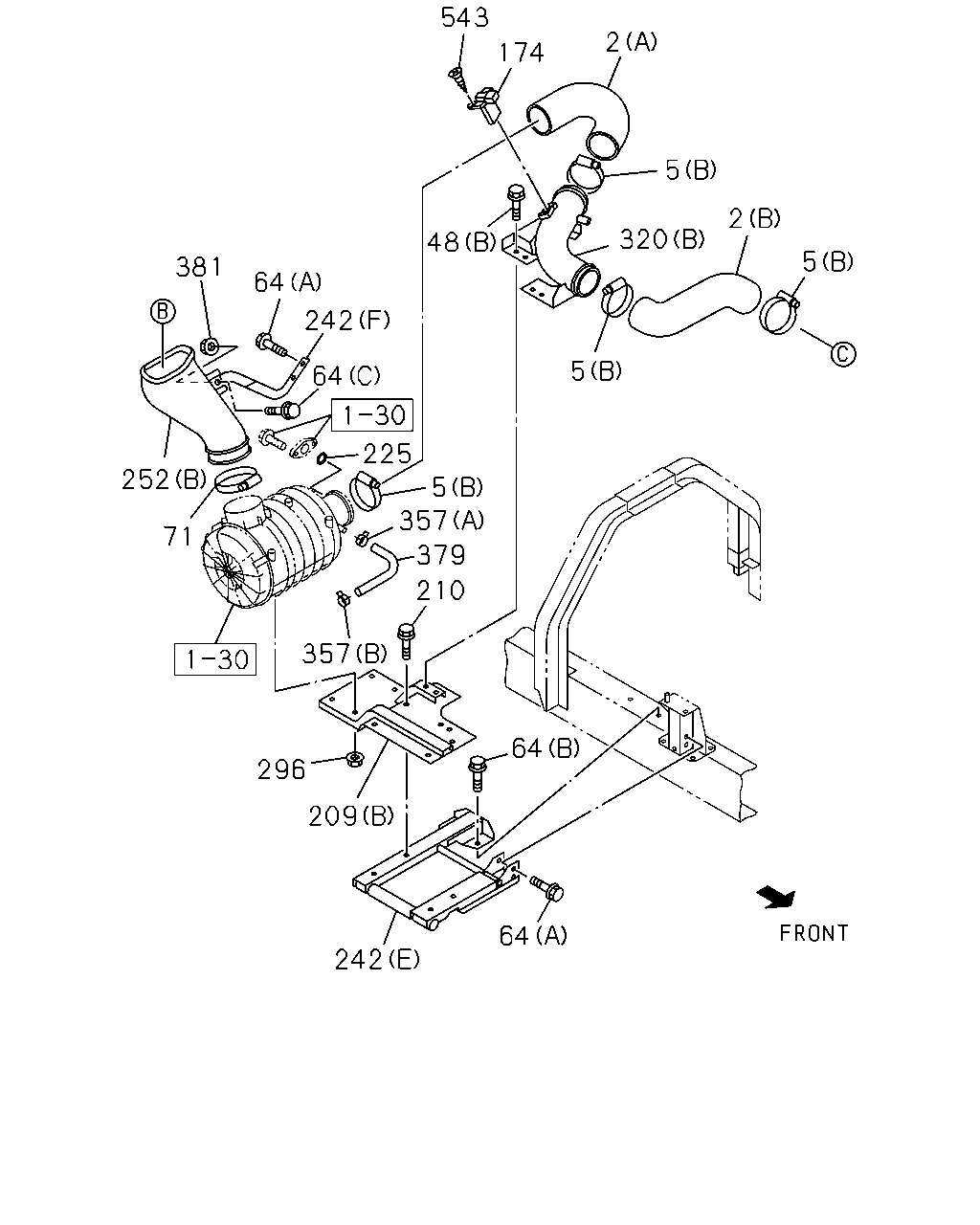

543 174 2 5 2 5 320 48 5 64 381 242 64 225 5 357 379 210 357 71 252 296 209 64 64 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL FTS WIDE DBL CAB(FG*W) (A)	8-98050-682-0	01	1	1511-
2	HOSE; ACL FTS WIDE DBL CAB(FG*W) (B)	8-98050-684-0	01	1	1511-
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-139-0	01	1	1511-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (B) ID=104-142	1-09707-139-0	01	1	1511-
5	CLIP; AIR DUCT (A) ID=114	8-15178-030-0	01	1	1511-
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) ID=104-142	1-09707-139-0	03	1	1511-
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	1511-
48	BOLT; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	1511-
64	BOLT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	1511-
64	BOLT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) (A) M10X25 FLANGE	0-28651-025-0	03	1	1511-
64	BOLT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) (B) M10X35 FLANGE	0-28651-035-0	02	1	1511-
64	BOLT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) (C) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1511-
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1511-
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1511-
209	BRACKET; ACL FTS WIDE SGL CAB(FG*M) (A)	8-98021-995-1	01	1	1511-
209	BRACKET; ACL FTS WIDE DBL CAB(FG*W) (B)	8-98089-455-1	01	1	1511-
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1511-
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1511-
242	BRACKET; AIR DUCT (A)	8-98019-301-3	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (B)	8-98019-302-1	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (C)	8-98019-304-1	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (D)	8-98050-679-1	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (E)	8-98089-457-1	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (F)	8-98092-772-0	01	1	1511-
252	DUCT; AIR INT FTS WIDE SGL CAB(FG*M) (A)	8-98012-861-1	01	1	1511-
252	DUCT; AIR INT FTS WIDE DBL CAB(FG*W) (B)	8-98050-681-0	01	1	1511-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1511-
320	HOSE; CONN,ACL FTS WIDE SGL CAB(FG*M) (A)	8-97616-752-1	01	1	1511-
320	HOSE; CONN,ACL FTS WIDE DBL CAB(FG*W) (B)	8-98092-944-1	01	1	1511-
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	1511-
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	04	1	1511-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	1511-
379	HOSE; RUBBER FTS WIDE SGL CAB(FG*M)	8-97619-196-0	01	1	1511-
379	HOSE; RUBBER FTS WIDE DBL CAB(FG*W)	8-98124-699-0	01	1	1511-
381	NUT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) M8 FLANGE	0-91180-108-0	01	1	1511-
543	SCREW; SENSOR M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1511-

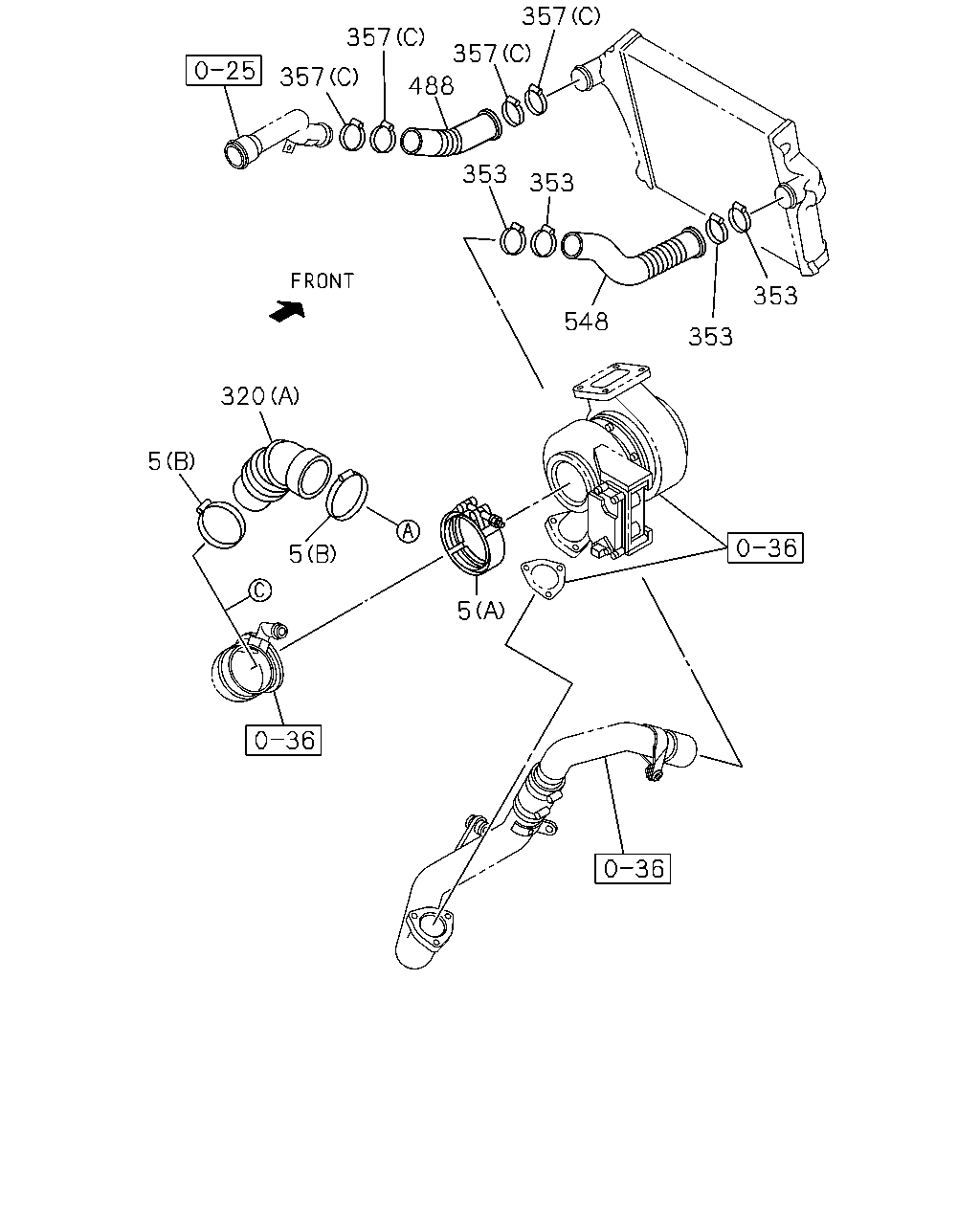

357 357 488 357 357 353 353 548 353 353 320 5 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-139-0	01	1	1511-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (B) ID=104-142	1-09707-139-0	01	1	1511-
5	CLIP; AIR DUCT (A) ID=114	8-15178-030-0	01	1	1511-
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) ID=104-142	1-09707-139-0	03	1	1511-
320	HOSE; CONN,ACL FTS WIDE SGL CAB(FG*M) (A)	8-97616-752-1	01	1	1511-
320	HOSE; CONN,ACL FTS WIDE DBL CAB(FG*W) (B)	8-98092-944-1	01	1	1511-
353	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	04	1	1511-
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	1511-
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	04	1	1511-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	1511-
488	HOSE; RUBBER,PIPE	8-98050-686-0	01	1	1511-
548	HOSE; RUBBER,TURBO TO INL PIPE	8-98050-685-0	01	1	1511-

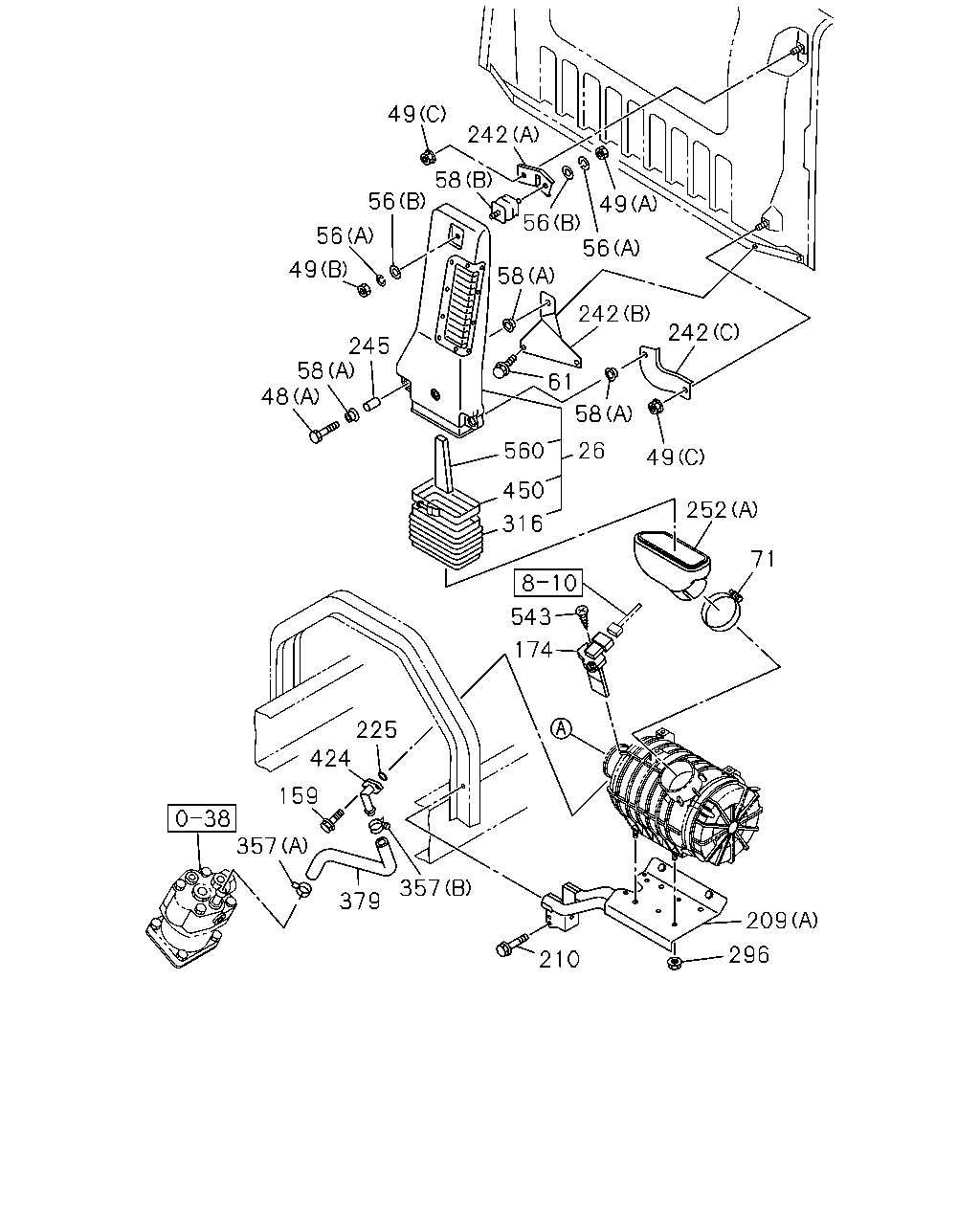

252 71 543 174 225 424 159 357 379 357 210 296 209 245 58 48 49 56 56 49 58 242 56 58 242 61 26 560 316 450 56 49 242 58 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	DUCT; AIR INT	8-98010-361-2	01	1	1511-
48	BOLT; AIR DUCT (A) M10X60	1-09030-044-1	02	1	1511-
48	BOLT; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	1511-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-122-0	01	1	1511-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-126-0	01	1	1511-
49	NUT; AIR DUCT FTS WIDE SGL CAB(FG*M) (C) M8 FLANGE	8-94279-517-0	02	1	1511-
49	NUT; AIR DUCT FTS WIDE DBL CAB(FG*W) (C) M8 FLANGE	8-94279-517-0	01	1	1511-
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1511-
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1511-
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1511-
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1511-
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1511-
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1511-
159	BOLT; AIR PIPE FTS WIDE SGL CAB(FG*M) M6X16 FLANGE	0-28050-616-0	02	1	1511-
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	1511-
209	BRACKET; ACL FTS WIDE SGL CAB(FG*M) (A)	8-98021-995-1	01	1	1511-
209	BRACKET; ACL FTS WIDE DBL CAB(FG*W) (B)	8-98089-455-1	01	1	1511-
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1511-
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1511-
242	BRACKET; AIR DUCT (A)	8-98019-301-3	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (B)	8-98019-302-1	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (C)	8-98019-304-1	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (D)	8-98050-679-1	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (E)	8-98089-457-1	01	1	1511-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (F)	8-98092-772-0	01	1	1511-
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1511-
252	DUCT; AIR INT FTS WIDE SGL CAB(FG*M) (A)	8-98012-861-1	01	1	1511-
252	DUCT; AIR INT FTS WIDE DBL CAB(FG*W) (B)	8-98050-681-0	01	1	1511-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1511-
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1511-
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	1511-
357	CLIP; RUBBER HOSE (C) ID=58-79	1-09707-136-0	04	1	1511-
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	1511-
379	HOSE; RUBBER FTS WIDE SGL CAB(FG*M)	8-97619-196-0	01	1	1511-
379	HOSE; RUBBER FTS WIDE DBL CAB(FG*W)	8-98124-699-0	01	1	1511-
424	PIPE; AIR,INL FTS WIDE SGL CAB(FG*M)	8-98081-834-0	01	1	1511-
450	CLAMP; HOSE	9-09915-504-1	01	1	1511-
543	SCREW; SENSOR M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1511-
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	1511-
