1-10 — RADIATOR (#170172) — 63 parça

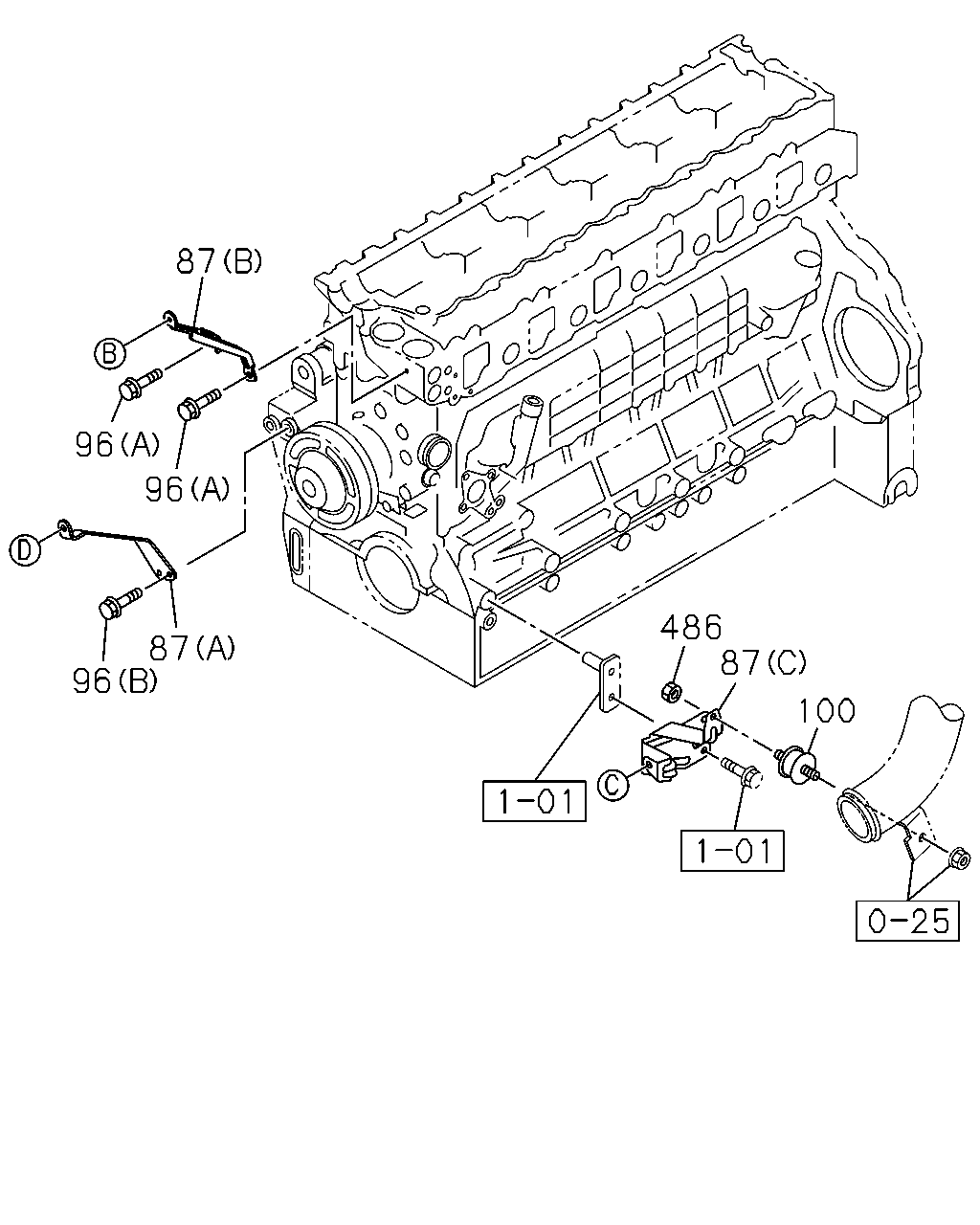

çizim 500520
87 96 96 87 96 486 87 100
BalonParca AdiParca NoAdetTipApplied Date
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1511-
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1511-
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1511-
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1511-
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1511-
100 RUBBER; MTG 8-98148-109-0 01 1 1511-
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1511-

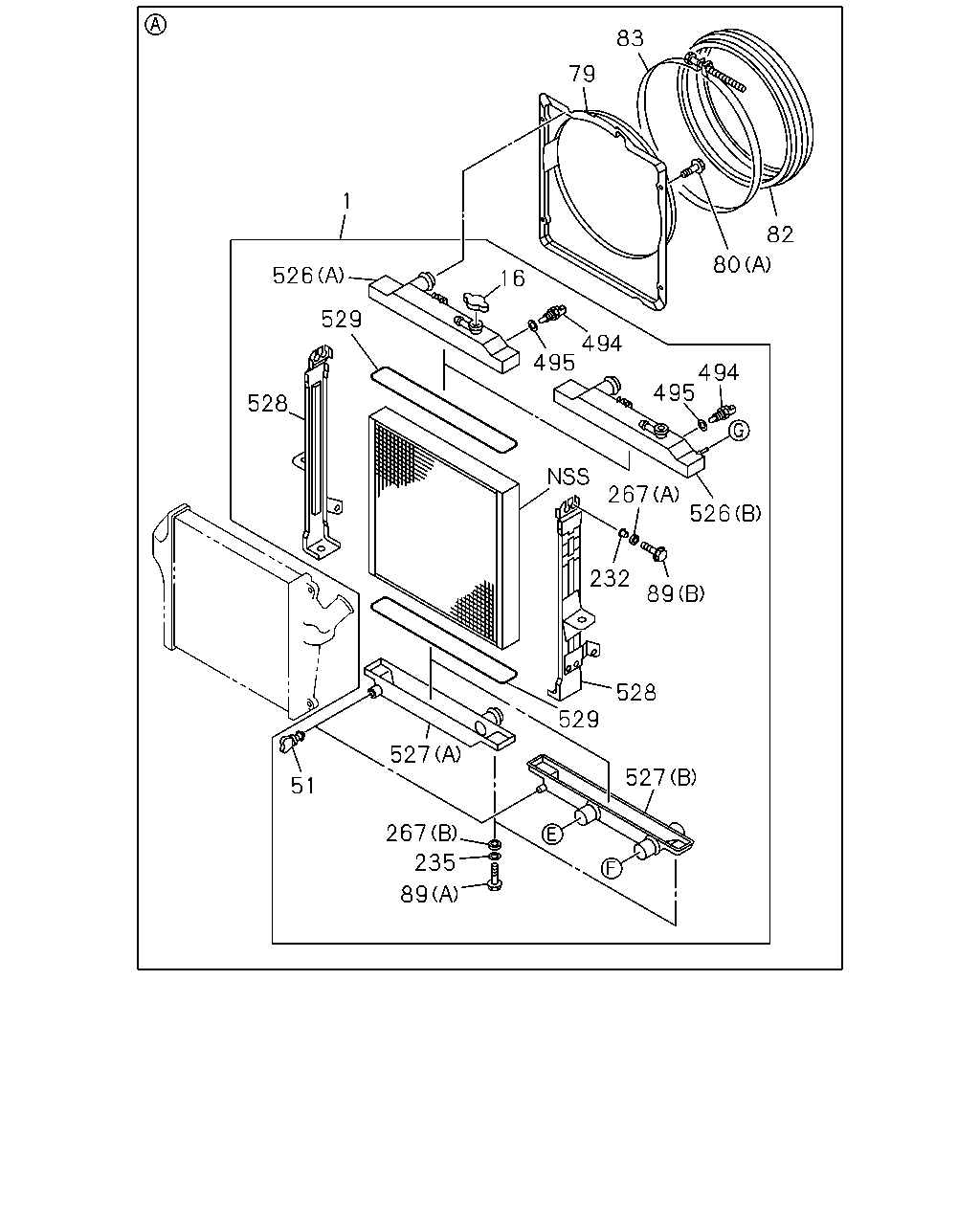

çizim 500543
1 526 529 528 51 527 267 235 89 529 527 528 89 232 267 526 495 494 494 495 80 82 83 79 16
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM
MANUAL TRANSMISSION<X9C> 		8-98326-129-0 01 1 1511-
1 RADIATOR ASM
A/T<X9D> 		8-98326-130-0 01 1 1511-
16 CAP; RAD 8-98096-226-0 01 1 1511-
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1511-
79 GUIDE; FAN,RAD 8-98326-143-0 01 1 1511-
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1511-
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1511-
82 COVER; FAN,RAD 8-98293-253-0 01 1 1511-
83 CLIP; FAN COVER 1-09707-177-2 01 1 1511-
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1511-
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1511-
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1511-
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1511-
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1511-
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1511-
494 SENSOR; LEVEL 8-98306-967-0 01 1 1511-
495 GASKET; SENSOR 1-09623-185-0 01 1 1511-
526 TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (A) 		8-98323-024-0 01 1 1511-
526 TANK; UPR,RADIATOR CORE
A/T<X9D> (B) 		8-98323-025-0 01 1 1511-
527 TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (A) 		8-98004-203-0 01 1 1511-
527 TANK; LWR,RADIATOR CORE
A/T<X9D> (B) 		8-98038-558-2 01 1 1511-
528 PLATE; SIDE,RADIATOR CORE 8-98098-554-0 01 1 1511-
528 PLATE; SIDE,RADIATOR CORE 8-98326-138-0 01 1 1511-
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1511-
çizim 500556
167 148 167 167 167
BalonParca AdiParca NoAdetTipApplied Date
148 HOSE; WATER,BYPASS,SUB RAD
FTS WIDE SGL CAB(FG**M*) A/T<X9D> 		8-98218-296-1 01 1 1511-
148 HOSE; WATER,BYPASS,SUB RAD
FTS WIDE DBL CAB(FG**W*) A/T<X9D> 		8-98206-500-2 01 1 1511-
167 CLIP; BYPASS HOSE
A/T<X9D> (B) ID=14-12 		8-94379-592-0 01 1 1511-
167 CLIP; BYPASS HOSE
A/T<X9D> (C) ID=13.2 & 11.5 		8-97230-081-0 01 1 1511-
167 CLIP; BYPASS HOSE
A/T<X9D> (A) ID=11.5 		8-97375-638-0 02 1 1511-

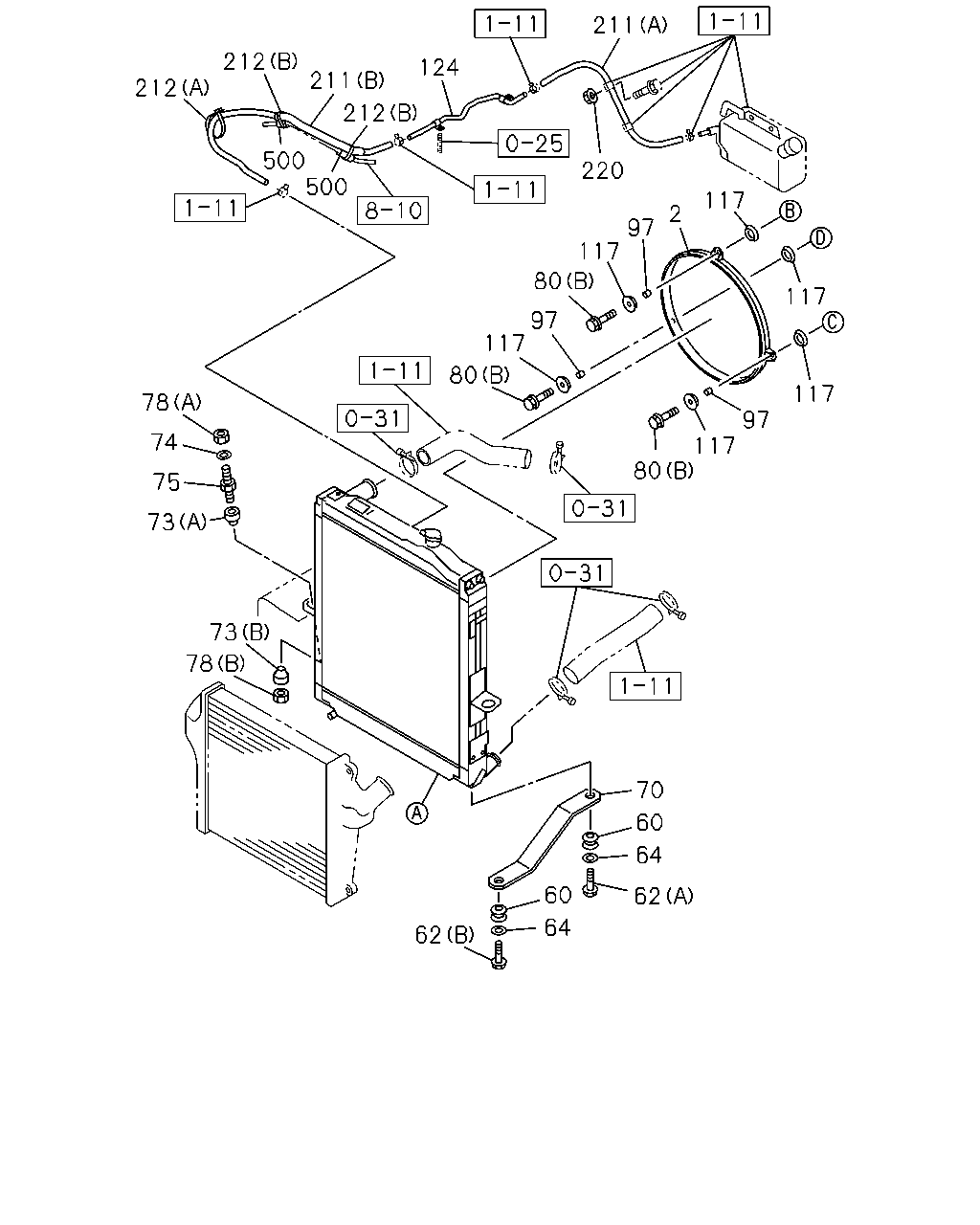

çizim 501721
212 212 211 124 212 211 220 117 117 117 97 117 80 2 97 117 80 97 117 80 78 75 74 73 73 78 70 60 64 62 60 64 62 500 500
BalonParca AdiParca NoAdetTipApplied Date
2 GUIDE; FAN 8-94393-779-1 01 1 1511-
60 GROMMET 1-09332-117-0 04 1 1511-
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1511-
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1511-
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 1511-
70 STAY; RAD 8-98055-806-0 01 1 1511-
70 STAY; RAD 8-98055-807-0 01 1 1511-
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1511-
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1511-
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1511-
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1511-
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1511-
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1511-
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1511-
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1511-
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1511-
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1511-
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1511-
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1511-
211 HOSE; RAD TO PIPE
FTS WIDE SGL CAB(FG**M*) (A) L=560 		8-98119-375-0 01 1 1511-
211 HOSE; RAD TO PIPE
FTS WIDE DBL CAB(FG**W*) (A) 		8-98119-761-0 01 1 1511-
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 1511-
212 CLIP; HOSE
FTS WIDE DBL CAB(FG**W*) (A) L=250 		5-09707-030-1 01 1 1511-
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 02 1 1511-
220 NUT; CLIP
FTS WIDE SGL CAB(FG**M*) M8 FLANGE 		0-91180-108-0 01 1 1511-
220 NUT; CLIP
FTS WIDE DBL CAB(FG**W*) M8 FLANGE 		0-91180-108-0 02 1 1511-
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 1511-
