◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11723 - FTS AUST/NZ EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#170167) — 88 parça

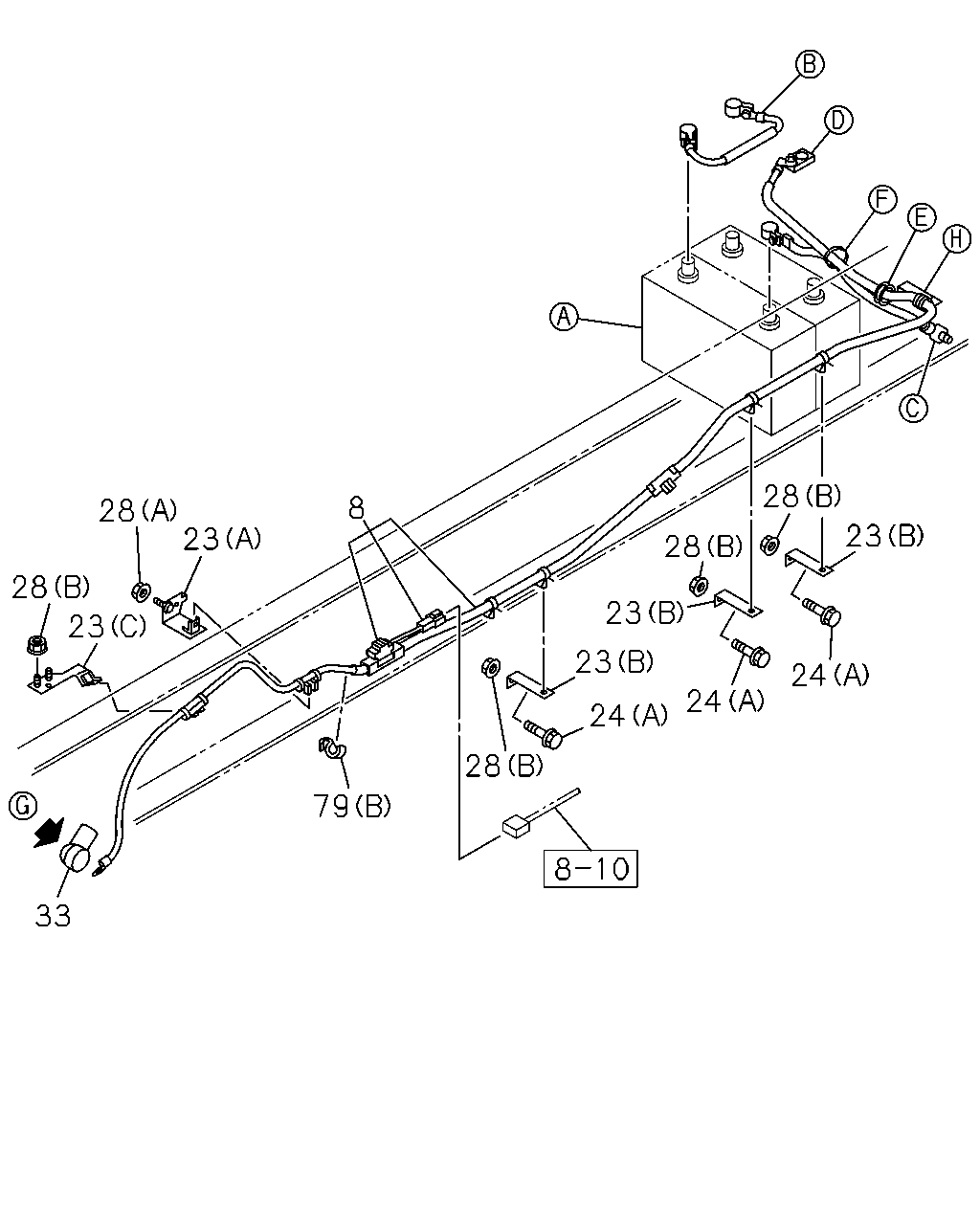

çizim 500473
28 23 28 23 23 24 24 24 28 79 33 23 28 28 23 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-589-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-590-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-588-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) BATTERY 115E41L<8MA> 		8-98306-591-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-593-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-592-0 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 04 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98201-147-0 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98091-358-0 01 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-97612-957-1 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-98092-593-0 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		8-98195-169-0 01 1 1511- ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 04 1 1511- ●
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ●
28 NUT; BRKT TO FRAME
(B) M8 FLANGE 		0-91180-108-0 06 1 1511- ●
28 NUT; BRKT TO FRAME
(A) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
28 NUT; BRKT TO FRAME
(B) M8 FLANGE 		0-91180-108-0 04 1 1511- ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1511- ● ●
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 01 1 1511- ●
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1511- ● ●
79 CLIP; BATTERY CABLE
(B) ID=10 & 10 		1-09709-277-1 01 1 1511- ● ●
79 CLIP; BATTERY CABLE
(D) ID=10.5 & 18 		8-94381-420-0 01 1 1511- ●

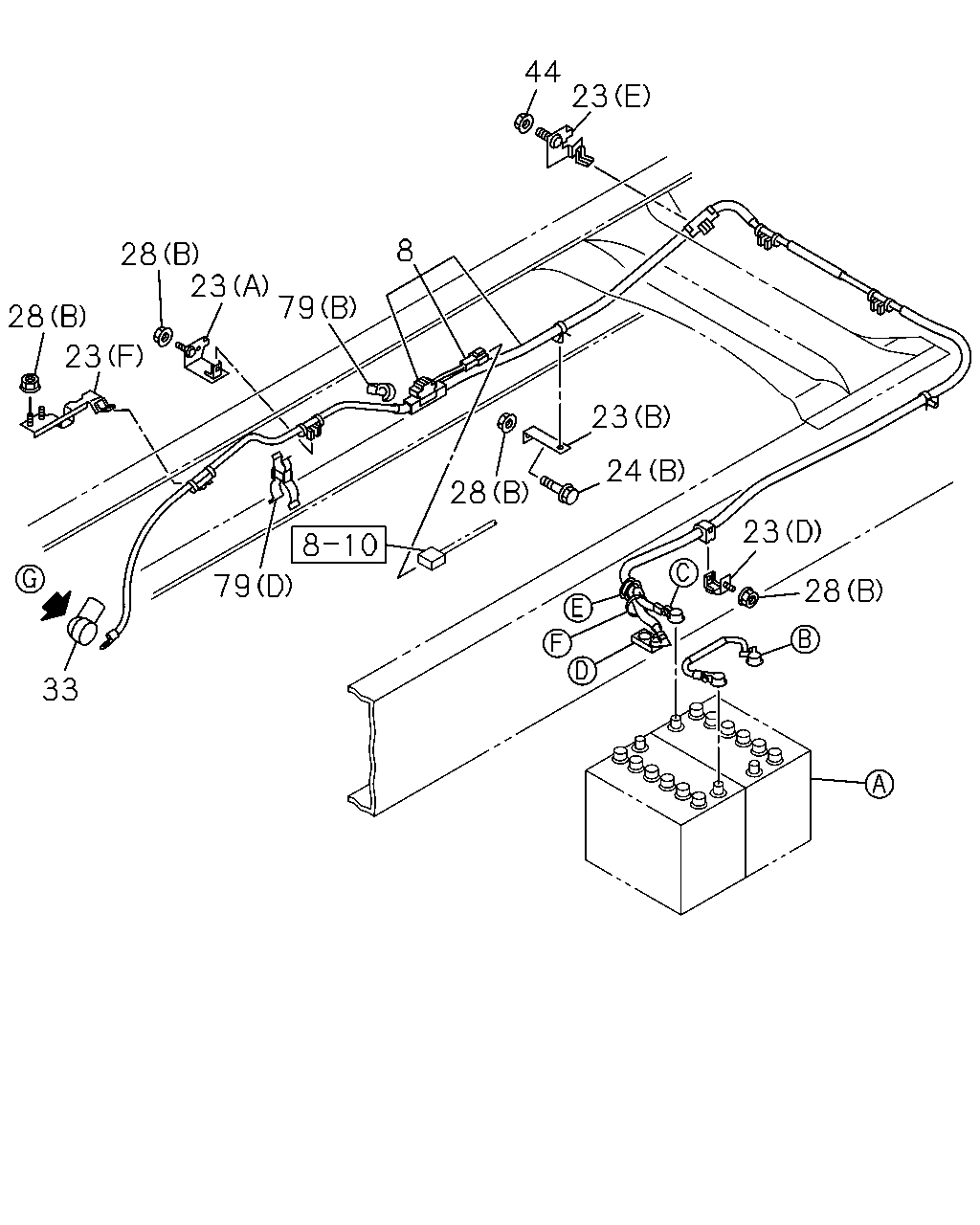

çizim 500484
44 8 23 23 24 23 28 79 28 79 23 28 28 23 33
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-589-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-590-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-588-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) BATTERY 115E41L<8MA> 		8-98306-591-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-593-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-592-0 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 04 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98201-147-0 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98091-358-0 01 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-97612-957-1 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-98092-593-0 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		8-98195-169-0 01 1 1511- ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 04 1 1511- ●
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ●
28 NUT; BRKT TO FRAME
(B) M8 FLANGE 		0-91180-108-0 06 1 1511- ●
28 NUT; BRKT TO FRAME
(A) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
28 NUT; BRKT TO FRAME
(B) M8 FLANGE 		0-91180-108-0 04 1 1511- ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1511- ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1511- ●
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 01 1 1511- ●
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1511- ● ●
79 CLIP; BATTERY CABLE
(B) ID=10 & 10 		1-09709-277-1 01 1 1511- ● ●
79 CLIP; BATTERY CABLE
(D) ID=10.5 & 18 		8-94381-420-0 01 1 1511- ●

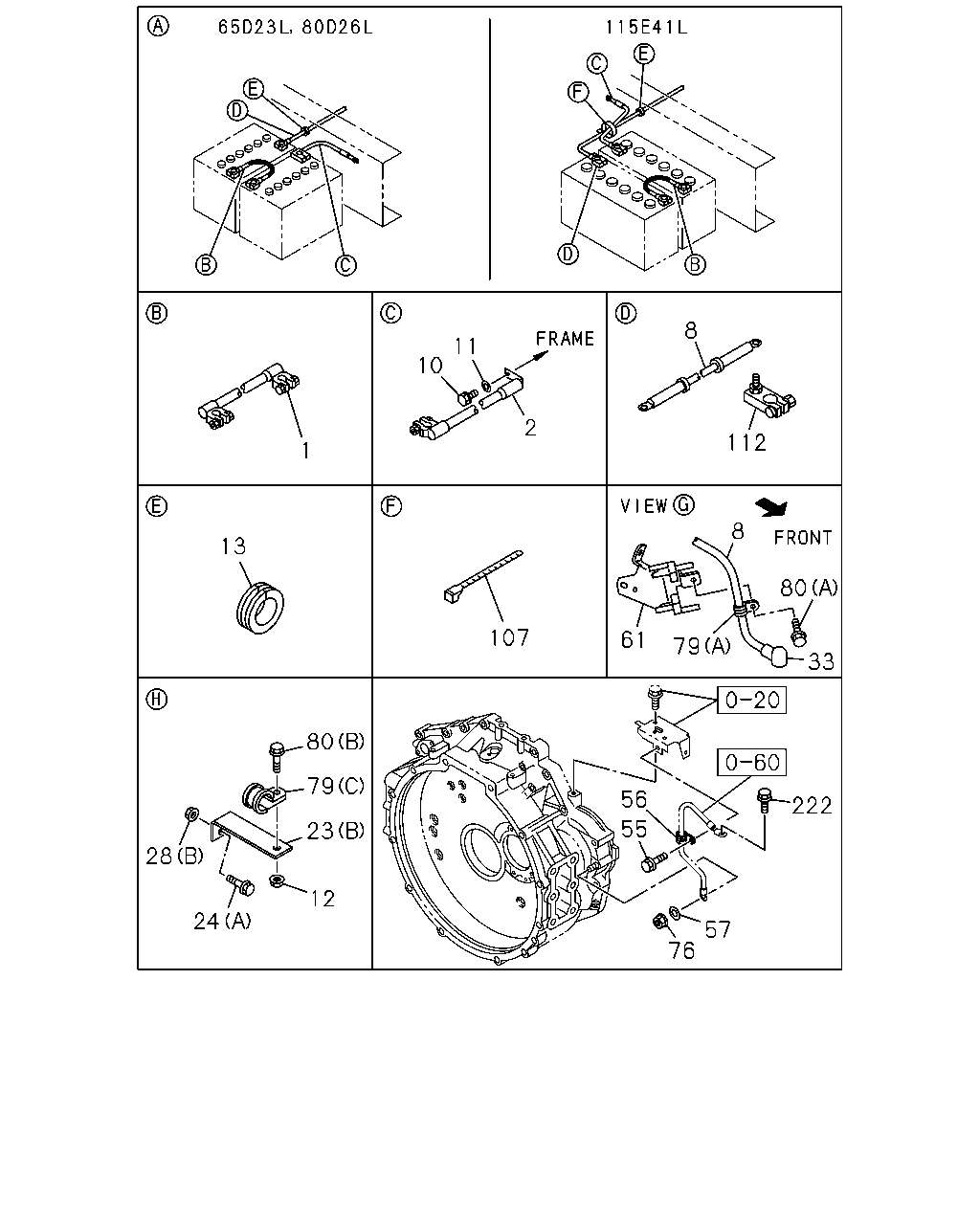

çizim 500486
11 10 2 1 13 107 61 79 8 112 8 80 33 222 56 55 76 57 12 23 80 79 28 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1511- ● ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=480 		8-97618-525-1 01 1 1511- ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280 		8-98035-647-1 01 1 1511- ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240 		1-82650-403-1 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-589-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-590-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-588-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) BATTERY 115E41L<8MA> 		8-98306-591-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-593-0 01 1 1511- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98306-592-0 01 1 1511- ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1511- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1511- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 04 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98201-147-0 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98091-358-0 01 1 1511- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		8-97612-957-1 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-98092-593-0 01 1 1511- ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		8-98195-169-0 01 1 1511- ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 04 1 1511- ●
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ●
28 NUT; BRKT TO FRAME
(B) M8 FLANGE 		0-91180-108-0 06 1 1511- ●
28 NUT; BRKT TO FRAME
(A) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
28 NUT; BRKT TO FRAME
(B) M8 FLANGE 		0-91180-108-0 04 1 1511- ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1511- ● ●
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ●
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1511- ● ●
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1511- ● ●
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1511- ● ●
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
79 CLIP; BATTERY CABLE
(C) ID=21 L=24 		8-98019-191-0 01 1 1511- ●
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1511- ● ●
79 CLIP; BATTERY CABLE
(B) ID=10 & 10 		1-09709-277-1 01 1 1511- ● ●
79 CLIP; BATTERY CABLE
(D) ID=10.5 & 18 		8-94381-420-0 01 1 1511- ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1511- ● ●
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1511- ● ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1511- ● ●
