Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#17016) — 231 parça

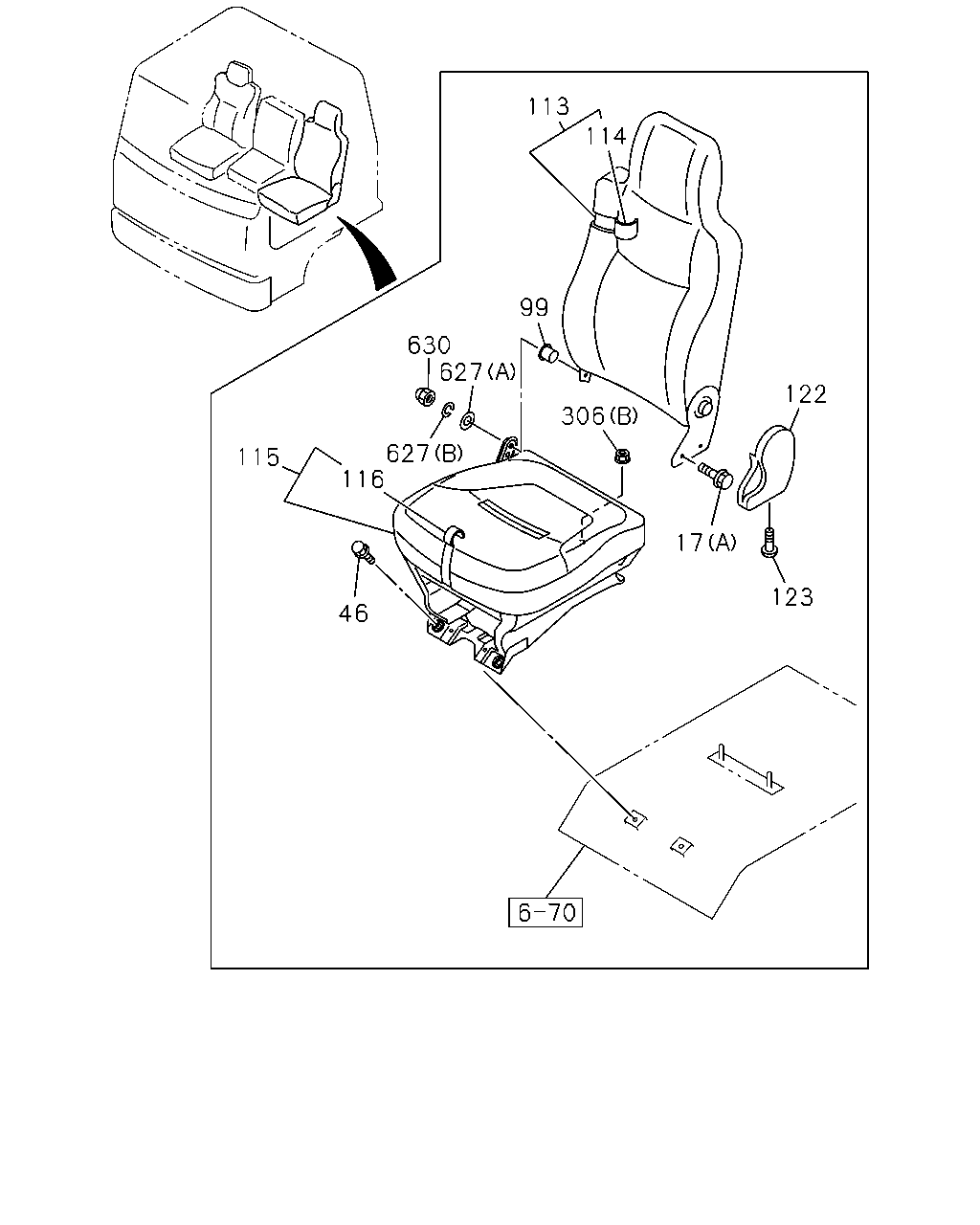

113 114 99 630 627 122 306 627 116 115 17 123 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	04	1	1110-1203
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1204-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	04	1	1110-1203
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1204-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1110-
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1110-
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-422-0	01	1	1110-
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-966-1	01	1	1110-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-424-0	01	1	1110-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-916-0	01	1	1110-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-418-1	01	1	1110-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97409-965-1	01	1	1110-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-420-0	01	1	1110-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-915-0	01	1	1110-
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	1110-
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	1110-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1110-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1110-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1110-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1110-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1110-
630	NUT; CAP M8	8-98063-225-0	01	1	1110-

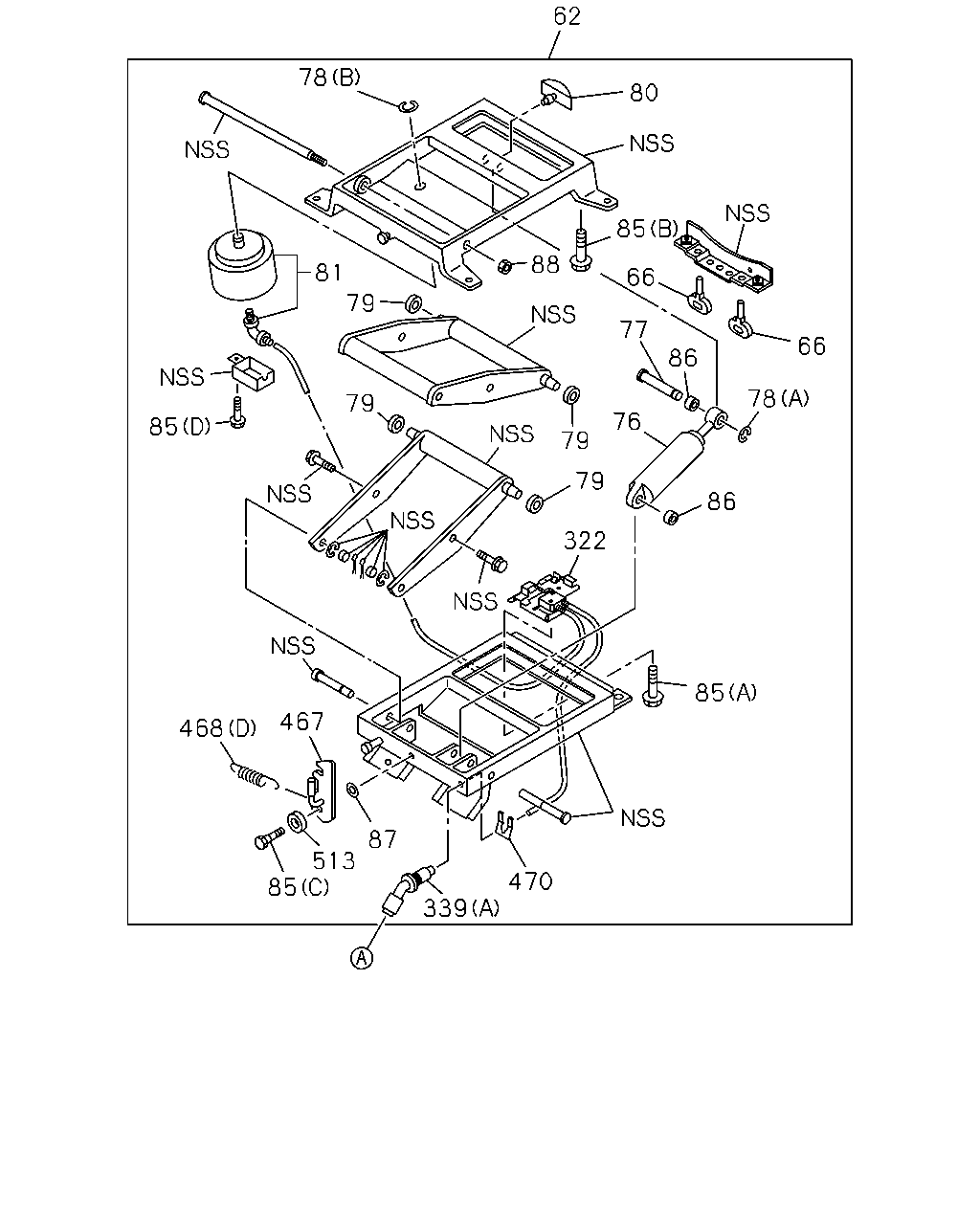

62 80 85 66 66 78 86 77 88 81 79 85 78 79 79 76 86 79 322 467 468 87 513 85 339 470 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-183-8	01	1	1110-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1404-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	1110-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	1110-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	1110-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1110-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1110-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	1110-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	1110-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-2	01	1	1110-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1110-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A)	1-75538-208-1	02	1	1110-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1110-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1110-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1110-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	1110-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-186-3	01	1	1110-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1110-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1110-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	1110-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1110-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1110-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1110-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1110-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	1110-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	1110-

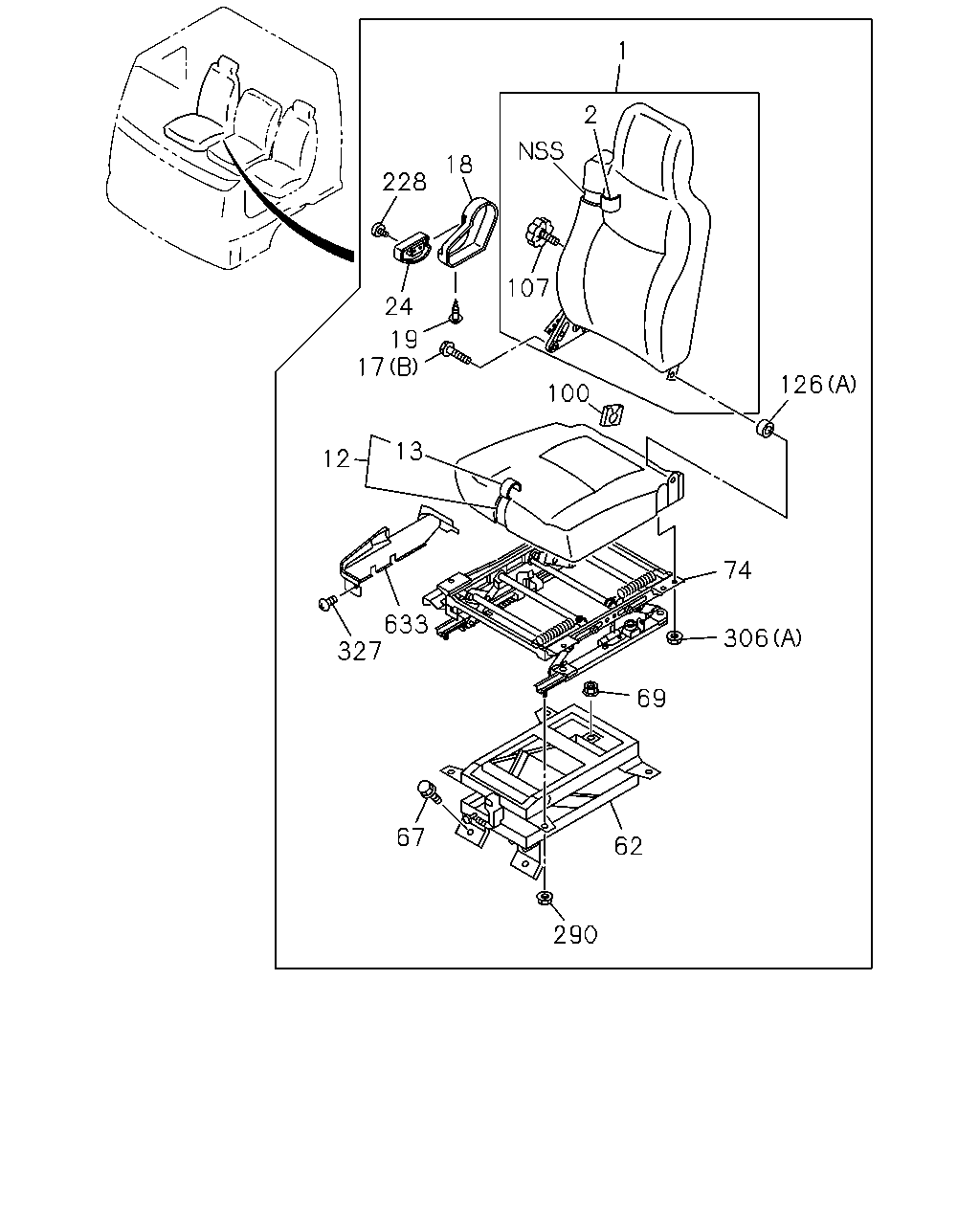

1 2 126 74 306 69 62 290 67 633 327 12 13 17 19 24 18 228 107 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-407-1	01	1	1110-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-406-1	01	1	1110-
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-955-5	01	1	1110-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-412-0	01	1	1110-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-411-0	01	1	1110-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-910-2	01	1	1110-
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY	8-97421-398-2	01	1	1110-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97421-397-2	01	1	1110-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-123-2	01	1	1110-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97409-954-2	01	1	1110-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DARK GRAY	8-97409-954-2	01	1	1110-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY	8-97421-402-2	01	1	1110-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97421-401-2	01	1	1110-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-909-1	01	1	1110-
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	04	1	1110-1203
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1204-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	04	1	1110-1203
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1204-
18	COVER; RECLINING GRAY	8-97409-332-0	01	1	1110-
19	SCREW; COVER M5	8-98062-663-0	01	1	1110-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1110-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-183-8	01	1	1110-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1404-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1110-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1110-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98003-678-0	01	1	1110-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1503-
100	COVER; HINGE	8-98203-070-0	01	1	1110-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98063-174-0	01	1	1110-
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	02	1	1110-1110
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1110-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1110-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	8-97854-900-0	01	1	1110-1110
228	SCREW; KNOB M4	8-98062-662-0	01	1	1110-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	1110-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1110-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1110-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1110-
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-273-0	01	1	1110-
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-956-0	01	1	1110-

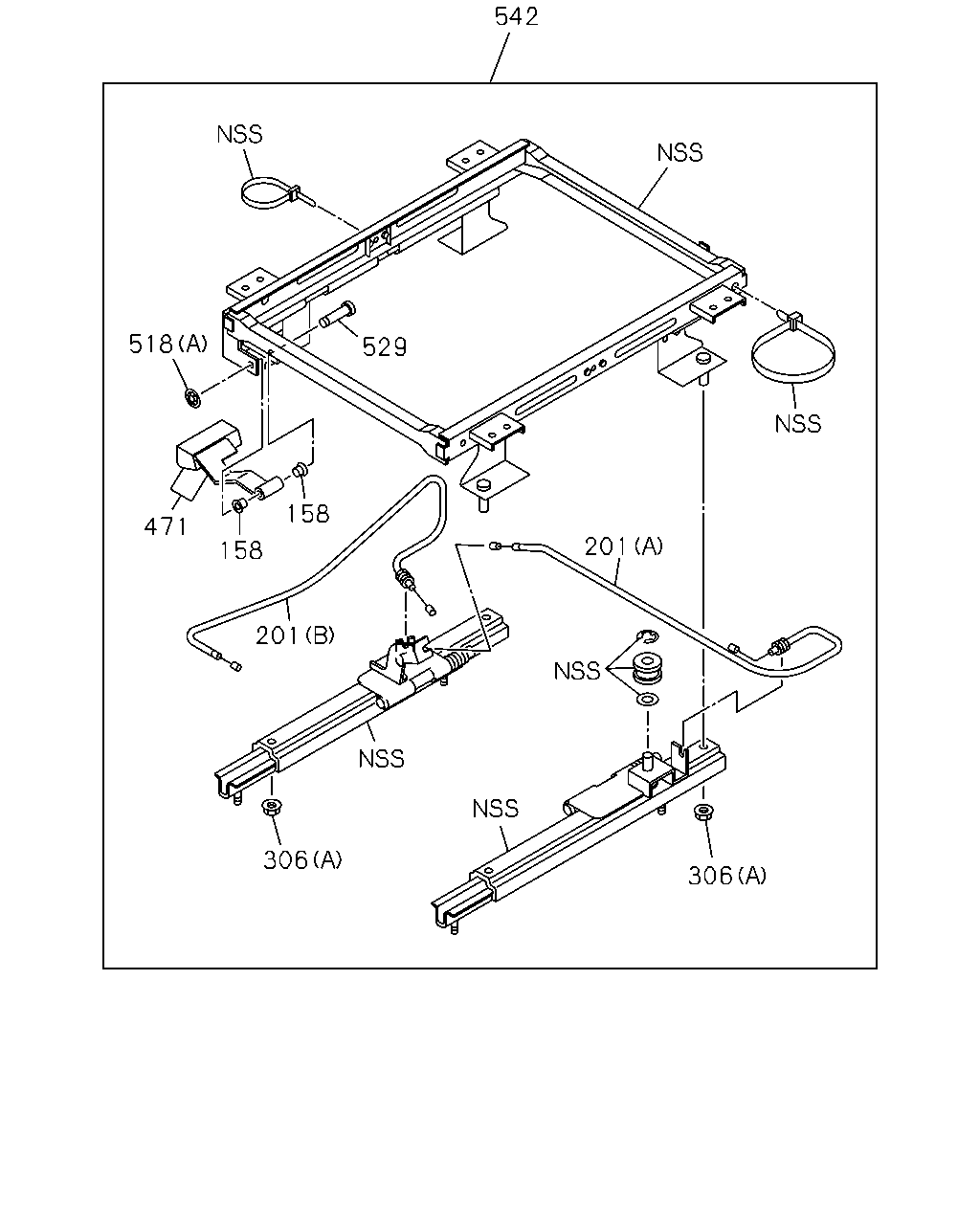

542 201 306 306 201 158 158 471 529 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1110-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1110-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1110-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1110-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1110-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1110-
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1110-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1110-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C)	1-75518-264-0	04	1	1110-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1110-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1110-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1110-
529	PIN; LINK	1-75518-262-0	01	1	1110-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98093-310-0	01	1	1110-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-653-0	01	1	1503-

595 339 632

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1110-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1110-
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>	8-98041-300-0	01	1	1110-
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1110-

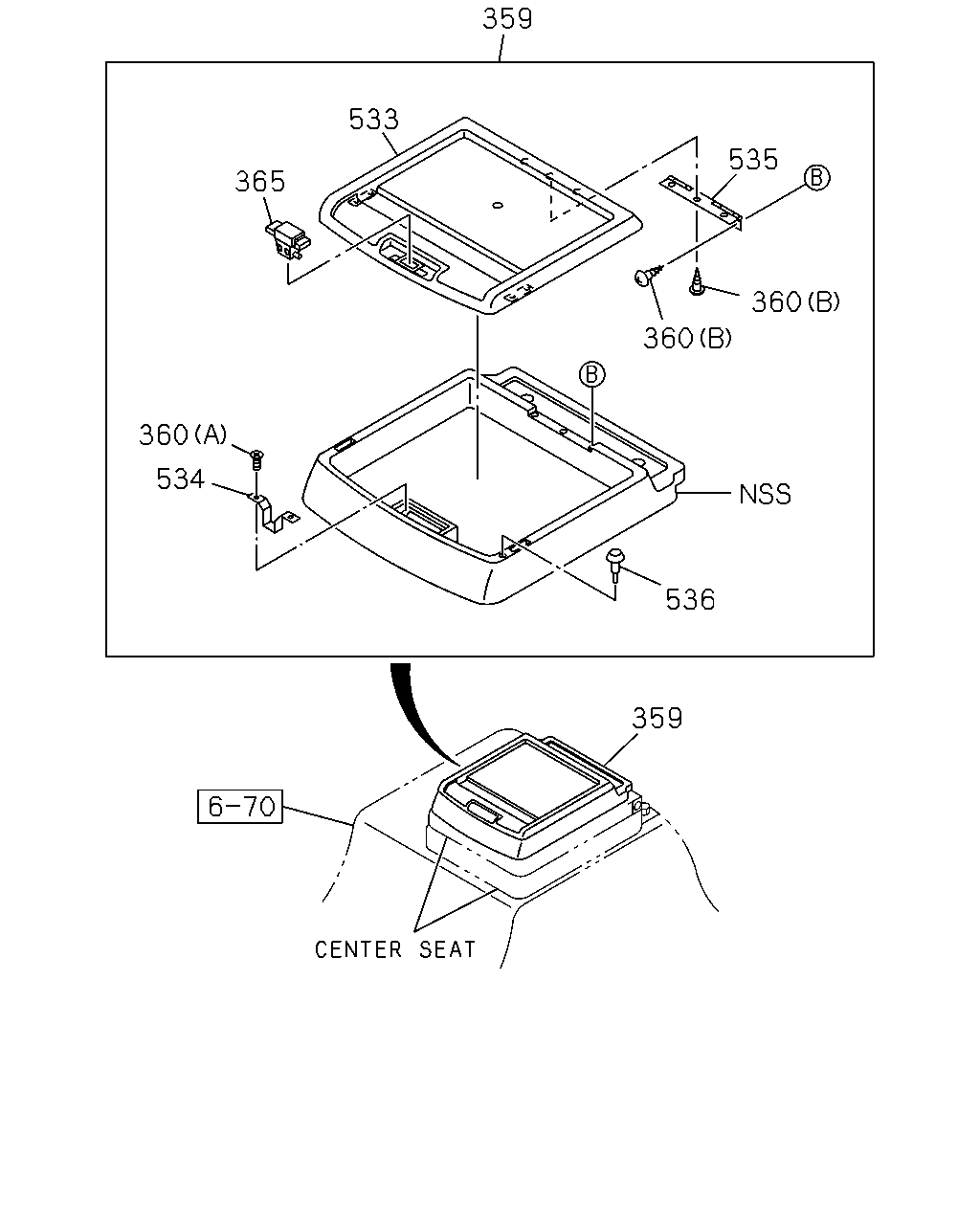

359 533 535 365 360 360 360 534 536 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1110-
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	12	1	1110-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1110-
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	04	1	1110-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16	0-70040-416-0	06	1	1110-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1110-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-
365	LOCK ASM; SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	02	1	1110-1110
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	1110-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72538-312-0	01	1	1110-1110
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1110-
534	STRIKER; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-190-0	02	1	1110-1110
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-190-0	01	1	1110-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72538-190-0	01	1	1110-1110
535	HINGE; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	02	1	1110-1110
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1110-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72447-391-1	01	1	1110-1110
536	RUBBER; CUSHION VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-187-0	04	1	1110-1110
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-187-0	02	1	1110-
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-72538-187-0	02	1	1110-1110

74 302 518 543 543 532 51 512 51 51 512 51 532 468 468 278 302 518 518 518 278 278 543 518 471 158 158 468 529 468 543 543 302 518 72 302 302 551 551 518 302 72 518 302 518 302 518 551 551 201 518 63 63 518 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	1110-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A)	1-75518-199-1	01	1	1110-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-323-0	01	1	1110-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	1110-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1503-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98003-678-0	01	1	1110-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1503-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1110-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1110-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1110-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	1110-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	1110-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	1110-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1503-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	1110-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	1110-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	1110-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	1110-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	1110-
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1110-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-243-1	02	1	1110-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1110-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C)	1-75518-264-0	04	1	1110-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	1110-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	1110-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	1110-
529	PIN; LINK	1-75518-262-0	01	1	1110-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-203-0	01	1	1110-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-204-1	01	1	1110-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	1110-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	8-98291-669-0	02	1	1503-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1110-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	1110-

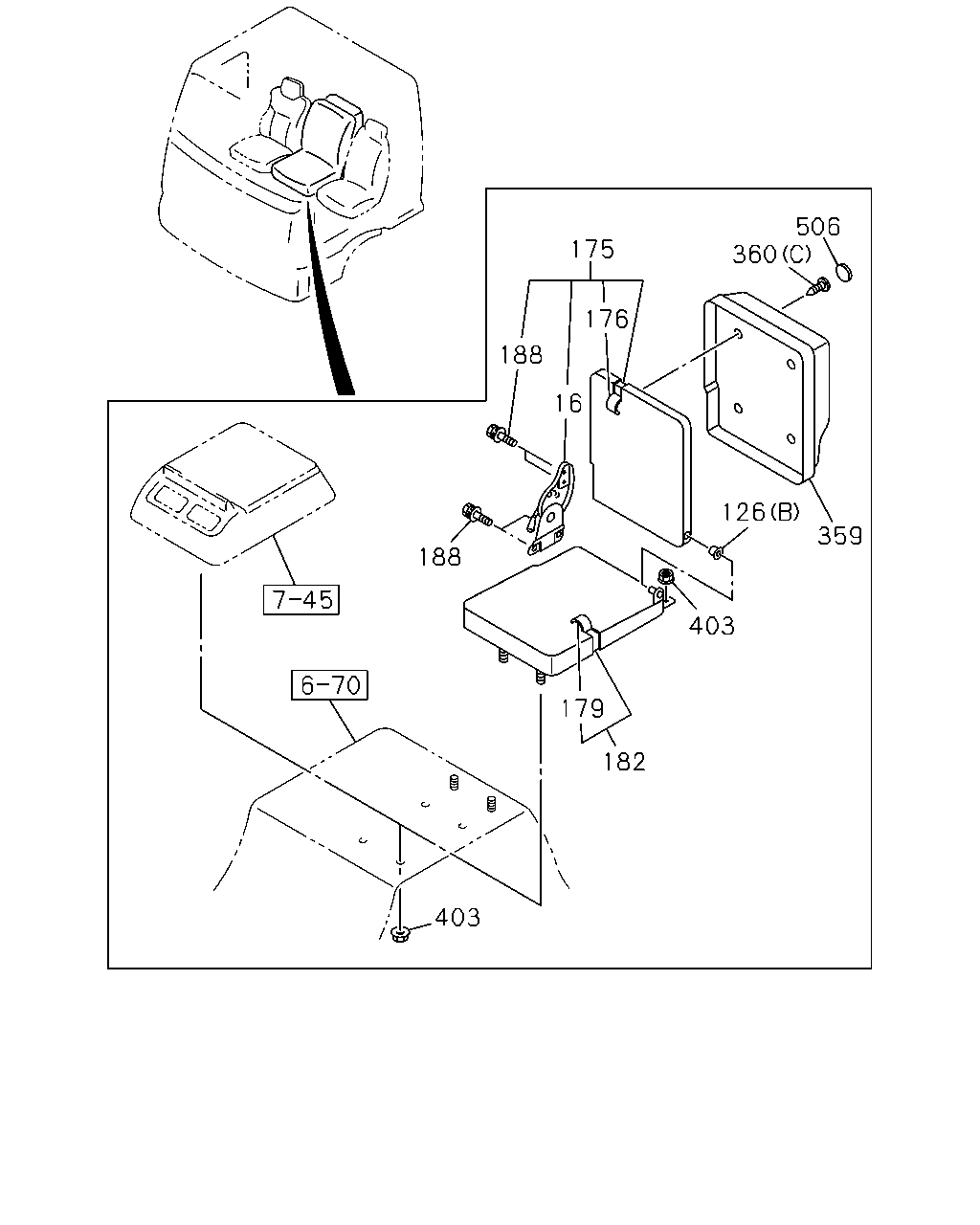

506 360 175 176 188 16 126 359 188 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	02	1	1110-1110
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1110-
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL>	1-75418-062-1	01	1	1110-1110
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	02	1	1110-1110
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1110-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1110-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	8-97854-900-0	01	1	1110-1110
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-434-1	01	1	1110-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-1	01	1	1110-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-435-1	01	1	1110-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-1	01	1	1110-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-432-1	01	1	1110-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-974-1	01	1	1110-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-430-3	01	1	1110-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-973-3	01	1	1110-
188	BOLT; BACK TO CUSHION VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	08	1	1110-1110
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1110-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE	1-75198-053-0	04	1	1110-1110
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1110-
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	12	1	1110-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1110-
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	04	1	1110-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16	0-70040-416-0	06	1	1110-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1110-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1110-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1110-

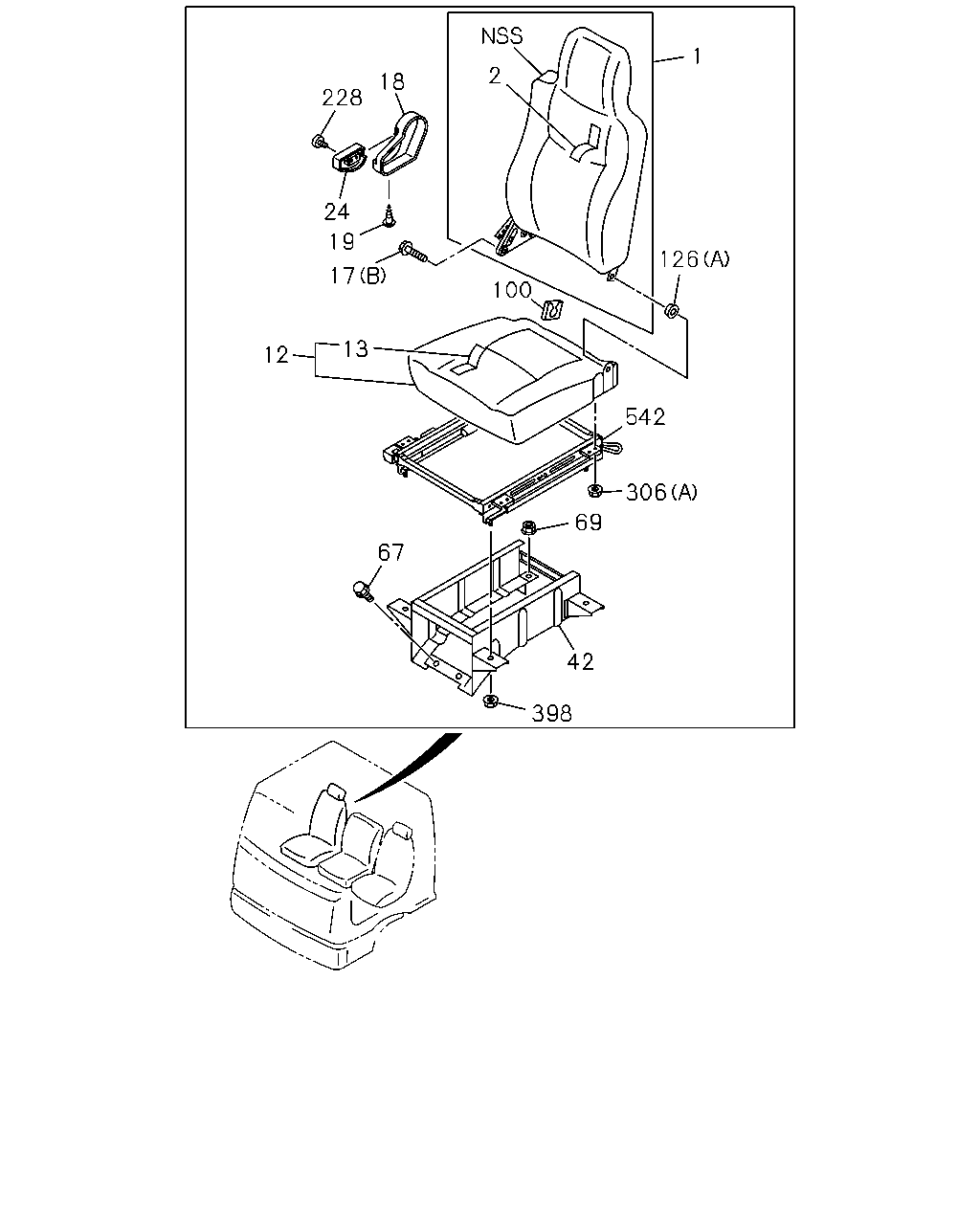

1 126 2 18 228 24 19 17 13 12 67 398 42 69 306 542 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-407-1	01	1	1110-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-406-1	01	1	1110-
1	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-955-5	01	1	1110-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY	8-97421-412-0	01	1	1110-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY	8-97421-411-0	01	1	1110-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-910-2	01	1	1110-
12	CUSHION; SEAT,FRT DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY	8-97421-398-2	01	1	1110-
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97421-397-2	01	1	1110-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY	8-97414-123-2	01	1	1110-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97409-954-2	01	1	1110-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> VINYL SEAT<A83> DARK GRAY	8-97409-954-2	01	1	1110-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> DARK GRAY	8-97421-402-2	01	1	1110-
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97421-401-2	01	1	1110-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-909-1	01	1	1110-
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	04	1	1110-1203
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1204-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	04	1	1110-1203
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1204-
18	COVER; RECLINING GRAY	8-97409-332-0	01	1	1110-
19	SCREW; COVER M5	8-98062-663-0	01	1	1110-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1110-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	1110-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1110-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1110-
100	COVER; HINGE	8-98203-070-0	01	1	1110-
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	02	1	1110-1110
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	1110-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1110-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	8-97854-900-0	01	1	1110-1110
228	SCREW; KNOB M4	8-98062-662-0	01	1	1110-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1110-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	1110-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE	1-75538-207-0	08	1	1110-
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	1110-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98093-310-0	01	1	1110-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-653-0	01	1	1503-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
