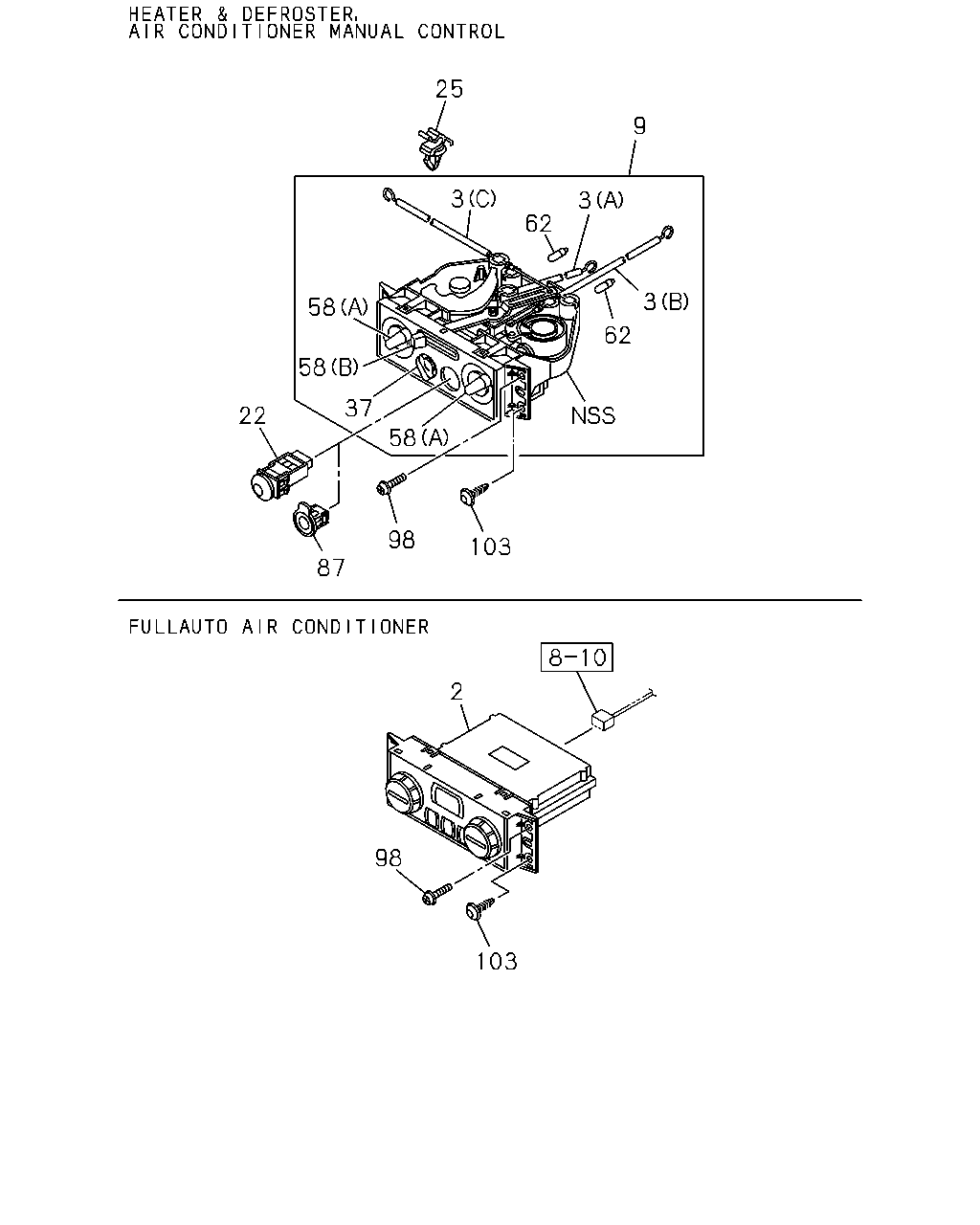

8-65 — CONTROL LEVER; HEATER AND AIR CON (#170132) — 14 parça

9 25 3 3 3 62 58 58 58 37 62 22 87 103 98 2 98 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PANEL ASM; CONT,ILLUMINATION FULLAUTO AIR CONDITIONER(C68)	8-98021-984-0	01	1	1511-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) AIR MIX	8-98041-502-0	01	1	1511-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) MODE	8-98041-503-1	01	1	1511-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) RECIRCULATION AND FRESH	8-98041-505-2	01	1	1511-	●	●
9	LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-319-2	01	1	1511-	●	●
22	SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONTROL(C60)	8-98021-982-0	01	1	1511-	●	●
25	CLIP; CABLE,CONT LEVER EXC. FULLAUTO AIR CONDITIONER(C68) ID=4.8	8-94128-483-0	03	1	1511-	●	●
37	KNOB; SW,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98037-368-0	01	1	1511-	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98037-369-0	02	1	1511-	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98037-370-0	01	1	1511-	●	●
62	BULB; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 1.1W	8-98037-371-0	02	1	1511-	●	●
87	CAP; A/C SWITCH HEATER & DEFROSTER(C41)	8-98006-089-0	01	1	1511-	●	●
98	SCREW; CONT PANEL M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	1511-	●	●
103	CLIP DARK GRAY	8-97098-326-0	01	1	1511-	●	●
