8-28 — CHASSIS ELECTRICAL (#170126) — 127 parça

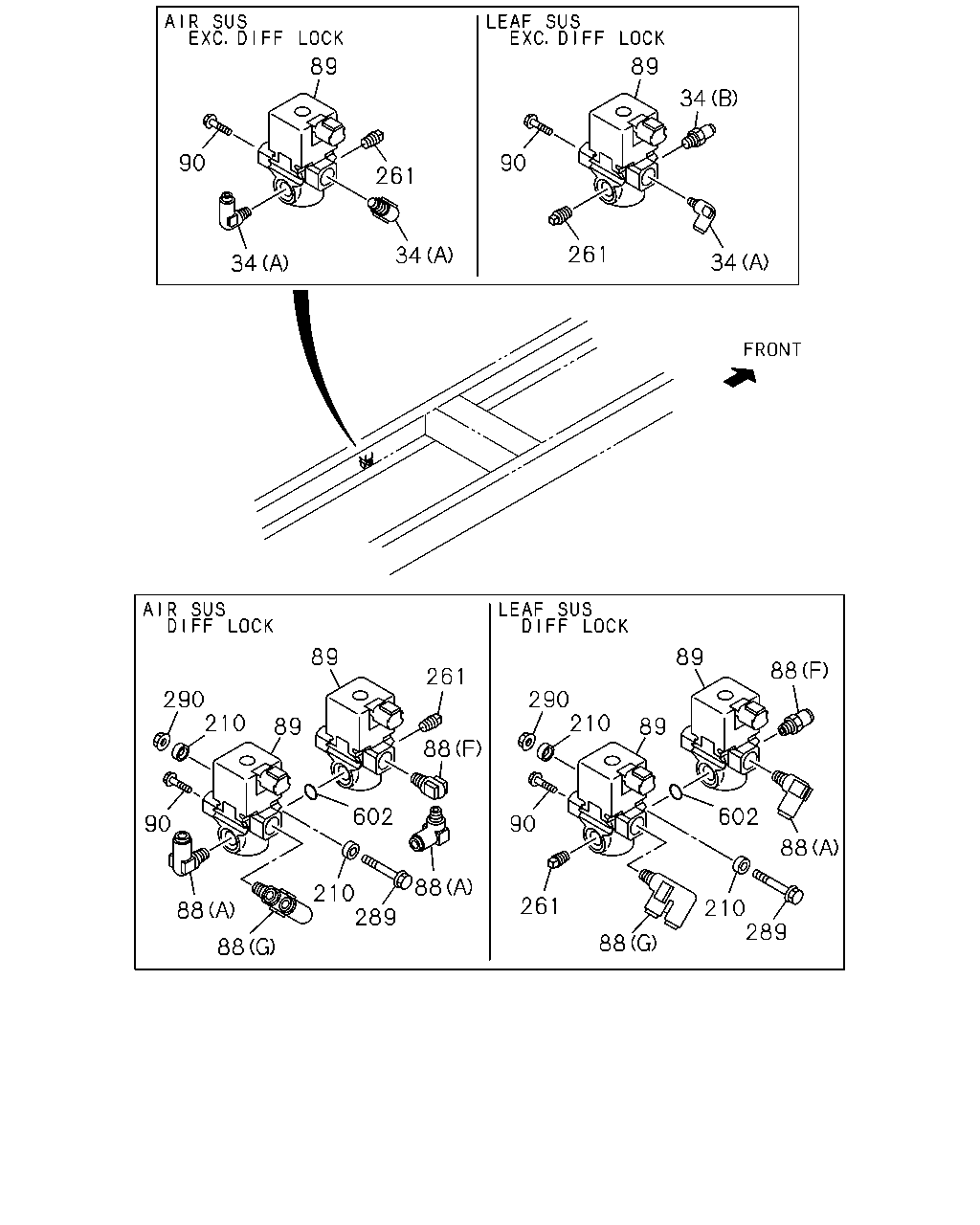

89 34 34 90 89 90 34 34 261 89 88 89 89 261 88 88 602 289 210 88 88 90 290 210 89 210 290 90 602 88 289 210 88 261 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT EXC. DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1511-	●
34	CONNECTOR; MAG VLV,INL PORT EXC. DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-		●
34	CONNECTOR; MAG VLV,INL PORT EXC. DIFF LOCK<C3N> (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1511-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV PTO ZF TRANS RR(BDM) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1511-	●	●
88	CONNECTOR; MAG VLV PTO ZF TRANS RR(BDM) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1511-	●	●
88	CONNECTOR; MAG VLV PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1511-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) PT1/4 2WAY	1-09660-693-0	01	1	1511-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1511-	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1511-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1511-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (G) DIN13X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1511-		●
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	8-97641-594-0	02	1	1511-	●	●
89	VALVE; MAG,DIFF LOCK EXC. DIFF LOCK<C3N>	8-97641-594-0	01	1	1511-	●	●
90	BOLT; MAG VLV DIFF LOCK<C3N> M8X30 FLANGE	0-28650-830-0	03	1	1511-	●	●
90	BOLT; MAG VLV EXC. DIFF LOCK<C3N> M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
210	WASHER; PL,BRKT DIFF LOCK<C3N>	1-82569-266-0	02	1	1511-	●	●
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	1511-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1511-	●	●
289	BOLT DIFF LOCK<C3N> M6X50 FLANGE	0-28050-650-0	01	1	1511-	●	●
289	BOLT ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
290	NUT DIFF LOCK<C3N> M6 FLANGE	0-91180-106-0	01	1	1511-	●	●
602	GASKET; MAG VLV DIFF LOCK<C3N> ID=16.8	9-09565-117-0	01	1	1511-	●	●
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	1511-	●	●

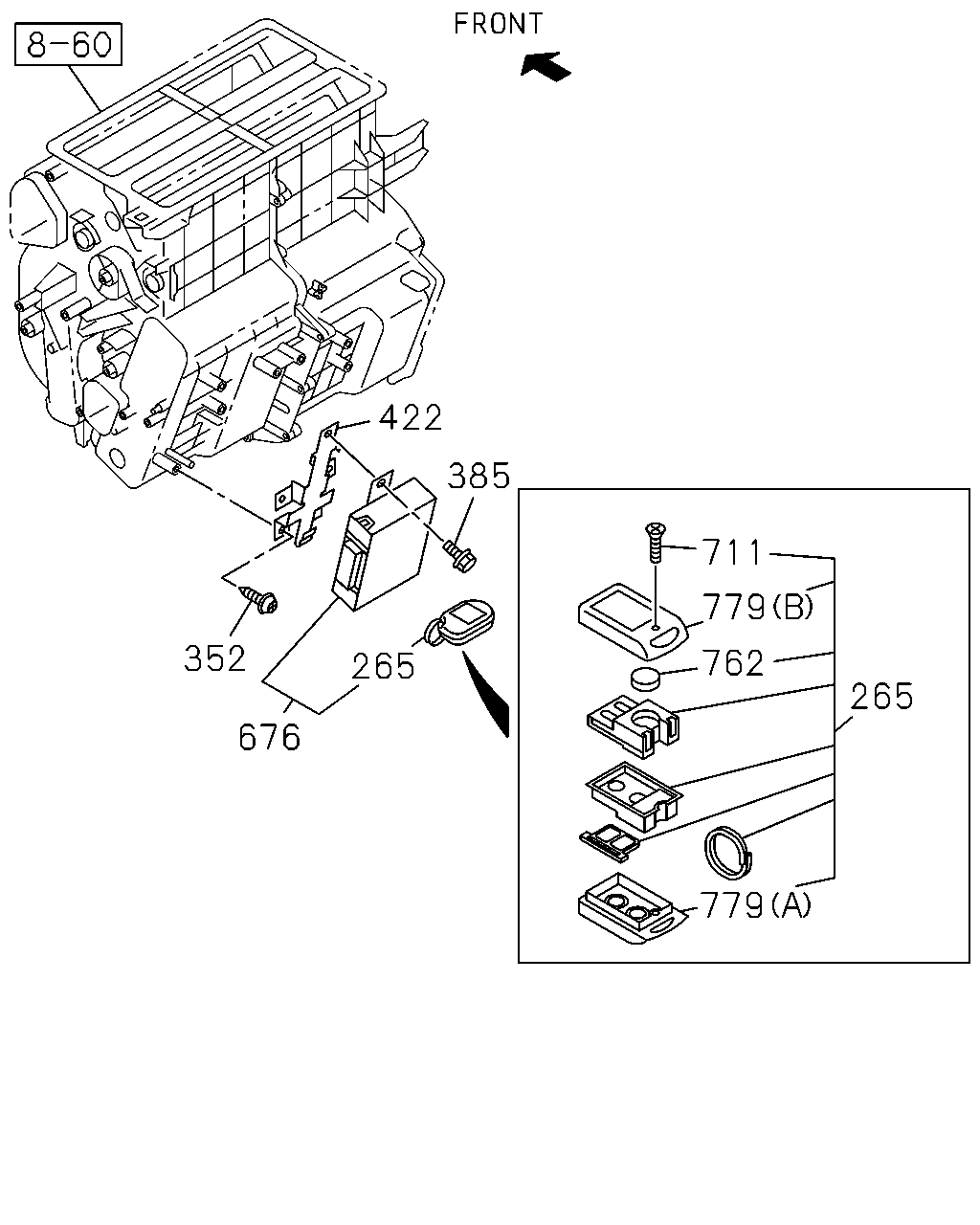

422 711 265 779 762 779 385 676 352 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1511-	●	●
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1511-	●	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	1511-	●	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	1511-	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1511-	●	●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1511-	●	●
762	BATTERY	8-98078-061-0	02	1	1511-	●	●
779	COVER; TRANSMITTER (A)	8-98218-240-0	02	1	1511-	●	●
779	COVER; TRANSMITTER (B)	8-98218-243-0	02	1	1511-	●	●

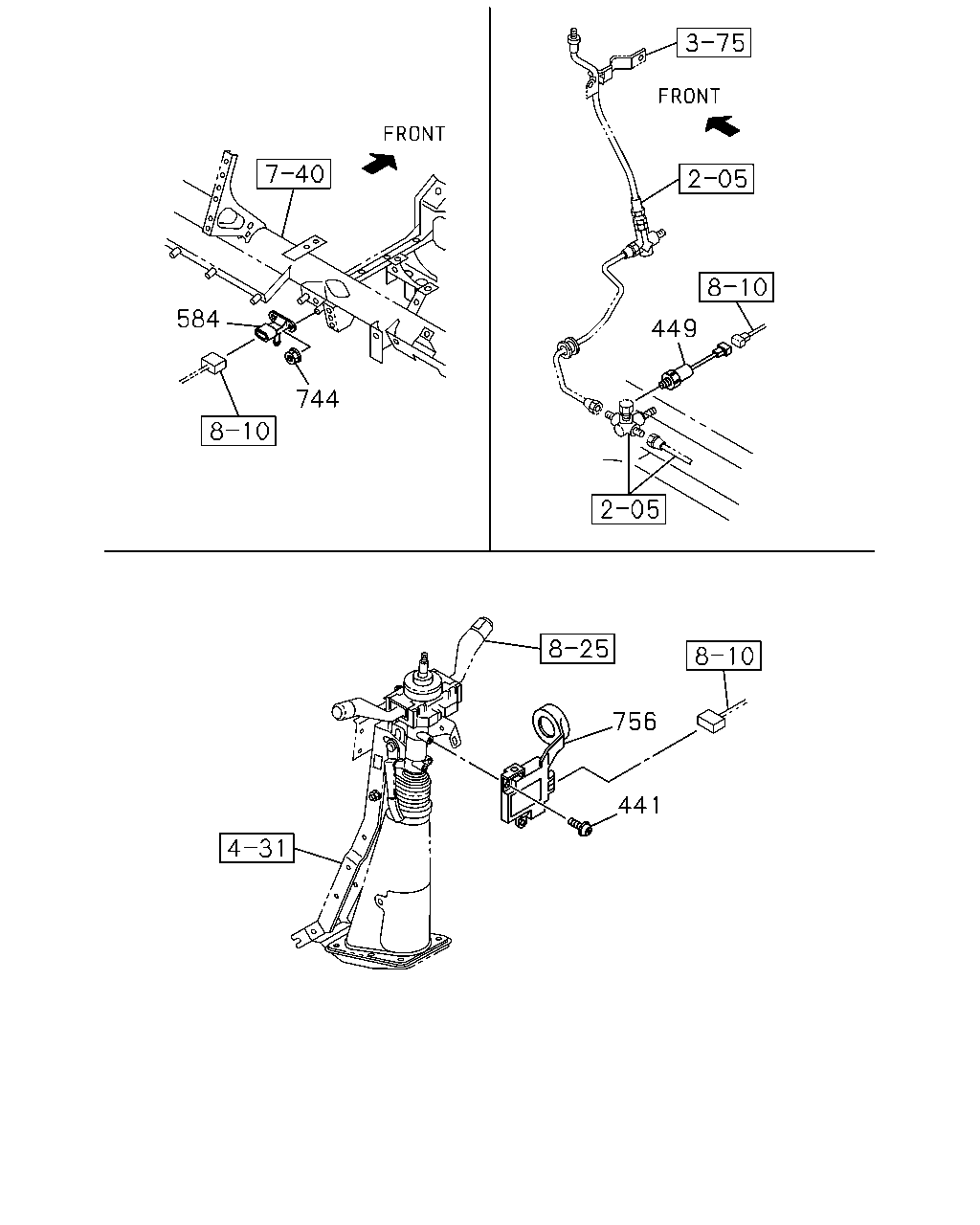

584 744 756 441 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1511-	●	●
449	SWITCH; OIL PRESS,CLUTCH ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-82410-143-1	01	1	1511-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1511-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1511-	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1511-	●	●

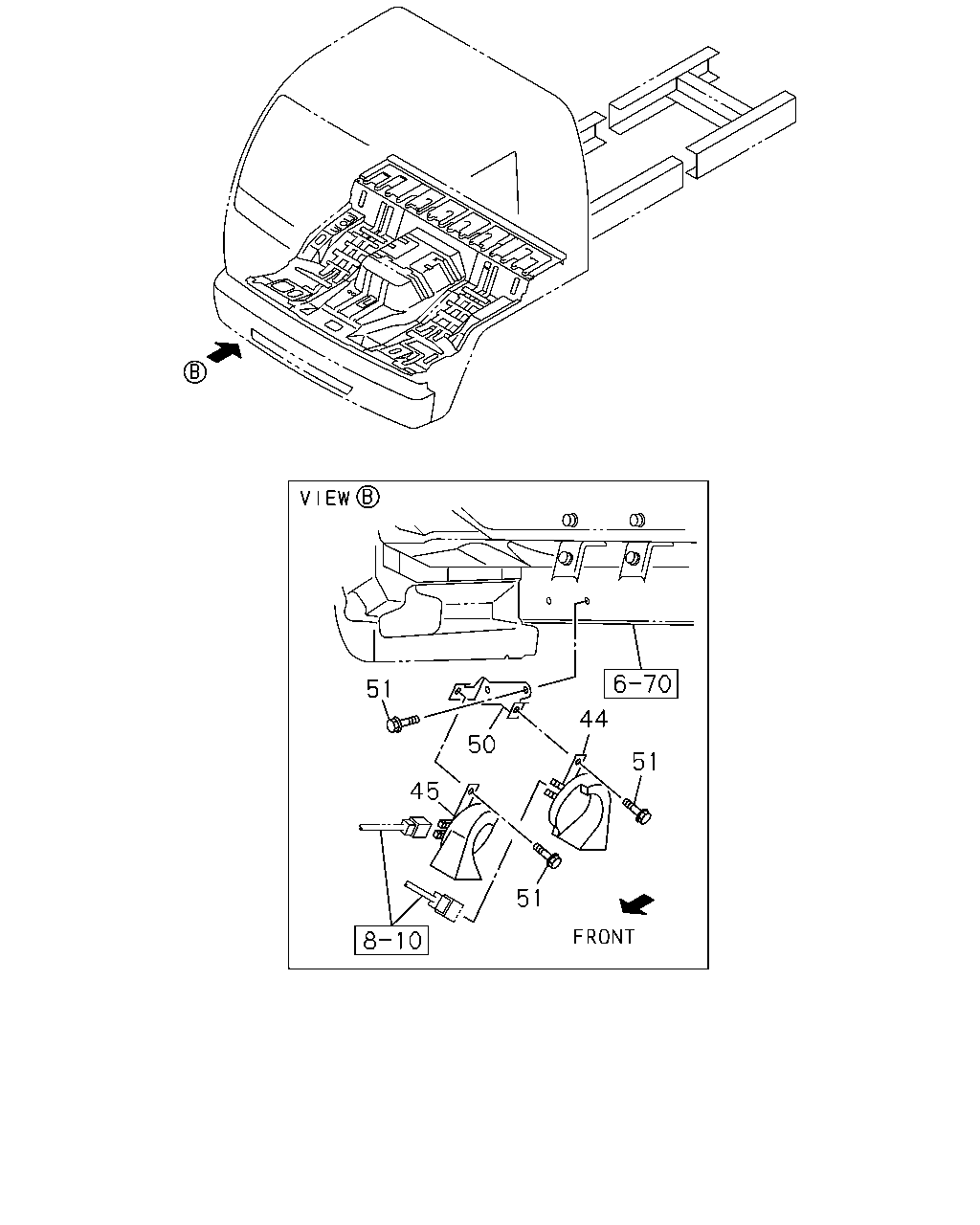

51 50 45 51 51 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE	8-97611-677-2	01	1	1511-	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	1511-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1511-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	1511-	●	●

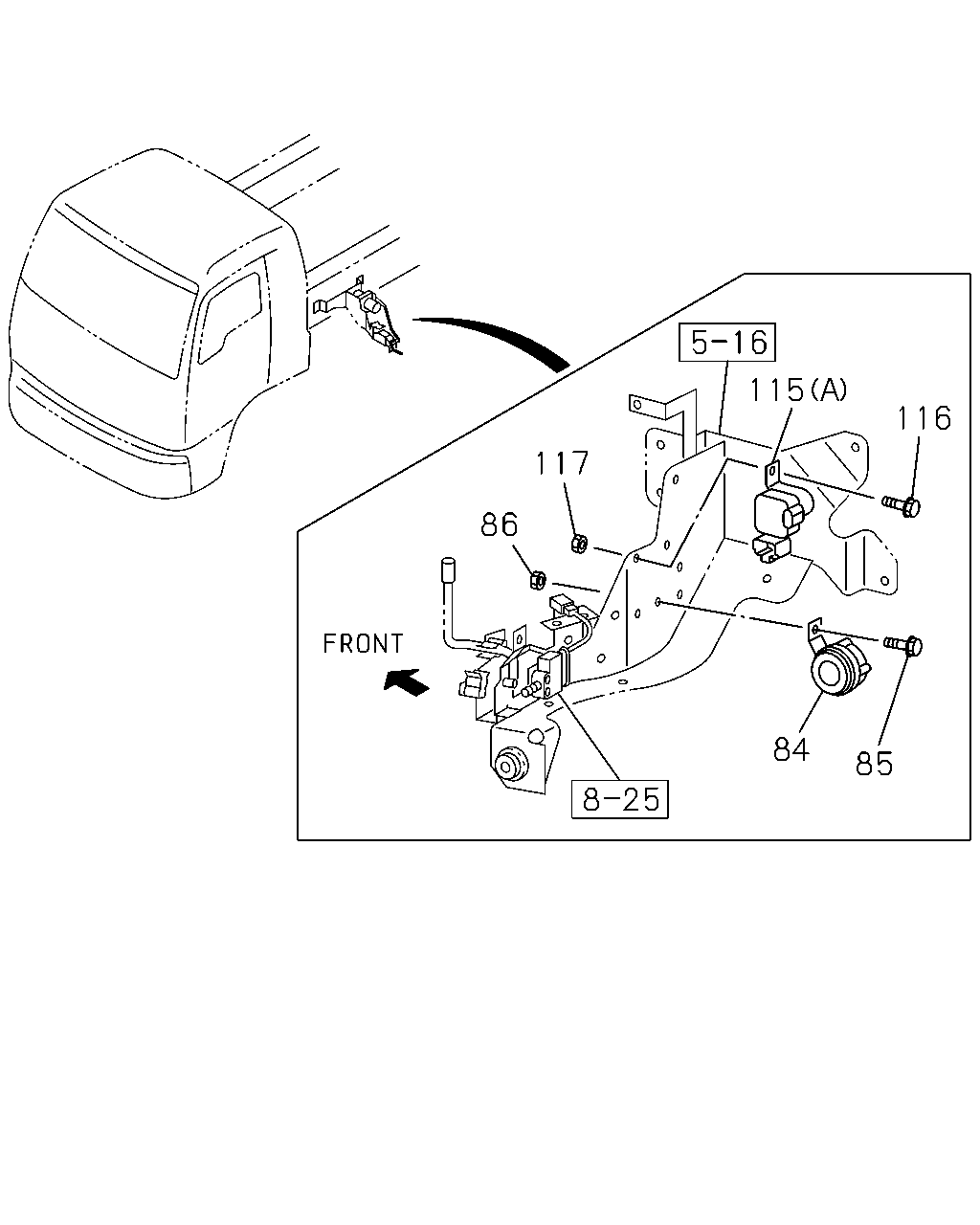

86 117 115 116 84 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1511-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1511-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	1511-	●	●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1511-	●	●

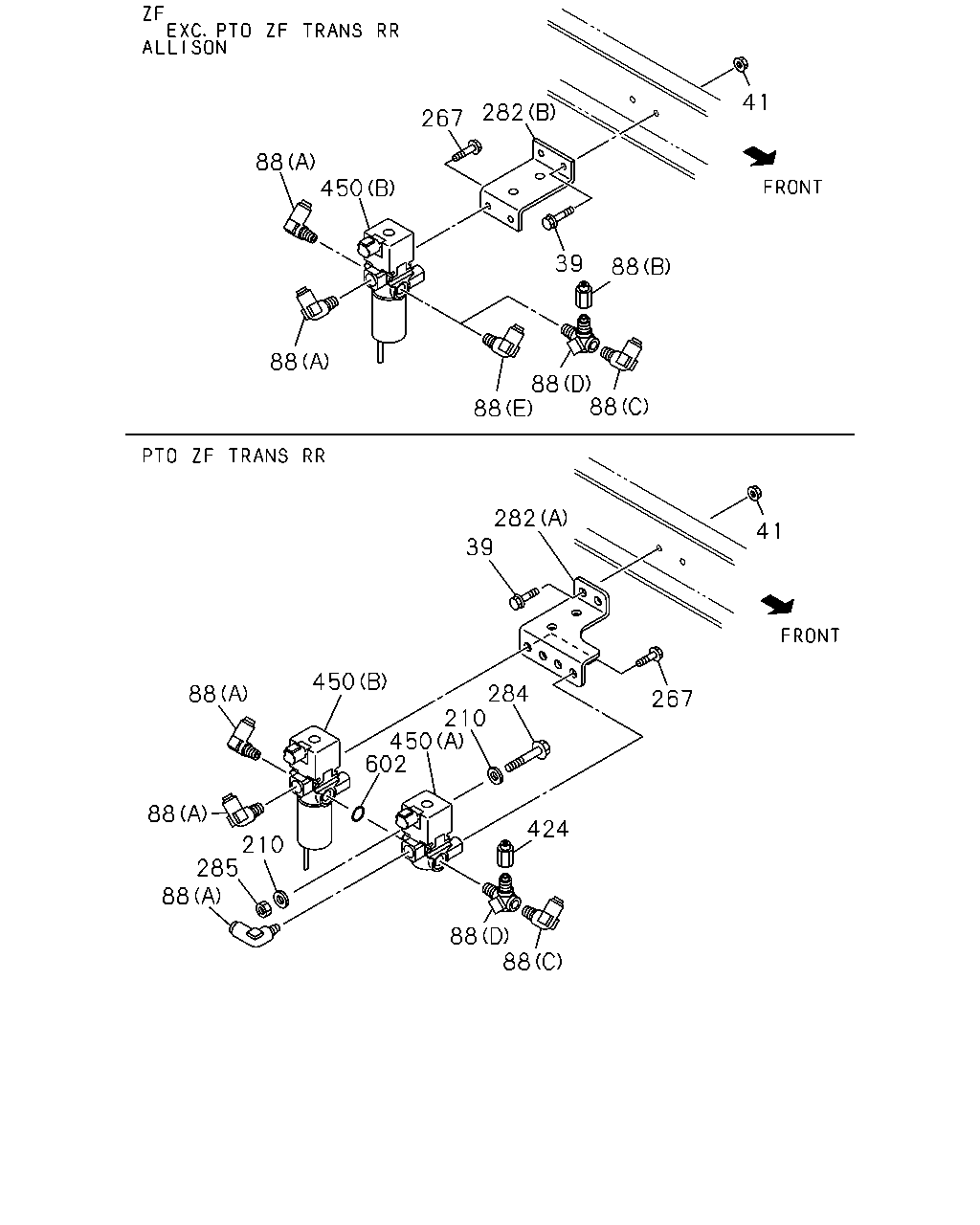

267 282 88 39 88 88 88 88 41 41 267 424 284 210 450 450 88 88 285 88 88 88 602 210 282 39 88 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV PTO ZF TRANS RR(BDM) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1511-	●	●
88	CONNECTOR; MAG VLV PTO ZF TRANS RR(BDM) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1511-	●	●
88	CONNECTOR; MAG VLV PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1511-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) PT1/4 2WAY	1-09660-693-0	01	1	1511-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1511-	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1511-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1511-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (G) DIN13X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1511-		●
210	WASHER; PL,BRKT DIFF LOCK<C3N>	1-82569-266-0	02	1	1511-	●	●
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM)	1-82569-266-0	02	1	1511-	●	●
267	BOLT; VLV TO BRKT ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
267	BOLT; VLV TO BRKT ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
267	BOLT; VLV TO BRKT PTO ZF TRANS RR(BDM) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
282	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (A)	8-98101-296-0	01	1	1511-	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (B)	8-98154-633-0	01	1	1511-	●	●
282	BRACKET; MAG VLV ALLISON MD3560P A/T(Y3B) (B)	8-98154-633-0	01	1	1511-	●	●
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM) M6X50 FLANGE	0-28050-650-0	01	1	1511-	●	●
285	NUT; MAG VLV PTO ZF TRANS RR(BDM) M6 FLANGE	0-91180-106-0	01	1	1511-	●	●
424	ADAPTER PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1511-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (B)	8-97633-075-0	01	1	1511-	●	●
450	VALVE; MAG ALLISON MD3560P A/T(Y3B) (B)	8-97633-075-0	01	1	1511-	●	●
450	VALVE; MAG PTO ZF TRANS RR(BDM) (B)	8-97633-075-0	01	1	1511-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (A)	1-82563-871-2	01	1	1511-	●	●
450	VALVE; MAG PTO ZF TRANS RR(BDM) (A)	1-82563-871-2	01	1	1511-	●	●
602	GASKET; MAG VLV DIFF LOCK<C3N> ID=16.8	9-09565-117-0	01	1	1511-	●	●
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM) ID=16.8	9-09565-117-0	01	1	1511-	●	●

765 450 741 88 741 305 289 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E)	8-98057-863-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV PTO ZF TRANS RR(BDM) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1511-	●	●
88	CONNECTOR; MAG VLV PTO ZF TRANS RR(BDM) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1511-	●	●
88	CONNECTOR; MAG VLV PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	1511-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) PT1/4 2WAY	1-09660-693-0	01	1	1511-	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1511-	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1511-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1511-	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (G) DIN13X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-		●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1511-	●	●
88	CONNECTOR; MAG VLV DIFF LOCK<C3N> (F) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1511-		●
289	BOLT DIFF LOCK<C3N> M6X50 FLANGE	0-28050-650-0	01	1	1511-	●	●
289	BOLT ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
305	NUT; FILTER ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (B)	8-97633-075-0	01	1	1511-	●	●
450	VALVE; MAG ALLISON MD3560P A/T(Y3B) (B)	8-97633-075-0	01	1	1511-	●	●
450	VALVE; MAG PTO ZF TRANS RR(BDM) (B)	8-97633-075-0	01	1	1511-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (A)	1-82563-871-2	01	1	1511-	●	●
450	VALVE; MAG PTO ZF TRANS RR(BDM) (A)	1-82563-871-2	01	1	1511-	●	●
741	CONNECTOR; NYLON TUBE ZF9S1110 M/T(Y5E) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1511-	●	●
765	BOLT; VLV ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●

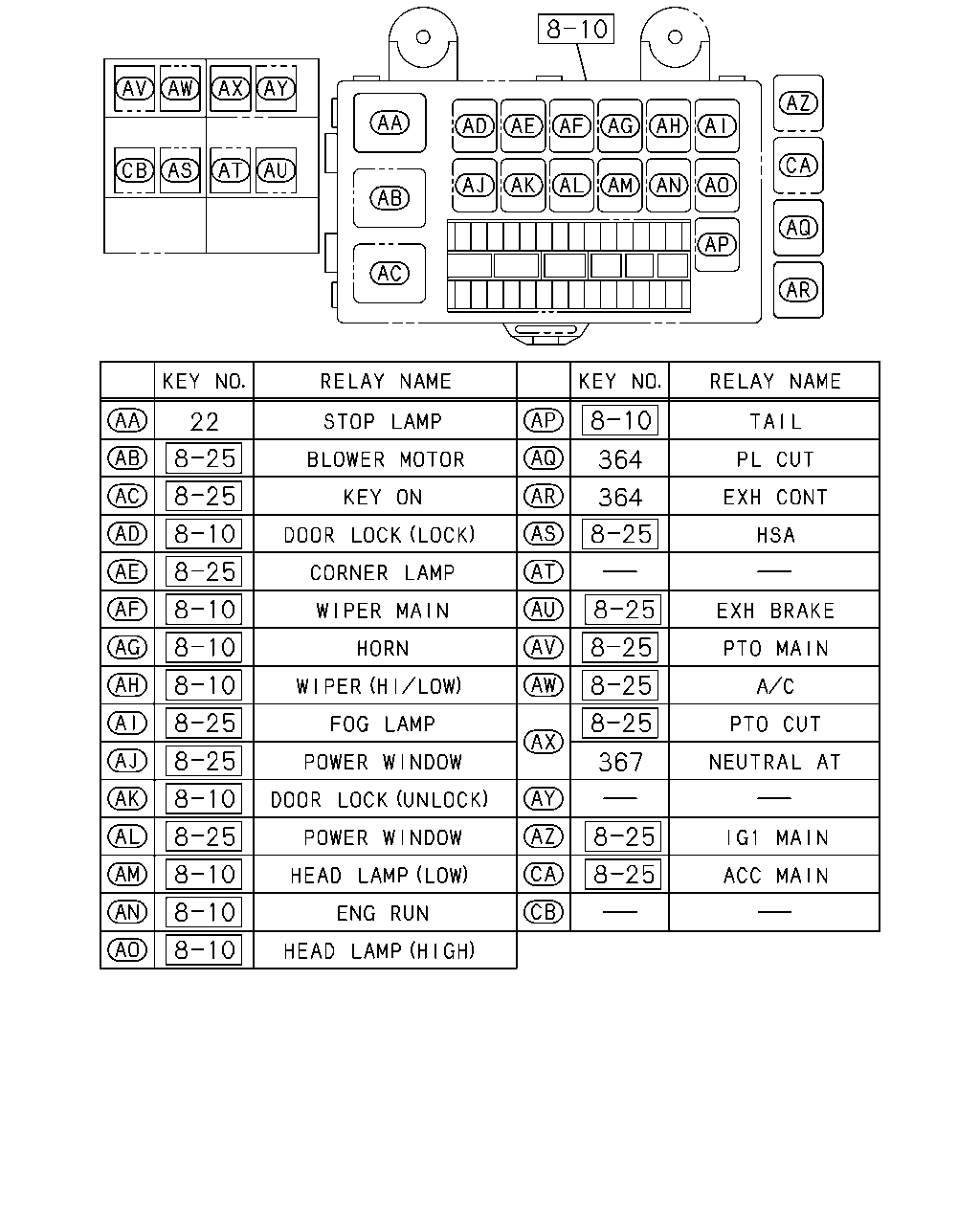

22 364 364 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1511-	●	●
364	RELAY; AUTO CRUISE OFF A/T<X9D> 24V 10A PANASONIC	8-97173-035-1	03	1	1511-	●	●
367	RELAY; NEUTRAL A/T<X9D> 24V 10A PANASONIC	8-97173-035-1	01	1	1511-	●	●

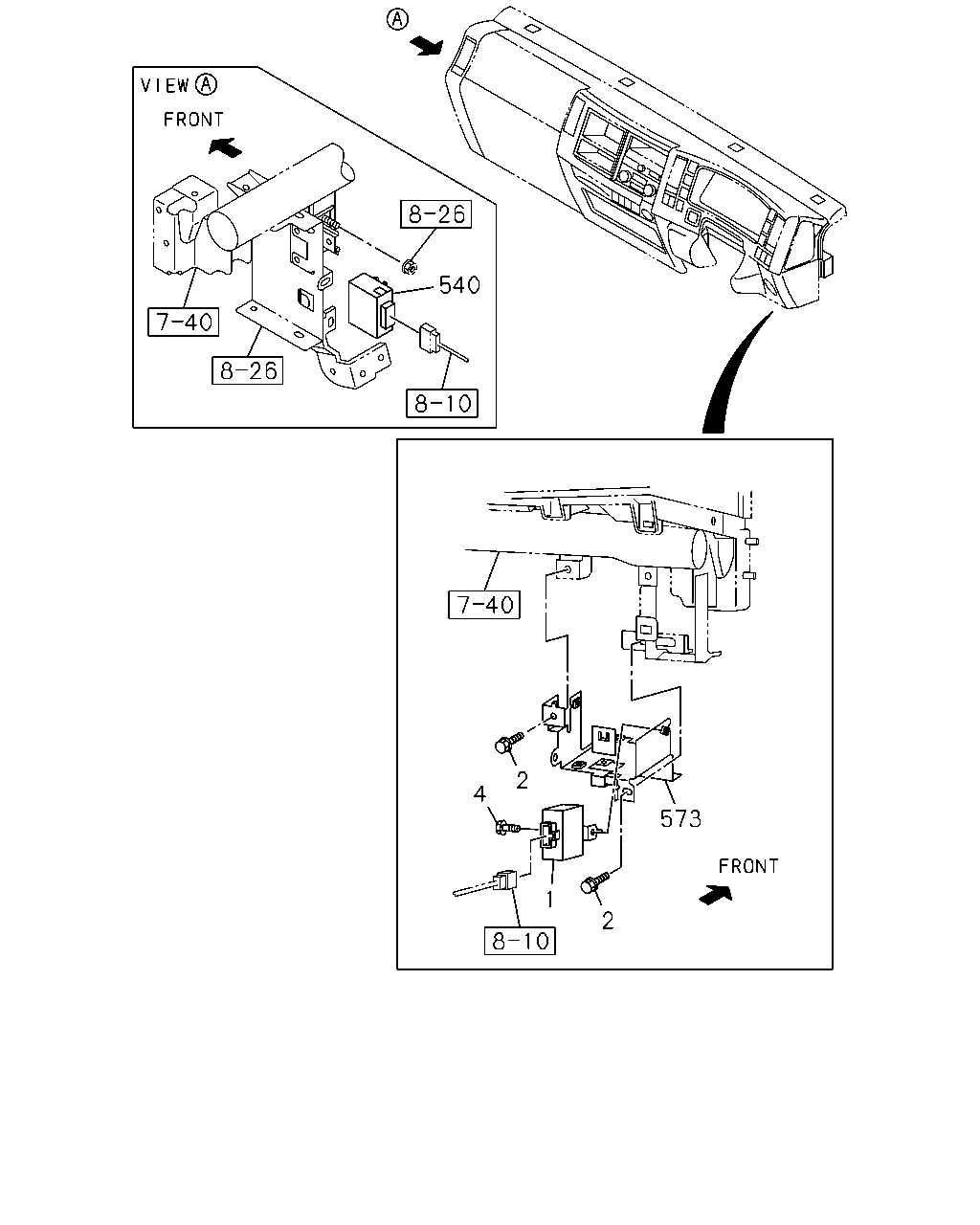

540 4 2 2 573 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	1511-	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●
4	SCREW; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	01	1	1511-	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1511-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1511-	●	●

531 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1511-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	1511-	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1511-	●	●
