8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#170124) — 80 parça

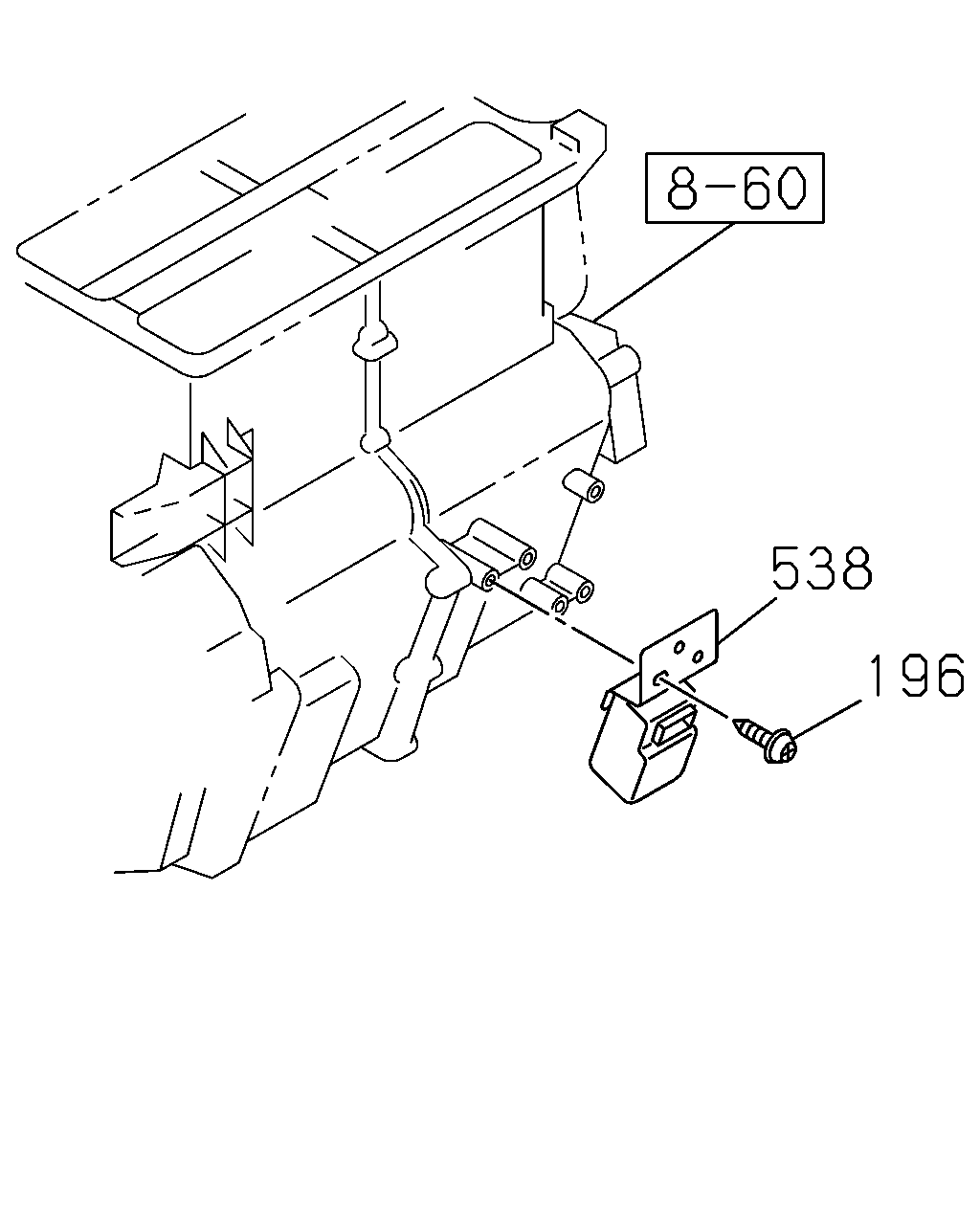

çizim 501813
538 196
BalonParca AdiParca NoAdetTipApplied Date A B
196 BOLT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1511- ● ●
538 CONTROLLER; LEVEL 8-98330-611-0 01 1 1511- ● ●
çizim 501884
497 726 726 507 497
BalonParca AdiParca NoAdetTipApplied Date A B
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1511- ● ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1511- ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1511- ● ●

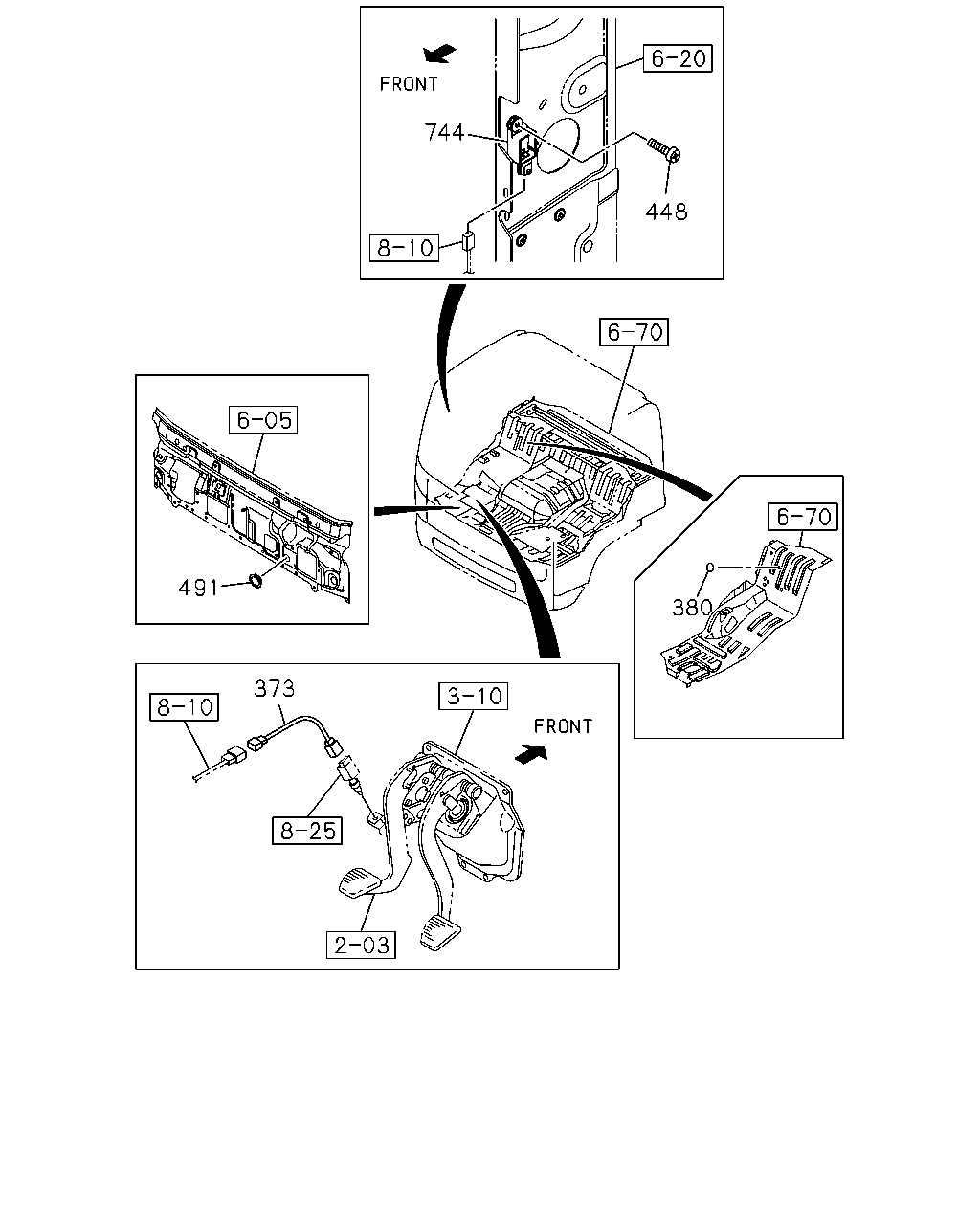

çizim 503215
744 448 380 373 491
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
ZF9S1110 M/T(Y5E) 		8-98053-829-3 01 1 1511- ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1511- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1511- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1511- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98190-212-0 01 1 1511- ● ●

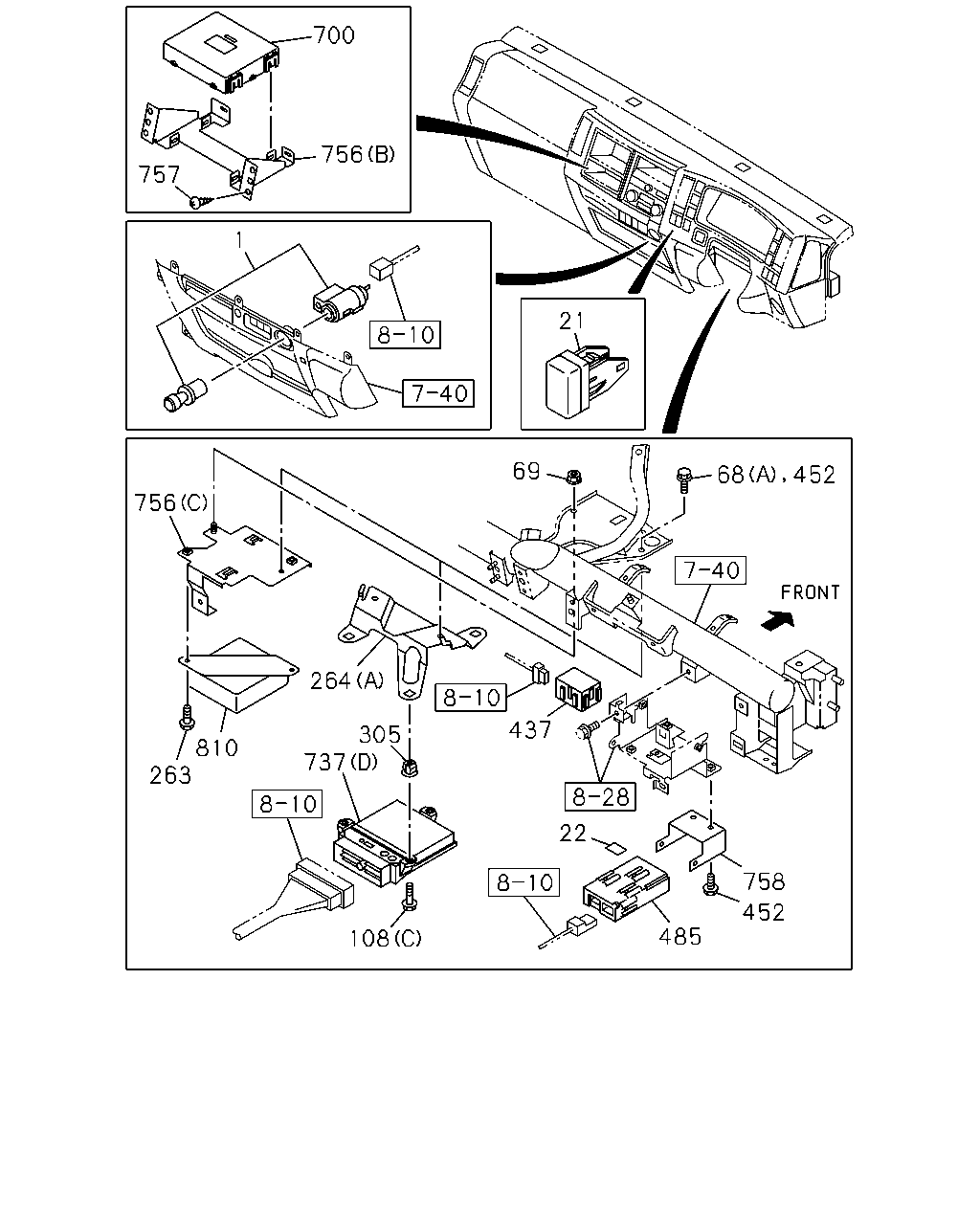

çizim 503337
700 757 21 1 810 263 305 437 22 758 452 485 452 69 756 68 737 108 264 756
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1511- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1511- ● ●
22 SEAL; TAPE 8-98166-639-0 01 1 1511- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1511- ● ●
68 BOLT; BRKT
H.S.A SYSTEM<6EP> (A) M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ●
69 NUT; BRKT
H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3560P A/T(Y3B) (C) M6X20 TAPPING 		0-72180-620-0 03 1 1511- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) M4X25 TAPPING 		0-74160-425-0 02 1 1511- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ●
263 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
264 BRACKET; CONT UNIT
(B) 		8-98180-453-0 01 1 1511- ● ●
264 BRACKET; CONT UNIT
ALLISON MD3560P A/T(Y3B) (A) 		8-98252-197-0 01 1 1511- ● ●
305 NUT; CONT UNIT
ALLISON MD3560P A/T(Y3B) D=9.7X9.7 L=8 		8-94222-314-0 03 1 1511- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1511- ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
452 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
485 CONTROL UNIT; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) 		8-98232-696-0 01 1 1511- ● ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98232-695-0 01 1 1511- ● ●
700 CONTROL UNIT; CAN CONVERTER 8-98219-812-1 01 1 1511- ● ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3560P A/T(Y3B) (D) 		8-98330-924-0 01 1 1511- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (A) 		1-80111-271-0 01 1 1511- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (B) 		8-98095-040-0 01 1 1511- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (C) 		8-98095-041-0 01 1 1511- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98203-991-0 01 1 1511- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1511- ● ●
756 BRACKET; ECU,BCM
H.S.A SYSTEM<6EP> (C) 		8-98252-076-1 01 1 1511- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1511- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1511- ● ●
810 CONTROL UNIT; ISS
H.S.A SYSTEM<6EP> 		8-98322-712-0 01 1 1511- ● ●

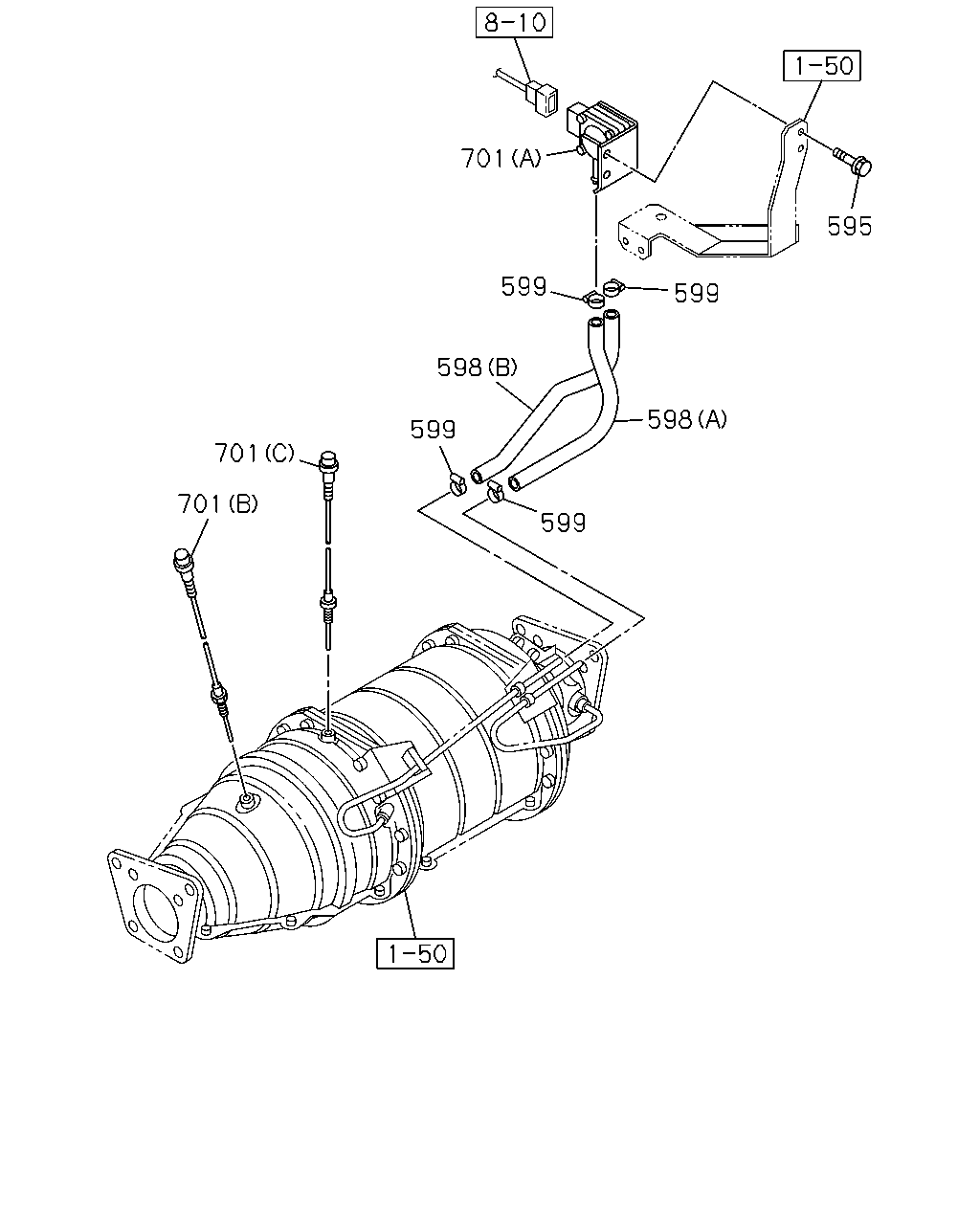

çizim 503339
599 599 599 599 598 598 701 701 701 595
BalonParca AdiParca NoAdetTipApplied Date A B
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98088-940-0 01 1 1511- ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98088-941-0 01 1 1511- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1511- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1511- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1511- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1511- ● ●

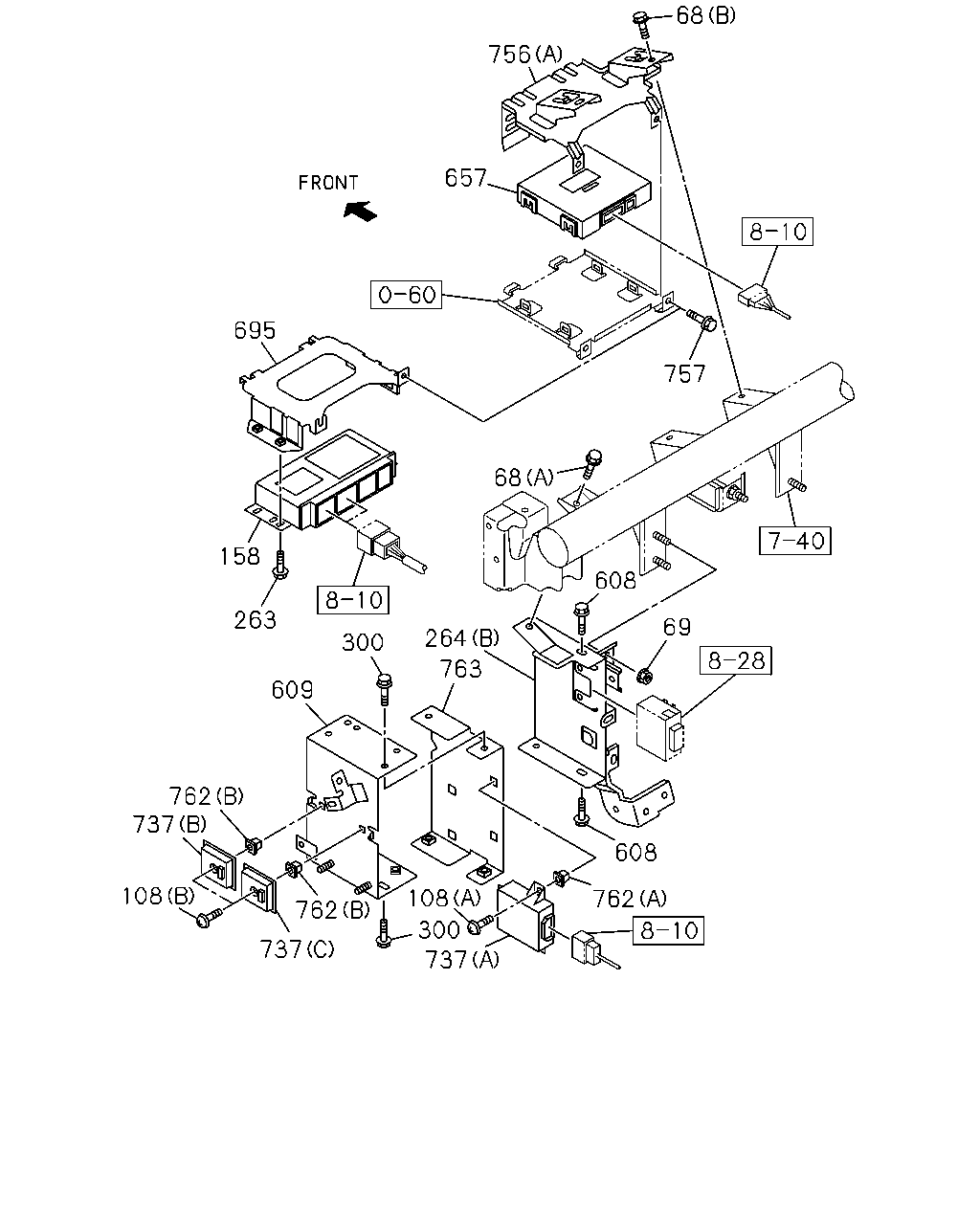

çizim 503540
68 756 657 757 68 695 158 300 263 609 264 763 608 69 608 762 737 108 300 762 737 108 737 762
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1511- ● ●
68 BOLT; BRKT
H.S.A SYSTEM<6EP> (A) M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ●
69 NUT; BRKT
H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
108 BOLT; TRANS CONT MODULE
ALLISON MD3560P A/T(Y3B) (C) M6X20 TAPPING 		0-72180-620-0 03 1 1511- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511- ● ●
108 BOLT; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) M4X25 TAPPING 		0-74160-425-0 02 1 1511- ● ●
158 CONTROLLER; ABS 8-98306-560-0 01 1 1511- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ●
263 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
264 BRACKET; CONT UNIT
(B) 		8-98180-453-0 01 1 1511- ● ●
264 BRACKET; CONT UNIT
ALLISON MD3560P A/T(Y3B) (A) 		8-98252-197-0 01 1 1511- ● ●
300 BOLT; CONT UNIT BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ●
608 BOLT; CONT UNIT,AIR SUS
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 05 1 1511- ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1110 M/T(Y5E) 		8-98169-737-1 01 1 1511- ● ●
657 CONTROL UNIT; MIMAMORI 8-98312-616-1 01 1 1511- ● ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 1511- ● ●
737 CONTROL UNIT; TRANSMISSION
ALLISON MD3560P A/T(Y3B) (D) 		8-98330-924-0 01 1 1511- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (A) 		1-80111-271-0 01 1 1511- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (B) 		8-98095-040-0 01 1 1511- ● ●
737 CONTROL UNIT; TRANSMISSION
ZF9S1110 M/T(Y5E) (C) 		8-98095-041-0 01 1 1511- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98203-991-0 01 1 1511- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1511- ● ●
756 BRACKET; ECU,BCM
H.S.A SYSTEM<6EP> (C) 		8-98252-076-1 01 1 1511- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
757 BOLT; BRKT,BCM
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1511- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1511- ● ●
762 GROMMET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1511- ● ●
763 BRACKET; TRANS CONT MODULE
ZF9S1110 M/T(Y5E) 		8-98085-587-0 01 1 1511- ● ●
