◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11719 - FVZ AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#170123) — 76 parça

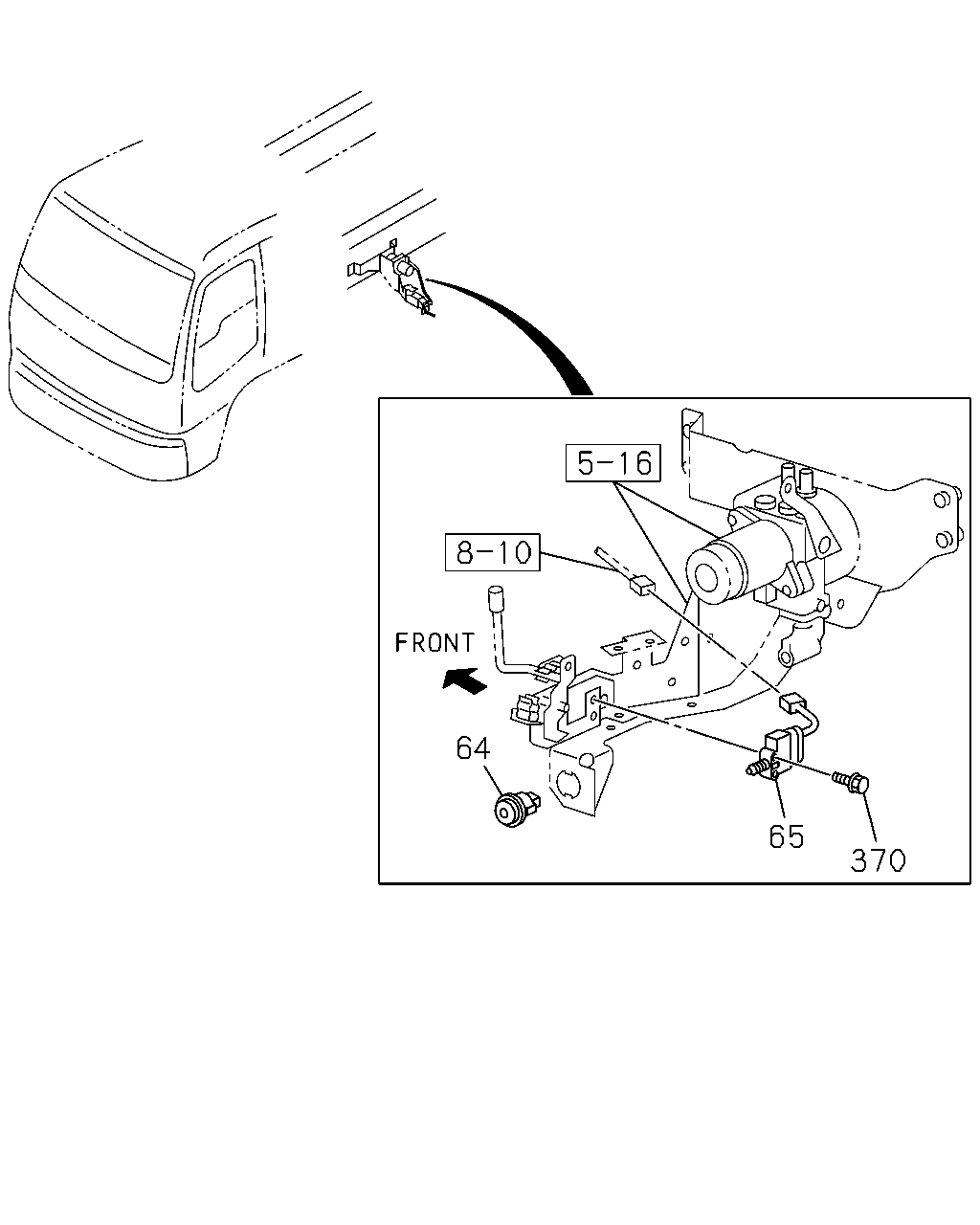

çizim 501908
64 65 370
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1511- ● ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 1511- ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1511- ● ●

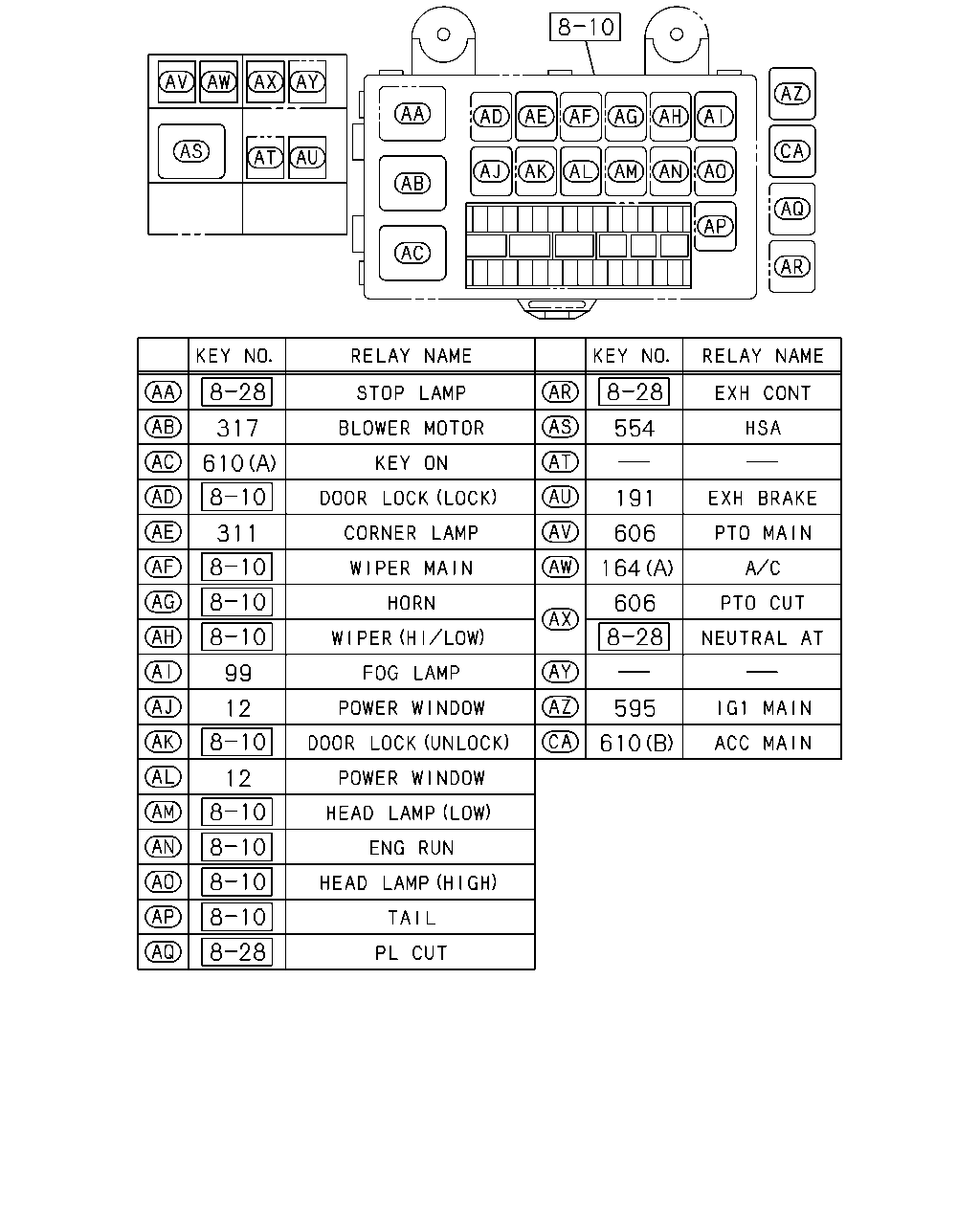

çizim 503146
317 610 311 99 12 12 554 191 164 606 606 595 610
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1511- ● ●
191 RELAY; EXH BRK CUT
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
311 RELAY; CORNERING LAMP
CORNERING LAMP<T87> 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1511- ● ●
554 RELAY; HSA
H.S.A SYSTEM<6EP> 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1511- ● ●

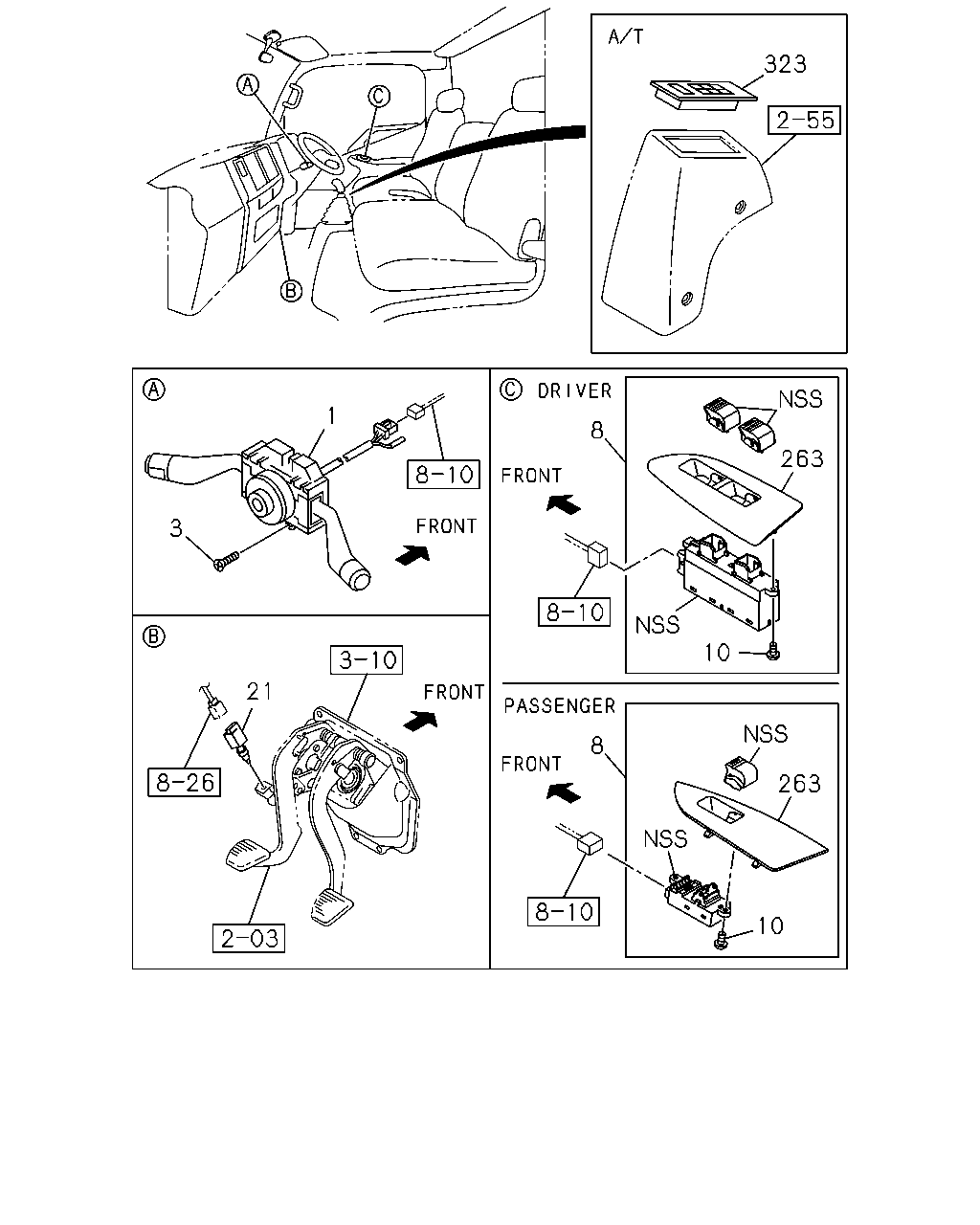

çizim 503177
323 1 8 263 10 8 263 10 21 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98243-692-0 01 1 1511- ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98243-691-0 01 1 1511- ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30>,CORNERING LAMP<T87> 		8-98243-704-0 01 1 1511- ● ●
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),CORNERING LAMP<T87> 		8-98243-705-0 01 1 1511- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1511- ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) DRIVER 		8-98298-750-0 01 1 1511- ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) PASSENGER 		8-98316-415-0 01 1 1511- ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) DRIVER 		8-98298-754-0 01 1 1511- ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) PASSENGER 		8-98316-423-0 01 1 1511- ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1511- ● ●
21 SWITCH; CLU
PTO ZF TRANS RR(BDM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 1511- ● ●
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO ZF TRANS RR(BDM) 		8-97358-248-0 01 1 1511- ● ●
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 1511- ● ●
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 1511- ● ●
323 SWITCH ASM; SELECTOR
ALLISON MD3560P A/T(Y3B) 		8-98221-525-0 01 1 1511- ● ●
çizim 503211
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1511- ● ●

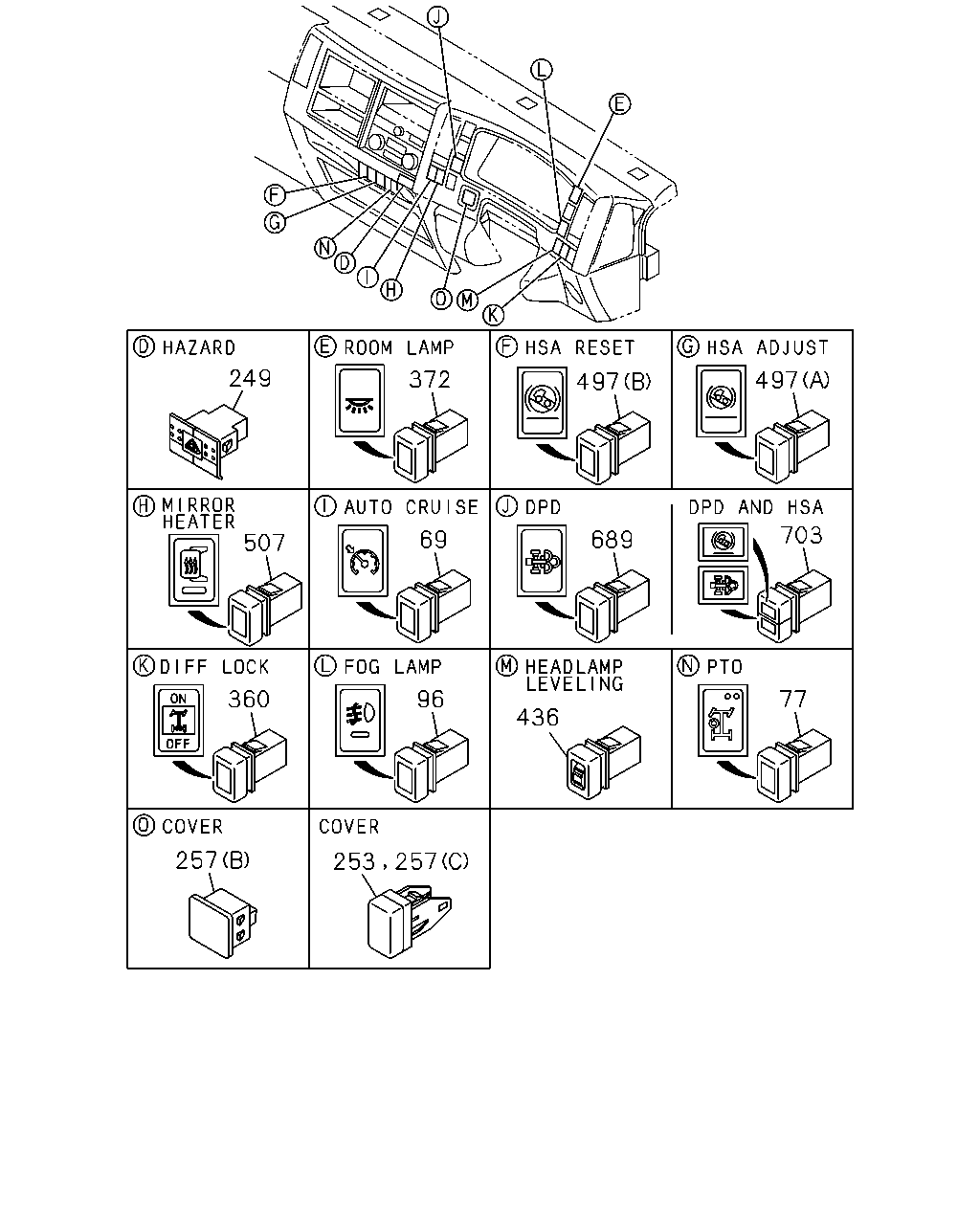

çizim 503420
77 436 96 360 257 257 253 703 689 69 507 249 372 497 497
BalonParca AdiParca NoAdetTipApplied Date A B
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 1511- ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-2 01 1 1511- ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1511- ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1511- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1511- ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 1511- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
(A) 		8-97619-254-1 02 1 1511- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
PTO ZF TRANS RR(BDM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1511- ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1511- ● ●
360 SWITCH ASM; DIFF LK
INTER LOCK 		8-97613-964-1 01 1 1511- ● ●
360 SWITCH ASM; DIFF LK
DIFF LOCK<C3N> L/R LOCK 		8-97613-963-2 01 1 1511- ● ●
372 SWITCH; ROOM LAMP 8-97386-917-2 01 1 1511- ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1511- ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-98119-946-0 01 1 1511- ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 1511- ● ●
507 SWITCH; MIRROR HEATER 8-97386-924-3 01 1 1511- ● ●
689 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 1511- ● ●
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 1511- ● ●

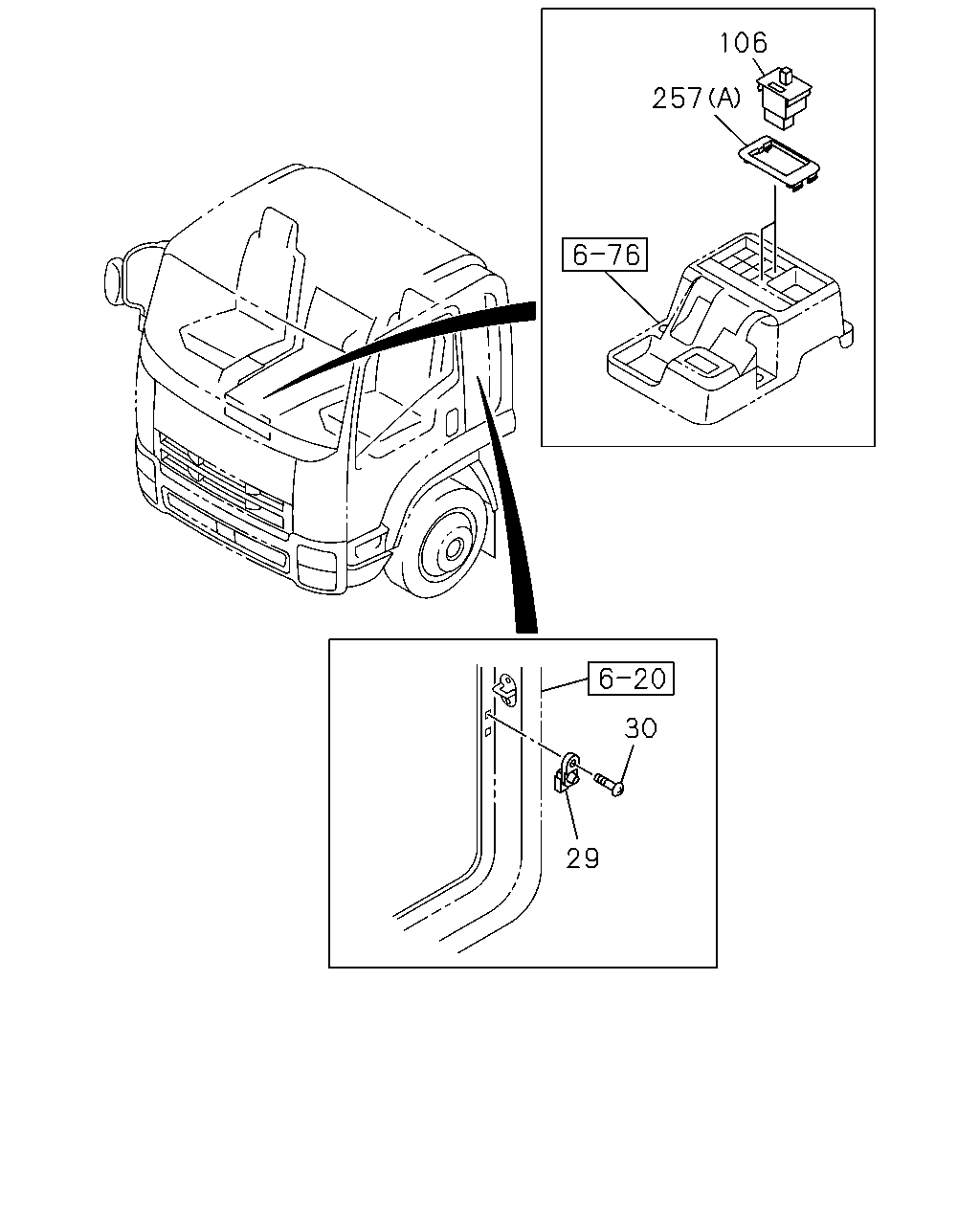

çizim 503506
106 257 30 29
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1511- ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1511- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1511- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1511- ● ●
106 SWITCH; REMOTE CONT MIRROR 1-82350-223-0 02 1 1511- ● ●
257 COVER; HOLE,SW
(A) 		8-97619-254-1 02 1 1511- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
PTO ZF TRANS RR(BDM) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1511- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1511- ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1511- ● ●
