◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11719 - FVZ AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#170119) — 407 parça

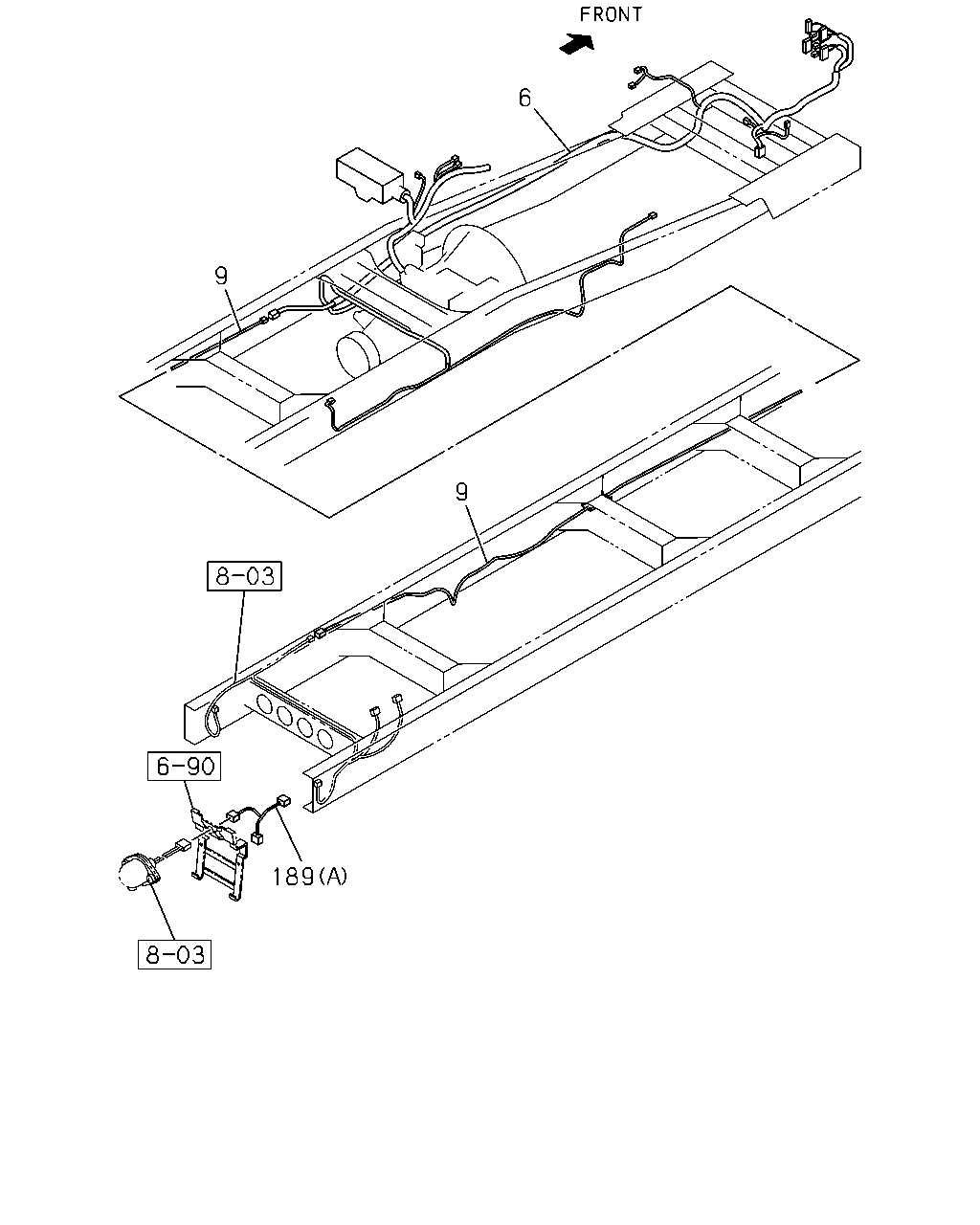

çizim 501402
6 9 9 189
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-140-0 01 1 1511- ● ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-139-0 01 1 1511- ● ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-142-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-141-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-138-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-137-0 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-152-1 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98170-696-0 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-151-2 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98246-421-0 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> 		8-98242-148-1 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N> 		8-98168-621-0 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) DIFF LOCK<C3N> 		8-98242-149-1 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) EXC. DIFF LOCK<C3N> 		8-98168-623-0 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> 		8-98242-150-1 01 1 1511- ●
9 HARNESS; FRAME,RR
WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N> 		8-98168-626-0 01 1 1511- ●
189 HARNESS; EXT
(B) 		8-98098-510-0 01 1 1511- ● ●
189 HARNESS; EXT
EXC. COUNTRY NEW ZEALAND(CX6) (A) 		8-98131-066-0 01 1 1511- ● ●

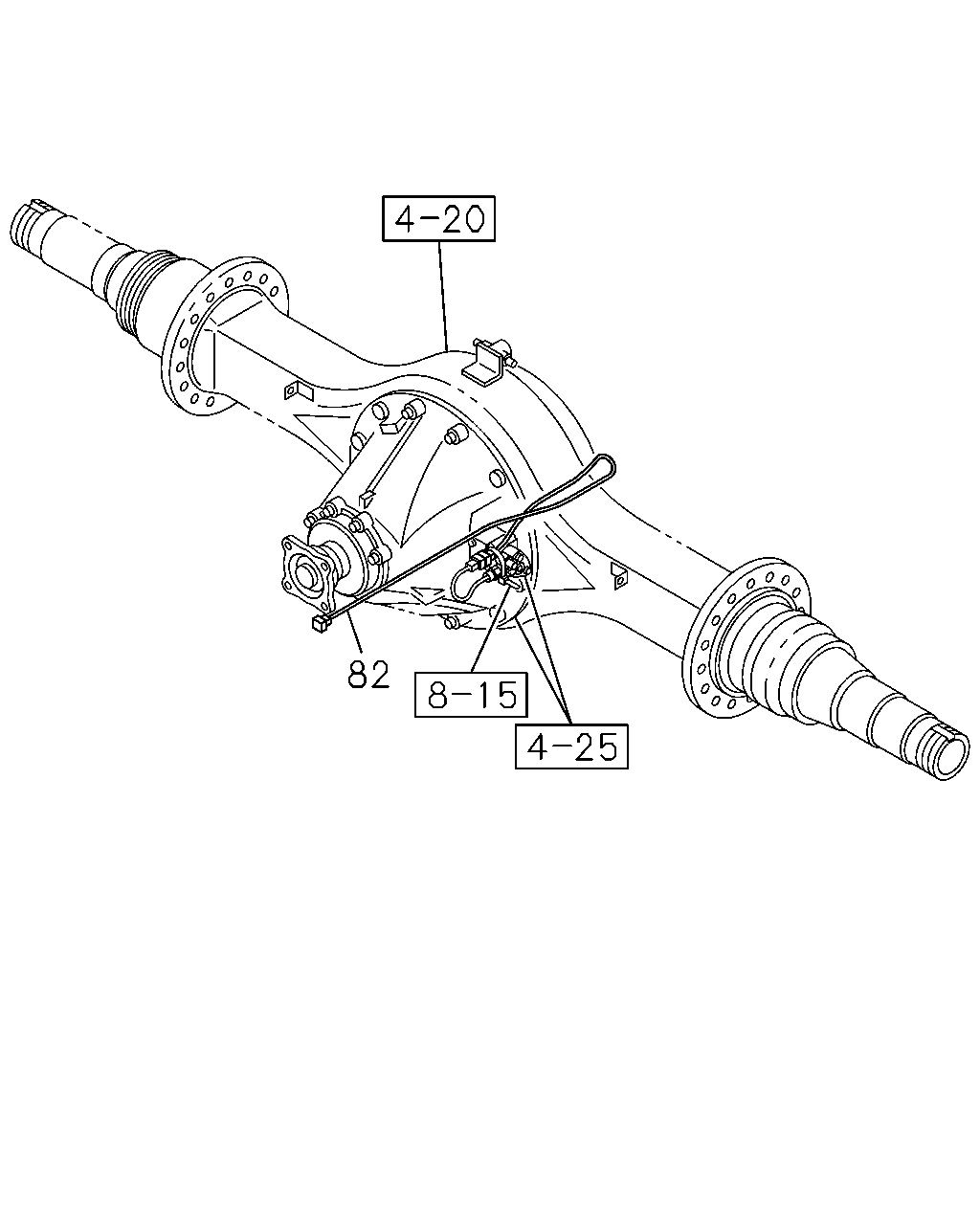

çizim 501916
82
BalonParca AdiParca NoAdetTipApplied Date A B
82 HARNESS; DIFF LOCK
DIFF LOCK<C3N> FWD RR 		8-98244-225-1 01 1 1511- ●
82 HARNESS; DIFF LOCK
DIFF LOCK<C3N> RWD RR 		8-98244-226-0 01 1 1511- ●
82 HARNESS; DIFF LOCK
DIFF LOCK<C3N> FWD RR 		8-98245-916-0 01 1 1511- ●
82 HARNESS; DIFF LOCK
DIFF LOCK<C3N> RWD RR 		8-98245-917-0 01 1 1511- ●

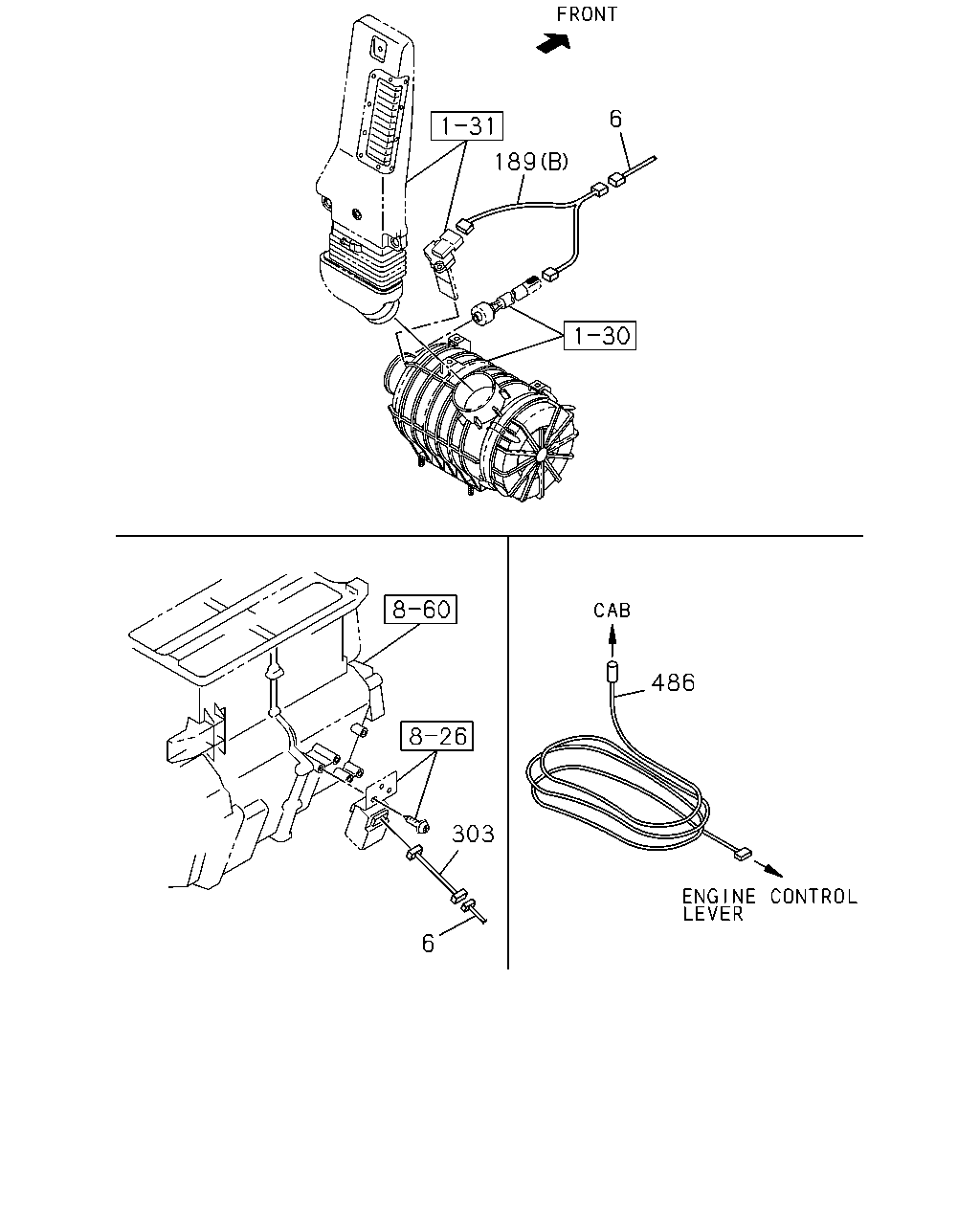

çizim 501924
189 6 486 303 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-140-0 01 1 1511- ● ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-139-0 01 1 1511- ● ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-142-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-141-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-138-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-137-0 01 1 1511- ●
189 HARNESS; EXT
(B) 		8-98098-510-0 01 1 1511- ● ●
189 HARNESS; EXT
EXC. COUNTRY NEW ZEALAND(CX6) (A) 		8-98131-066-0 01 1 1511- ● ●
303 HARNESS; WATER LEVEL 8-98306-305-1 01 1 1511- ● ●
486 HARNESS; ALL SPEED ACCEL
PTO ZF TRANS RR(BDM) 		1-82675-898-0 01 1 1511- ● ●

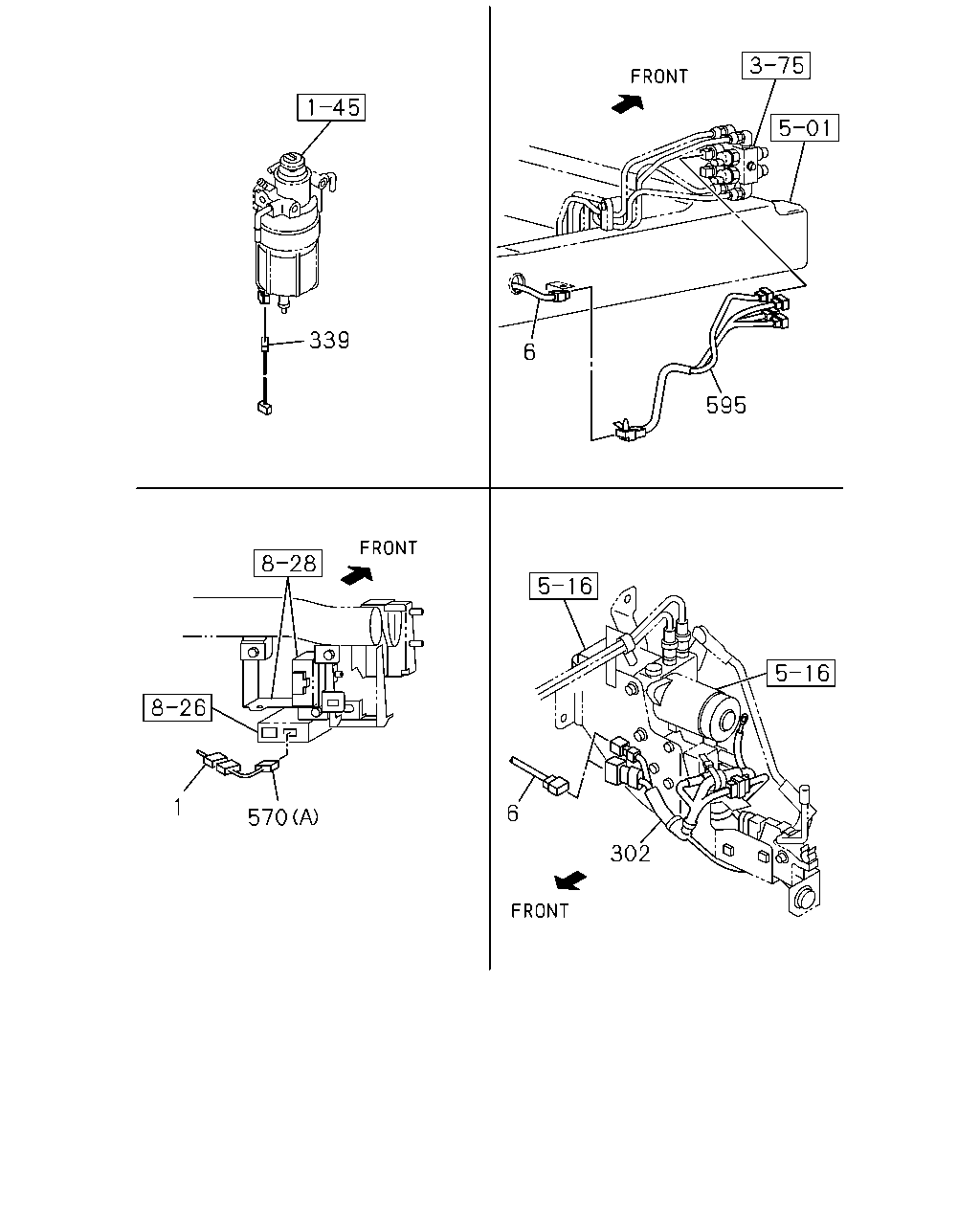

çizim 501930
6 595 302 6 570 1 339
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-972-1 01 1 1511- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-974-1 01 1 1511- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-973-1 01 1 1511- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-975-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-983-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-987-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-985-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-989-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-982-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-986-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-984-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-988-1 01 1 1511- ● ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-140-0 01 1 1511- ● ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-139-0 01 1 1511- ● ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-142-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-141-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-138-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-137-0 01 1 1511- ●
302 HARNESS; POWER CAB TILT 8-97620-490-1 01 1 1511- ● ●
339 HARNESS; EXT,FUEL
FUEL TANK 200L FRAME SIDE<N20> 		8-98227-392-1 01 1 1511- ● ●
339 HARNESS; EXT,FUEL
FUEL TANK 400L<SDH> 		8-98227-393-0 01 1 1511- ● ●
570 HARNESS; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) (A) 		8-98305-915-0 01 1 1511- ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (B) 		8-98148-602-0 01 1 1511- ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (A) 		8-98172-313-0 01 1 1511- ● ●
595 HARNESS; WARNING,BRK 8-98329-527-0 01 1 1511- ● ●

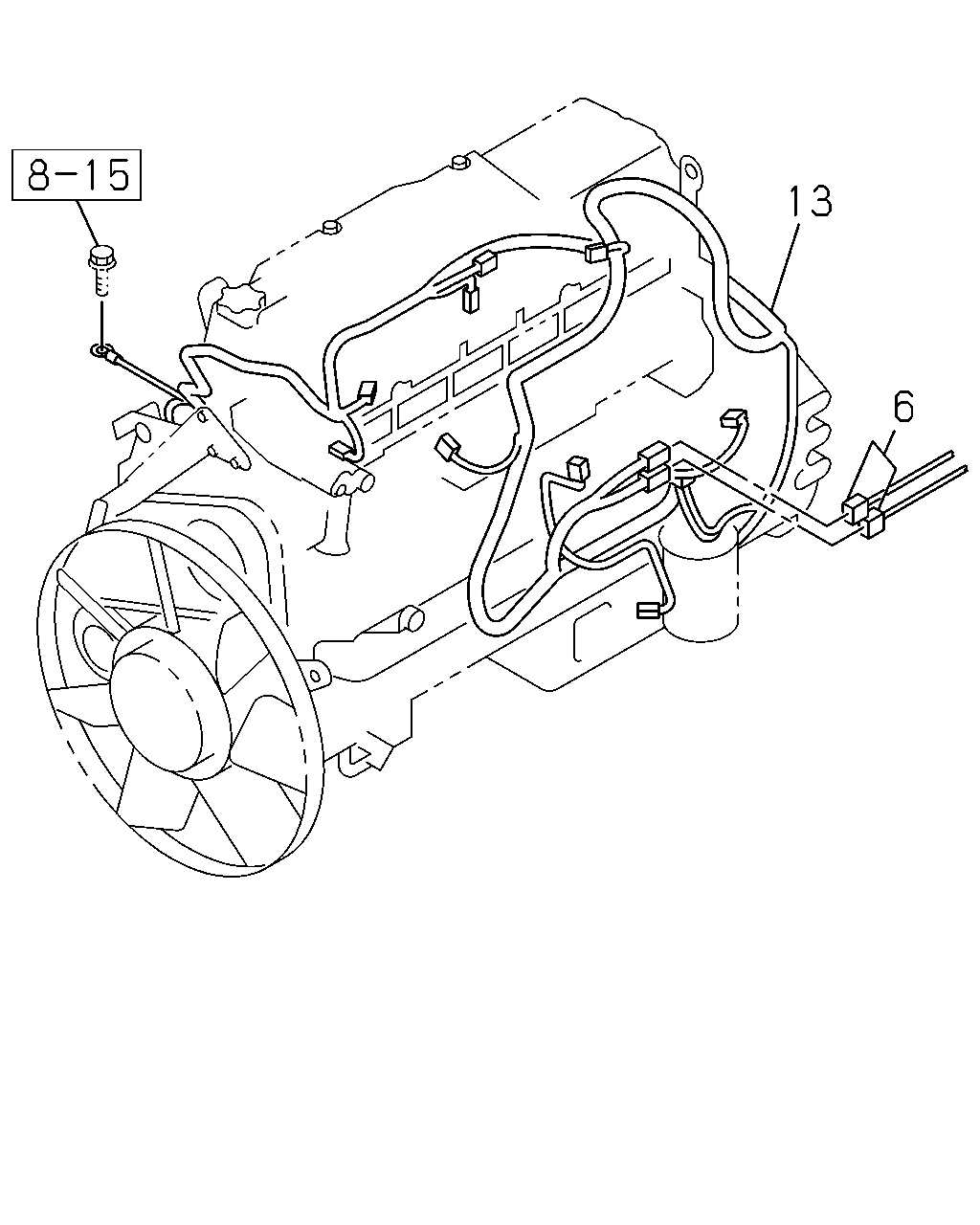

çizim 501932
13 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-140-0 01 1 1511- ● ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-139-0 01 1 1511- ● ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-142-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-141-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-138-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-137-0 01 1 1511- ●
13 HARNESS; ENG
ALLISON MD3560P A/T(Y3B) GENERATOR 24V50A(K89) 		8-98177-215-1 01 1 1511- ● ●
13 HARNESS; ENG
ALLISON MD3560P A/T(Y3B) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98177-216-1 01 1 1511- ● ●
13 HARNESS; ENG
ZF9S1110 M/T(Y5E) GENERATOR 24V50A(K89) 		8-98177-208-1 01 1 1511- ● ●
13 HARNESS; ENG
ZF9S1110 M/T(Y5E) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98177-209-1 01 1 1511- ● ●

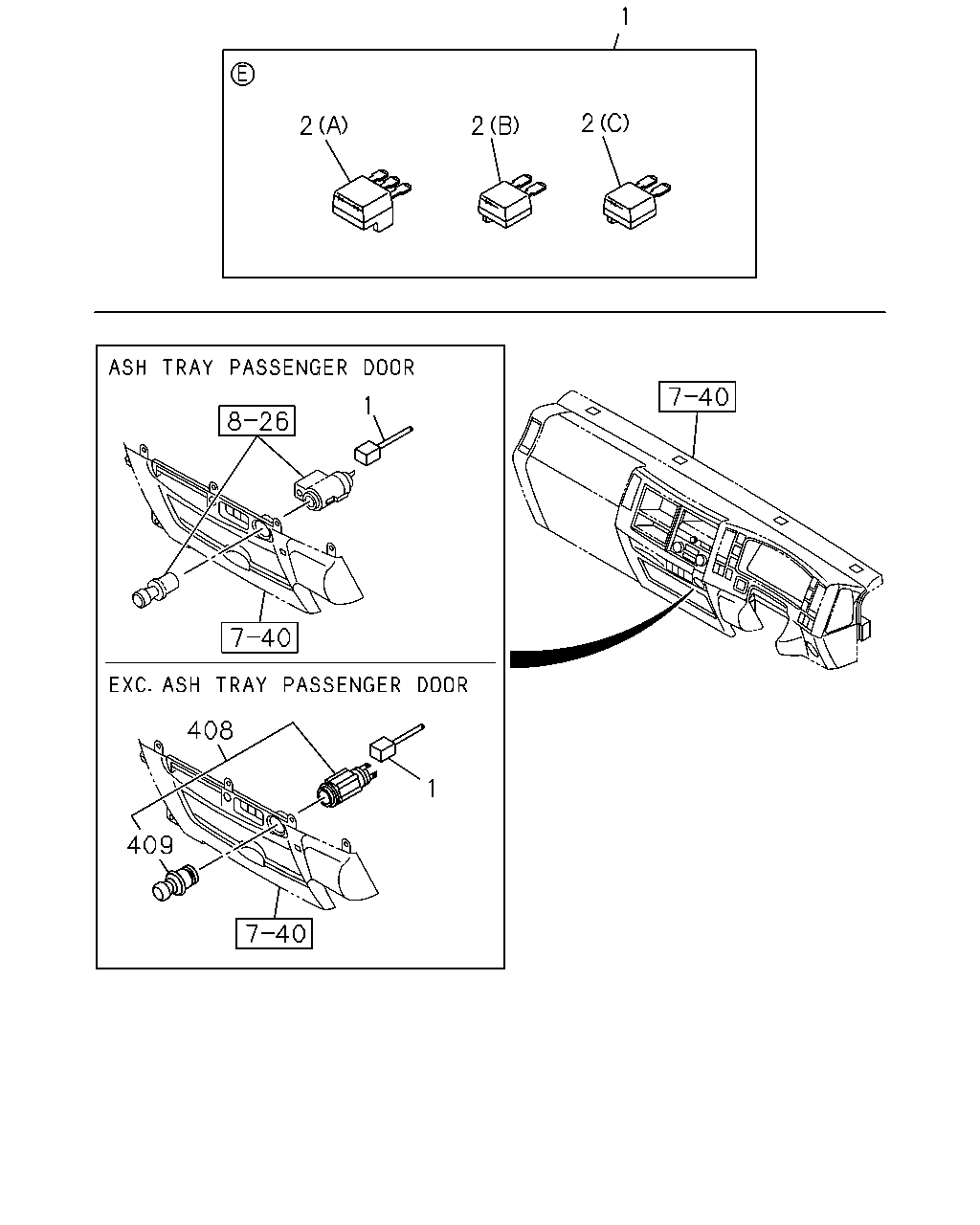

çizim 501961
2 2 2 408 409 1 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-972-1 01 1 1511- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-974-1 01 1 1511- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-973-1 01 1 1511- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-975-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-983-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-987-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-985-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-989-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-982-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-986-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-984-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-988-1 01 1 1511- ● ●
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94416-438-1 AR 1 1511- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1511- ● ●
2 DIODE; CABLE HARNESS
(C) 2P 		8-98223-969-0 AR 1 1511- ● ●
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1511- ● ●
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1511- ● ●

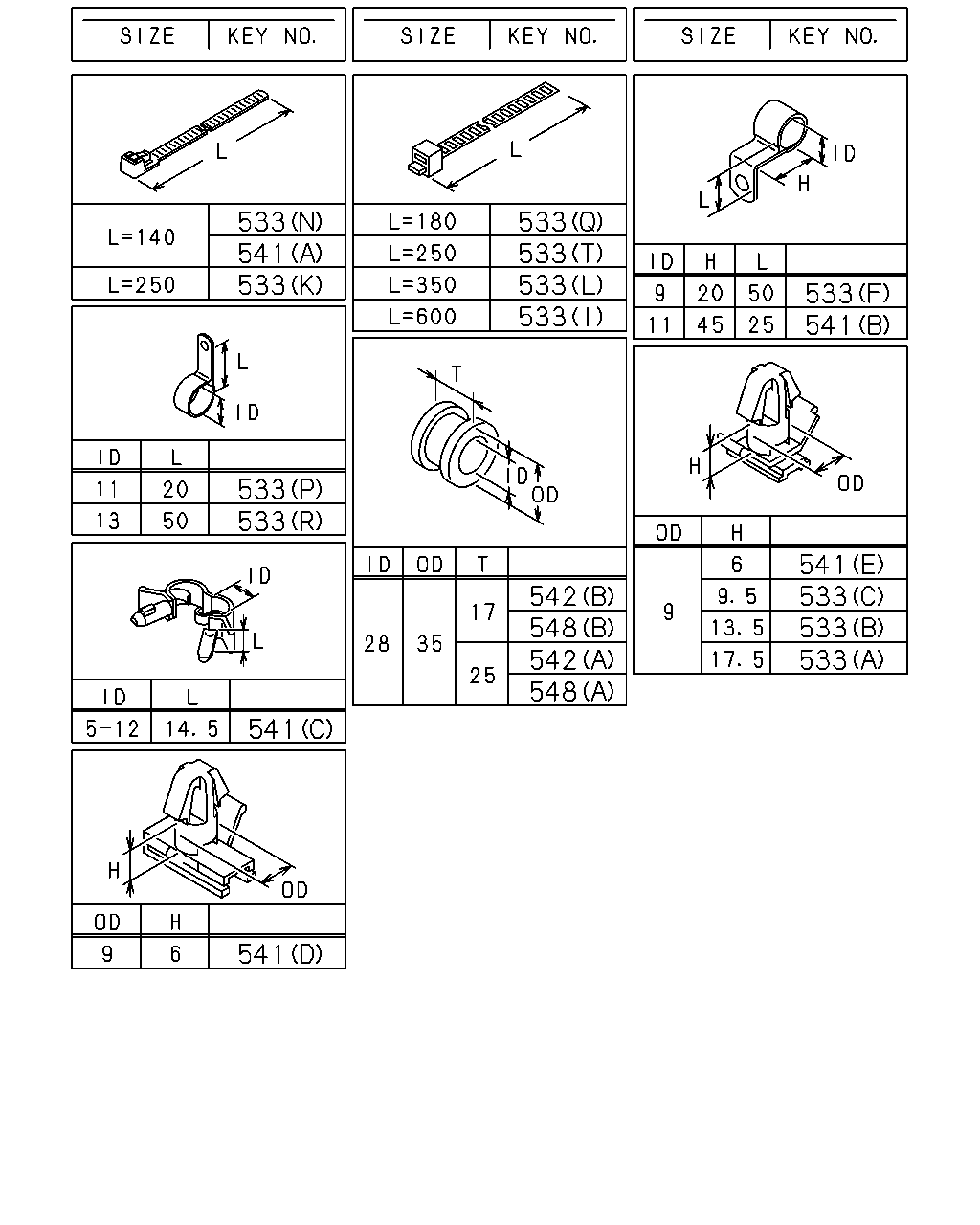

çizim 503108
533 533 541 533 533 541 541 533 533 533 533 542 548 542 548 533 541 533 533 541 533
BalonParca AdiParca NoAdetTipApplied Date A B
533 CLIP
(G) ID=11 L=41 		1-09700-403-0 02 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (G) ID=11 L=41 		1-09700-403-0 02 1 1511- ●
533 CLIP
(D) ID=11 L=61 		1-09700-484-0 01 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (P) ID=11 L=20 		0-95235-036-0 04 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (R) ID=13 L=50 		0-95235-286-0 01 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (D) ID=11 L=61 		1-09700-484-0 03 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (J) ID=21 L=24 		8-98019-191-0 04 1 1511- ●
533 CLIP
WHEEL BASE 5000MM(50W) (E) ID=15 L=65 		1-09700-466-0 16 1 1511- ●
533 CLIP
WHEEL BASE 5000MM(50W) (A) OD=9 H=17.5 		1-09709-181-0 01 1 1511- ●
533 CLIP
WHEEL BASE 7100MM(71W) FUEL TANK 200L FRAME SIDE<N20> (E) ID=15 L=65 		1-09700-466-0 28 1 1511- ●
533 CLIP
WHEEL BASE 7100MM(71W) FUEL TANK 400L<SDH> (E) ID=15 L=65 		1-09700-466-0 29 1 1511- ●
533 CLIP
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1511- ● ●
533 CLIP
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1511- ● ●
533 CLIP
(M) ID=35 L=50 		1-09701-214-0 01 1 1511- ● ●
533 CLIP
(I) L=600 		1-09707-107-1 01 1 1511- ● ●
533 CLIP
(I) L=600 		1-09707-107-1 01 1 1511- ● ●
533 CLIP
(L) L=350 		1-09707-183-0 01 1 1511- ● ●
533 CLIP
(O) L=135 		1-09987-143-1 02 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 01 1 1511- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (K) L=250 		5-09707-030-1 01 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 01 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1511- ● ●
533 CLIP
(N) L=140 		5-09707-031-1 01 1 1511- ● ●
533 CLIP
(E) ID=15 L=65 		1-09700-466-0 02 1 1511- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (Q) L=180 		1-09707-162-1 01 1 1511- ● ●
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (Q) L=180 		1-09707-162-1 01 1 1511- ● ●
533 CLIP
DIFF LOCK<C3N> (S) ID=14 L=44 		9-09917-427-0 02 1 1511- ● ●
533 CLIP
WHEEL BASE 7100MM(71W) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1511- ● ●
533 CLIP
(D) ID=11 L=61 		1-09700-484-0 02 1 1511- ●
533 CLIP
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (P) ID=11 L=20 		0-95235-036-0 01 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (G) ID=11 L=41 		1-09700-403-0 11 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (F) ID=17 		1-09700-840-0 02 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (T) L=250 		1-09707-126-0 01 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (J) ID=21 L=24 		8-98019-191-0 02 1 1511- ●
533 CLIP
WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) EXC. DIFF LOCK<C3N> (E) ID=15 L=65 		1-09700-466-0 18 1 1511- ●
533 CLIP
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) (E) ID=15 L=65 		1-09700-466-0 17 1 1511- ●
533 CLIP
WHEEL BASE 5900MM(59W) (E) ID=15 L=65 		1-09700-466-0 22 1 1511- ●
533 CLIP
WHEEL BASE 7100MM(71W) (E) ID=15 L=65 		1-09700-466-0 30 1 1511- ●
541 CLIP
(B) ID=11 H=45 L=25 		1-09700-866-0 01 1 1511- ● ●
541 CLIP
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ● ●
541 CLIP
(A) L=140 		5-09707-031-1 01 1 1511- ● ●
541 CLIP
(D) OD=9 H=6 		8-97368-793-0 02 1 1511- ● ●
541 CLIP
ALLISON MD3560P A/T(Y3B) (E) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
542 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1511- ● ●
542 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1511- ● ●
542 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1511- ● ●
548 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1511- ● ●
548 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1511- ● ●

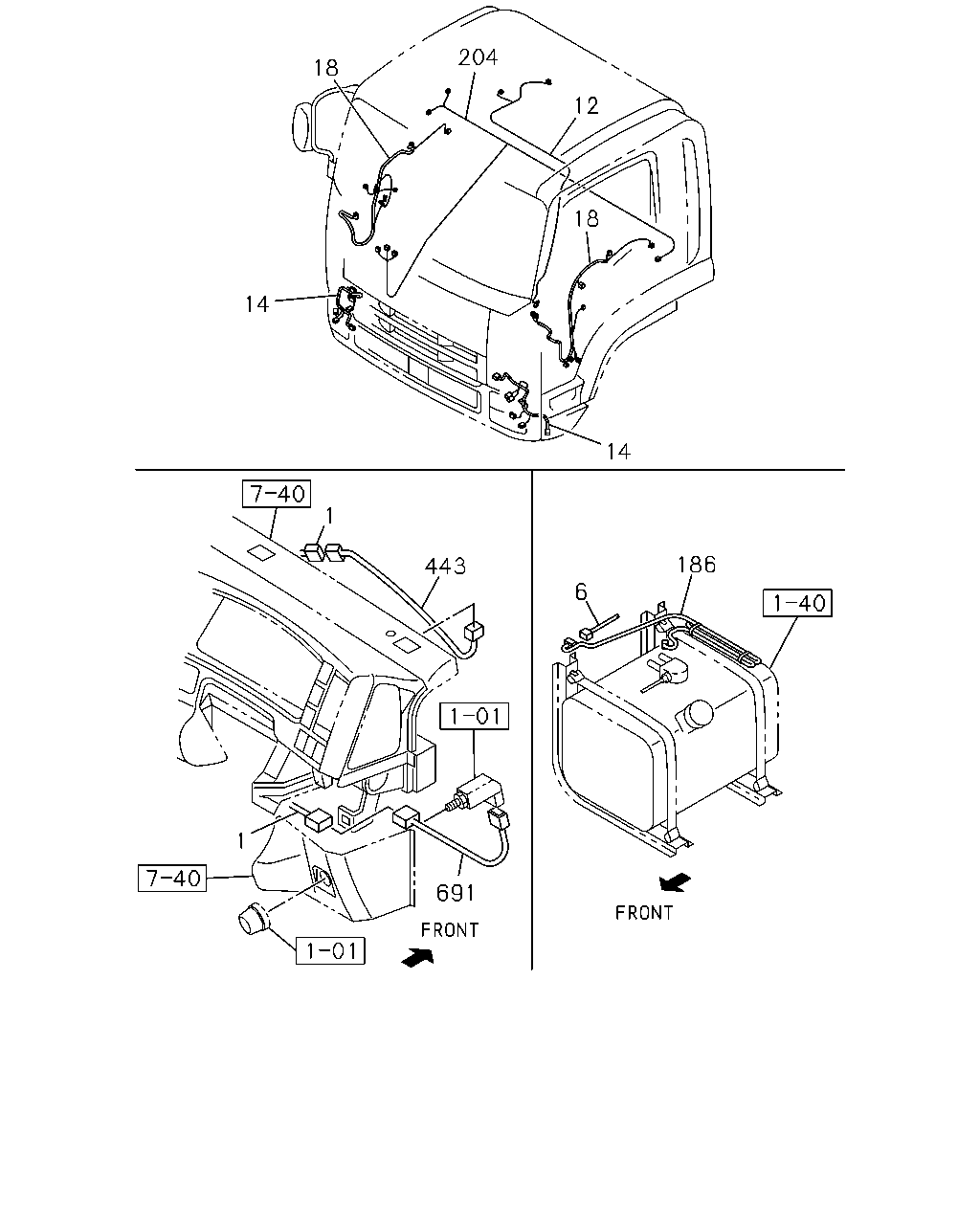

çizim 503198
18 204 12 4 14 18 1 443 1 691 186 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-972-1 01 1 1511- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-974-1 01 1 1511- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-973-1 01 1 1511- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-975-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-983-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-987-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-985-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-989-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-982-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-986-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-984-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-988-1 01 1 1511- ● ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1511- ● ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-140-0 01 1 1511- ● ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-139-0 01 1 1511- ● ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-142-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-141-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-138-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-137-0 01 1 1511- ●
12 HARNESS; ROOF 8-98079-072-1 01 1 1511- ● ●
14 HARNESS; HEADLAMP
EXC. CORNERING LAMP<T87> 		8-94270-986-0 02 1 1511- ●
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> CORNERING LAMP<T87> 		8-94270-986-0 02 1 1511- ●
14 HARNESS; HEADLAMP
CORNERING LAMP<T87> 		8-98077-292-1 02 1 1511- ● ●
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98069-166-1 02 1 1511- ●
18 HARNESS; DOOR 8-98079-079-5 01 1 1511- ● ●
18 HARNESS; DOOR 8-98079-076-5 01 1 1511- ● ●
186 HARNESS; FUEL TANK
FUEL TANK 400L<SDH> 		8-98099-650-0 01 1 1511- ● ●
204 HARNESS; CABLE,FLOOR
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98085-300-1 01 1 1511- ● ●
204 HARNESS; CABLE,FLOOR
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98306-567-0 01 1 1511- ● ●
204 HARNESS; CABLE,FLOOR
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) 		8-98085-299-2 01 1 1511- ● ●
204 HARNESS; CABLE,FLOOR
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) 		8-98085-286-1 01 1 1511- ● ●
204 HARNESS; CABLE,FLOOR
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) 		8-98085-281-2 01 1 1511- ● ●
443 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98096-565-0 01 1 1511- ● ●
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1511- ● ●
çizim 503236
533 533 533 533 533 533 533 533
BalonParca AdiParca NoAdetTipApplied Date A B
533 CLIP
(G) ID=11 L=41 		1-09700-403-0 02 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (G) ID=11 L=41 		1-09700-403-0 02 1 1511- ●
533 CLIP
(D) ID=11 L=61 		1-09700-484-0 01 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (P) ID=11 L=20 		0-95235-036-0 04 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (R) ID=13 L=50 		0-95235-286-0 01 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (D) ID=11 L=61 		1-09700-484-0 03 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (J) ID=21 L=24 		8-98019-191-0 04 1 1511- ●
533 CLIP
WHEEL BASE 5000MM(50W) (E) ID=15 L=65 		1-09700-466-0 16 1 1511- ●
533 CLIP
WHEEL BASE 5000MM(50W) (A) OD=9 H=17.5 		1-09709-181-0 01 1 1511- ●
533 CLIP
WHEEL BASE 7100MM(71W) FUEL TANK 200L FRAME SIDE<N20> (E) ID=15 L=65 		1-09700-466-0 28 1 1511- ●
533 CLIP
WHEEL BASE 7100MM(71W) FUEL TANK 400L<SDH> (E) ID=15 L=65 		1-09700-466-0 29 1 1511- ●
533 CLIP
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1511- ● ●
533 CLIP
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1511- ● ●
533 CLIP
(M) ID=35 L=50 		1-09701-214-0 01 1 1511- ● ●
533 CLIP
(I) L=600 		1-09707-107-1 01 1 1511- ● ●
533 CLIP
(I) L=600 		1-09707-107-1 01 1 1511- ● ●
533 CLIP
(L) L=350 		1-09707-183-0 01 1 1511- ● ●
533 CLIP
(O) L=135 		1-09987-143-1 02 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 02 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 01 1 1511- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (K) L=250 		5-09707-030-1 01 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 01 1 1511- ● ●
533 CLIP
(K) L=250 		5-09707-030-1 03 1 1511- ● ●
533 CLIP
(N) L=140 		5-09707-031-1 01 1 1511- ● ●
533 CLIP
(E) ID=15 L=65 		1-09700-466-0 02 1 1511- ● ●
533 CLIP
EXC. COUNTRY NEW ZEALAND(CX6) (Q) L=180 		1-09707-162-1 01 1 1511- ● ●
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (Q) L=180 		1-09707-162-1 01 1 1511- ● ●
533 CLIP
DIFF LOCK<C3N> (S) ID=14 L=44 		9-09917-427-0 02 1 1511- ● ●
533 CLIP
WHEEL BASE 7100MM(71W) (B) OD=9 H=13.5 		1-09709-180-0 01 1 1511- ● ●
533 CLIP
(D) ID=11 L=61 		1-09700-484-0 02 1 1511- ●
533 CLIP
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (P) ID=11 L=20 		0-95235-036-0 01 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (G) ID=11 L=41 		1-09700-403-0 11 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (F) ID=17 		1-09700-840-0 02 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (T) L=250 		1-09707-126-0 01 1 1511- ●
533 CLIP
DIFF LOCK<C3N> (J) ID=21 L=24 		8-98019-191-0 02 1 1511- ●
533 CLIP
WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) EXC. DIFF LOCK<C3N> (E) ID=15 L=65 		1-09700-466-0 18 1 1511- ●
533 CLIP
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) (E) ID=15 L=65 		1-09700-466-0 17 1 1511- ●
533 CLIP
WHEEL BASE 5900MM(59W) (E) ID=15 L=65 		1-09700-466-0 22 1 1511- ●
533 CLIP
WHEEL BASE 7100MM(71W) (E) ID=15 L=65 		1-09700-466-0 30 1 1511- ●

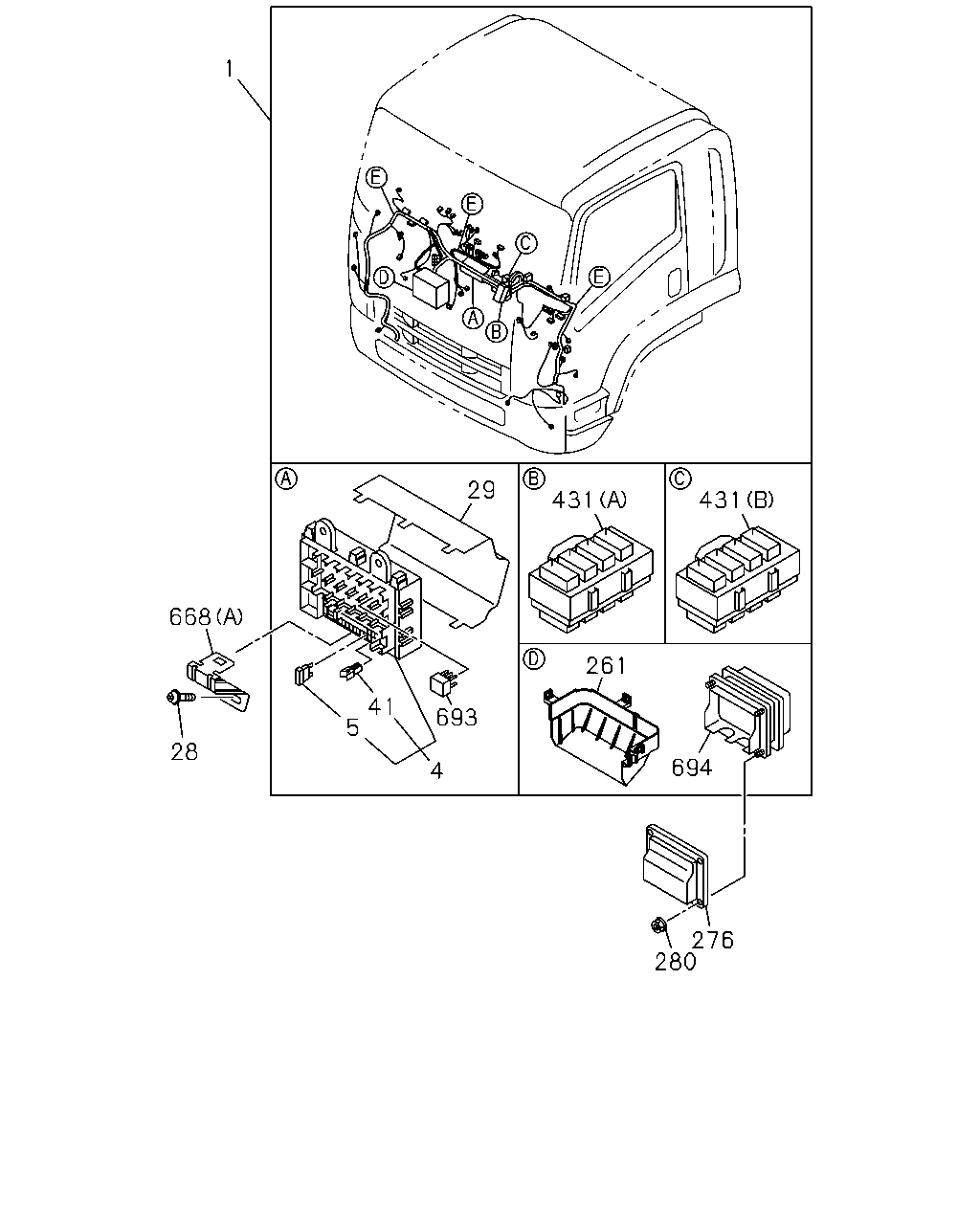

çizim 503291
1 29 668 28 41 693 5 4 431 261 431 694 276 280
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-972-1 01 1 1511- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-974-1 01 1 1511- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-973-1 01 1 1511- ● ●
1 HARNESS; CAB
ALLISON MD3560P A/T(Y3B) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-975-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-983-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-987-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-985-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		8-98307-989-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-982-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-986-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-984-1 01 1 1511- ● ●
1 HARNESS; CAB
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98307-988-1 01 1 1511- ● ●
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1511- ● ●
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1511- ● ●
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1511- ● ●
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1511- ● ●
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1511- ● ●
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1511- ● ●
41 PULLER; FUSE 8-98054-260-0 01 1 1511- ● ●
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1511- ● ●
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1511- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1511- ● ●
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1511- ● ●
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1511- ● ●

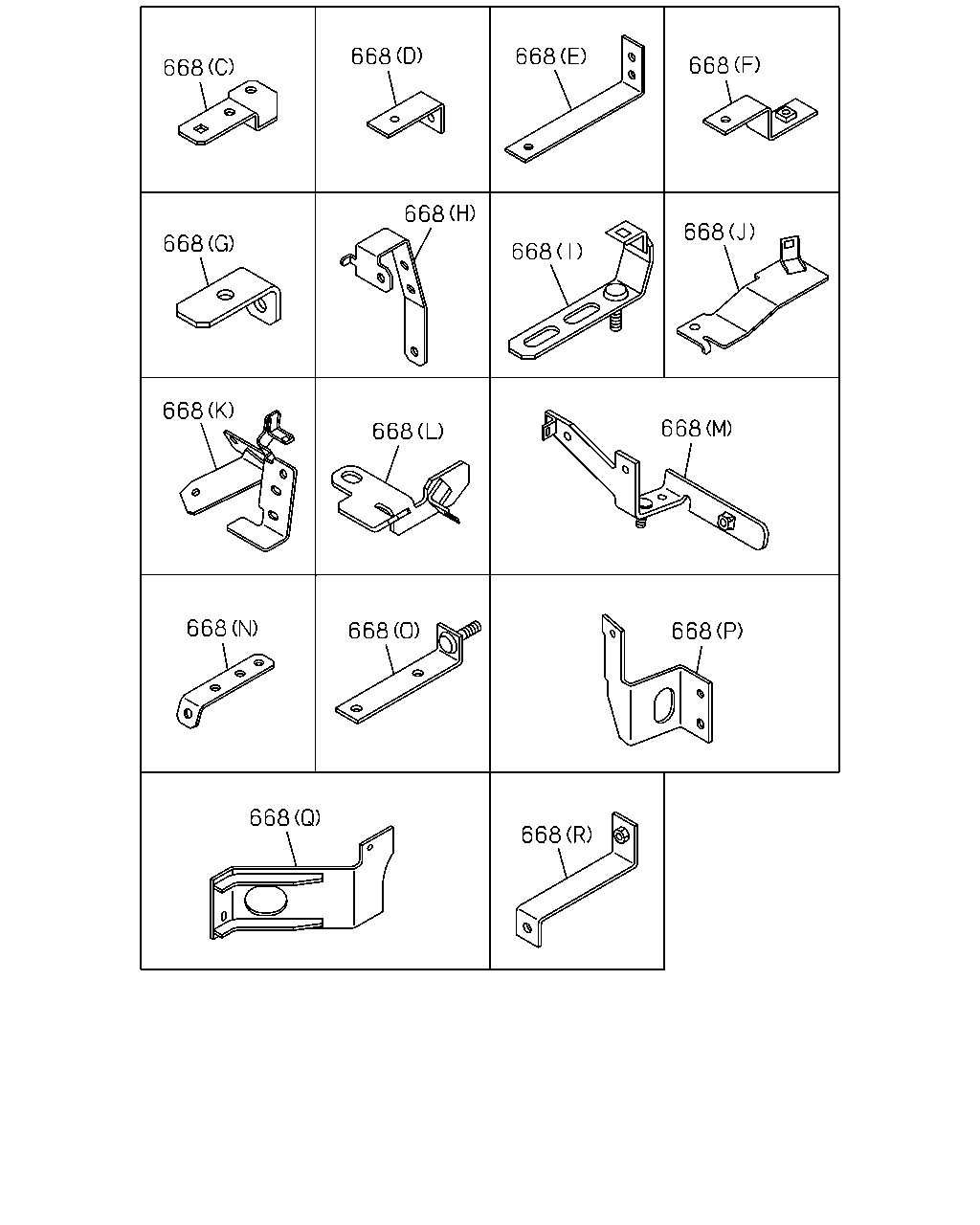

668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=50 		1-47475-663-1 02 1 1511- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 02 1 1511- ●
668 BRACKET; HARNESS
(D) L=55 		1-47475-304-0 01 1 1511- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=55 		1-47475-304-0 01 1 1511- ●
668 BRACKET; HARNESS
(E) 		1-47479-674-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(N) 		1-82698-167-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(F) 		8-97609-110-1 01 1 1511- ● ●
668 BRACKET; HARNESS
(H) 		8-97619-097-1 01 1 1511- ● ●
668 BRACKET; HARNESS
(C) 		8-97620-519-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1511- ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1511- ● ●
668 BRACKET; HARNESS
(J) 		8-98107-610-1 01 1 1511- ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(M) 		8-98212-082-1 01 1 1511- ● ●
668 BRACKET; HARNESS
(L) 		8-98254-592-0 01 1 1511- ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		8-98032-360-0 01 1 1511- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (P) 		8-98245-195-1 01 1 1511- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (Q) 		8-98245-196-0 01 1 1511- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (G) 		1-47477-648-0 01 1 1511- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (G) 		1-47477-648-0 01 1 1511- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (R) L=110 		1-82699-589-0 02 1 1511- ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1511- ● ●
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1511- ● ●
çizim 503298
267 639 267 639 267 639 534 639 267 267 535 534 534 290 293 295 525 640 290
BalonParca AdiParca NoAdetTipApplied Date A B
267 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
267 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
267 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
267 BOLT; BRKT
DIFF LOCK<C3N> (B) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ●
267 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 01 1 1511- ● ●
267 BOLT; BRKT
(C) M8X35 FLANGE 		0-28650-835-0 02 1 1511- ● ●
267 BOLT; BRKT
DIFF LOCK<C3N> (C) M8X35 FLANGE 		0-28650-835-0 02 1 1511- ●
267 BOLT; BRKT
(D) M10X25 FLANGE 		0-28651-025-0 02 1 1511- ● ●
267 BOLT; BRKT
DIFF LOCK<C3N> (E) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ● ●
267 BOLT; BRKT
DIFF LOCK<C3N> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
290 NUT; BRKT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 02 1 1511- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
290 NUT; BRKT
DIFF LOCK<C3N> (A) M8 FLANGE 		0-91180-108-0 03 1 1511- ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
290 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 1511- ● ●
290 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
293 NUT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
295 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
525 NUT; CLIP
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
534 BOLT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
534 BOLT
(C) M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1511- ● ●
534 BOLT
(B) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1511- ● ●
535 BOLT; BRKT FIX
M10X35 FLANGE 		0-28651-035-0 01 1 1511- ● ●
639 BOLT; CLIP
DIFF LOCK<C3N> (D) M8X16 FLANGE 		0-28050-816-0 06 1 1511- ●
639 BOLT; CLIP
DIFF LOCK<C3N> (A) M8X20 FLANGE 		0-28650-820-0 04 1 1511- ●
639 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
639 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
639 BOLT; CLIP
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
639 BOLT; CLIP
DIFF LOCK<C3N> (D) M8X16 FLANGE 		0-28050-816-0 01 1 1511- ●
639 BOLT; CLIP
DIFF LOCK<C3N> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ●
639 BOLT; CLIP
DIFF LOCK<C3N> (B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ●
640 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
çizim 503332
668 668 668 668 668 668 668 668 668 668 668 668 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date A B
668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=50 		1-47475-663-1 02 1 1511- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 02 1 1511- ●
668 BRACKET; HARNESS
(D) L=55 		1-47475-304-0 01 1 1511- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=55 		1-47475-304-0 01 1 1511- ●
668 BRACKET; HARNESS
(E) 		1-47479-674-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(N) 		1-82698-167-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(F) 		8-97609-110-1 01 1 1511- ● ●
668 BRACKET; HARNESS
(H) 		8-97619-097-1 01 1 1511- ● ●
668 BRACKET; HARNESS
(C) 		8-97620-519-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1511- ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1511- ● ●
668 BRACKET; HARNESS
(J) 		8-98107-610-1 01 1 1511- ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(M) 		8-98212-082-1 01 1 1511- ● ●
668 BRACKET; HARNESS
(L) 		8-98254-592-0 01 1 1511- ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		8-98032-360-0 01 1 1511- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (P) 		8-98245-195-1 01 1 1511- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (Q) 		8-98245-196-0 01 1 1511- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (G) 		1-47477-648-0 01 1 1511- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (G) 		1-47477-648-0 01 1 1511- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (R) L=110 		1-82699-589-0 02 1 1511- ●

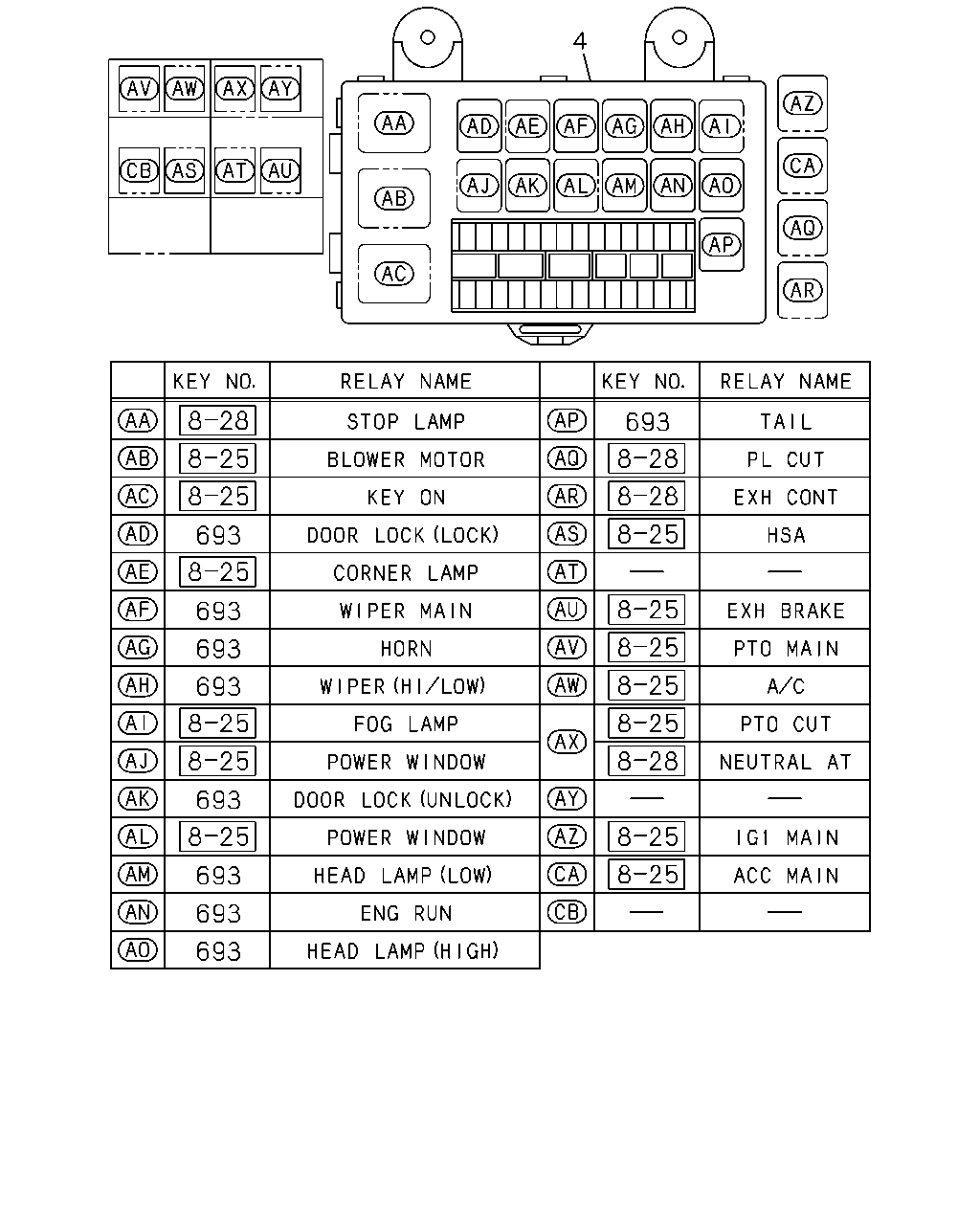

çizim 503384
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1511- ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1511- ● ●

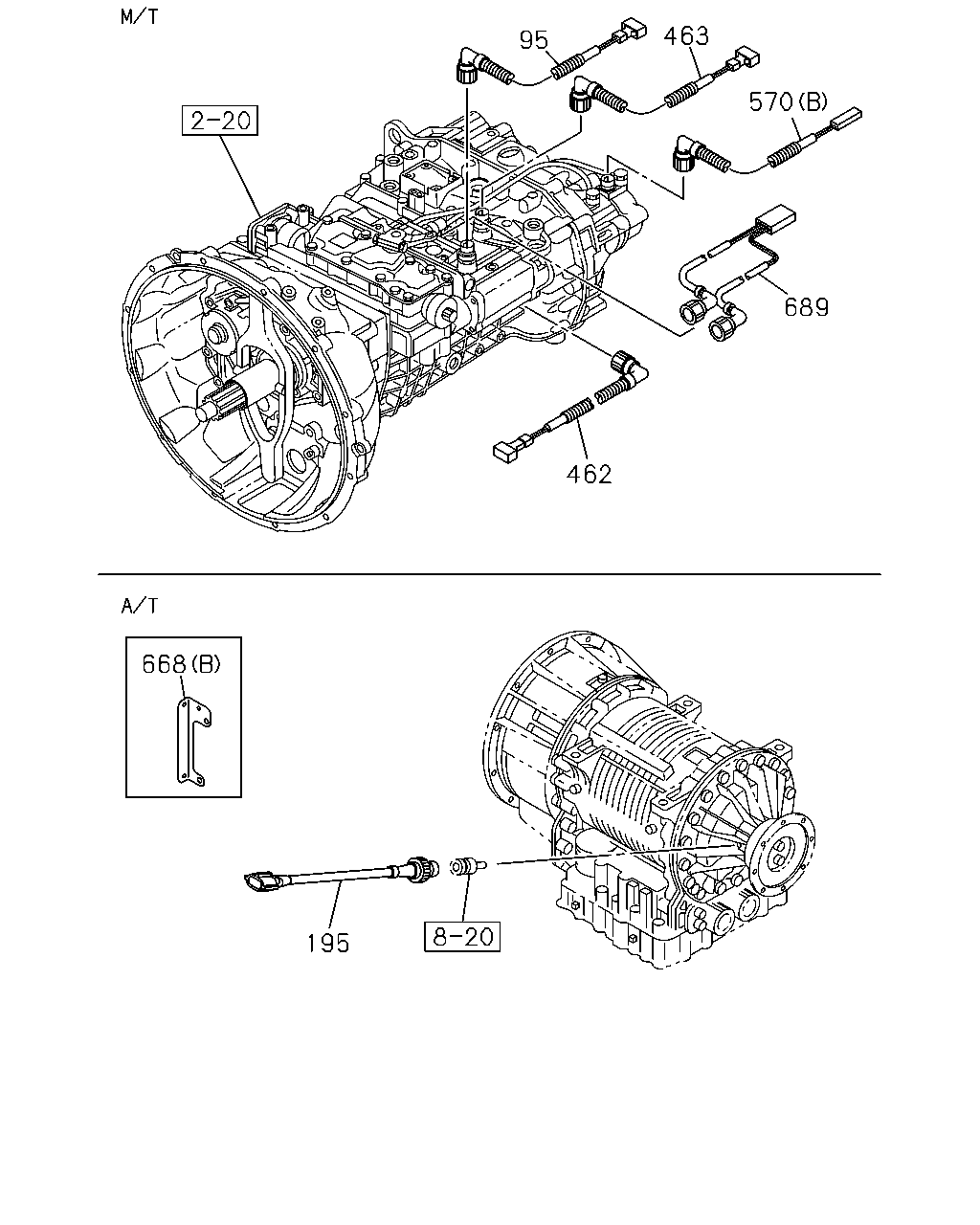

çizim 503411
195 462 689 463 95 570 668
BalonParca AdiParca NoAdetTipApplied Date A B
95 HARNESS; NEUTRAL SW
ZF9S1110 M/T(Y5E) RED 		8-98145-854-0 01 1 1511- ● ●
195 HARNESS; EXT
ALLISON MD3560P A/T(Y3B) 		1-82671-045-1 01 1 1511- ● ●
462 HARNESS; SW,RANGE
ZF9S1110 M/T(Y5E) BLUE 		8-98145-857-0 01 1 1511- ● ●
463 HARNESS; SW,BACK UP
ZF9S1110 M/T(Y5E) BLACK 		8-98145-856-0 01 1 1511- ● ●
570 HARNESS; SPEED SENSOR
ALLISON MD3560P A/T(Y3B) (A) 		8-98305-915-0 01 1 1511- ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (B) 		8-98148-602-0 01 1 1511- ● ●
570 HARNESS; SPEED SENSOR
ZF9S1110 M/T(Y5E) (A) 		8-98172-313-0 01 1 1511- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=50 		1-47475-663-1 02 1 1511- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (O) 		8-98174-433-0 02 1 1511- ●
668 BRACKET; HARNESS
(D) L=55 		1-47475-304-0 01 1 1511- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (D) L=55 		1-47475-304-0 01 1 1511- ●
668 BRACKET; HARNESS
(E) 		1-47479-674-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(N) 		1-82698-167-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(F) 		8-97609-110-1 01 1 1511- ● ●
668 BRACKET; HARNESS
(H) 		8-97619-097-1 01 1 1511- ● ●
668 BRACKET; HARNESS
(C) 		8-97620-519-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(I) 		8-98047-730-0 02 1 1511- ● ●
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1511- ● ●
668 BRACKET; HARNESS
(J) 		8-98107-610-1 01 1 1511- ● ●
668 BRACKET; HARNESS
(K) 		8-98107-611-0 01 1 1511- ● ●
668 BRACKET; HARNESS
(M) 		8-98212-082-1 01 1 1511- ● ●
668 BRACKET; HARNESS
(L) 		8-98254-592-0 01 1 1511- ● ●
668 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		8-98032-360-0 01 1 1511- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (P) 		8-98245-195-1 01 1 1511- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (Q) 		8-98245-196-0 01 1 1511- ● ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (G) 		1-47477-648-0 01 1 1511- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (G) 		1-47477-648-0 01 1 1511- ●
668 BRACKET; HARNESS
DIFF LOCK<C3N> (R) L=110 		1-82699-589-0 02 1 1511- ●
689 HARNESS; PRESSURE & ECU SWITCH
ZF9S1110 M/T(Y5E) 		8-98148-603-0 01 1 1511- ● ●

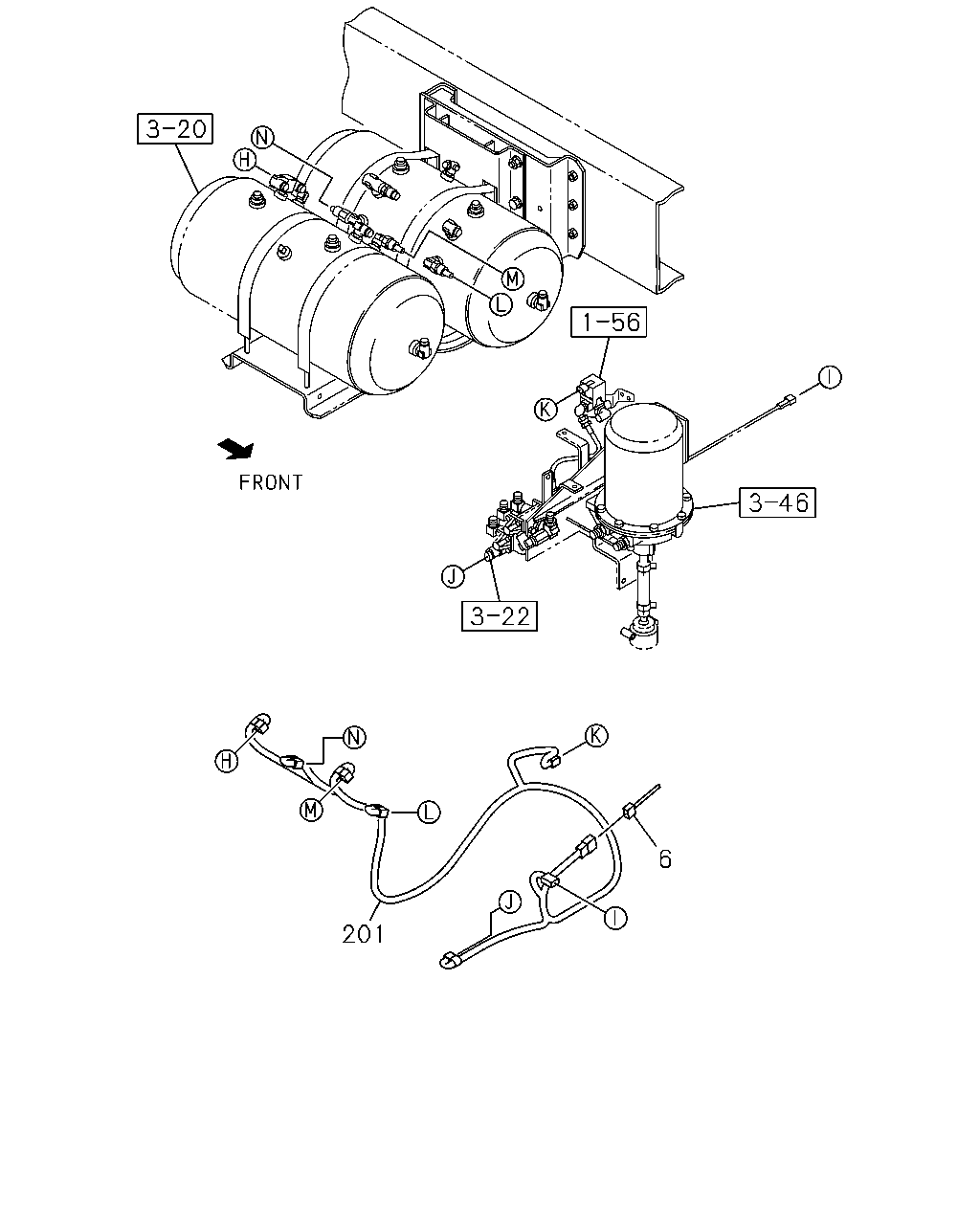

çizim 503443
201 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-140-0 01 1 1511- ● ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-139-0 01 1 1511- ● ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-142-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-141-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-138-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-137-0 01 1 1511- ●
201 HARNESS; AIR TANK 8-98321-366-0 01 1 1511- ● ●

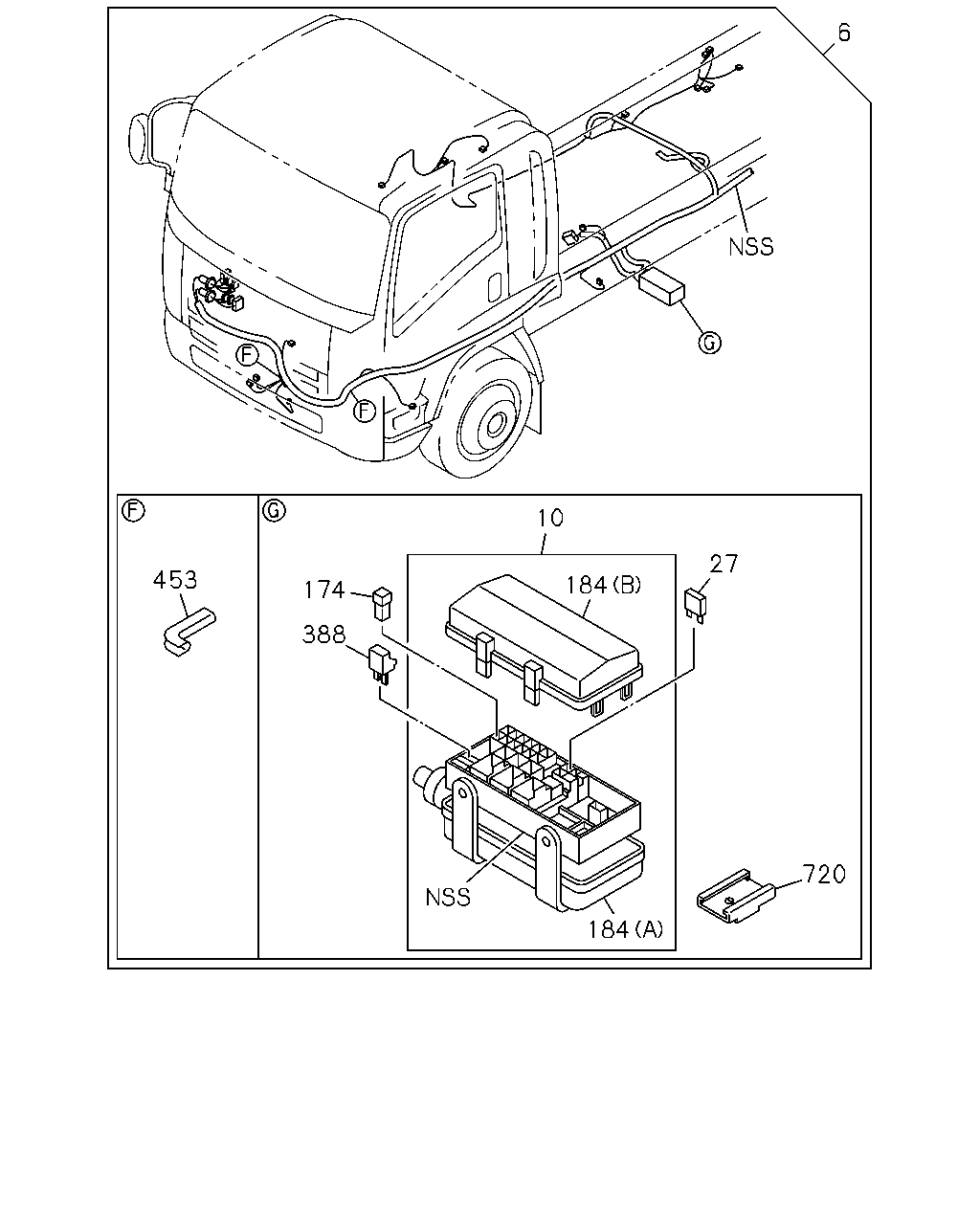

çizim 503553
6 453 174 388 184 27 720 184 10
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-143-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-144-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-140-0 01 1 1511- ● ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-139-0 01 1 1511- ● ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-142-0 01 1 1511- ●
6 HARNESS; FRAME
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) EXC. DIFF LOCK<C3N>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-141-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) DIFF LOCK<C3N> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98305-138-0 01 1 1511- ●
6 HARNESS; FRAME
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DIFF LOCK<C3N> 		8-98305-137-0 01 1 1511- ●
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1511- ● ●
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1511- ● ●
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1511- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1511- ● ●
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1511- ● ●
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1511- ● ●
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1511- ● ●
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1511- ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1511- ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1511- ● ●
388 DIODE; RELAY BOX
BLACK 4P-1.5A 		8-94381-730-0 01 1 1511- ● ●
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 02 1 1511- ● ●
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1511- ● ●
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
