8-05 — INTERIOR LAMP (#170118) — 12 parça

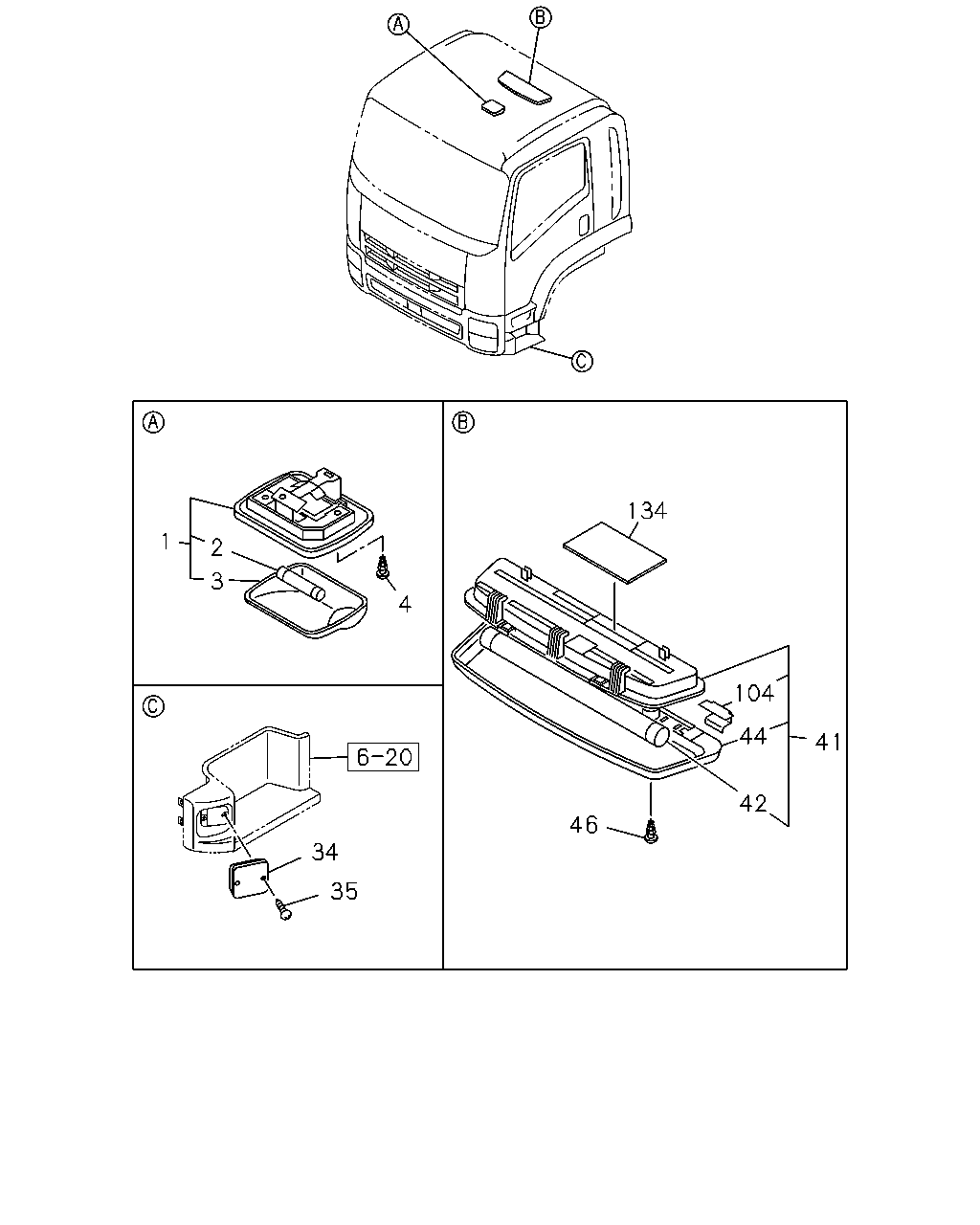

çizim 503164
1 2 3 4 34 35 134 46 42 41 104 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; ROOM 8-98013-421-3 01 1 1511- ● ●
2 BULB; ROOM LAMP
24V 10W 		5-82194-030-0 01 1 1511- ● ●
3 LENS; ROOM LAMP 8-98047-272-0 01 1 1511- ● ●
4 SCREW; ROOM LAMP
M5X14 W/WASHER 		8-98075-766-0 02 1 1511- ● ●
34 COVER; STEP LAMP
EXC. CORNERING LAMP<T87> 		8-98089-568-0 02 1 1511- ● ●
35 SCREW; STEP LAMP
EXC. CORNERING LAMP<T87> M4X20 TAPPING W/PL WASHER 		0-74360-420-0 04 1 1511- ● ●
41 LAMP ASM; FLUORESCENT 8-97387-587-1 01 1 1511- ● ●
42 LAMP; FLUORESCENT
FL20SD 		8-98056-311-0 01 1 1511- ● ●
44 LENS; FLUORESCENT LAMP 8-98056-315-0 01 1 1511- ● ●
46 SCREW; FLUORESCENT LAMP
M6X12 FLANGE 		0-28060-612-0 02 1 1511- ● ●
104 CLIP; LAMP 8-98056-322-0 02 1 1511- ● ●
134 SEAL; FLUORESCENT LAMP 8-98076-275-0 01 1 1511- ● ●
