Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11719 - FVZ AUST/NZ EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

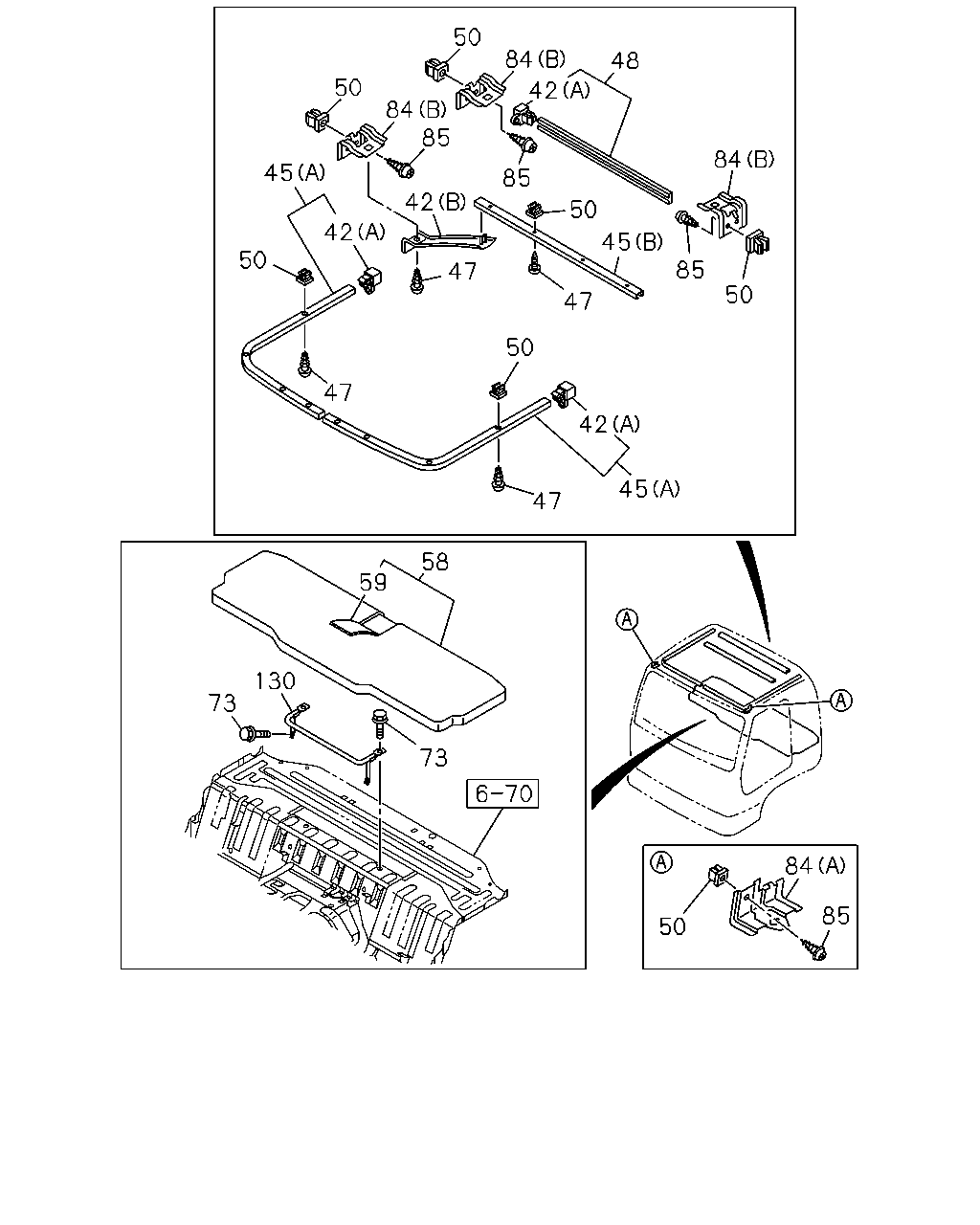

7-70 — SEPARATER AND BED
(#170115) — 22 parça
Tümü
A - FGY5MV
B - FGZ5MV
50
45
50
42
42
85
84
84
50
48
42
85
45
50
47
50
47
85
84
50
42
45
47
58
47
59
130
73
73
50
85
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
42
STOPPER; CURTAIN RAIL
(B) DARK GRAY
8-97407-972-2
01
1
1511-
●
●
42
STOPPER; CURTAIN RAIL
(B) DARK GRAY
8-97407-499-2
01
1
1511-
●
●
42
STOPPER; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY
8-97408-038-0
01
1
1511-
●
●
42
STOPPER; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY
8-97408-038-0
02
1
1511-
●
●
45
RAIL; CURTAIN,FRT
(B) DARK GRAY
8-97407-486-0
01
1
1511-
●
●
45
RAIL; CURTAIN,FRT
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY
8-97415-676-0
01
1
1511-
●
●
45
RAIL; CURTAIN,FRT
ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY
8-97415-675-0
01
1
1511-
●
●
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1511-
●
●
47
SCREW; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> M5X20
5-09981-059-0
14
1
1511-
●
●
48
RAIL; CURTAIN,BACK
ROUND CURTAIN RAIL<EDH> DARK GRAY
8-97407-866-2
01
1
1511-
●
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1511-
●
●
50
GROMMET; SCREW,CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5
8-94279-078-0
20
1
1511-
●
●
50
GROMMET; SCREW,CURTAIN RAIL
EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5
8-94279-078-0
02
1
1511-
●
●
58
BED; MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97407-384-2
01
1
1511-
●
●
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97412-043-1
01
1
1511-
●
●
73
BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE
0-28450-820-0
04
1
1511-
●
●
84
BRACKET; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (A)
8-98028-326-1
02
1
1511-
●
●
84
BRACKET; CURTAIN RAIL
ROUND CURTAIN RAIL<EDH> (B)
8-98042-152-0
04
1
1511-
●
●
84
BRACKET; CURTAIN RAIL
EXC. ROUND CURTAIN RAIL<EDH> (B)
8-98042-152-0
02
1
1511-
●
●
85
SCREW; BRKT
ROUND CURTAIN RAIL<EDH> M5X20
5-09981-059-0
06
1
1511-
●
●
85
SCREW; BRKT
EXC. ROUND CURTAIN RAIL<EDH> M5X20
5-09981-059-0
02
1
1511-
●
●
130
PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40>
8-98014-968-0
01
1
1511-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
