Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#170113) — 277 parça

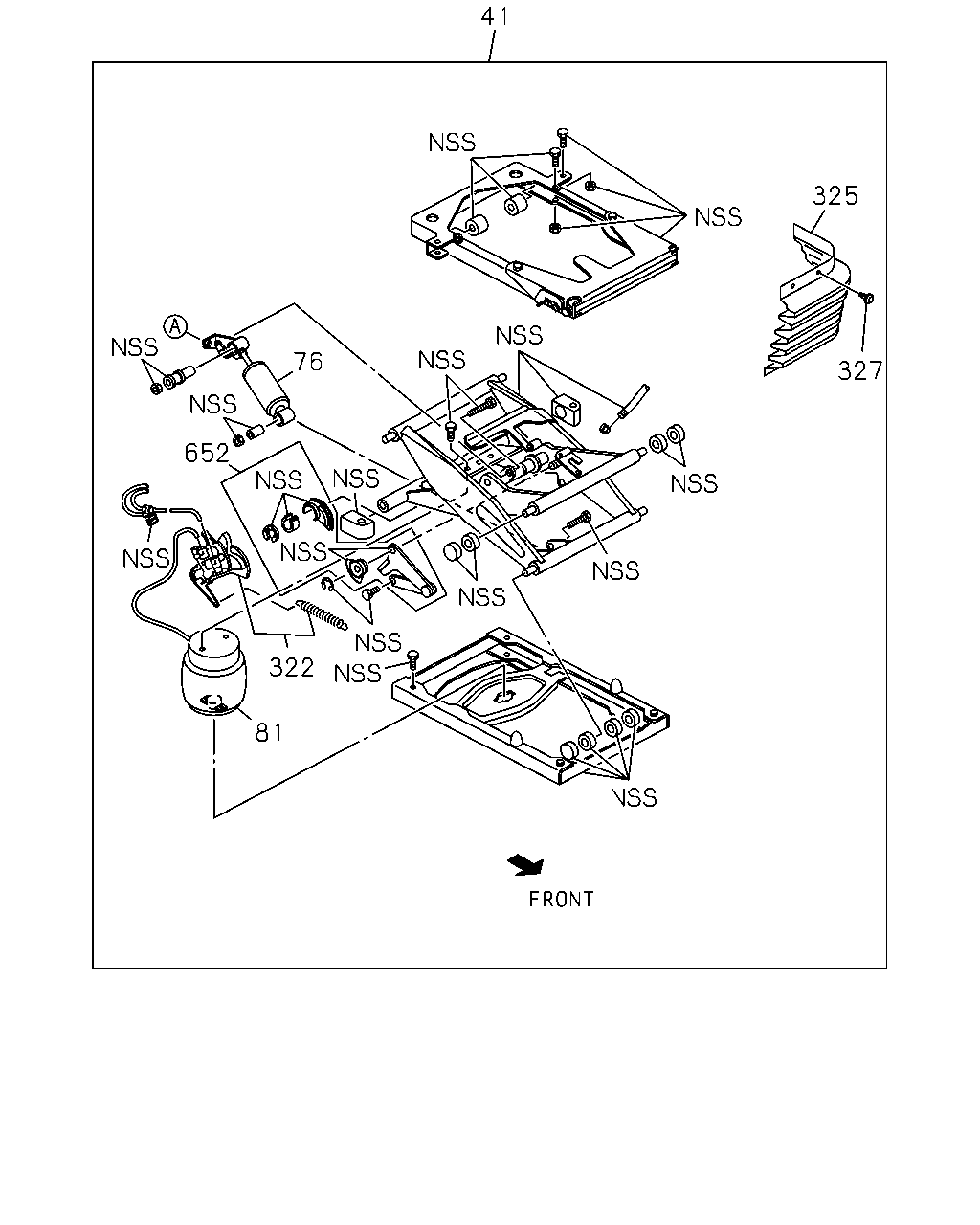

41 76 652 81 322 327 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER	8-98195-063-1	01	1	1511-	●	●
76	DAMPER; AIR SUSP	8-98097-999-0	01	1	1511-	●	●
76	DAMPER; AIR SUSP DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98097-999-0	01	1	1511-	●	●
81	SPRING; AIR	8-98098-000-0	01	1	1511-	●	●
81	SPRING; AIR DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-000-0	01	1	1511-	●	●
322	VALVE; AIR SPRING	8-98331-314-0	01	1	1511-	●	●
322	VALVE; AIR SPRING DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98331-314-0	01	1	1511-	●	●
325	COVER; SUSPENSION DEVICE	8-98098-003-0	01	1	1511-	●	●
325	COVER; SUSPENSION DEVICE DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-003-0	01	1	1511-	●	●
327	CLIP; COVER	8-98098-004-0	01	1	1511-	●	●
327	CLIP; COVER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-004-0	01	1	1511-	●	●
652	LOCK ASM; HEIGHT	8-98098-002-0	01	1	1511-	●	●
652	LOCK ASM; HEIGHT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-002-0	01	1	1511-	●	●

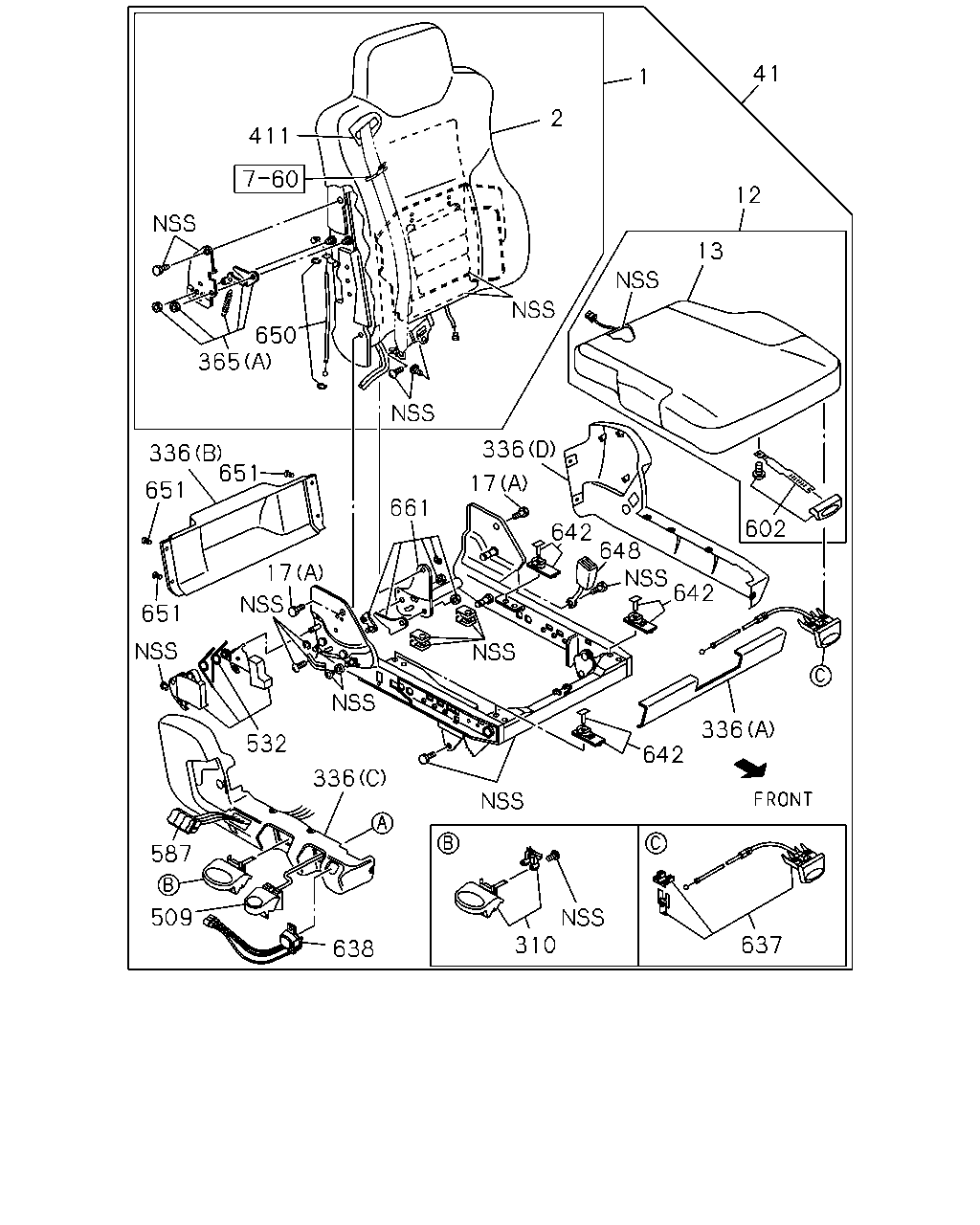

41 1 2 411 650 365 13 12 336 17 661 651 336 651 651 17 642 648 642 602 336 642 336 532 587 509 638 310 637

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-962-0	01	1	1511-	●	●
1	BACK ASM; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) PASSENGER	8-98097-961-0	01	1	1511-	●	●
1	BACK ASM; SEAT DRIVER	8-98097-964-0	01	1	1511-	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98232-352-0	01	1	1511-	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER	8-98232-353-0	01	1	1511-	●	●
12	CUSHION; SEAT,FRT	8-98098-006-0	01	1	1511-	●	●
12	CUSHION; SEAT,FRT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-006-0	01	1	1511-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION	8-98098-007-0	01	1	1511-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-007-0	01	1	1511-	●	●
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1511-	●	●
17	BOLT; RECLINING DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98097-974-0	02	1	1511-	●	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (B) M8X20	8-98092-334-0	02	1	1511-	●	●
41	SEAT ASM; DRIVER	8-98195-063-1	01	1	1511-	●	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-991-0	01	1	1511-	●	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER	8-98097-992-0	01	1	1511-	●	●
336	COVER; DRIVER SEAT (D)	8-98331-313-0	01	1	1511-	●	●
336	COVER; DRIVER SEAT (C)	8-98097-984-0	01	1	1511-	●	●
336	COVER; DRIVER SEAT (A)	8-98097-995-0	01	1	1511-	●	●
336	COVER; DRIVER SEAT (B)	8-98097-996-0	01	1	1511-	●	●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1511-	●	●
365	LOCK ASM; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98097-972-0	01	1	1511-	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1511-	●	●
411	GUIDE; SEAT BELT	8-98097-967-0	01	1	1511-	●	●
411	GUIDE; SEAT BELT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98097-967-0	01	1	1511-	●	●
509	LEVER; DAMPER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-987-0	01	1	1511-	●	●
509	LEVER; DAMPER DRIVER	8-98097-988-0	01	1	1511-	●	●
532	LEVER ASM; TILT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-981-0	01	1	1511-	●	●
532	LEVER ASM; TILT DRIVER	8-98097-982-0	01	1	1511-	●	●
587	VALVE; LUMBAR SUPPORT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-985-0	01	1	1511-	●	●
587	VALVE; LUMBAR SUPPORT DRIVER	8-98097-986-0	01	1	1511-	●	●
602	KNOB; ADJ,SEAT	8-98098-008-0	01	1	1511-	●	●
602	KNOB; ADJ,SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-008-0	01	1	1511-	●	●
637	LEVER; SLOPE ADJ	8-98097-989-0	01	1	1511-	●	●
637	LEVER; SLOPE ADJ DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98097-989-0	01	1	1511-	●	●
638	VALVE; LOWERING DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-993-0	01	1	1511-	●	●
638	VALVE; LOWERING DRIVER	8-98097-994-0	01	1	1511-	●	●
642	SLIDER; CUSHION	8-98192-932-0	04	1	1511-	●	●
642	SLIDER; CUSHION DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98192-932-0	04	1	1511-	●	●
648	BUCKLE; SEAT BELT	8-98097-976-0	01	1	1511-	●	●
648	BUCKLE; SEAT BELT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98097-976-0	01	1	1511-	●	●
650	CABLE	8-98232-354-0	01	1	1511-	●	●
650	CABLE DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98232-354-0	01	1	1511-	●	●
651	RIVET	8-98194-075-0	04	1	1511-	●	●
651	RIVET DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98194-075-0	04	1	1511-	●	●
661	LOCK ASM; RECLINING DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-979-0	01	1	1511-	●	●
661	LOCK ASM; RECLINING DRIVER	8-98097-980-0	01	1	1511-	●	●

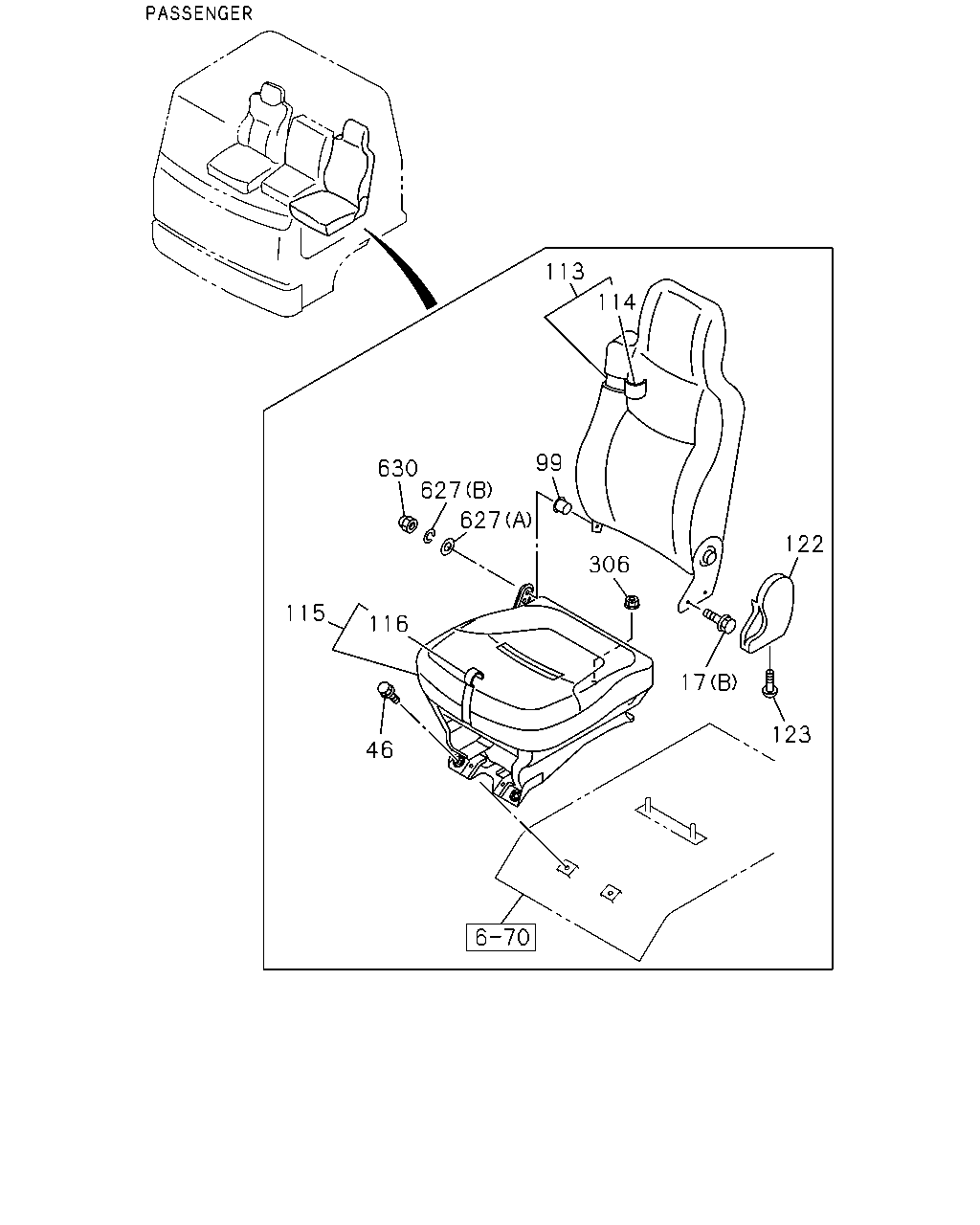

113 99 114 627 627 630 116 115 46 306 17 122 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1511-	●	●
17	BOLT; RECLINING DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98097-974-0	02	1	1511-	●	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (B) M8X20	8-98092-334-0	02	1	1511-	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1511-	●	●
99	BUSHING; SEAT BACK DRIVER ISRINGHAUSEN SEAT<SJA>	8-98112-751-0	01	1	1511-	●	●
113	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DARK GRAY	8-97421-422-0	01	1	1511-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> DARK GRAY	8-97421-424-0	01	1	1511-	●	●
115	CUSHION ASM; PASSENGER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DARK GRAY	8-97421-418-1	01	1	1511-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> DARK GRAY	8-97421-420-0	01	1	1511-	●	●
122	COVER; ADJ,RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> GRAY	8-97409-967-0	01	1	1511-	●	●
123	SCREW; COVER,RECLINING DRIVER ISRINGHAUSEN SEAT<SJA>	8-98070-026-0	01	1	1511-	●	●
306	NUT; SEAT ADJ M10 FLANGE	0-91180-110-0	02	1	1511-	●	●
627	WASHER; FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (A)	8-98063-223-0	01	1	1511-	●	●
627	WASHER; FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98063-224-0	01	1	1511-	●	●
630	NUT; CAP DRIVER ISRINGHAUSEN SEAT<SJA> M8	8-98063-225-0	01	1	1511-	●	●

506 360 175 188 176 16 126 359 403 188 403 182 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	1511-	●	●
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	8-97854-900-0	01	1	1511-	●	●
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-434-1	01	1	1511-	●	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-435-1	01	1	1511-	●	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-432-1	01	1	1511-	●	●
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-430-3	01	1	1511-	●	●
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	1511-	●	●
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1511-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1511-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1511-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1511-	●	●
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1511-	●	●

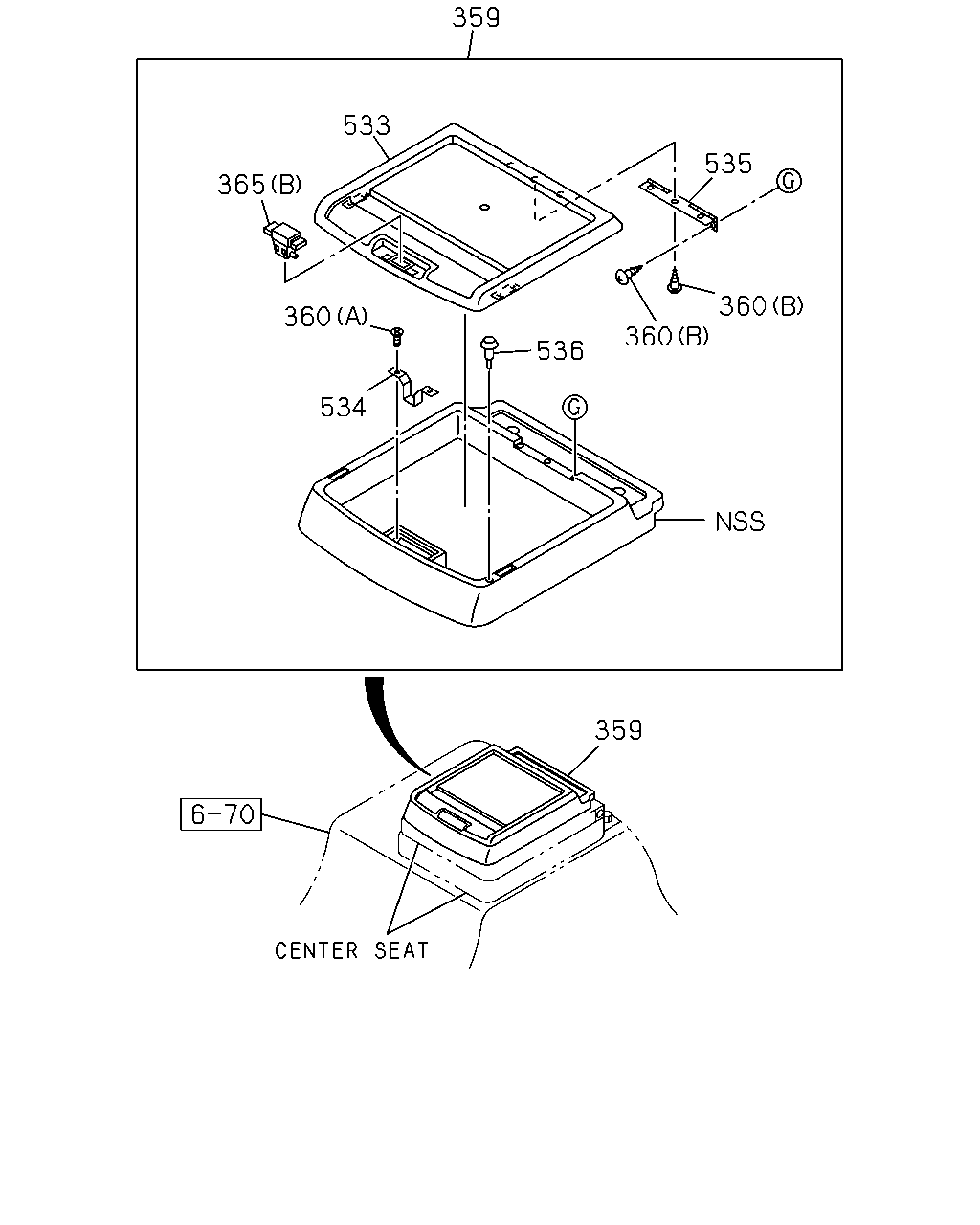

359 533 365 360 534 536 360 360 535 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1511-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1511-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1511-	●	●
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1511-	●	●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1511-	●	●
365	LOCK ASM; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98097-972-0	01	1	1511-	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1511-	●	●
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1511-	●	●
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-190-0	01	1	1511-	●	●
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	1511-	●	●
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-187-0	02	1	1511-	●	●

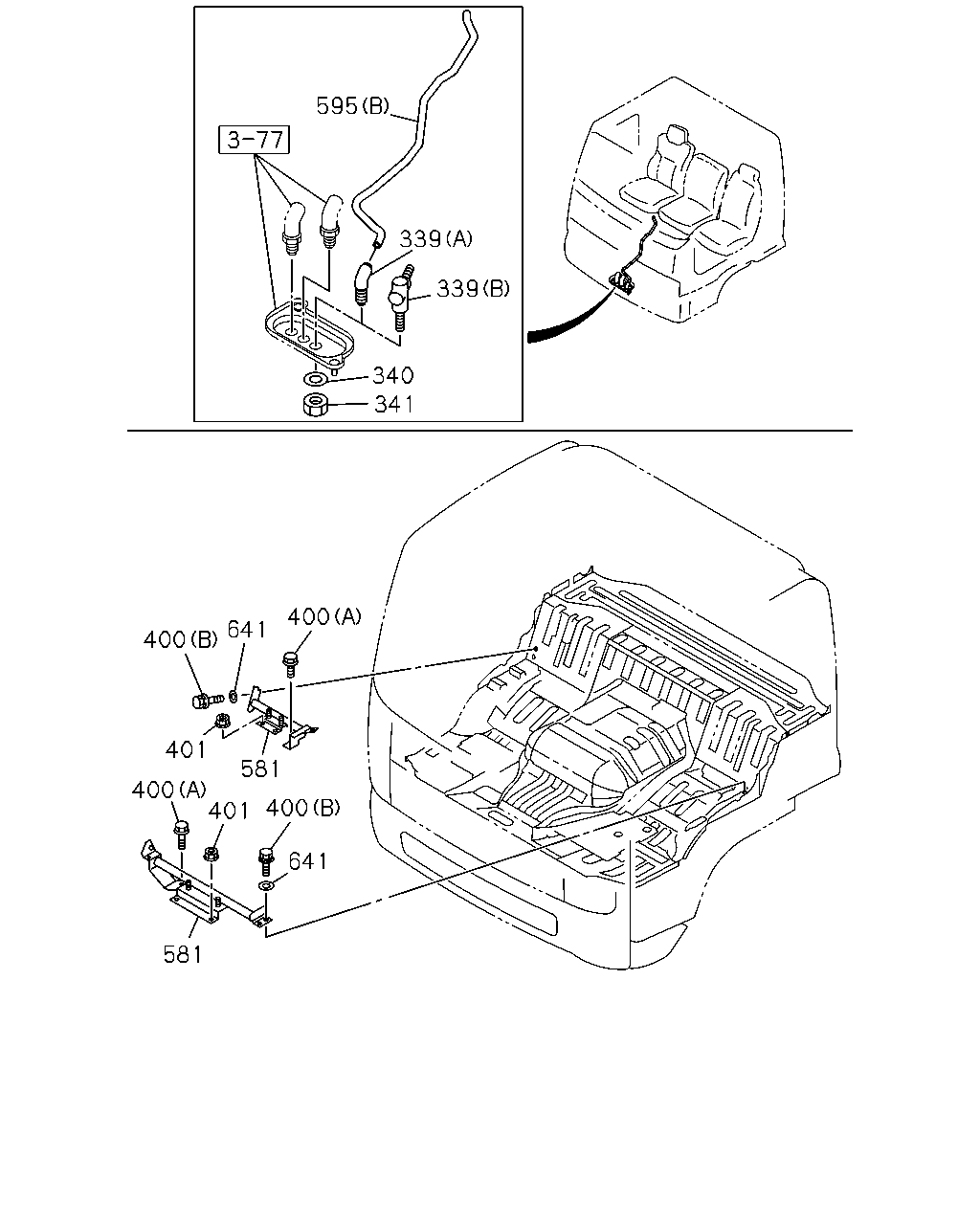

595 339 339 340 341 400 641 400 401 581 400 401 400 641 581

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
339	UNION; DRIVER SEAT EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98014-971-0	01	1	1511-	●	●
339	UNION; DRIVER SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B)	1-09656-751-0	01	1	1511-	●	●
340	WASHER; UNION DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> ID=12.5	0-91610-712-0	02	1	1511-	●	●
341	NUT; UNION DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M12	9-09840-280-0	01	1	1511-	●	●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98098-996-0	02	1	1511-	●	●
400	BOLT; SUPPORT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
400	BOLT; SUPPORT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B)	8-98098-996-0	04	1	1511-	●	●
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> M10 FLANGE	0-91180-110-0	02	1	1511-	●	●
401	NUT; SUPPORT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M10 FLANGE	0-91180-110-0	04	1	1511-	●	●
581	PIPE; SEAT	8-97589-693-3	01	1	1511-	●	●
581	PIPE; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98228-516-0	01	1	1511-	●	●
595	TUBE; NYLON (B)	8-98041-300-0	01	1	1511-	●	●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	1511-	●	●
595	TUBE; NYLON DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98106-348-0	01	1	1511-	●	●
641	WASHER; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98099-007-0	02	1	1511-	●	●
641	WASHER; SUPPORT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98099-007-0	04	1	1511-	●	●

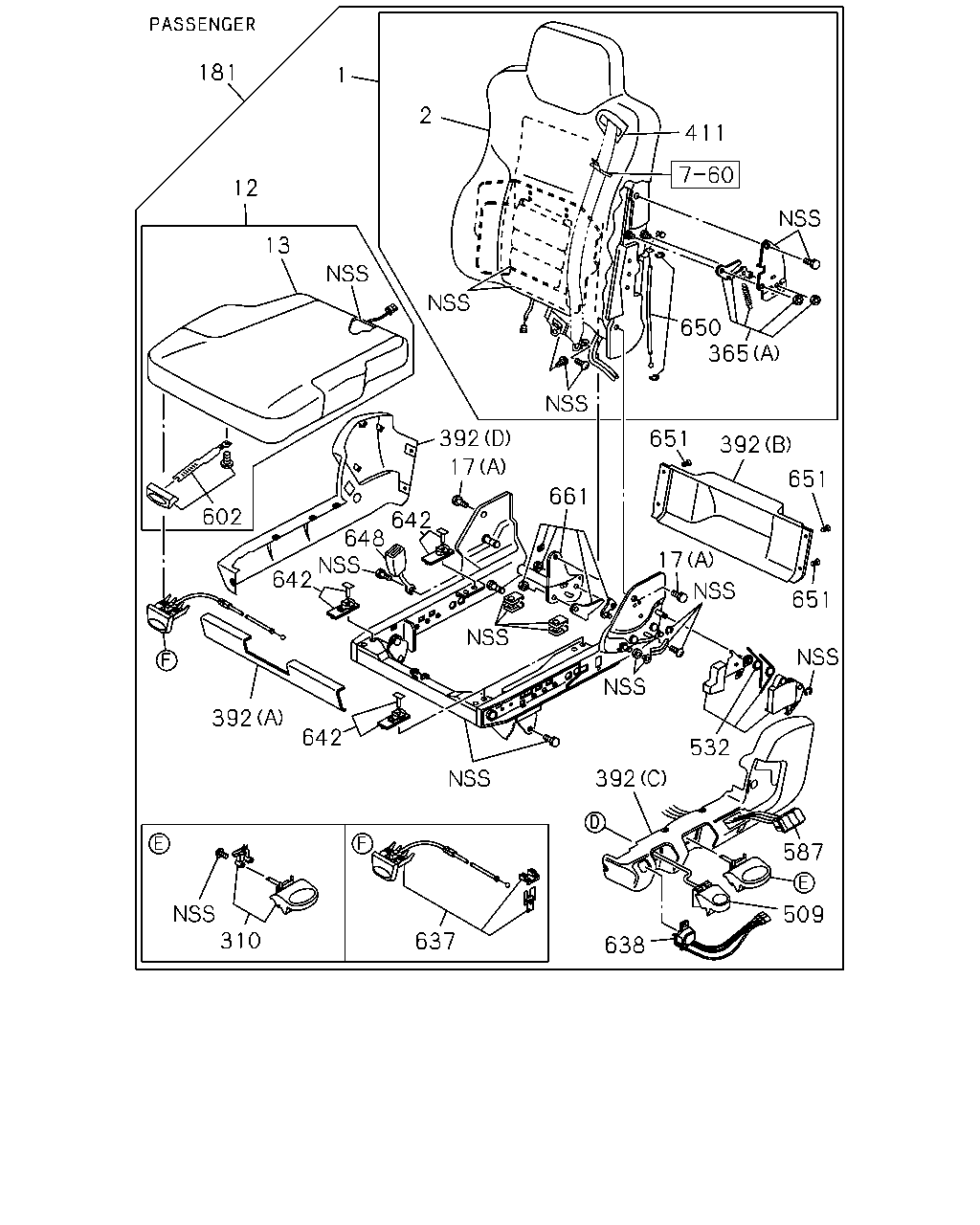

181 1 2 12 13 602 310 637 638 509 587 651 651 392 651 392 392 642 642 532 17 661 392 642 648 17 411 650 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-962-0	01	1	1511-	●	●
1	BACK ASM; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) PASSENGER	8-98097-961-0	01	1	1511-	●	●
1	BACK ASM; SEAT DRIVER	8-98097-964-0	01	1	1511-	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98232-352-0	01	1	1511-	●	●
2	COVER; TRIM,FRT SEAT,BACK DRIVER	8-98232-353-0	01	1	1511-	●	●
12	CUSHION; SEAT,FRT	8-98098-006-0	01	1	1511-	●	●
12	CUSHION; SEAT,FRT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-006-0	01	1	1511-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION	8-98098-007-0	01	1	1511-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-007-0	01	1	1511-	●	●
17	BOLT; RECLINING (A)	8-98097-974-0	02	1	1511-	●	●
17	BOLT; RECLINING DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98097-974-0	02	1	1511-	●	●
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> (B) M8X20	8-98092-334-0	02	1	1511-	●	●
181	SEAT ASM; PASSENGER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5)	8-98195-064-1	01	1	1511-	●	●
181	SEAT ASM; PASSENGER AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98195-065-1	01	1	1511-	●	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-991-0	01	1	1511-	●	●
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER	8-98097-992-0	01	1	1511-	●	●
365	LOCK ASM; SEAT (A)	8-98097-972-0	01	1	1511-	●	●
365	LOCK ASM; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98097-972-0	01	1	1511-	●	●
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1511-	●	●
392	COVER; STAND,PASSENGER SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (C)	8-98097-983-0	01	1	1511-	●	●
392	COVER; STAND,PASSENGER SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98097-995-0	01	1	1511-	●	●
392	COVER; STAND,PASSENGER SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B)	8-98097-996-0	01	1	1511-	●	●
392	COVER; STAND,PASSENGER SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (D)	8-98333-916-0	01	1	1511-	●	●
411	GUIDE; SEAT BELT	8-98097-967-0	01	1	1511-	●	●
411	GUIDE; SEAT BELT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98097-967-0	01	1	1511-	●	●
509	LEVER; DAMPER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-987-0	01	1	1511-	●	●
509	LEVER; DAMPER DRIVER	8-98097-988-0	01	1	1511-	●	●
532	LEVER ASM; TILT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-981-0	01	1	1511-	●	●
532	LEVER ASM; TILT DRIVER	8-98097-982-0	01	1	1511-	●	●
587	VALVE; LUMBAR SUPPORT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-985-0	01	1	1511-	●	●
587	VALVE; LUMBAR SUPPORT DRIVER	8-98097-986-0	01	1	1511-	●	●
602	KNOB; ADJ,SEAT	8-98098-008-0	01	1	1511-	●	●
602	KNOB; ADJ,SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-008-0	01	1	1511-	●	●
637	LEVER; SLOPE ADJ	8-98097-989-0	01	1	1511-	●	●
637	LEVER; SLOPE ADJ DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98097-989-0	01	1	1511-	●	●
638	VALVE; LOWERING DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-993-0	01	1	1511-	●	●
638	VALVE; LOWERING DRIVER	8-98097-994-0	01	1	1511-	●	●
642	SLIDER; CUSHION	8-98192-932-0	04	1	1511-	●	●
642	SLIDER; CUSHION DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98192-932-0	04	1	1511-	●	●
648	BUCKLE; SEAT BELT	8-98097-976-0	01	1	1511-	●	●
648	BUCKLE; SEAT BELT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98097-976-0	01	1	1511-	●	●
650	CABLE	8-98232-354-0	01	1	1511-	●	●
650	CABLE DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98232-354-0	01	1	1511-	●	●
651	RIVET	8-98194-075-0	04	1	1511-	●	●
651	RIVET DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98194-075-0	04	1	1511-	●	●
661	LOCK ASM; RECLINING DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER	8-98097-979-0	01	1	1511-	●	●
661	LOCK ASM; RECLINING DRIVER	8-98097-980-0	01	1	1511-	●	●

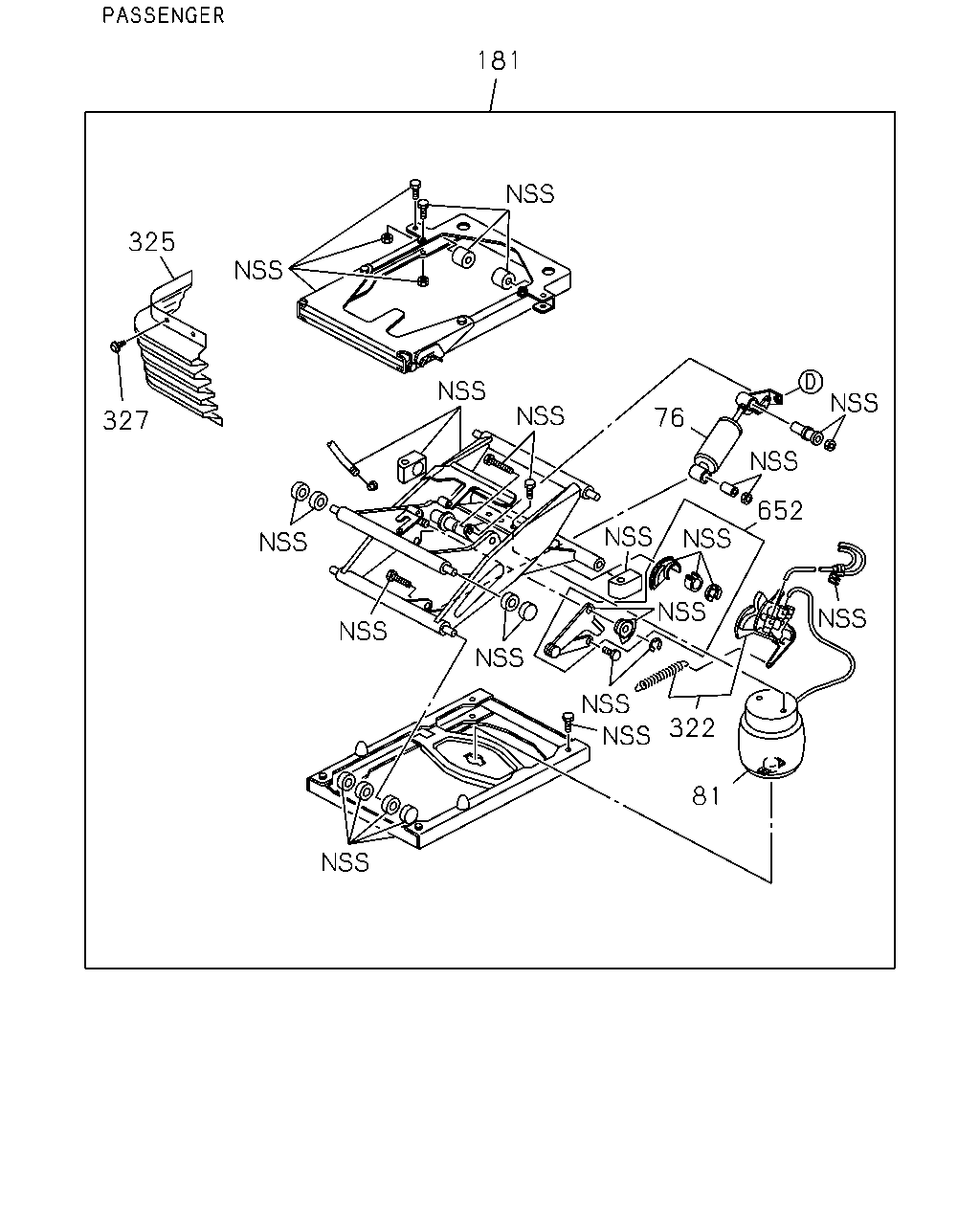

181 325 327 652 322 81 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
76	DAMPER; AIR SUSP	8-98097-999-0	01	1	1511-	●	●
76	DAMPER; AIR SUSP DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98097-999-0	01	1	1511-	●	●
81	SPRING; AIR	8-98098-000-0	01	1	1511-	●	●
81	SPRING; AIR DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-000-0	01	1	1511-	●	●
181	SEAT ASM; PASSENGER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5)	8-98195-064-1	01	1	1511-	●	●
181	SEAT ASM; PASSENGER AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98195-065-1	01	1	1511-	●	●
322	VALVE; AIR SPRING	8-98331-314-0	01	1	1511-	●	●
322	VALVE; AIR SPRING DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98331-314-0	01	1	1511-	●	●
325	COVER; SUSPENSION DEVICE	8-98098-003-0	01	1	1511-	●	●
325	COVER; SUSPENSION DEVICE DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-003-0	01	1	1511-	●	●
327	CLIP; COVER	8-98098-004-0	01	1	1511-	●	●
327	CLIP; COVER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-004-0	01	1	1511-	●	●
652	LOCK ASM; HEIGHT	8-98098-002-0	01	1	1511-	●	●
652	LOCK ASM; HEIGHT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-002-0	01	1	1511-	●	●

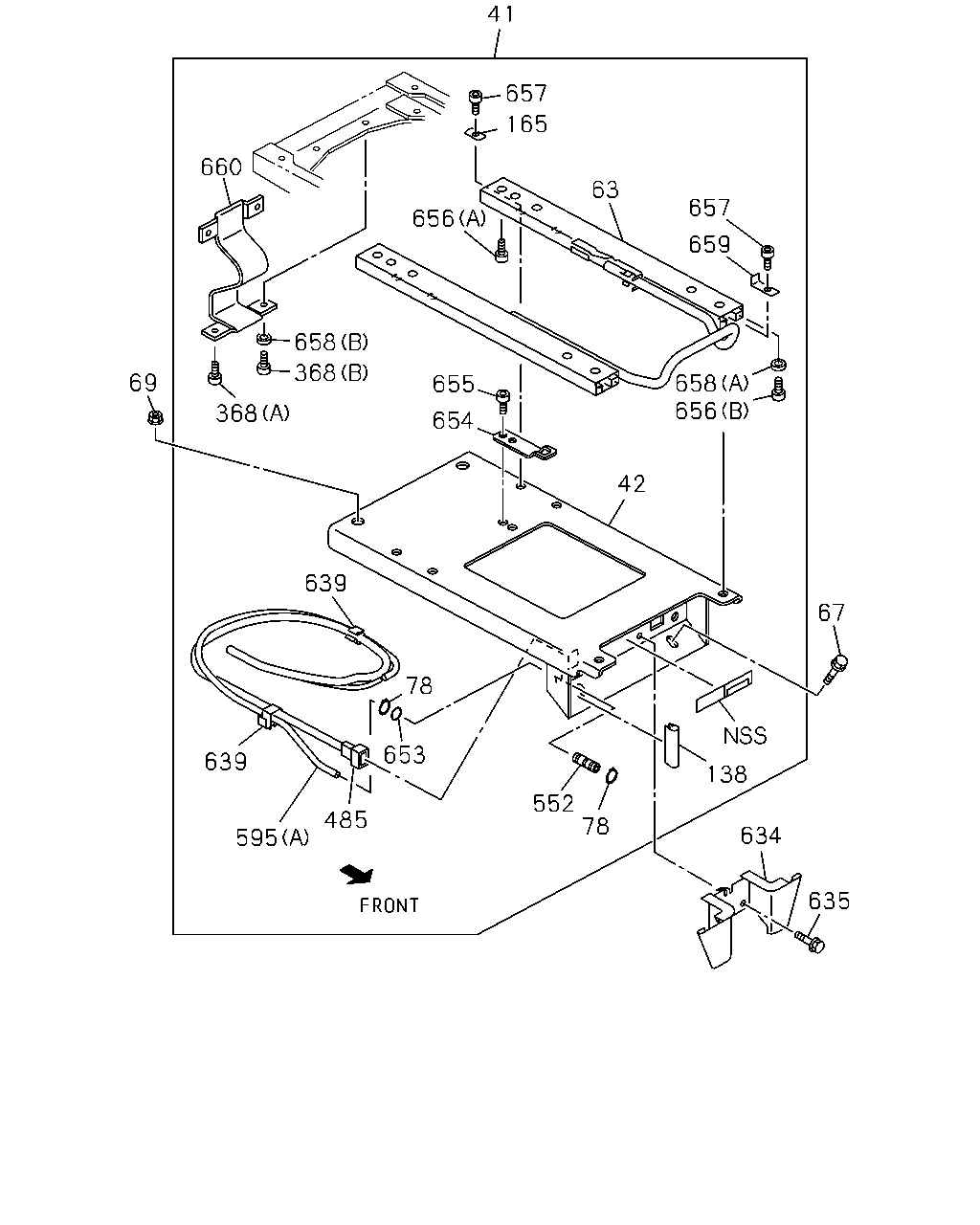

41 657 165 656 660 368 658 368 69 639 78 653 485 595 639 552 78 138 634 635 67 42 656 658 659 657 63 654 655

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	SEAT ASM; DRIVER	8-98195-063-1	01	1	1511-	●	●
42	STAND; DRIVER SEAT	8-98106-346-0	01	1	1511-	●	●
63	ADJUSTER; SEAT SLIDE	8-98098-005-0	01	1	1511-	●	●
63	ADJUSTER; SEAT SLIDE DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-005-0	01	1	1511-	●	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1511-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1511-	●	●
78	RING; SNAP	8-98101-900-0	02	1	1511-	●	●
78	RING; SNAP DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98101-900-0	02	1	1511-	●	●
138	PROTECTOR; SEAT STAND	8-98106-351-0	01	1	1511-	●	●
138	PROTECTOR; SEAT STAND DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98106-351-0	01	1	1511-	●	●
165	WASHER; PL	1-75590-086-0	04	1	1511-	●	●
165	WASHER; PL DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	1-75590-086-0	04	1	1511-	●	●
368	BOLT; SEAT (A)	8-98106-353-0	03	1	1511-	●	●
368	BOLT; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98106-353-0	03	1	1511-	●	●
368	BOLT; SEAT (B)	8-98106-358-0	01	1	1511-	●	●
368	BOLT; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B)	8-98106-358-0	01	1	1511-	●	●
485	HARNESS; FRT SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5)	8-98106-361-0	01	1	1511-	●	●
485	HARNESS; FRT SEAT	8-98106-360-0	01	1	1511-	●	●
485	HARNESS; FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98106-360-0	01	1	1511-	●	●
552	CONNECTOR	8-98308-101-0	01	1	1511-	●	●
552	CONNECTOR DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98308-101-0	01	1	1511-	●	●
595	TUBE; NYLON (B)	8-98041-300-0	01	1	1511-	●	●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	1511-	●	●
595	TUBE; NYLON DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98106-348-0	01	1	1511-	●	●
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98088-279-0	01	1	1511-	●	●
634	COVER; CONNECTOR,SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98088-279-0	02	1	1511-	●	●
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT<SJA> M6X16	0-52000-616-0	02	1	1511-	●	●
635	BOLT; COVER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M6X16	0-52000-616-0	04	1	1511-	●	●
639	CLIP; SEAT	8-98308-100-0	02	1	1511-	●	●
639	CLIP; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98308-100-0	02	1	1511-	●	●
653	GASKET	8-98101-901-0	01	1	1511-	●	●
653	GASKET DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98101-901-0	01	1	1511-	●	●
654	HOOK; STOPPER	8-98106-352-0	01	1	1511-	●	●
654	HOOK; STOPPER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98106-352-0	01	1	1511-	●	●
655	BOLT; HOOK	8-98106-353-0	02	1	1511-	●	●
655	BOLT; HOOK DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98106-353-0	02	1	1511-	●	●
656	BOLT; SLIDER TO SEAT (A)	1-75590-085-0	04	1	1511-	●	●
656	BOLT; SLIDER TO SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	1-75590-085-0	04	1	1511-	●	●
656	BOLT; SLIDER TO SEAT (B)	8-98106-354-0	02	1	1511-	●	●
656	BOLT; SLIDER TO SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B)	8-98106-354-0	02	1	1511-	●	●
657	BOLT; SLIDER TO STAND	1-75590-085-0	06	1	1511-	●	●
657	BOLT; SLIDER TO STAND DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	1-75590-085-0	06	1	1511-	●	●
658	SPACER; BOLT (A)	8-98106-355-0	02	1	1511-	●	●
658	SPACER; BOLT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98106-355-0	02	1	1511-	●	●
658	SPACER; BOLT (B)	8-98106-359-0	01	1	1511-	●	●
658	SPACER; BOLT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B)	8-98106-359-0	01	1	1511-	●	●
659	STOPPER	8-98106-356-0	02	1	1511-	●	●
659	STOPPER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98106-356-0	02	1	1511-	●	●
660	BELT; TETHER	8-98106-357-0	01	1	1511-	●	●
660	BELT; TETHER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98106-357-0	01	1	1511-	●	●

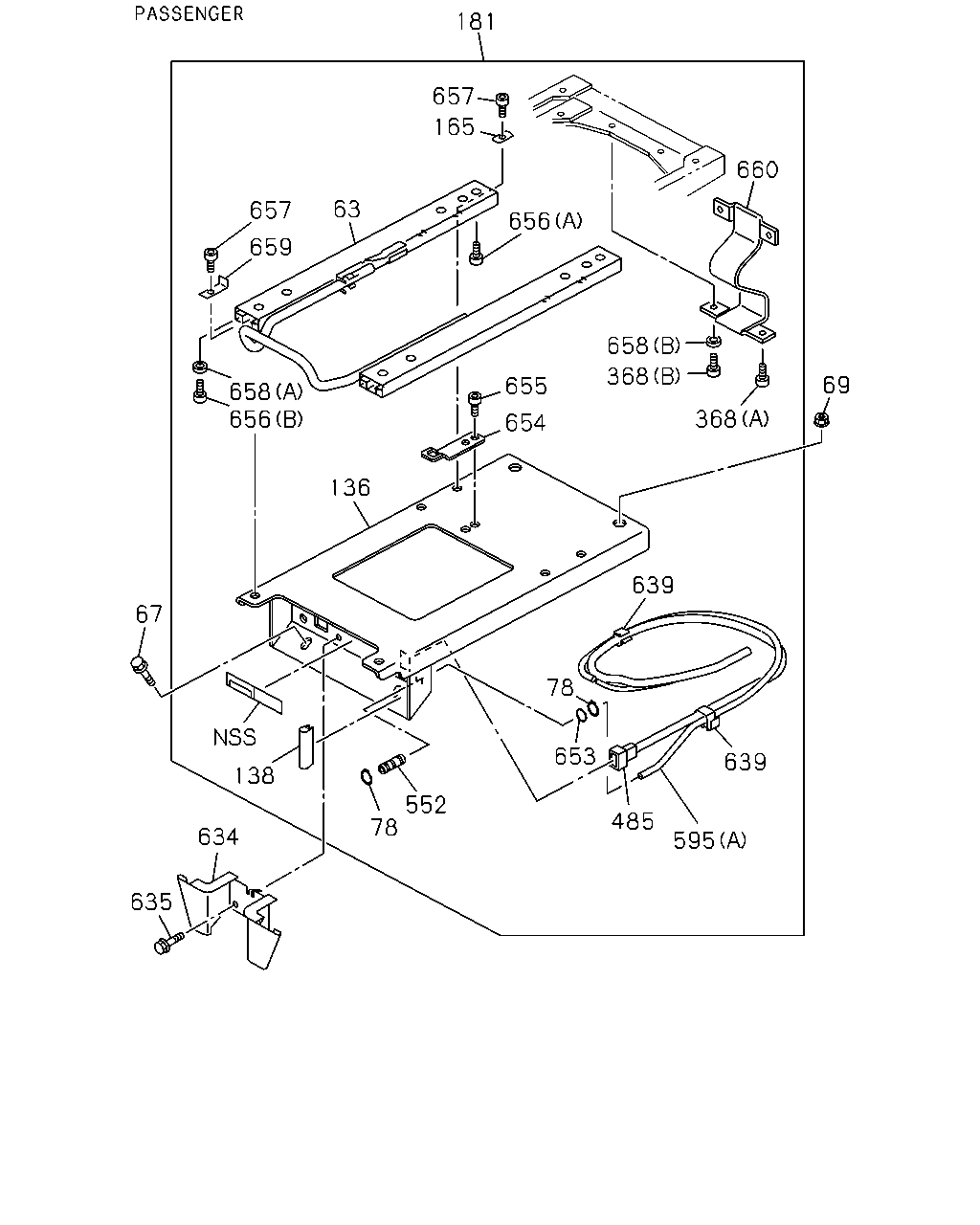

635 634 138 67 656 136 658 659 657 63 181 657 656 165 655 658 654 368 660 69 368 639 639 595 485 653 78 78 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
63	ADJUSTER; SEAT SLIDE	8-98098-005-0	01	1	1511-	●	●
63	ADJUSTER; SEAT SLIDE DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98098-005-0	01	1	1511-	●	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1511-	●	●
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1511-	●	●
78	RING; SNAP	8-98101-900-0	02	1	1511-	●	●
78	RING; SNAP DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98101-900-0	02	1	1511-	●	●
136	STAND; PASSENGER SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98106-346-0	01	1	1511-	●	●
138	PROTECTOR; SEAT STAND	8-98106-351-0	01	1	1511-	●	●
138	PROTECTOR; SEAT STAND DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98106-351-0	01	1	1511-	●	●
165	WASHER; PL	1-75590-086-0	04	1	1511-	●	●
165	WASHER; PL DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	1-75590-086-0	04	1	1511-	●	●
181	SEAT ASM; PASSENGER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5)	8-98195-064-1	01	1	1511-	●	●
181	SEAT ASM; PASSENGER AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98195-065-1	01	1	1511-	●	●
368	BOLT; SEAT (A)	8-98106-353-0	03	1	1511-	●	●
368	BOLT; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98106-353-0	03	1	1511-	●	●
368	BOLT; SEAT (B)	8-98106-358-0	01	1	1511-	●	●
368	BOLT; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B)	8-98106-358-0	01	1	1511-	●	●
485	HARNESS; FRT SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5)	8-98106-361-0	01	1	1511-	●	●
485	HARNESS; FRT SEAT	8-98106-360-0	01	1	1511-	●	●
485	HARNESS; FRT SEAT AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98106-360-0	01	1	1511-	●	●
552	CONNECTOR	8-98308-101-0	01	1	1511-	●	●
552	CONNECTOR DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98308-101-0	01	1	1511-	●	●
595	TUBE; NYLON (B)	8-98041-300-0	01	1	1511-	●	●
595	TUBE; NYLON (A)	8-98106-348-0	01	1	1511-	●	●
595	TUBE; NYLON DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98106-348-0	01	1	1511-	●	●
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98088-279-0	01	1	1511-	●	●
634	COVER; CONNECTOR,SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98088-279-0	02	1	1511-	●	●
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT<SJA> M6X16	0-52000-616-0	02	1	1511-	●	●
635	BOLT; COVER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M6X16	0-52000-616-0	04	1	1511-	●	●
639	CLIP; SEAT	8-98308-100-0	02	1	1511-	●	●
639	CLIP; SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98308-100-0	02	1	1511-	●	●
653	GASKET	8-98101-901-0	01	1	1511-	●	●
653	GASKET DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98101-901-0	01	1	1511-	●	●
654	HOOK; STOPPER	8-98106-352-0	01	1	1511-	●	●
654	HOOK; STOPPER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98106-352-0	01	1	1511-	●	●
655	BOLT; HOOK	8-98106-353-0	02	1	1511-	●	●
655	BOLT; HOOK DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98106-353-0	02	1	1511-	●	●
656	BOLT; SLIDER TO SEAT (A)	1-75590-085-0	04	1	1511-	●	●
656	BOLT; SLIDER TO SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	1-75590-085-0	04	1	1511-	●	●
656	BOLT; SLIDER TO SEAT (B)	8-98106-354-0	02	1	1511-	●	●
656	BOLT; SLIDER TO SEAT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B)	8-98106-354-0	02	1	1511-	●	●
657	BOLT; SLIDER TO STAND	1-75590-085-0	06	1	1511-	●	●
657	BOLT; SLIDER TO STAND DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	1-75590-085-0	06	1	1511-	●	●
658	SPACER; BOLT (A)	8-98106-355-0	02	1	1511-	●	●
658	SPACER; BOLT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A)	8-98106-355-0	02	1	1511-	●	●
658	SPACER; BOLT (B)	8-98106-359-0	01	1	1511-	●	●
658	SPACER; BOLT DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B)	8-98106-359-0	01	1	1511-	●	●
659	STOPPER	8-98106-356-0	02	1	1511-	●	●
659	STOPPER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98106-356-0	02	1	1511-	●	●
660	BELT; TETHER	8-98106-357-0	01	1	1511-	●	●
660	BELT; TETHER DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98106-357-0	01	1	1511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
