7-30 — LOCK CYLINDER SET (#170108) — 19 parça

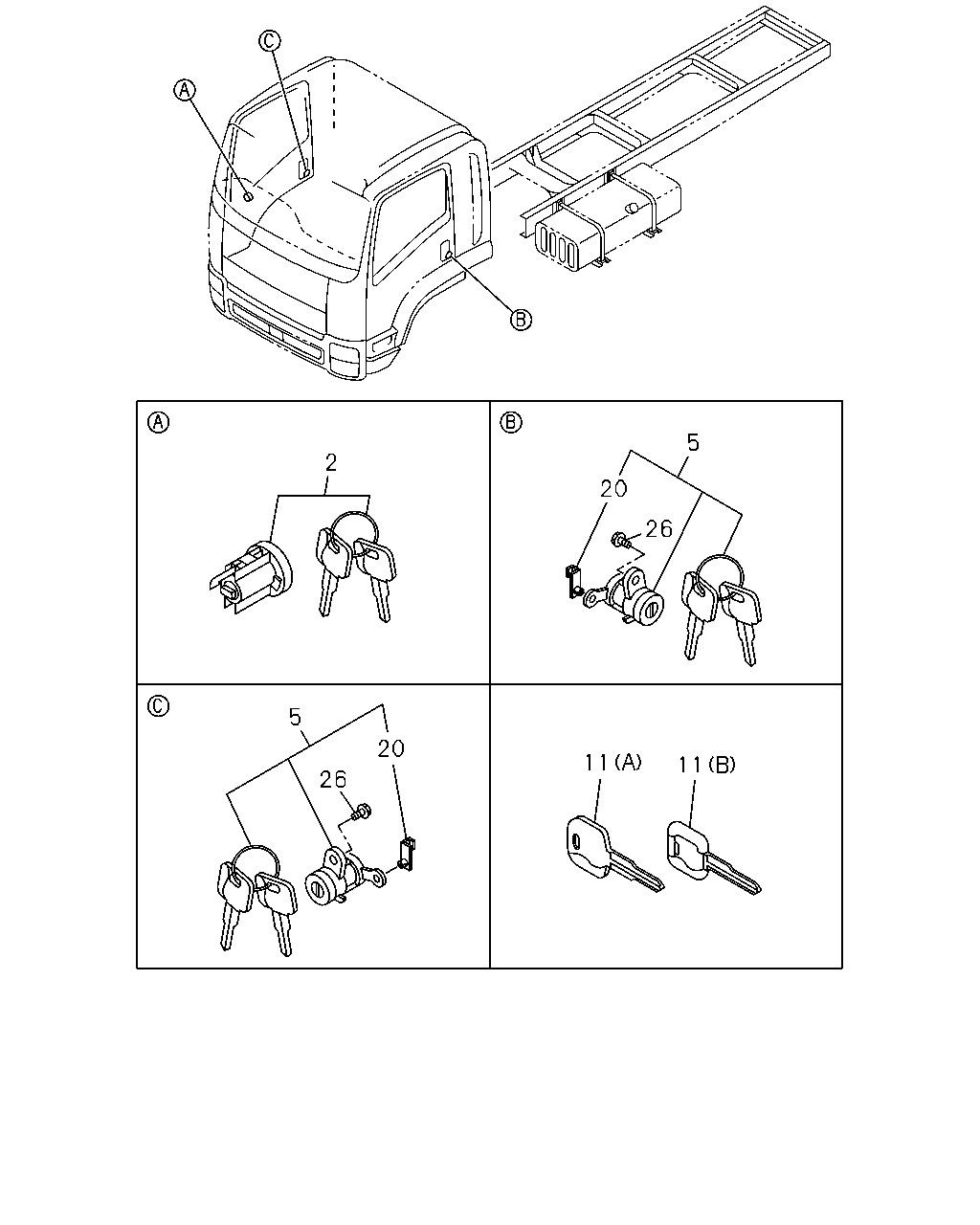

çizim 502953

2 5 20 26 11 11 5 20 26

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	BARREL ASM; W/KEY,STRG LOCK	8-98201-341-0	01	1	1511-	●	●
	5	CYLINDER ASM; DOOR LOCK	8-98055-149-0	01	1	1511-	●	●
	5	CYLINDER ASM; DOOR LOCK	8-98055-150-0	01	1	1511-	●	●
	11	KEY; BLANK (B) IMMOBILIZER	8-98055-168-0	AR	1	1511-	●	●
	11	KEY; BLANK (A)	8-98055-170-0	AR	1	1511-	●	●
	20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1511-	●	●
	20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1511-	●	●
	26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1511-	●	●

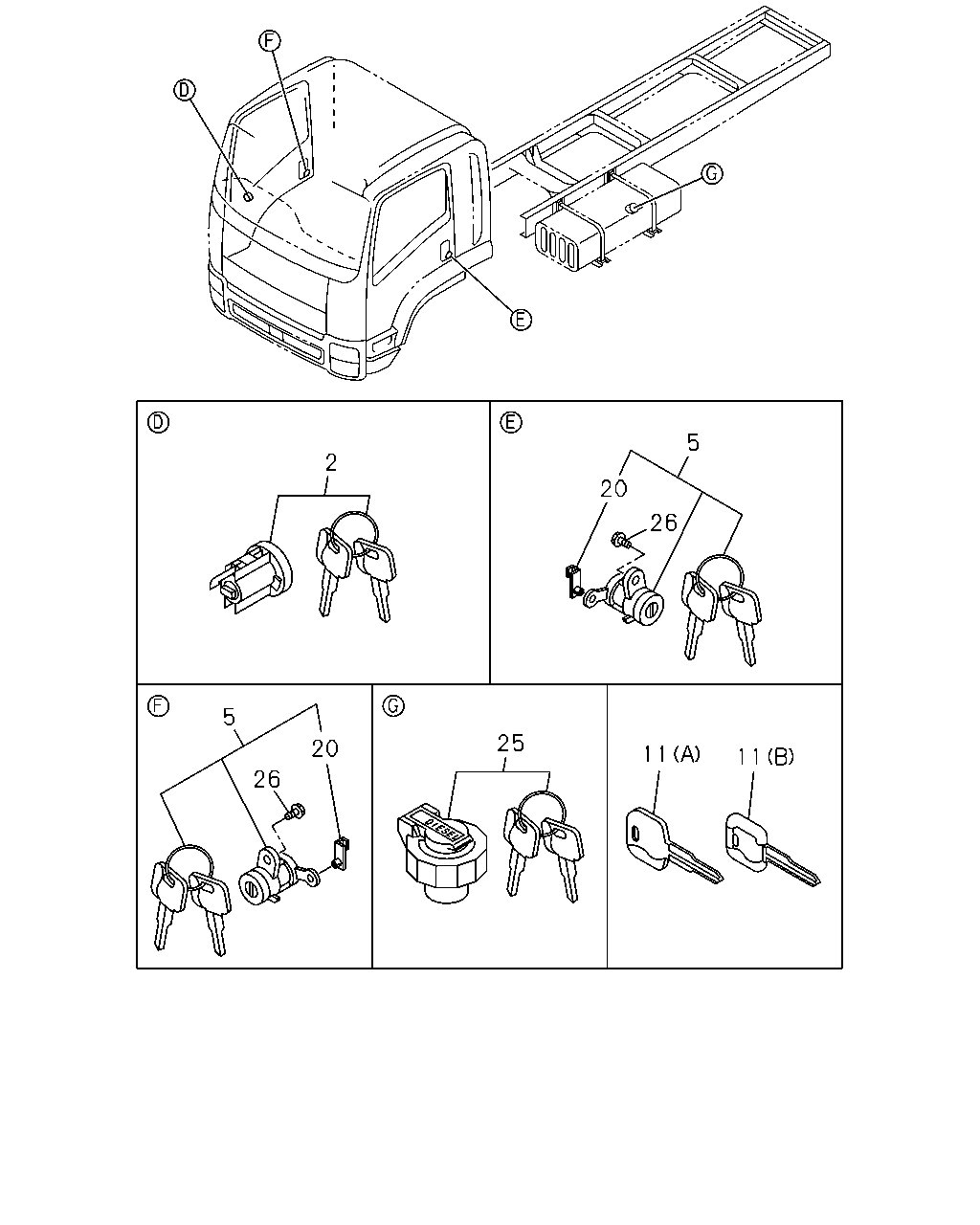

çizim 503030

2 20 5 26 11 11 25 20 26 5

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	BARREL ASM; W/KEY,STRG LOCK	8-98201-341-0	01	1	1511-	●	●
	5	CYLINDER ASM; DOOR LOCK	8-98055-149-0	01	1	1511-	●	●
	5	CYLINDER ASM; DOOR LOCK	8-98055-150-0	01	1	1511-	●	●
	11	KEY; BLANK (B) IMMOBILIZER	8-98055-168-0	AR	1	1511-	●	●
	11	KEY; BLANK (A)	8-98055-170-0	AR	1	1511-	●	●
	20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1511-	●	●
	20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1511-	●	●
	25	CAP; FUEL TANK,W/KEY FUEL TANK 200L FRAME SIDE<N20>	8-98146-010-0	01	1	1511-	●	●
	26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1511-	●	●

çizim 503060

1 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	CYLINDER SET; CAR LOCK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98201-214-0	01	1	1511-	●	●
	1	CYLINDER SET; CAR LOCK FUEL TANK 400L<SDH> (B)	8-98201-160-0	01	1	1511-	●	●
