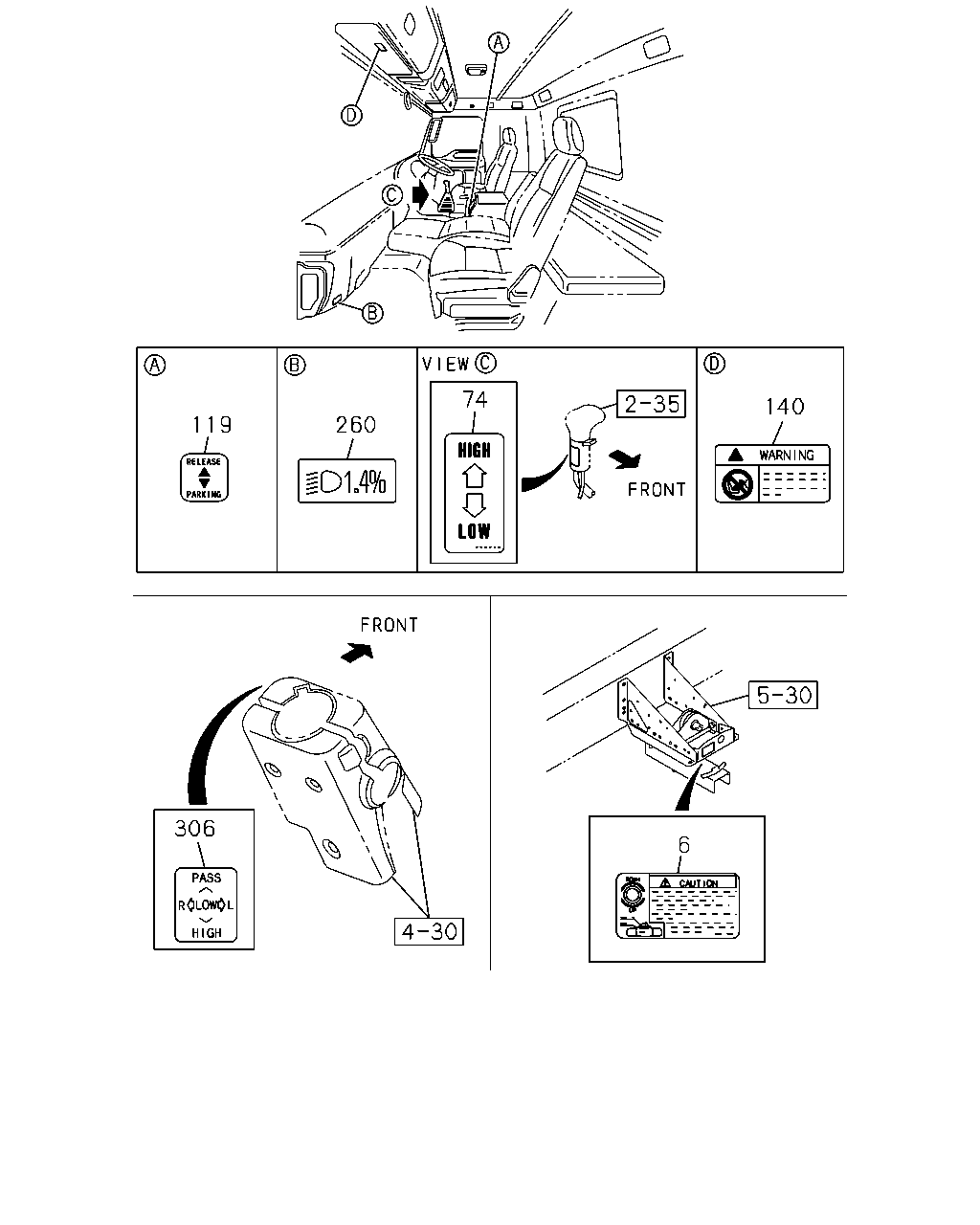

7-10 — CAUTION PLATE AND LABEL (#170106) — 9 parça

160 49 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	PLATE; CAUTION,CAB	8-98017-667-1	01	1	1511-	●	●
49	PLATE; CAUTION,FUSE BOX	8-98305-918-1	01	1	1511-	●	●
160	PLATE; CAUTION,TOWING ZF9S1110 M/T(Y5E)	1-85888-737-1	01	1	1511-	●	●

140 74 260 119 306 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	8-98082-437-0	01	1	1511-	●	●
74	PLATE; CAUTION,CHANGE LEV ZF9S1110 M/T(Y5E)	8-98118-493-0	01	1	1511-	●	●
119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	1511-	●	●
140	PLATE; CAUTION,SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98080-839-0	02	1	1511-	●	●
260	PLATE; CAUTION,HEAD LAMP LEVELING	8-98008-779-0	01	1	1511-	●	●
306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1511-	●	●
