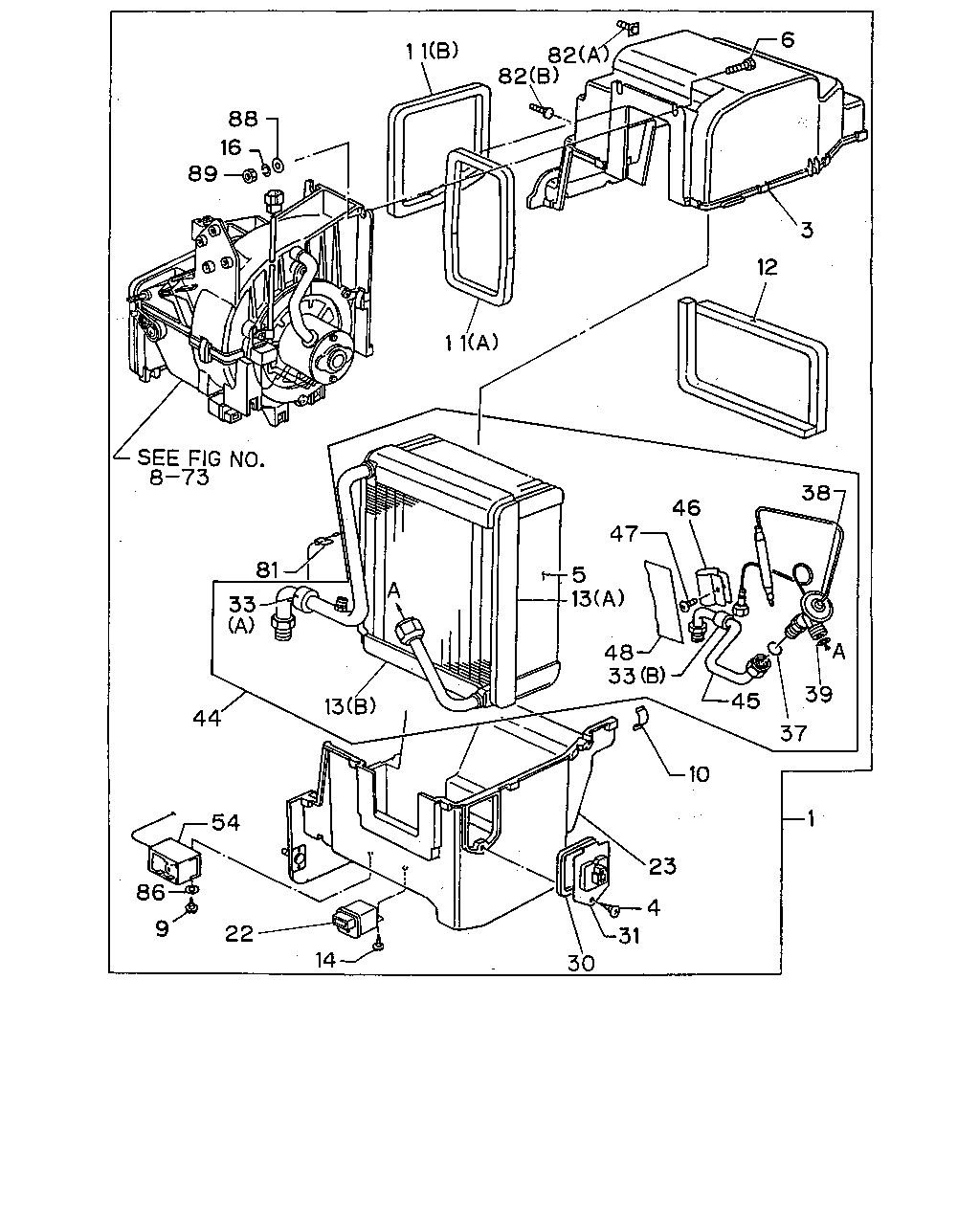

8-74 — EVAPORATOR (#1701) — 35 parça

88 16 89 11 82 82 6 3 12 11 81 33 44 54 86 9 22 14 13 5 13 47 46 38 39 37 48 33 45 1 10 23 4 31 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONTROL<C60>	1-83541-071-6	01	1	9207-	●	●
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONTROL<C60>	1-83564-173-0	01	1	9207-	●	●
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONTROL<C60>	0-71181-414-0	01	1	9207-	●	●
5	EVAPORATOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83562-040-3	01	1	9207-	●	●
6	BOLT; EVAP TO BLOWER UNIT AIR CONDITIONER MANUAL CONTROL<C60>	9-02046-622-0	02	1	9207-	●	●
9	SCREW; THERMOSTAT TO CASE AIR CONDITIONER MANUAL CONTROL<C60> M5X16	8-94248-820-0	01	1	9207-	●	●
10	CLIP; EVAP CASE AIR CONDITIONER MANUAL CONTROL<C60>	8-94315-776-0	10	1	9207-	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83579-172-0	01	1	9207-	●	●
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83579-238-0	01	1	9207-	●	●
12	LINING; EVAP AIR CONDITIONER MANUAL CONTROL<C60>	1-83579-173-0	02	1	9207-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83579-166-0	02	1	9207-	●	●
13	SEAL; EVAP AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83579-167-0	02	1	9207-	●	●
14	SCREW; RELAY TO BRKT AIR CONDITIONER MANUAL CONTROL<C60> M5X16	8-94248-820-0	03	1	9207-	●	●
16	WASHER; LK,EVAP TO BLOWER UNIT AIR CONDITIONER MANUAL CONTROL<C60> ID=6.1	9-09150-506-0	02	1	9207-	●	●
22	RELAY; A/C AIR CONDITIONER MANUAL CONTROL<C60> 24V	1-83579-177-0	03	1	9207-	●	●
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONTROL<C60>	1-83564-204-0	01	1	9207-	●	●
30	LINING; EVAP RESISTOR AIR CONDITIONER MANUAL CONTROL<C60>	1-83579-368-0	01	1	9207-	●	●
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONTROL<C60>	1-83519-028-1	01	1	9207-	●	●
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83579-168-0	01	1	9207-	●	●
33	LINING; EVAP AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83579-169-0	01	1	9207-	●	●
37	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL<C60> ID=7.65	8-94113-332-0	01	1	9207-	●	●
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL<C60>	1-83579-165-0	01	1	9207-	●	●
39	GASKET; EVAP AIR CONDITIONER MANUAL CONTROL<C60>	1-09623-517-0	01	1	9207-	●	●
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83562-039-2	01	1	9207-	●	●
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL<C60>	1-83567-222-1	01	1	9207-	●	●
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONTROL<C60>	1-83574-124-0	01	1	9207-	●	●
47	SCREW; EVAP AIR CONDITIONER MANUAL CONTROL<C60> M5X14	8-94244-002-0	01	1	9207-	●	●
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONTROL<C60>	5-83579-024-0	01	1	9207-	●	●
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONTROL<C60>	1-83579-283-0	01	1	9207-	●	●
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONTROL<C60>	8-94122-018-0	01	1	9207-	●	●
82	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83579-175-0	01	1	9207-	●	●
82	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83579-176-0	01	1	9207-	●	●
86	WASHER; THERMOSTAT AIR CONDITIONER MANUAL CONTROL<C60>	1-83579-170-0	01	1	9207-	●	●
88	WASHER; PL,EVAP TO BLOWER UNIT AIR CONDITIONER MANUAL CONTROL<C60> ID=6.4 OD=14	9-09160-606-0	04	1	9207-	●	●
89	NUT; EVAP TO BLOWER UNIT AIR CONDITIONER MANUAL CONTROL<C60> M6	9-09110-406-0	02	1	9207-	●	●
