◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11719 - FVZ AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#170098) — 10 parça

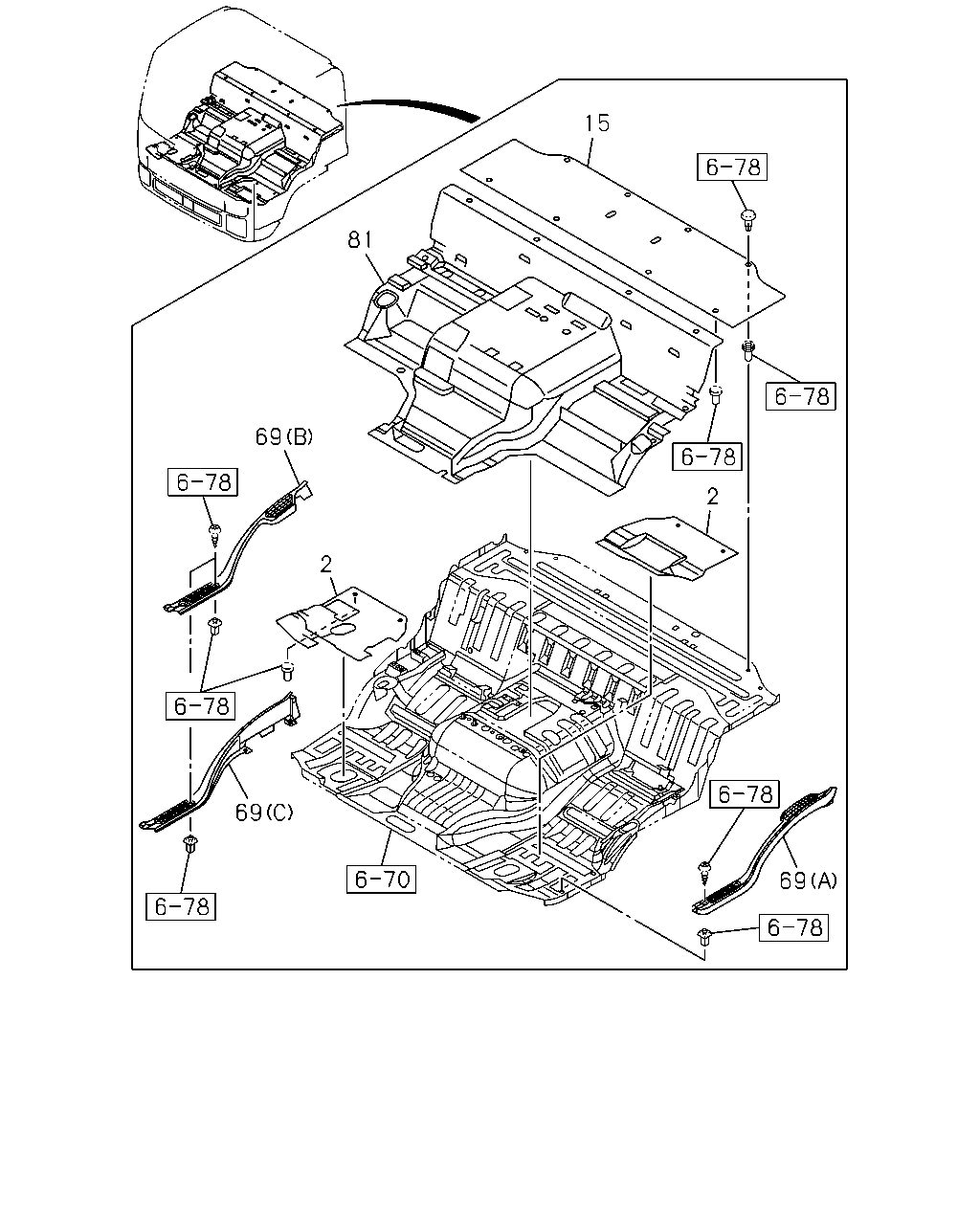

çizim 502738
15 81 2 69 2 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
GRAY 		8-97407-746-5 01 1 1511- ● ●
2 MAT; FLOOR
GRAY 		8-97407-747-2 01 1 1511- ● ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1511- ● ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 1511- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97407-413-1 01 1 1511- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97465-138-0 01 1 1511- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97407-412-1 01 1 1511- ● ●
81 MAT; FLOOR,CENTER
ALLISON MD3560P A/T(Y3B) DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97414-504-3 01 1 1511- ● ●
81 MAT; FLOOR,CENTER
ALLISON MD3560P A/T(Y3B) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> GRAY 		8-97425-303-0 01 1 1511- ● ●
81 MAT; FLOOR,CENTER
ZF9S1110 M/T(Y5E) GRAY 		8-97411-647-3 01 1 1511- ● ●
