◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11719 - FVZ AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#170097) — 65 parça

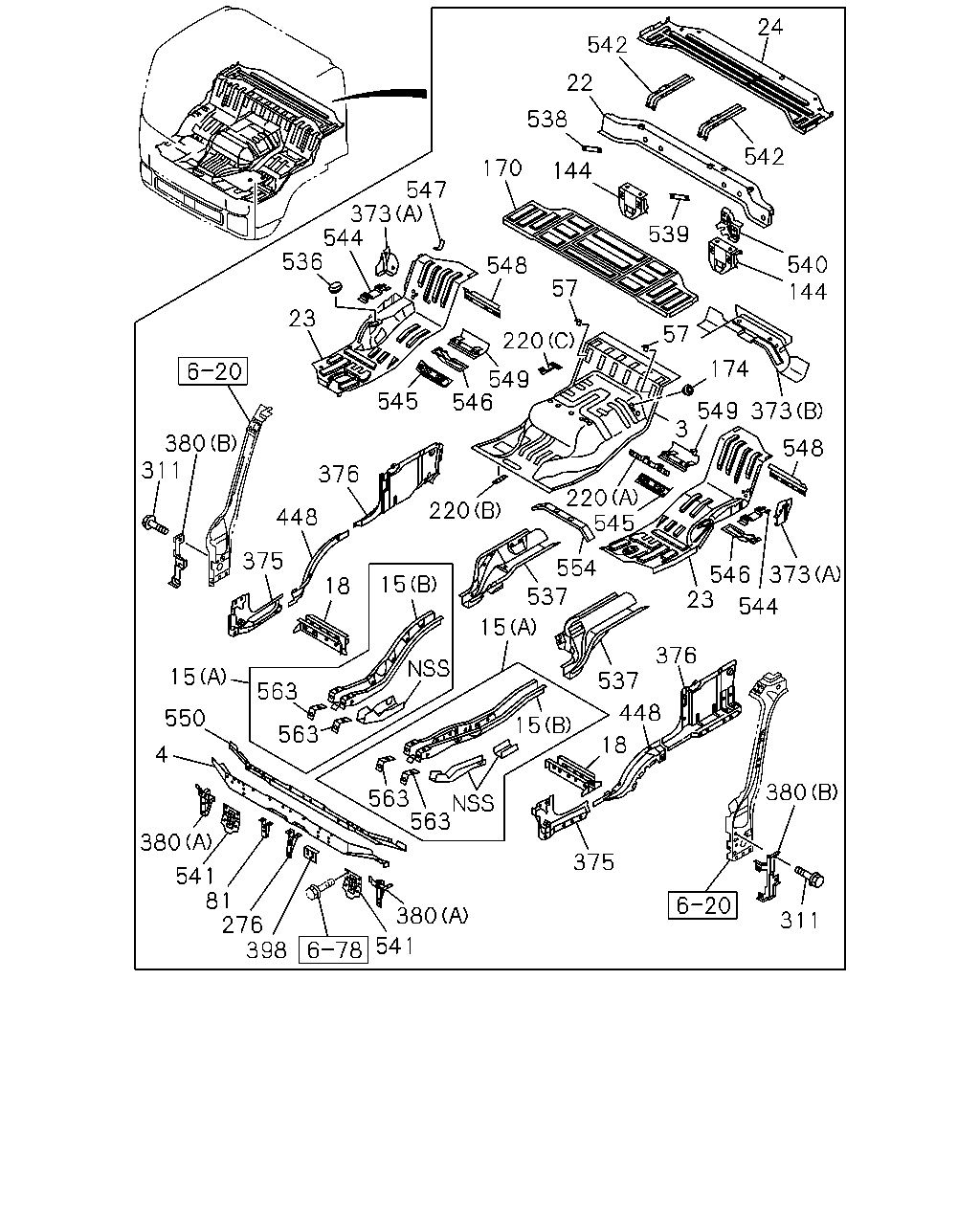

çizim 503678
373 544 376 537 448 18 375 563 563 380 541 81 276 398 380 380 546 554 537 15 15 220 376 448 380 311 375 15 550 4 563 563 220 545 549 174 548 373 144 540 542 24 542 22 538 170 547 373 544 536 23 546 549 220 548 144 539 15 311 57 57 18 541 545 23 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98228-265-0 01 1 1511- ● ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-4 01 1 1511- ● ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-359-4 01 1 1511- ● ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-360-4 01 1 1511- ● ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1511- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1511- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1511- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1511- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1511- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1511- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1511- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 1511- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1511- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1511- ● ●
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1511- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1511- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1511- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1511- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1511- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1511- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1511- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1511- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1511- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1511- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1511- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1511- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1511- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1511- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98050-188-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97584-373-1 01 1 1511- ● ●
545 BRACKET; SEAT FRT
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97584-373-1 01 1 1511- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1511- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1511- ● ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1511- ● ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1511- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1511- ● ●
549 BRACKET; SEAT RR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98050-189-1 01 1 1511- ● ●
549 BRACKET; SEAT RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97588-958-4 01 1 1511- ● ●
549 BRACKET; SEAT RR
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97588-958-4 01 1 1511- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1511- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1511- ● ●
