Sayfa 5-30 - Isuzu EPC

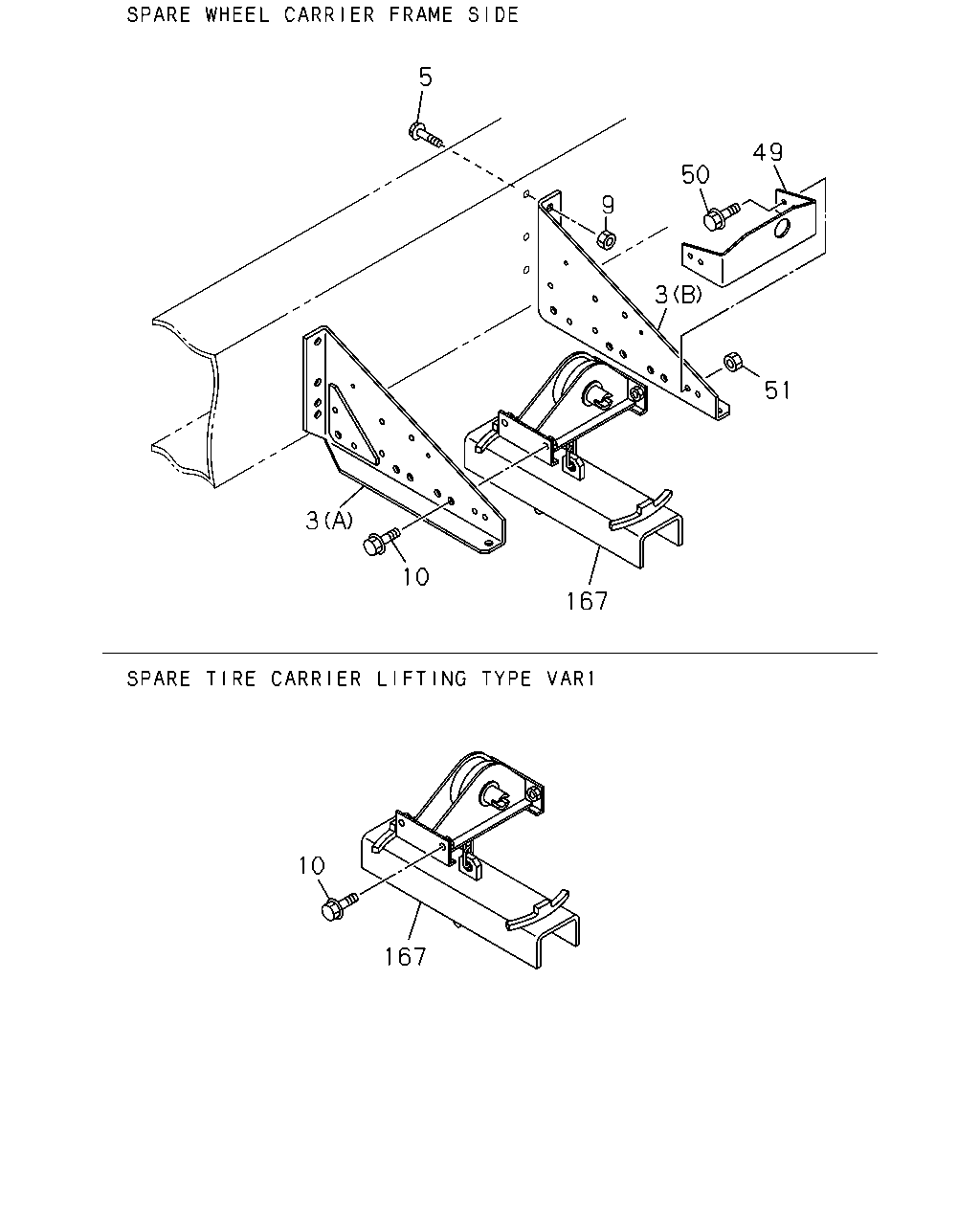

5-30 — SPARE TIRE CARRIER AND COVER (#170082) — 9 parça

5 9 50 49 3 51 167 10 3 10 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	8-98106-690-0	01	1	1511-	●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	8-98106-691-0	01	1	1511-	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28051-245-0	06	1	1511-	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	06	1	1511-	●	●
10	BOLT; TIRE HANGER M12X30 FLANGE	0-28651-230-0	04	1	1511-	●	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-466-1	01	1	1511-	●	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28650-830-0	04	1	1511-	●	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
167	HANGER; TIRE SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	1-53630-210-4	01	1	1511-	●	●
