5-15 — CAB MOUNTING; CAB SIDE (#170078) — 39 parça

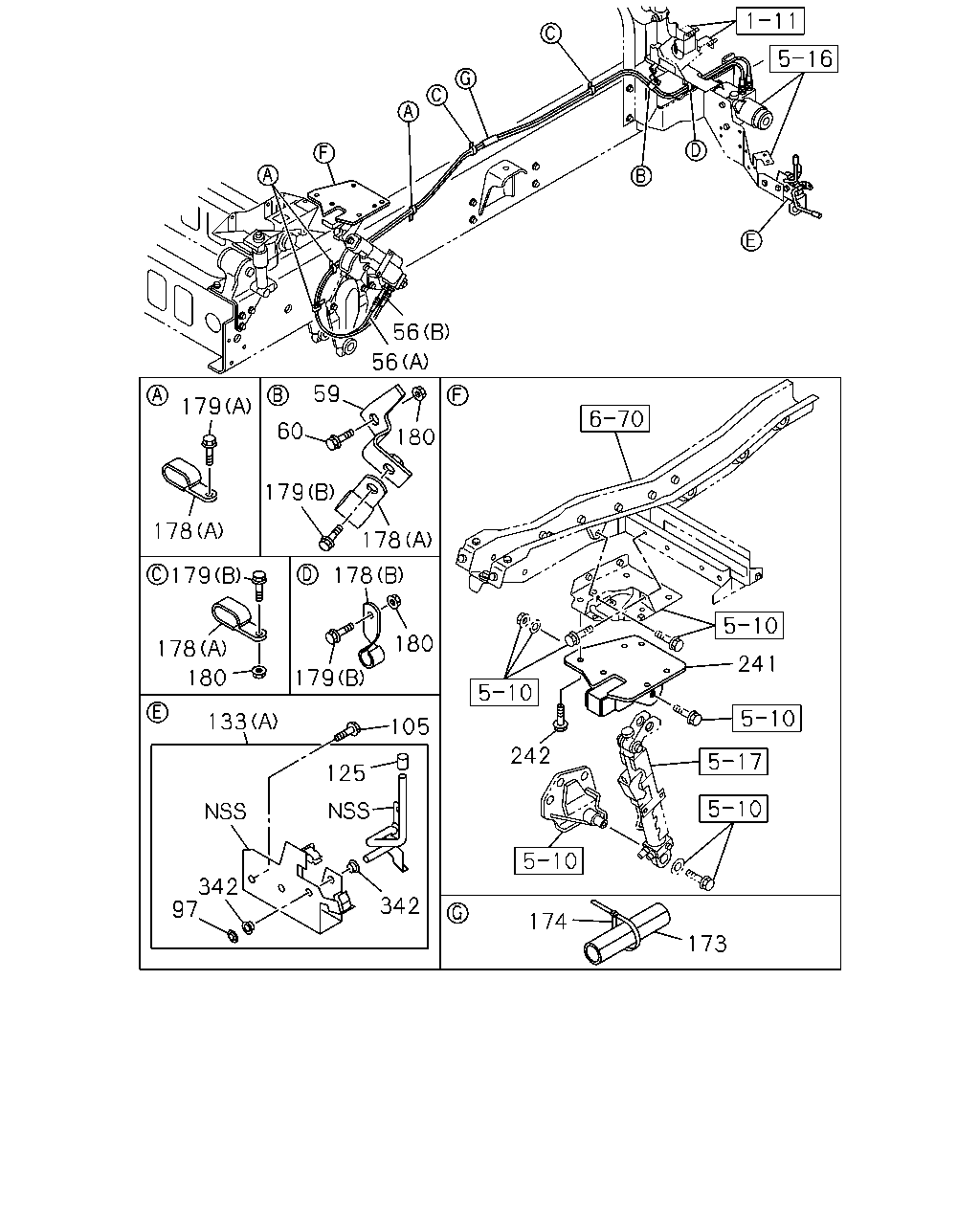

çizim 502297
56 56 59 60 179 178 178 180 179 180 178 179 179 174 173 125 342 342 133 105 97 178 242 241 180
BalonParca AdiParca NoAdetTipApplied Date A B
56 HOSE; FLEX,OIL PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=2420 		8-98328-149-0 01 1 1511- ● ●
56 HOSE; FLEX,OIL PIPE
(B) L=2430 		8-98328-150-0 01 1 1511- ● ●
59 BRACKET; CLIP 8-98083-608-1 01 1 1511- ● ●
60 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
97 NUT; CAB STAY PIN
ID=9.9 PUSH NUT 		8-97022-566-0 01 1 1511- ● ●
105 BOLT; CAB STAY
M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ●
125 GRIP; HAND LEVER,CAB LOCK
ID=9.0 		8-94207-303-0 01 1 1511- ● ●
133 LOCK ASM; CAB
(A) 		8-97608-198-0 01 1 1511- ● ●
133 LOCK ASM; CAB
(C) 		8-98094-285-2 01 1 1511- ● ●
133 LOCK ASM; CAB
(B) 		8-98061-489-1 01 1 1511- ● ●
173 SLEEVE; RUBBER,FLEX HOSE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 1511- ● ●
174 CLIP; BAND,FLEX HOSE
L=140 		5-09707-031-1 01 1 1511- ● ●
178 CLIP; FLEX HOSE
(A) ID=11X2 L=20 		0-95325-035-0 06 1 1511- ● ●
178 CLIP; FLEX HOSE
(B) ID=19 L=58 		1-09700-733-1 01 1 1511- ● ●
179 BOLT; CLIP,FLEX HOSE
(B) M8X20 FLANGE 		0-28650-820-0 04 1 1511- ● ●
179 BOLT; CLIP,FLEX HOSE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1511- ● ●
180 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
180 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
241 BRACKET; POWER CYL UPR,CAB TILT 8-98022-417-1 01 1 1511- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
M10X30 FLANGE 		0-28661-030-0 05 1 1511- ● ●
342 BUSHING; LEVER,CAB LOCK
T=6 OD=17.5 		9-33659-249-0 02 1 1511- ● ●

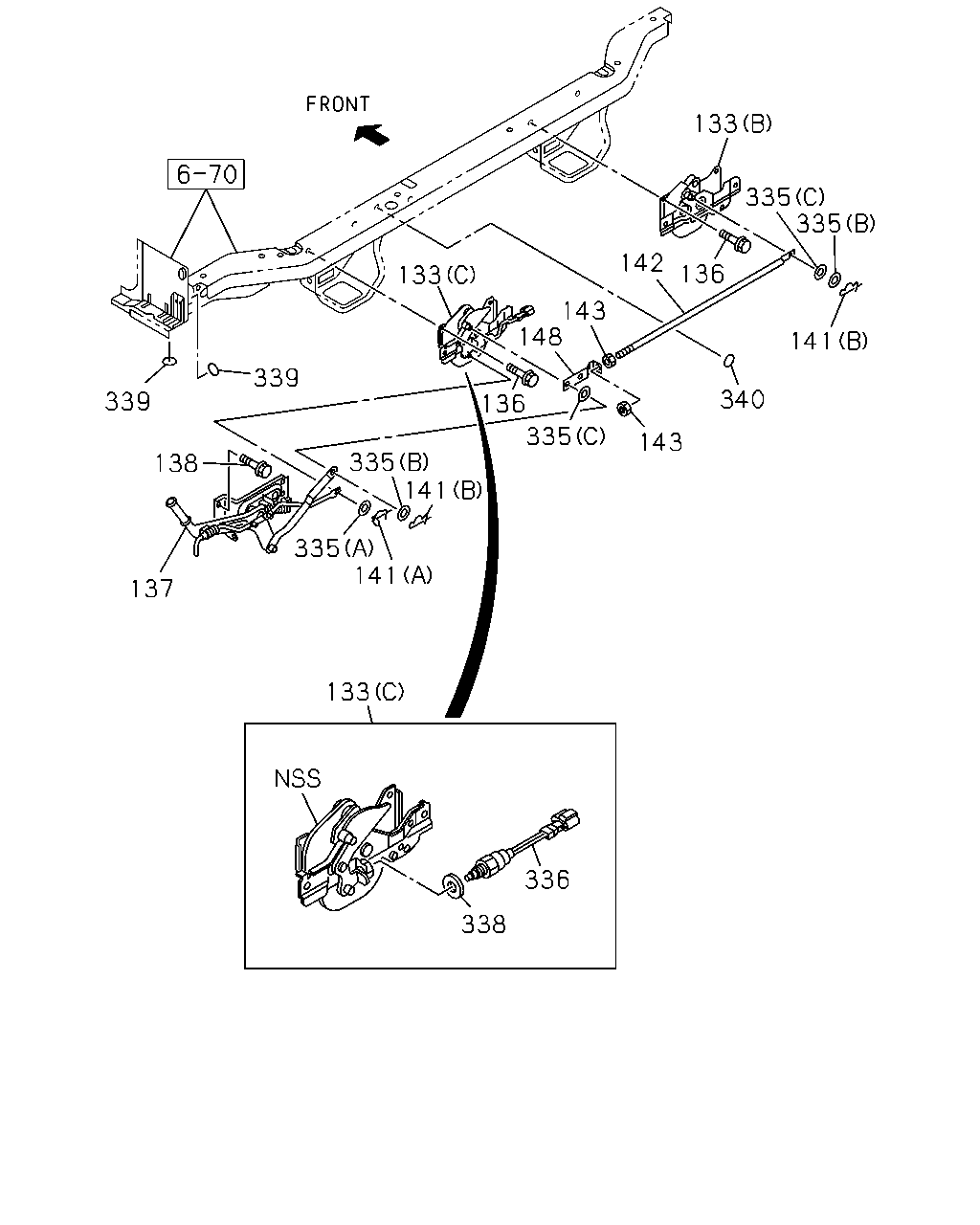

çizim 502423
133 335 136 141 142 340 143 148 143 335 136 133 339 339 138 137 335 141 335 141 133 338 336 335
BalonParca AdiParca NoAdetTipApplied Date A B
133 LOCK ASM; CAB
(A) 		8-97608-198-0 01 1 1511- ● ●
133 LOCK ASM; CAB
(C) 		8-98094-285-2 01 1 1511- ● ●
133 LOCK ASM; CAB
(B) 		8-98061-489-1 01 1 1511- ● ●
136 BOLT; CAB LK
M8X20 FLANGE 		0-28650-820-0 08 1 1511- ● ●
137 CONTROL UNIT; CAB LOCK 8-97587-592-5 01 1 1511- ● ●
138 BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE 		0-28650-820-0 04 1 1511- ● ●
141 PIN; SNAP,CAB LOCK ROD
(A) L=25.3 		8-98039-045-1 01 1 1511- ● ●
141 PIN; SNAP,CAB LOCK ROD
(B) L=32.6 		8-98062-280-0 02 1 1511- ● ●
142 ROD; HOOK TO HOOK 8-97587-990-0 01 1 1511- ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
M10 		0-91110-510-0 02 1 1511- ● ●
148 JOINT; JAW,HOOK TO HOOK 8-97410-736-0 01 1 1511- ● ●
335 WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16 		0-91610-508-0 01 1 1511- ● ●
335 WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26 		0-91610-612-0 02 1 1511- ● ●
335 WASHER; CAB LOCK ROD
(C) ID=13 OD=22 		8-98060-839-0 02 1 1511- ● ●
336 SWITCH; CAB LOCK 8-98091-155-1 01 1 1511- ● ●
338 WASHER; CAB LOCK
ID=17 OD=30 		0-91610-516-0 01 1 1511- ● ●
339 SEAL; TILT HANDLE
OD=25 BLACK 		1-76798-019-0 04 1 1511- ● ●
340 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1511- ● ●
