Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#170076) — 271 parça

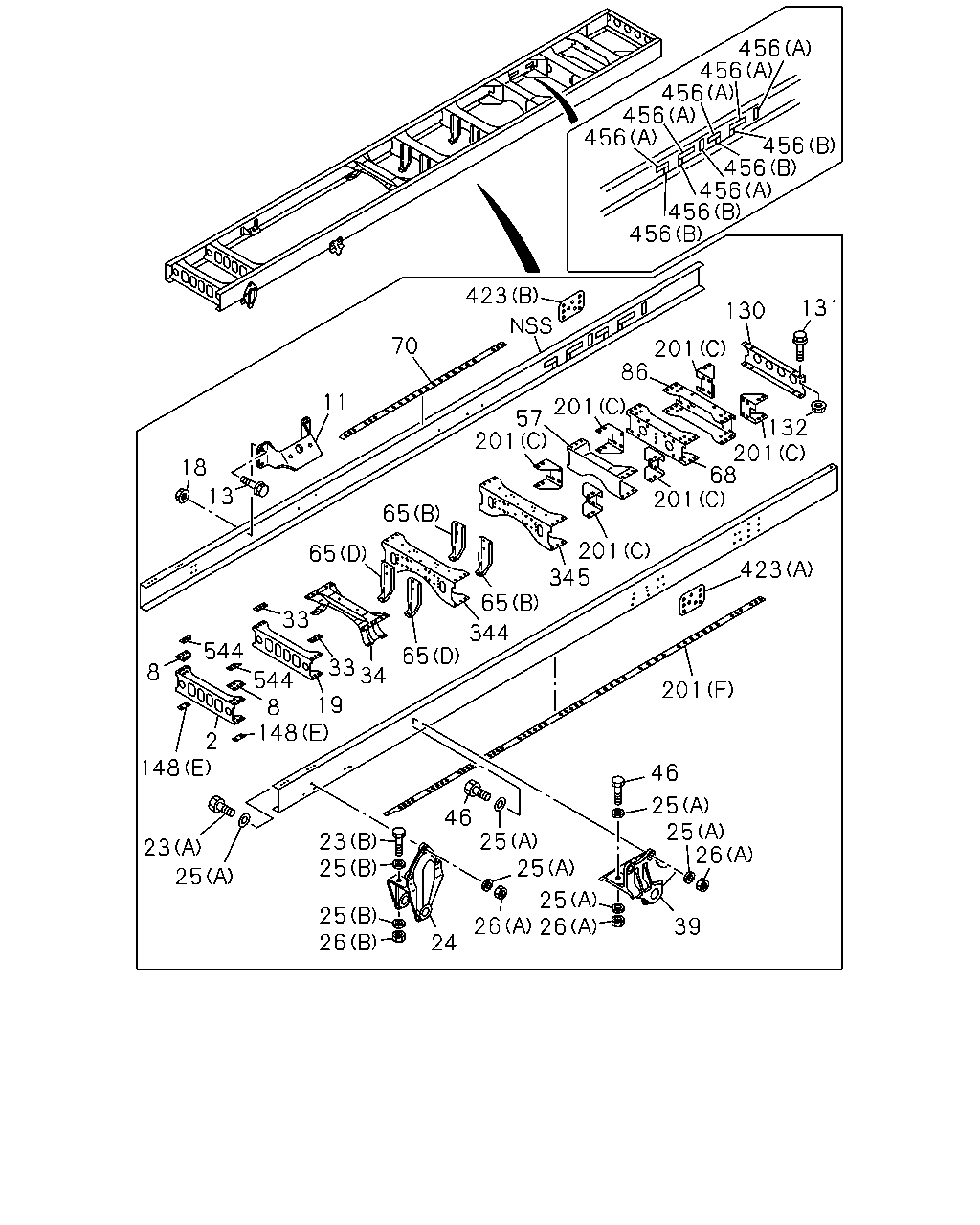

456 456 456 456 456 456 456 456 456 456 423 70 201 86 201 130 131 132 201 68 201 423 201 46 25 25 26 25 46 25 25 26 26 39 23 25 25 26 24 65 344 345 201 201 57 65 65 33 33 34 65 544 8 148 19 544 8 18 11 13 148 23 25 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1511-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1511-	●	●	●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1511-	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1511-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1511-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1511-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1511-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1511-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1511-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1511-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1511-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1511-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1511-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1511-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1511-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1511-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1511-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1511-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1511-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1511-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	1511-	●	●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (B)	8-97611-329-0	02	1	1511-	●		●
65	BRACKET; CENTER BRG (D)	8-97614-128-0	02	1	1511-			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-126-0	02	1	1511-	●
65	BRACKET; CENTER BRG (A)	8-97614-150-0	02	1	1511-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97614-133-0	02	1	1511-			●
68	MEMBER; CROSS,RR SUSP CTR AIR SUS(FGY***)	8-97612-105-4	01	1	1511-	●		●
70	GUSSET; TRUNNION,UPR AIR SUS(FGY***)	8-97620-007-0	02	1	1511-	●		●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGZ***)	8-97612-106-0	02	1	1511-	●		●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	1511-		●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	1511-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1511-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1511-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1511-	●	●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1511-	●	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	02	1	1511-	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-97612-111-0	04	1	1511-	●		●
148	SPACER; C/MBR (C)	8-97612-111-0	04	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (A)	8-97612-112-0	02	1	1511-	●		●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (B)	8-97612-113-0	02	1	1511-	●		●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	04	1	1511-			●
201	GUSSET; C/MBR AIR SUS(FGY***) (E)	8-97638-247-0	02	1	1511-	●
201	GUSSET; C/MBR AIR SUS(FGY***) (C)	8-97619-807-3	06	1	1511-	●		●
201	GUSSET; C/MBR AIR SUS(FGY***) (F)	8-97620-292-1	02	1	1511-			●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (B)	8-97612-108-2	02	1	1511-	●		●
201	GUSSET; C/MBR (B)	8-97612-108-2	02	1	1511-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (A)	8-97620-294-3	02	1	1511-	●
201	GUSSET; C/MBR (A)	8-97620-394-3	02	1	1511-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (D)	8-97622-259-2	02	1	1511-			●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-97645-412-1	01	1	1511-	●		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97639-429-0	01	1	1511-	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1511-		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1511-			●
345	MEMBER; CROSS,5TH AIR SUS(FGY***)	8-97645-413-0	01	1	1511-			●
345	MEMBER; CROSS,5TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1511-			●
423	PATCH AIR SUS(FGY***) (A)	8-97619-809-0	01	1	1511-	●		●
423	PATCH AIR SUS(FGY***) (B)	8-97619-810-0	01	1	1511-	●		●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97642-212-0	12	1	1511-	●		●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97642-213-0	08	1	1511-	●		●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1511-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1511-			●

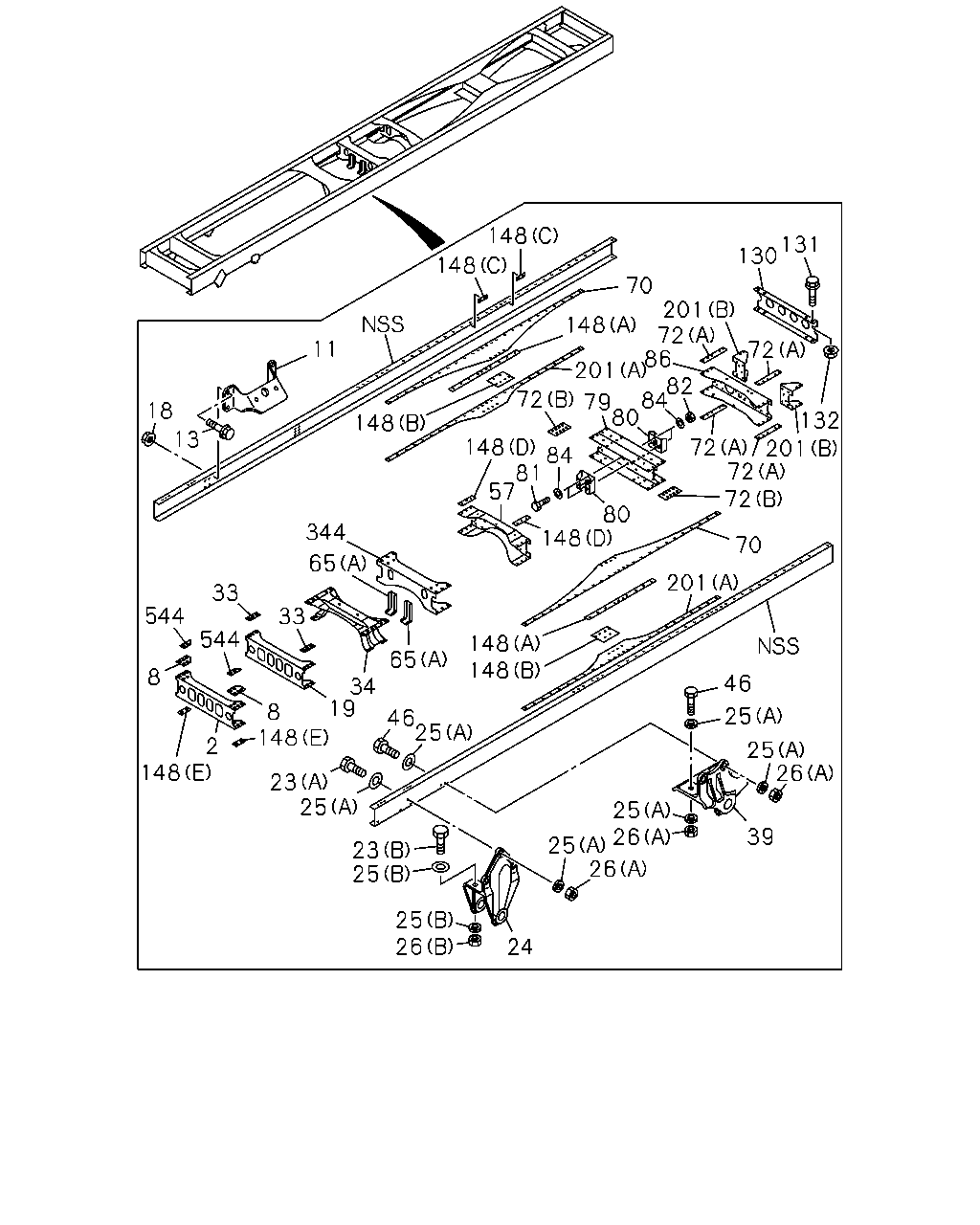

26 25 25 46 201 72 72 72 201 132 72 130 131 70 201 72 86 84 82 80 79 201 148 148 148 11 148 148 80 148 57 81 84 72 25 39 26 25 26 25 26 24 23 23 23 25 148 8 8 544 33 544 148 33 70 2 18 13 65 34 19 148 148 46 25 344 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1511-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1511-	●	●	●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1511-	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1511-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1511-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1511-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1511-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1511-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1511-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1511-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1511-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1511-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1511-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1511-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1511-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1511-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1511-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1511-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1511-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1511-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	1511-	●	●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (B)	8-97611-329-0	02	1	1511-	●		●
65	BRACKET; CENTER BRG (D)	8-97614-128-0	02	1	1511-			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-126-0	02	1	1511-	●
65	BRACKET; CENTER BRG (A)	8-97614-150-0	02	1	1511-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97614-133-0	02	1	1511-			●
70	GUSSET; TRUNNION,UPR AIR SUS(FGY***)	8-97620-007-0	02	1	1511-	●		●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGZ***)	8-97612-106-0	02	1	1511-	●		●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	1511-		●
72	SPACER; TRUNNION LEAF SUS(FGZ***) (B)	8-97619-805-0	02	1	1511-	●
72	SPACER; TRUNNION (B)	8-97619-805-0	02	1	1511-		●
72	SPACER; TRUNNION LEAF SUS(FGZ***) (A)	8-97612-110-0	04	1	1511-	●		●
72	SPACER; TRUNNION (A)	8-97612-110-0	04	1	1511-		●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	8-97612-484-1	01	1	1511-	●		●
79	MEMBER; CROSS,TRUNNION ASM	8-97612-484-1	01	1	1511-		●
80	BRACKET; C/MBR LEAF SUS(FGZ***)	1-53363-068-0	02	1	1511-	●		●
80	BRACKET; C/MBR	1-53363-068-0	02	1	1511-		●
81	BOLT; BRKT LEAF SUS(FGZ***) M14X50	0-10956-450-0	02	1	1511-	●		●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	1511-		●
82	NUT; BRKT LEAF SUS(FGZ***) M14	0-91110-514-0	02	1	1511-	●		●
82	NUT; BRKT M14	0-91110-514-0	02	1	1511-		●
84	WASHER; PL,BRKT LEAF SUS(FGZ***) ID=15	8-98010-627-1	04	1	1511-	●		●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1511-		●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	1511-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1511-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1511-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1511-	●	●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1511-	●	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	02	1	1511-	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-97612-111-0	04	1	1511-	●		●
148	SPACER; C/MBR (C)	8-97612-111-0	04	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (A)	8-97612-112-0	02	1	1511-	●		●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (B)	8-97612-113-0	02	1	1511-	●		●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	04	1	1511-			●
201	GUSSET; C/MBR AIR SUS(FGY***) (E)	8-97638-247-0	02	1	1511-	●
201	GUSSET; C/MBR AIR SUS(FGY***) (C)	8-97619-807-3	06	1	1511-	●		●
201	GUSSET; C/MBR AIR SUS(FGY***) (F)	8-97620-292-1	02	1	1511-			●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (B)	8-97612-108-2	02	1	1511-	●		●
201	GUSSET; C/MBR (B)	8-97612-108-2	02	1	1511-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (A)	8-97620-294-3	02	1	1511-	●
201	GUSSET; C/MBR (A)	8-97620-394-3	02	1	1511-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (D)	8-97622-259-2	02	1	1511-			●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-97645-412-1	01	1	1511-	●		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97639-429-0	01	1	1511-	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1511-		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1511-			●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1511-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1511-			●

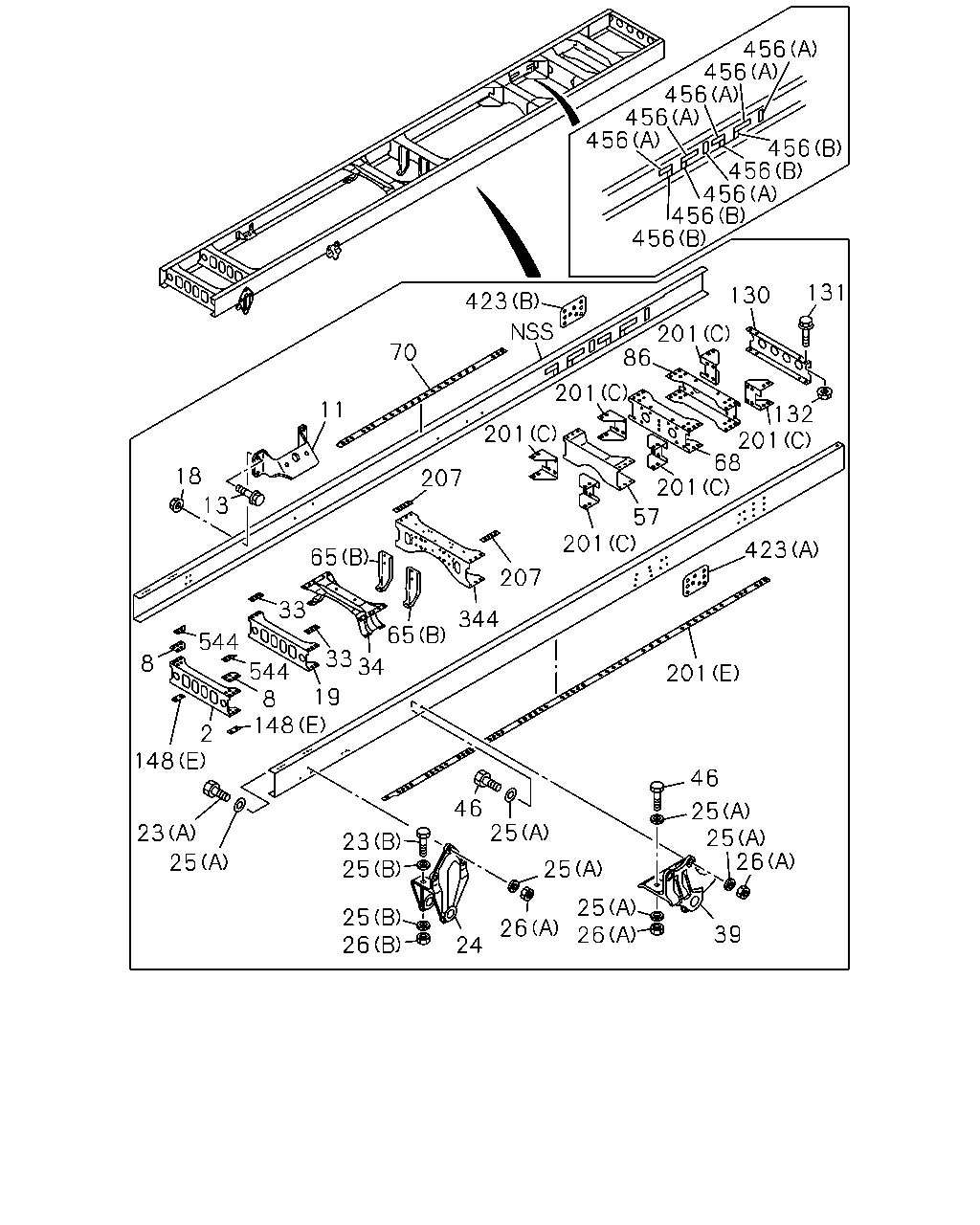

148 70 130 131 72 201 148 201 79 80 84 82 86 72 132 201 72 70 72 80 148 201 148 148 57 81 84 148 148 65 11 13 18 544 33 33 544 8 65 65 344 345 148 46 25 25 26 39 25 26 25 26 23 25 25 25 23 148 8 19 34 65 46 25 148 2 26 24 148 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1511-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1511-	●	●	●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1511-	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1511-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1511-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1511-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1511-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1511-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1511-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1511-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1511-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1511-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1511-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1511-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1511-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1511-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1511-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1511-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1511-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1511-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	1511-	●	●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (B)	8-97611-329-0	02	1	1511-	●		●
65	BRACKET; CENTER BRG (D)	8-97614-128-0	02	1	1511-			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-126-0	02	1	1511-	●
65	BRACKET; CENTER BRG (A)	8-97614-150-0	02	1	1511-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97614-133-0	02	1	1511-			●
70	GUSSET; TRUNNION,UPR AIR SUS(FGY***)	8-97620-007-0	02	1	1511-	●		●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGZ***)	8-97612-106-0	02	1	1511-	●		●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	1511-		●
72	SPACER; TRUNNION LEAF SUS(FGZ***) (B)	8-97619-805-0	02	1	1511-	●
72	SPACER; TRUNNION (B)	8-97619-805-0	02	1	1511-		●
72	SPACER; TRUNNION LEAF SUS(FGZ***) (A)	8-97612-110-0	04	1	1511-	●		●
72	SPACER; TRUNNION (A)	8-97612-110-0	04	1	1511-		●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	8-97612-484-1	01	1	1511-	●		●
79	MEMBER; CROSS,TRUNNION ASM	8-97612-484-1	01	1	1511-		●
80	BRACKET; C/MBR LEAF SUS(FGZ***)	1-53363-068-0	02	1	1511-	●		●
80	BRACKET; C/MBR	1-53363-068-0	02	1	1511-		●
81	BOLT; BRKT LEAF SUS(FGZ***) M14X50	0-10956-450-0	02	1	1511-	●		●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	1511-		●
82	NUT; BRKT LEAF SUS(FGZ***) M14	0-91110-514-0	02	1	1511-	●		●
82	NUT; BRKT M14	0-91110-514-0	02	1	1511-		●
84	WASHER; PL,BRKT LEAF SUS(FGZ***) ID=15	8-98010-627-1	04	1	1511-	●		●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1511-		●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	1511-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1511-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1511-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1511-	●	●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1511-	●	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	02	1	1511-	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-97612-111-0	04	1	1511-	●		●
148	SPACER; C/MBR (C)	8-97612-111-0	04	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (A)	8-97612-112-0	02	1	1511-	●		●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (B)	8-97612-113-0	02	1	1511-	●		●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	04	1	1511-			●
201	GUSSET; C/MBR AIR SUS(FGY***) (E)	8-97638-247-0	02	1	1511-	●
201	GUSSET; C/MBR AIR SUS(FGY***) (C)	8-97619-807-3	06	1	1511-	●		●
201	GUSSET; C/MBR AIR SUS(FGY***) (F)	8-97620-292-1	02	1	1511-			●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (B)	8-97612-108-2	02	1	1511-	●		●
201	GUSSET; C/MBR (B)	8-97612-108-2	02	1	1511-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (A)	8-97620-294-3	02	1	1511-	●
201	GUSSET; C/MBR (A)	8-97620-394-3	02	1	1511-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (D)	8-97622-259-2	02	1	1511-			●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-97645-412-1	01	1	1511-	●		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97639-429-0	01	1	1511-	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1511-		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1511-			●
345	MEMBER; CROSS,5TH AIR SUS(FGY***)	8-97645-413-0	01	1	1511-			●
345	MEMBER; CROSS,5TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1511-			●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1511-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1511-			●

456 456 456 456 456 456 456 456 456 456 130 131 201 86 201 201 70 423 11 18 13 65 33 33 34 19 544 8 148 2 544 8 148 23 25 23 25 25 26 46 65 344 207 207 201 57 201 68 25 25 25 26 26 24 46 201 25 25 26 39 423 201 132

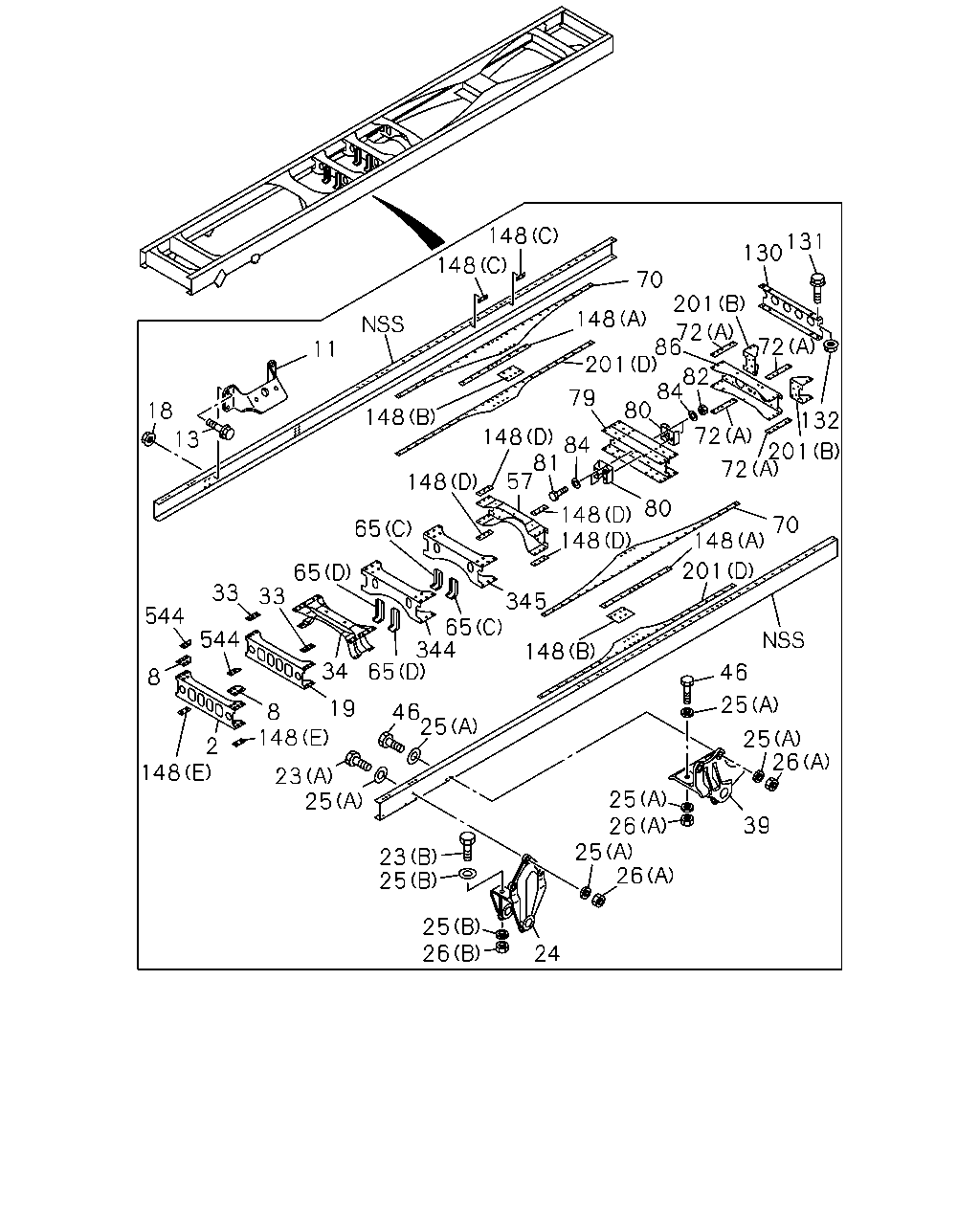

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1511-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1511-	●	●	●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1511-	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1511-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1511-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1511-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1511-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1511-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1511-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1511-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1511-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1511-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1511-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1511-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1511-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1511-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1511-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1511-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1511-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1511-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	1511-	●	●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (B)	8-97611-329-0	02	1	1511-	●		●
65	BRACKET; CENTER BRG (D)	8-97614-128-0	02	1	1511-			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) (A)	8-97614-126-0	02	1	1511-	●
65	BRACKET; CENTER BRG (A)	8-97614-150-0	02	1	1511-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (C)	8-97614-133-0	02	1	1511-			●
68	MEMBER; CROSS,RR SUSP CTR AIR SUS(FGY***)	8-97612-105-4	01	1	1511-	●		●
70	GUSSET; TRUNNION,UPR AIR SUS(FGY***)	8-97620-007-0	02	1	1511-	●		●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGZ***)	8-97612-106-0	02	1	1511-	●		●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	1511-		●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	1511-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1511-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1511-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1511-	●	●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	1511-	●	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	02	1	1511-	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-97612-111-0	04	1	1511-	●		●
148	SPACER; C/MBR (C)	8-97612-111-0	04	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (A)	8-97612-112-0	02	1	1511-	●		●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (B)	8-97612-113-0	02	1	1511-	●		●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	1511-		●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	04	1	1511-			●
201	GUSSET; C/MBR AIR SUS(FGY***) (E)	8-97638-247-0	02	1	1511-	●
201	GUSSET; C/MBR AIR SUS(FGY***) (C)	8-97619-807-3	06	1	1511-	●		●
201	GUSSET; C/MBR AIR SUS(FGY***) (F)	8-97620-292-1	02	1	1511-			●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (B)	8-97612-108-2	02	1	1511-	●		●
201	GUSSET; C/MBR (B)	8-97612-108-2	02	1	1511-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (A)	8-97620-294-3	02	1	1511-	●
201	GUSSET; C/MBR (A)	8-97620-394-3	02	1	1511-		●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (D)	8-97622-259-2	02	1	1511-			●
207	SPACER; 4TH C/MBR AIR SUS(FGY***) 0.25KG	8-97611-244-0	02	1	1511-	●
344	MEMBER; CROSS,4TH AIR SUS(FGY***)	8-97645-412-1	01	1	1511-	●		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97639-429-0	01	1	1511-	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1511-		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1511-			●
423	PATCH AIR SUS(FGY***) (A)	8-97619-809-0	01	1	1511-	●		●
423	PATCH AIR SUS(FGY***) (B)	8-97619-810-0	01	1	1511-	●		●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97642-212-0	12	1	1511-	●		●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97642-213-0	08	1	1511-	●		●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1511-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1511-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
