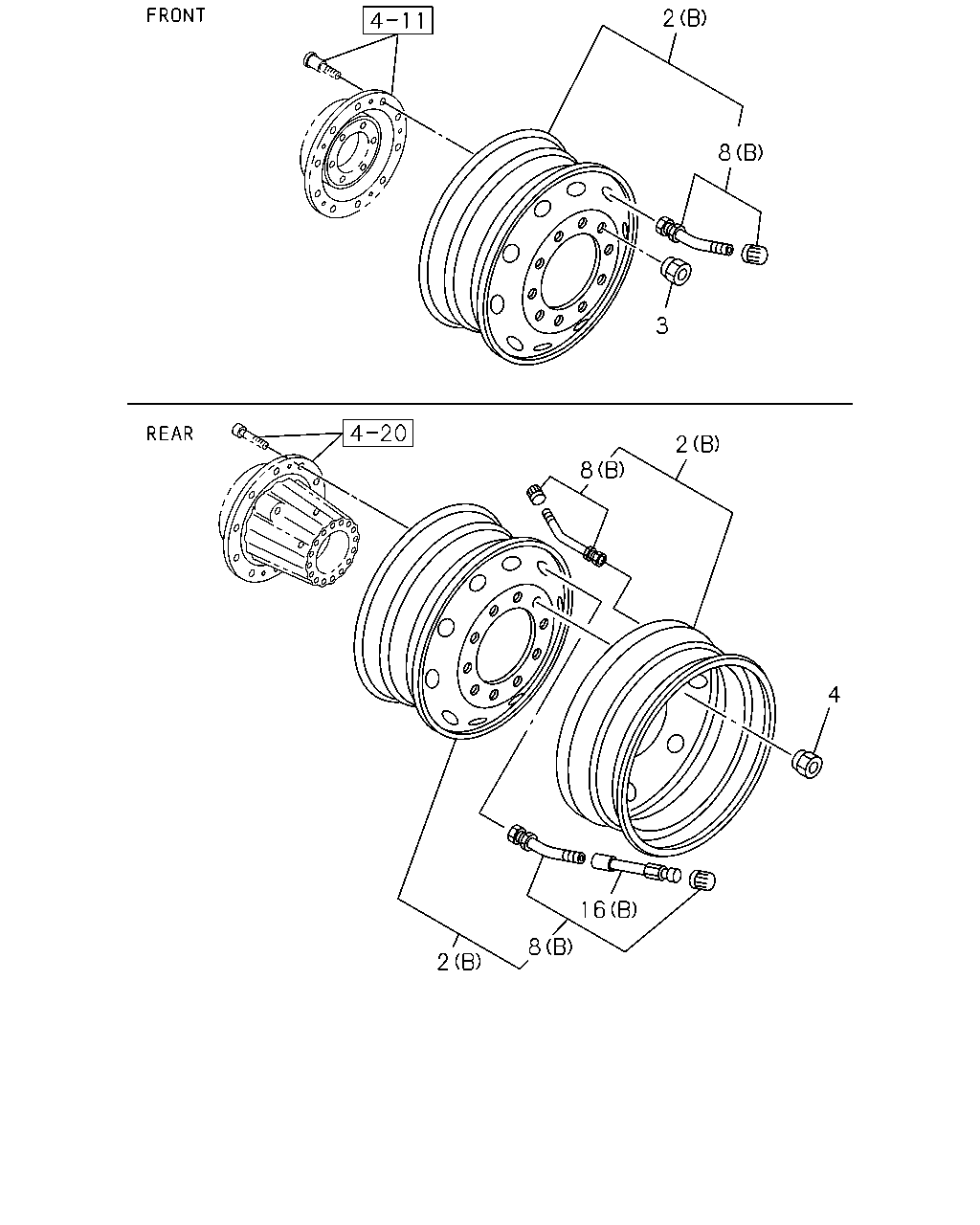

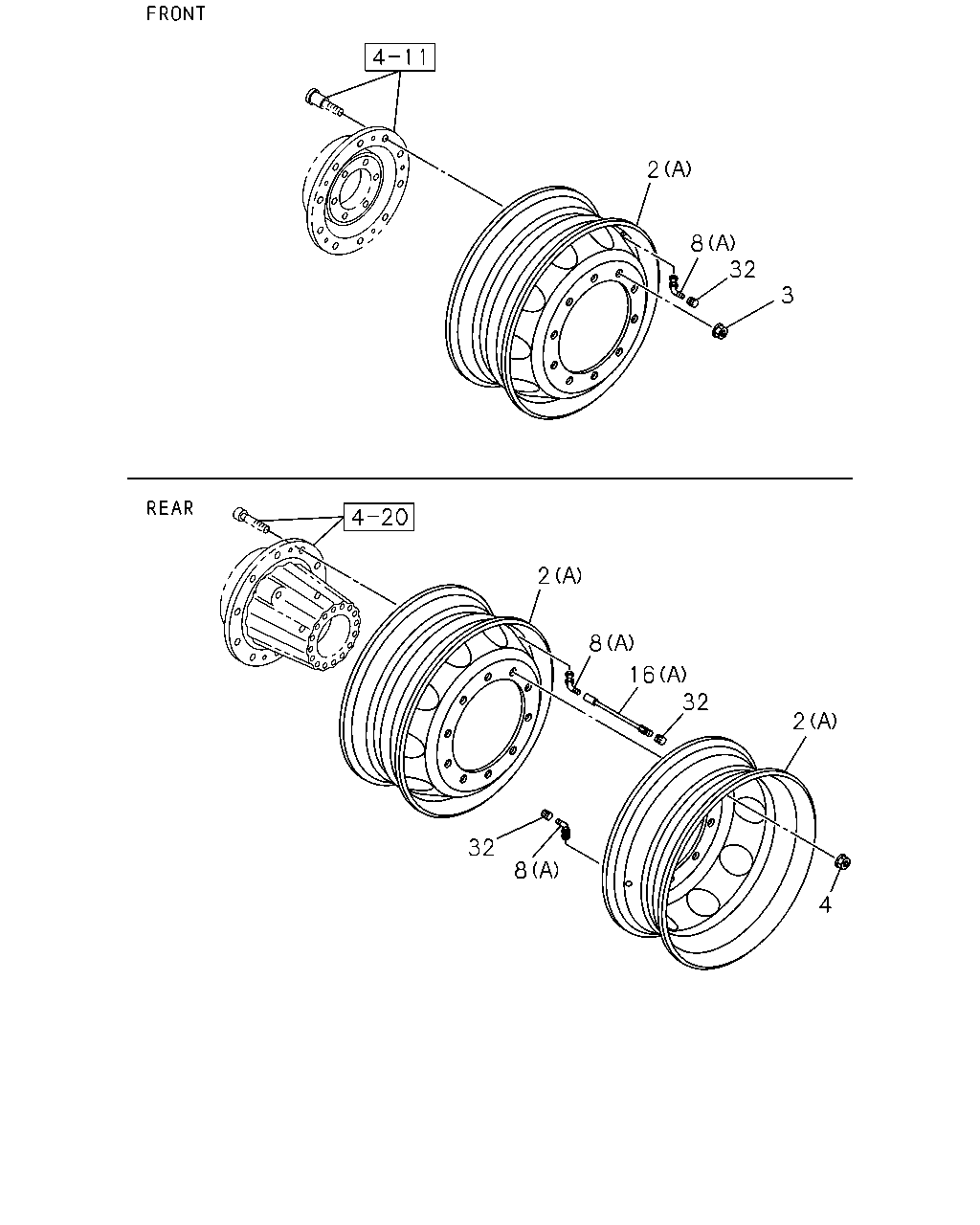

4-80 — ROAD WHEEL (#170075) — 84 parça

2 8 32 3 2 8 16 32 2 4 8 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	8-98217-246-0	02	1	1511-	●
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	8-98217-246-0	02	1	1511-		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	8-98217-246-0	08	1	1511-	●
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	8-98217-246-0	08	1	1511-		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	8-98217-246-0	01	1	1511-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	8-98217-246-0	01	1	1511-		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	8-98281-497-0	01	1	1511-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	8-98281-497-0	01	1	1511-		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT	8-98281-497-0	02	1	1511-	●
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT	8-98281-497-0	02	1	1511-		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (A) REAR	8-98281-497-0	08	1	1511-	●
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> (A) REAR	8-98281-497-0	08	1	1511-		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE	8-98243-886-0	01	1	1511-	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) FRONT	8-98243-886-0	02	1	1511-	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) REAR	8-98243-886-0	08	1	1511-	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98211-734-0	01	1	1511-	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) (B) FRONT	8-98211-734-0	02	1	1511-	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) (B) REAR	8-98211-734-0	08	1	1511-	●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1511-	●	●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1511-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42370-048-0	02	1	1511-	●
8	VALVE; TIRE DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42370-048-0	02	1	1511-		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42370-048-0	08	1	1511-	●
8	VALVE; TIRE DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42370-048-0	08	1	1511-		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42370-019-3	01	1	1511-	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42370-019-3	01	1	1511-		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42370-048-0	01	1	1511-	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42370-048-0	01	1	1511-		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT	1-42370-019-3	02	1	1511-	●
8	VALVE; TIRE WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT	1-42370-019-3	02	1	1511-		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (A) REAR	1-42370-019-3	08	1	1511-	●
8	VALVE; TIRE WHEEL PAINTED LIGHT ARGENT<SKD> (A) REAR	1-42370-019-3	08	1	1511-		●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE	1-42370-044-0	01	1	1511-	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) FRONT	1-42370-044-0	02	1	1511-	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) REAR	1-42370-044-0	08	1	1511-	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42370-047-0	01	1	1511-	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) (B) FRONT	1-42370-047-0	02	1	1511-	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) (B) REAR	1-42370-047-0	08	1	1511-	●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) L=170	8-98167-052-0	04	1	1511-	●
16	HOLDER; TIRE VALVE,DISC WHEEL (A) L=170	8-98167-052-0	04	1	1511-		●
16	HOLDER; TIRE VALVE,DISC WHEEL WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) L=115	8-98167-051-0	04	1	1511-	●
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	1511-	●
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	07	1	1511-		●

2 8 3 2 8 16 8 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	8-98217-246-0	02	1	1511-	●
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	8-98217-246-0	02	1	1511-		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	8-98217-246-0	08	1	1511-	●
2	WHEEL; DISC DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	8-98217-246-0	08	1	1511-		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	8-98217-246-0	01	1	1511-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	8-98217-246-0	01	1	1511-		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	8-98281-497-0	01	1	1511-	●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	8-98281-497-0	01	1	1511-		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT	8-98281-497-0	02	1	1511-	●
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT	8-98281-497-0	02	1	1511-		●
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (A) REAR	8-98281-497-0	08	1	1511-	●
2	WHEEL; DISC WHEEL PAINTED LIGHT ARGENT<SKD> (A) REAR	8-98281-497-0	08	1	1511-		●
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE	8-98243-886-0	01	1	1511-	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) FRONT	8-98243-886-0	02	1	1511-	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) REAR	8-98243-886-0	08	1	1511-	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98211-734-0	01	1	1511-	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) (B) FRONT	8-98211-734-0	02	1	1511-	●
2	WHEEL; DISC WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) (B) REAR	8-98211-734-0	08	1	1511-	●
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	1511-	●	●
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	40	1	1511-	●	●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42370-048-0	02	1	1511-	●
8	VALVE; TIRE DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) FRONT	1-42370-048-0	02	1	1511-		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42370-048-0	08	1	1511-	●
8	VALVE; TIRE DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) REAR	1-42370-048-0	08	1	1511-		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42370-019-3	01	1	1511-	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> (A) SPARE	1-42370-019-3	01	1	1511-		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42370-048-0	01	1	1511-	●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (A) SPARE	1-42370-048-0	01	1	1511-		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT	1-42370-019-3	02	1	1511-	●
8	VALVE; TIRE WHEEL PAINTED LIGHT ARGENT<SKD> (A) FRONT	1-42370-019-3	02	1	1511-		●
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (A) REAR	1-42370-019-3	08	1	1511-	●
8	VALVE; TIRE WHEEL PAINTED LIGHT ARGENT<SKD> (A) REAR	1-42370-019-3	08	1	1511-		●
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) SPARE	1-42370-044-0	01	1	1511-	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) FRONT	1-42370-044-0	02	1	1511-	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) REAR	1-42370-044-0	08	1	1511-	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42370-047-0	01	1	1511-	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) (B) FRONT	1-42370-047-0	02	1	1511-	●
8	VALVE; TIRE WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) (B) REAR	1-42370-047-0	08	1	1511-	●
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) L=170	8-98167-052-0	04	1	1511-	●
16	HOLDER; TIRE VALVE,DISC WHEEL (A) L=170	8-98167-052-0	04	1	1511-		●
16	HOLDER; TIRE VALVE,DISC WHEEL WHEEL 10STUD 8.25X22.5 165-22 AL DISH SUMIKIN(FJN) ,WHEEL 10STUD 8.25X22.5 165-22 AL DISH ALCOA(SET) (B) L=115	8-98167-051-0	04	1	1511-	●
