4-60 — REAR SUSPENSION (#170068) — 107 parça

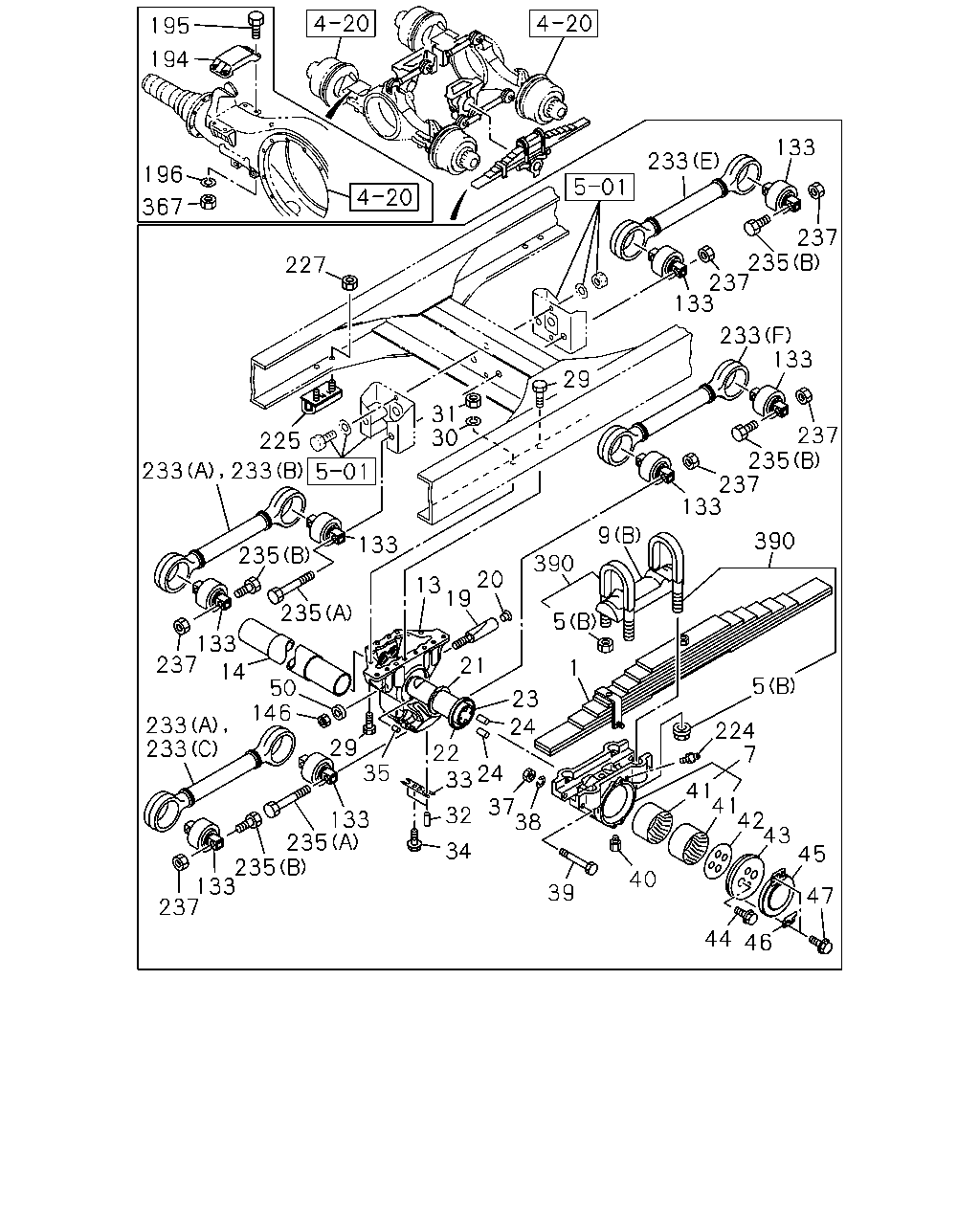

çizim 502025
195 194 196 367 227 233 133 237 235 237 133 133 233 237 235 237 133 390 9 390 5 1 23 24 224 7 5 41 41 42 43 45 47 46 44 40 39 38 37 33 32 34 24 22 21 19 13 20 35 29 133 235 235 133 237 233 233 14 133 50 146 237 235 235 133 233 225 233 30 31 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		1-51310-880-0 01 1 1511- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 1511- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 1511- ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 1511- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 1511- ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1511- ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 1511- ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 1511- ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 1511- ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 1511- ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 1511- ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 1511- ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1511- ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1511- ●
29 BOLT; BRKT TO FRAME
M18X75 		8-98012-872-0 24 1 1511- ●
29 BOLT; BRKT TO FRAME
M18X55 		9-92061-855-0 04 1 1511- ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1511- ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 1511- ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1511- ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1511- ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 1511- ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1511- ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1511- ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1511- ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1511- ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1511- ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1511- ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1511- ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 1511- ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1511- ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1511- ●
46 BRACKET; COVER 1-51387-015-2 02 1 1511- ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 1511- ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1511- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 1511- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 08 1 1511- ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 04 1 1511- ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 08 1 1511- ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1511- ●
194 PAD; CONTACT 1-42124-101-0 04 1 1511- ●
195 BOLT; PAD FIX
M14X40 		0-20951-440-0 16 1 1511- ●
196 WASHER; LK
ID=14.2 		0-91510-514-0 16 1 1511- ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1511- ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-072-2 01 1 1511- ●
225 RUBBER; CUSHION,RR SPR
REARWARD 		1-53366-077-3 01 1 1511- ●
225 RUBBER; CUSHION,RR SPR
REARWARD 		1-53366-100-2 01 1 1511- ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-143-1 01 1 1511- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=366 		1-51510-855-0 04 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
(F) L=550 		1-51511-659-0 02 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) (C) L=525 		1-51511-656-0 02 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) (B) L=530 		1-51511-678-0 01 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) (E) L=565 		1-51511-685-0 01 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) (E) L=555 		1-51511-660-0 01 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) (A) L=530 		1-51511-678-0 03 1 1511- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1511- ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1511- ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1511- ●
367 NUT
M14 		0-91110-514-0 16 1 1511- ●
390 U-BOLT SET; RR SPRING
L=310 		1-87870-166-3 04 1 1511- ●

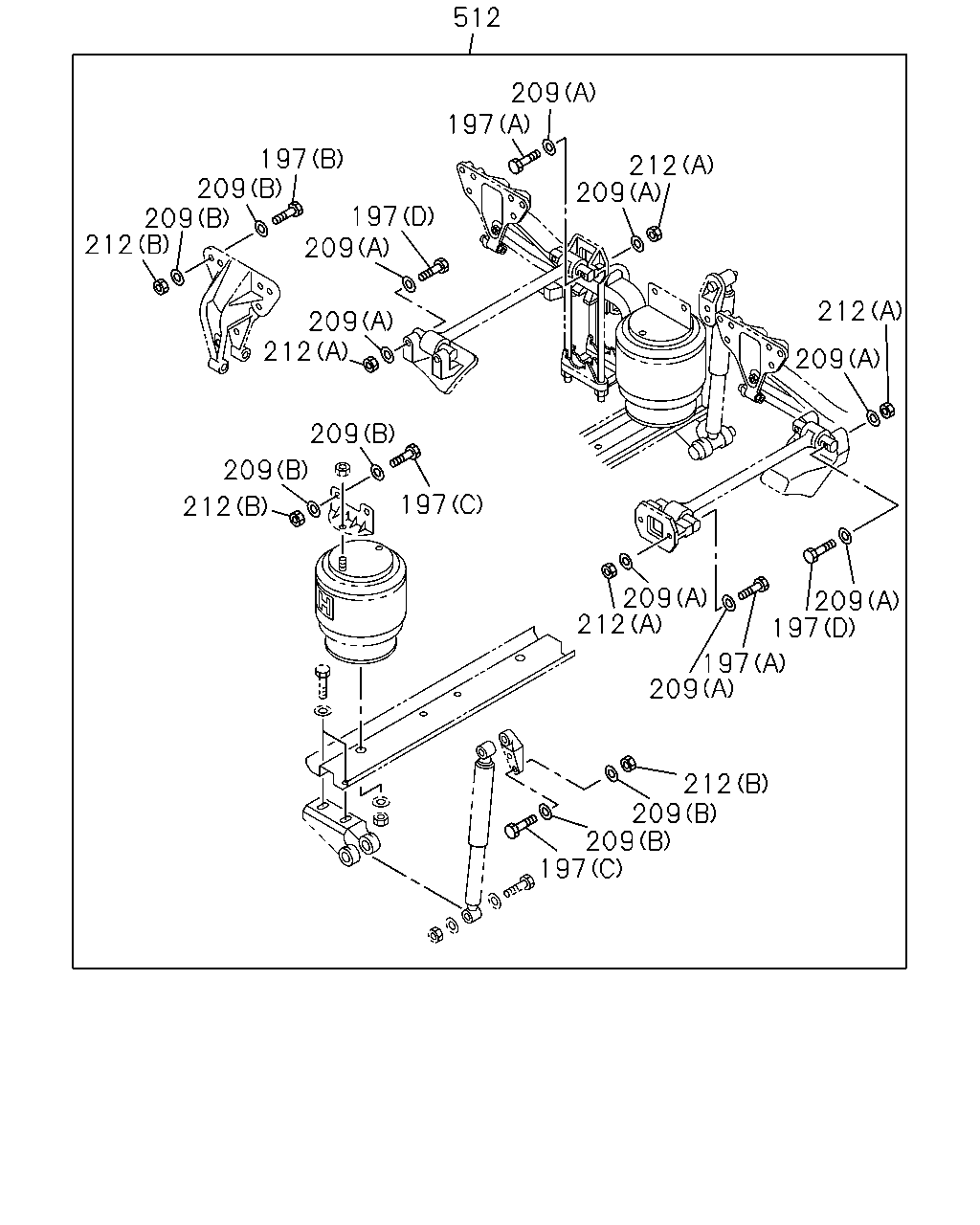

çizim 502635
512 209 197 212 209 212 209 209 197 197 209 212 212 209 209 197 209 197 197 209 209 209 212 209 197 209 212 212 209
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(D) 		1-09000-767-0 04 1 1511- ●
197 BOLT
(A) 		1-09000-768-0 04 1 1511- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1511- ●
197 BOLT
(C) 		1-09000-771-0 16 1 1511- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1511- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1511- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1511- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1511- ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 02 1 1511- ●

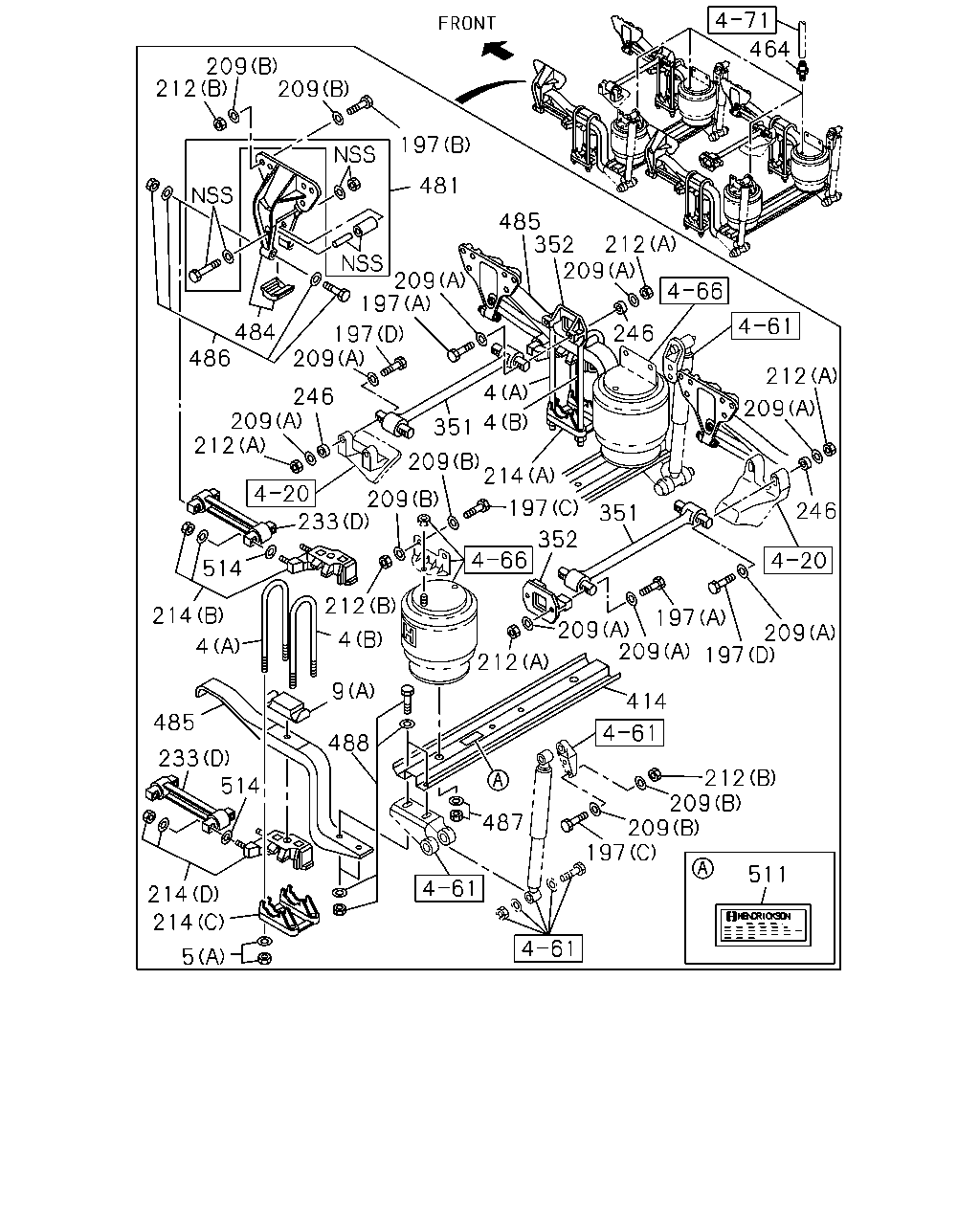

çizim 503677
197 209 209 212 197 197 209 246 209 212 486 484 209 351 209 209 233 212 4 9 488 214 514 4 485 233 514 214 214 5 487 209 209 197 212 414 212 209 352 197 214 4 4 246 209 352 485 481 212 212 209 246 197 197 209 351 209 511 464
BalonParca AdiParca NoAdetTipApplied Date A B
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 1511- ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 1511- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 1511- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 1511- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 1511- ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1511- ●
197 BOLT
(D) 		1-09000-767-0 04 1 1511- ●
197 BOLT
(A) 		1-09000-768-0 04 1 1511- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1511- ●
197 BOLT
(C) 		1-09000-771-0 16 1 1511- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1511- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1511- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1511- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1511- ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 1511- ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 1511- ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 1511- ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=366 		1-51510-855-0 04 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
(F) L=550 		1-51511-659-0 02 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) (C) L=525 		1-51511-656-0 02 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) (B) L=530 		1-51511-678-0 01 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) (E) L=565 		1-51511-685-0 01 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) (E) L=555 		1-51511-660-0 01 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) (A) L=530 		1-51511-678-0 03 1 1511- ●
246 WASHER; TORQUE ROD 8-97372-224-0 04 1 1511- ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 1511- ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 1511- ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 1511- ●
464 UNION; AIR
DIN12 & R1/4 STRAIGHT 		1-09661-214-0 04 1 1511- ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 1511- ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 1511- ●
485 SPRING; LEAF 1-51410-259-0 04 1 1511- ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 1511- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 1511- ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 1511- ●
511 LABEL 1-51399-034-0 01 1 1511- ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 1511- ●
