4-50 — FRONT SUSPENSION (#170066) — 39 parça

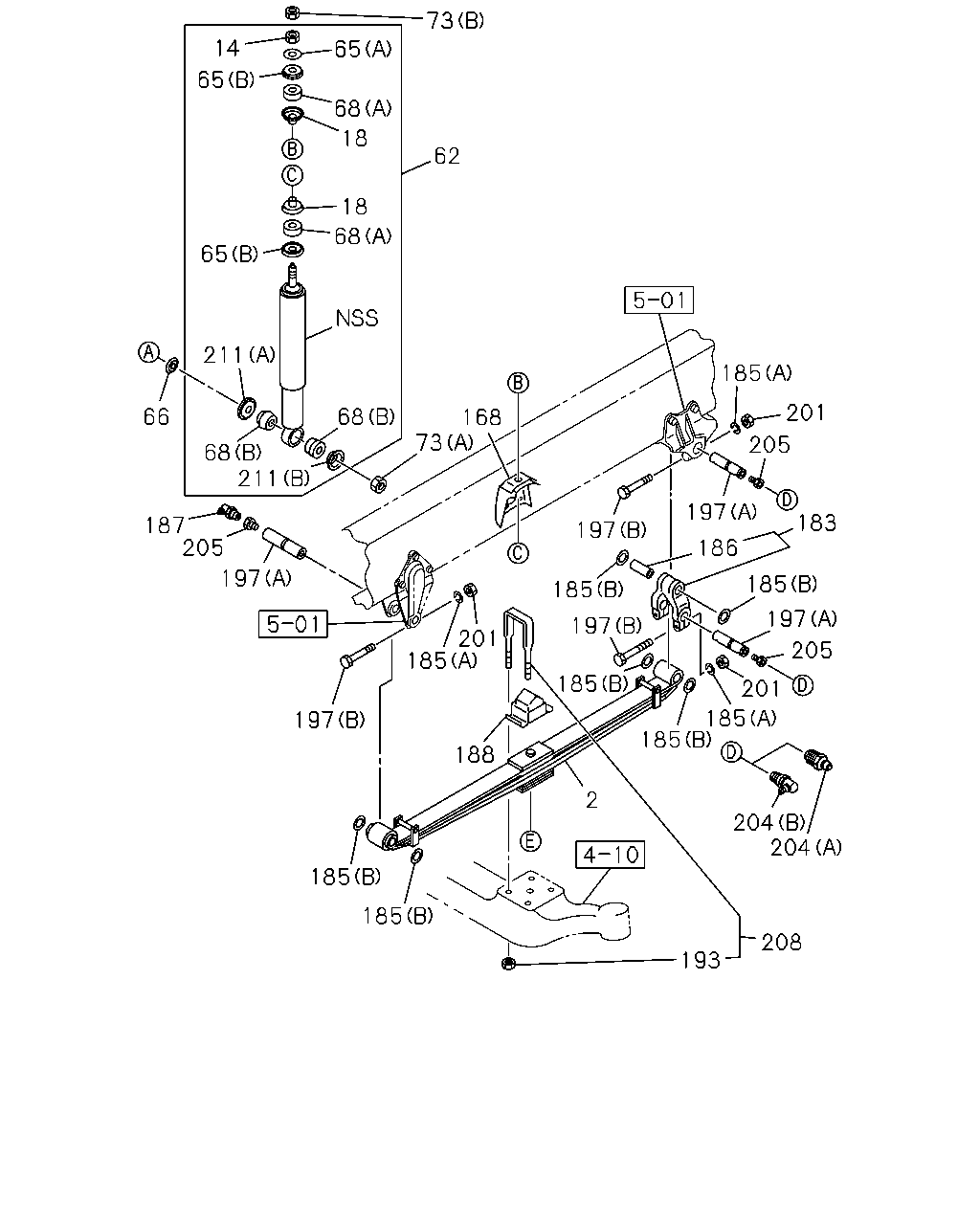

çizim 501378
73 65 68 62 18 65 14 18 65 68 211 68 66 187 205 73 211 68 197 197 201 185 197 188 185 197 197 201 205 185 186 183 185 137 205 201 185 185 204 204 208 2 185 185 168 185 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. ALLISON MD3560P A/T(Y3B) 		8-98069-483-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) 		8-98069-483-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98069-483-0 02 1 1511- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) 		8-98243-254-0 02 1 1511- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1511- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1511- ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98029-369-0 02 1 1511- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1511- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1511- ● ●
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 1511- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1511- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1511- ● ●
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 1511- ● ●
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 1511- ● ●
137 BRACKET; STAB BAR TO FRAME 8-98128-356-1 02 1 1511- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1511- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1511- ● ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1511- ● ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1511- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1511- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1511- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-125-1 02 1 1511- ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1511- ● ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1511- ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 1511- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1511- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1511- ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1511- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1511- ● ●
208 U-BOLT SET; FRT SPRING
ALLISON MD3560P A/T(Y3B) L=210 		1-87870-498-0 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) L=210 		1-87870-498-0 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1511- ●
208 U-BOLT SET; FRT SPRING
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) L=230 		1-87870-493-0 04 1 1511- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1511- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1511- ● ●

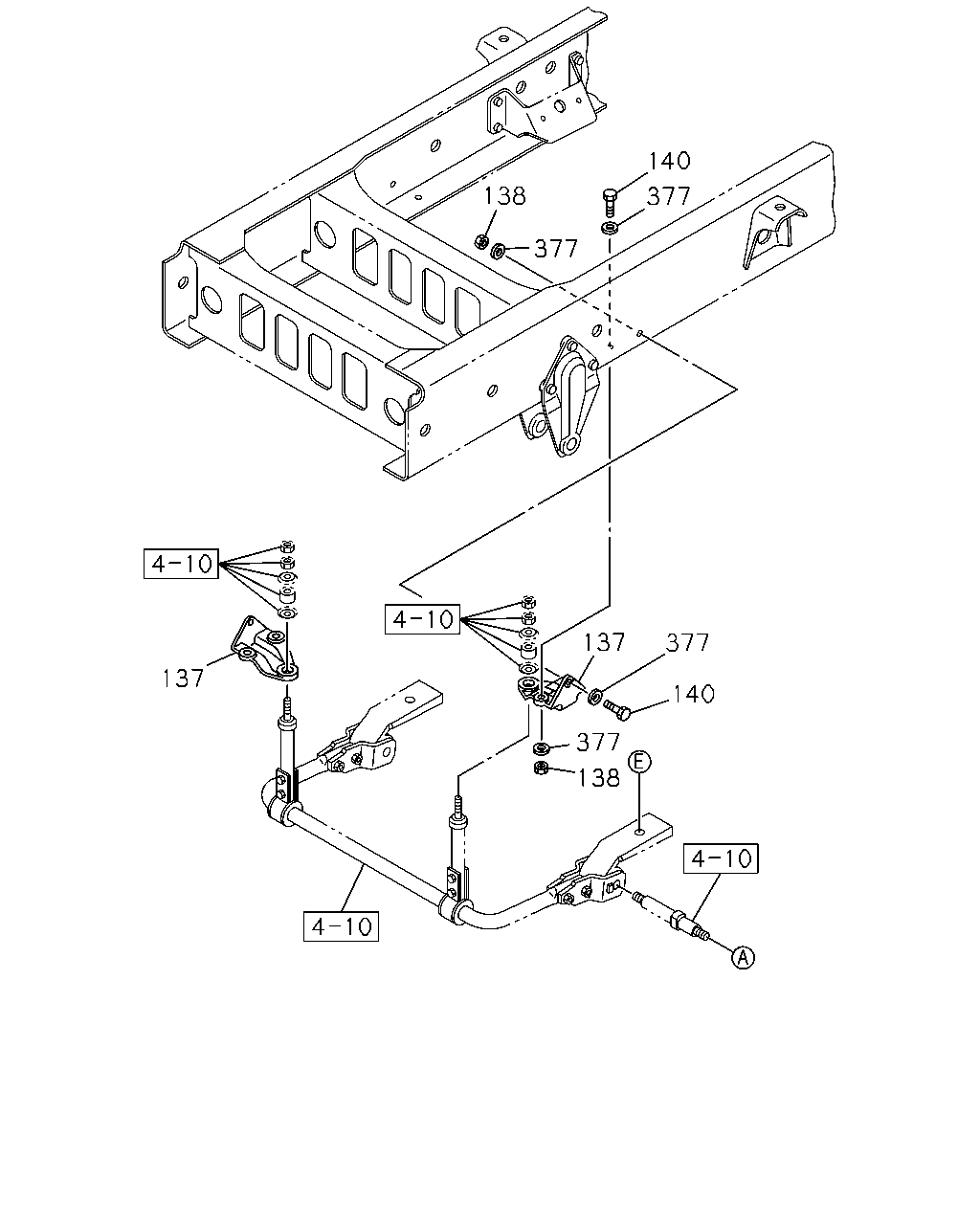

çizim 502656
140 377 138 377 137 137 377 140 138 377
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME 8-98128-356-1 02 1 1511- ● ●
138 NUT; BRKT
M14 		0-91110-514-0 06 1 1511- ● ●
140 BOLT; BRKT
M14X45 		9-92061-445-0 06 1 1511- ● ●
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 12 1 1511- ● ●
