Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#170058) — 265 parça

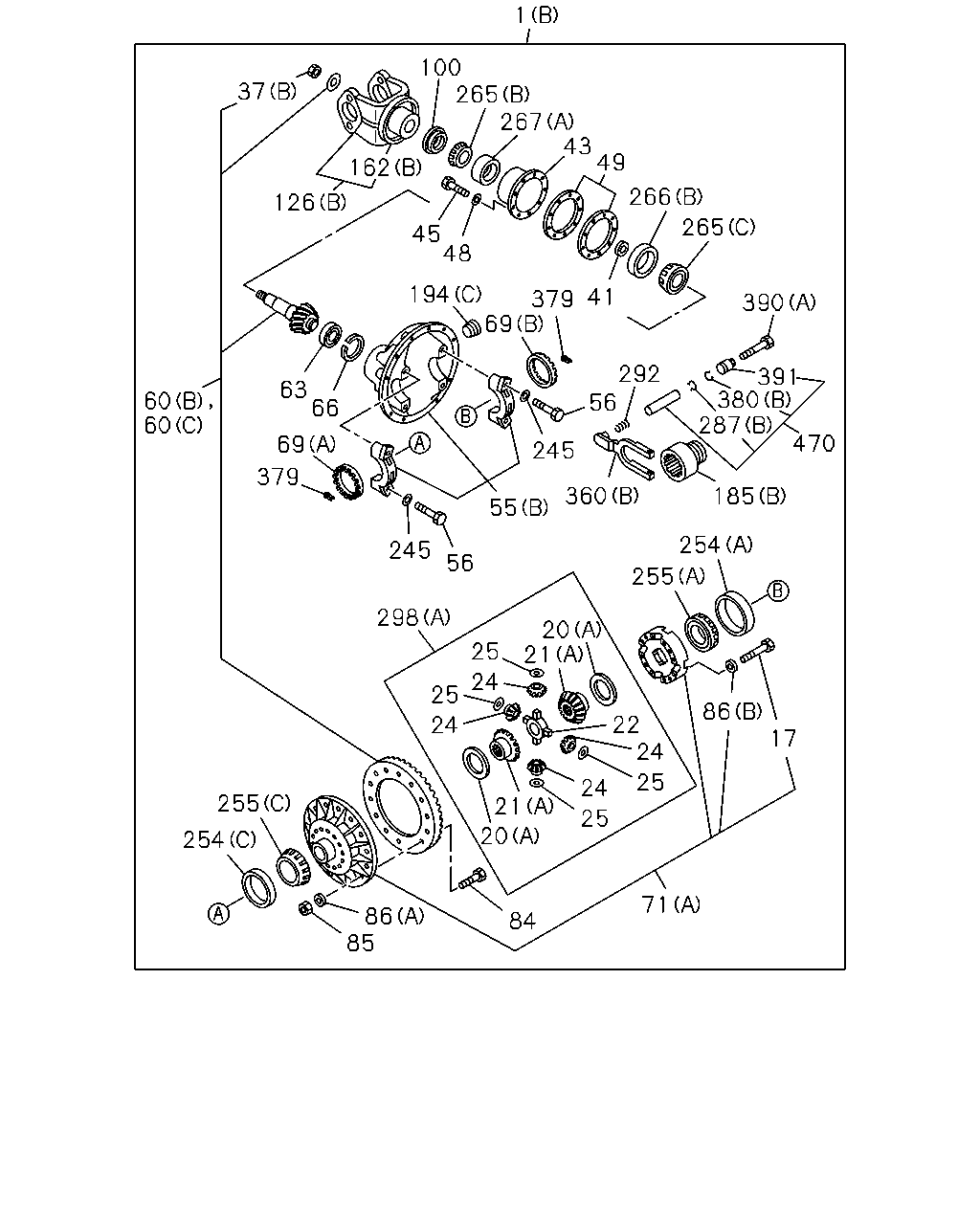

1 37 100 162 126 265 267 43 49 45 266 265 390 292 379 41 194 48 60 60 63 69 66 379 245 56 55 69 56 391 380 287 470 185 360 245 298 254 255 86 17 22 20 25 21 24 25 24 24 25 24 21 20 25 71 84 86 85 254 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR (B) 37/7	1-41003-351-0	01	1	1511-	●
1	DRIVE ASM; FINAL,RR (A) 37/7	8-98326-184-0	01	1	1511-	●
1	DRIVE ASM; FINAL,RR (B) 43/7	1-41003-352-0	01	1	1511-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 43/7	8-98326-189-0	01	1	1511-		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 43/7	8-98326-185-0	01	1	1511-		●
1	DRIVE ASM; FINAL,RR (B) 45/7	1-41003-316-0	01	1	1511-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 45/7	8-98326-190-0	01	1	1511-			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 45/7	8-98326-186-0	01	1	1511-			●
1	DRIVE ASM; FINAL,RR (B) 41/6	1-41003-353-0	01	1	1511-				●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 41/6	8-98326-191-0	01	1	1511-				●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/6	8-98326-187-0	01	1	1511-				●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	32	1	1511-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A)	1-41559-003-0	02	1	1511-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B)	8-98248-435-0	02	1	1511-	●	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-118-0	02	1	1511-	●	●	●	●
21	GEAR; SIDE,DIFF (B)	8-98248-447-0	02	1	1511-	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	02	1	1511-	●	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	08	1	1511-	●	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	08	1	1511-	●	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	1511-	●	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-040-0	01	1	1511-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-341-0	01	1	1511-	●	●	●	●
43	CAGE; FINAL PINION	1-41151-077-0	01	1	1511-	●	●	●	●
45	BOLT; FINAL PINION CAGE	1-41159-008-0	08	1	1511-	●	●	●	●
48	WASHER; LK,FINAL PINION	1-41329-034-0	08	1	1511-	●	●	●	●
49	SHIM; FINAL PINION CAGE	1-41154-090-0	01	1	1511-	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-123-0	01	1	1511-	●	●	●	●
55	CARRIER; DIFF (A)	8-98323-322-0	01	1	1511-	●	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	08	1	1511-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 37/7	1-41210-591-0	01	1	1511-	●
60	GEAR SET; FINAL DRIVE,RR (A) 37/7	1-41210-596-0	01	1	1511-	●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-592-0	01	1	1511-		●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-597-0	01	1	1511-		●
60	GEAR SET; FINAL DRIVE,RR (C) 45/7	1-41210-717-0	02	1	1511-			●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-733-0	01	1	1511-				●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-734-0	01	1	1511-				●
63	BEARING; PINION PILOT	1-41219-046-0	01	1	1511-	●	●	●	●
66	RING; SNAP,PILOT BRG	1-41219-047-0	01	1	1511-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1511-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1511-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (C)	8-98248-389-0	02	1	1511-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-263-0	01	1	1511-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (B)	8-98248-396-0	01	1	1511-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41219-050-0	24	1	1511-	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	24	1	1511-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	24	1	1511-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1511-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (C)	1-41329-084-0	16	1	1511-	●	●	●	●
100	SEAL; OIL,FINAL PINION	1-41349-185-0	01	1	1511-	●	●	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-364-0	01	1	1511-	●
126	COUPLING; DRIVING PINION ZF9S1110 M/T(Y5E) (A)	1-37245-364-0	01	1	1511-		●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-316-0	01	1	1511-	●	●	●	●
126	COUPLING; DRIVING PINION ALLISON MD3560P A/T(Y3B) (A)	1-37245-301-0	01	1	1511-		●	●	●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-190-0	01	1	1511-	●
162	COVER; DUST,INPUT FLANGE ZF9S1110 M/T(Y5E) (A)	1-37249-190-0	01	1	1511-		●	●	●
162	COVER; DUST,INPUT FLANGE (B)	1-37249-164-0	01	1	1511-	●	●	●	●
162	COVER; DUST,INPUT FLANGE ALLISON MD3560P A/T(Y3B) (A)	1-37249-161-0	01	1	1511-		●	●	●
185	COLLAR; SHIFT FORK DIFF LOCK<C3N> (B)	1-41379-003-0	01	1	1511-		●	●	●
185	COLLAR; SHIFT FORK DIFF LOCK<C3N> (A)	8-98248-492-0	01	1	1511-		●	●	●
194	PLUG (B)	1-41119-072-0	01	1	1511-	●
194	PLUG EXC. DIFF LOCK<C3N> (B)	1-41119-072-0	01	1	1511-		●	●	●
194	PLUG (C)	1-41119-077-0	01	1	1511-	●
194	PLUG EXC. DIFF LOCK<C3N> (C)	1-41119-077-0	01	1	1511-		●	●	●
194	PLUG (A)	1-41329-077-0	01	1	1511-	●	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	08	1	1511-	●	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1511-	●	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1511-	●	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1511-	●	●	●	●
254	CUP; DIFF BRG (D)	8-98248-390-0	02	1	1511-	●	●	●	●
255	CONE; DIFF BRG (B)	1-41519-051-0	02	1	1511-	●	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1511-	●	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1511-	●	●	●	●
255	CONE; DIFF BRG (D)	8-98248-391-0	02	1	1511-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-030-0	01	1	1511-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-042-0	01	1	1511-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-044-0	02	1	1511-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41349-157-0	01	1	1511-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-088-0	01	1	1511-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-031-0	01	1	1511-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41219-045-0	01	1	1511-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41519-089-0	01	1	1511-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41219-043-0	01	1	1511-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-045-0	01	1	1511-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (C)	1-41349-156-0	01	1	1511-	●	●	●	●
287	PISTON; SHIFT UNIT (A)	8-98248-337-0	01	1	1511-	●	●	●	●
287	PISTON; SHIFT UNIT DIFF LOCK<C3N> (B)	1-48262-013-0	01	1	1511-		●	●	●
292	SPRING; PISTON DIFF LOCK<C3N>	1-48265-008-0	01	1	1511-		●	●	●
298	GEAR KIT; DIFF,RR AXLE (A)	1-41550-031-0	01	1	1511-	●	●	●	●
298	GEAR KIT; DIFF,RR AXLE (B)	8-98248-398-0	01	1	1511-	●	●	●	●
360	FORK; SHIFT (A)	8-98248-330-0	01	1	1511-	●	●	●	●
360	FORK; SHIFT DIFF LOCK<C3N> (B)	1-41371-007-0	01	1	1511-		●	●	●
379	PIN; SPLIT	1-41129-021-0	02	1	1511-	●	●	●	●
380	GASKET; PISTON (A)	1-48269-215-0	01	1	1511-	●
380	GASKET; PISTON EXC. DIFF LOCK<C3N> (A)	1-48269-215-0	01	1	1511-		●	●	●
380	GASKET; PISTON DIFF LOCK<C3N> (B)	1-48269-075-0	01	1	1511-		●	●	●
380	GASKET; PISTON DIFF LOCK<C3N> (A)	1-48269-215-0	02	1	1511-		●	●	●
390	BOLT; CAGING DIFF LOCK<C3N> (A)	1-48269-071-0	01	1	1511-		●	●	●
390	BOLT; CAGING DIFF LOCK<C3N> (B)	8-98248-487-0	01	1	1511-		●	●	●
391	CYLINDER; SHIFT DIFF LOCK<C3N>	1-48269-070-0	01	1	1511-		●	●	●
470	SHIFT KIT DIFF LOCK<C3N>	1-48269-258-0	01	1	1511-		●	●	●

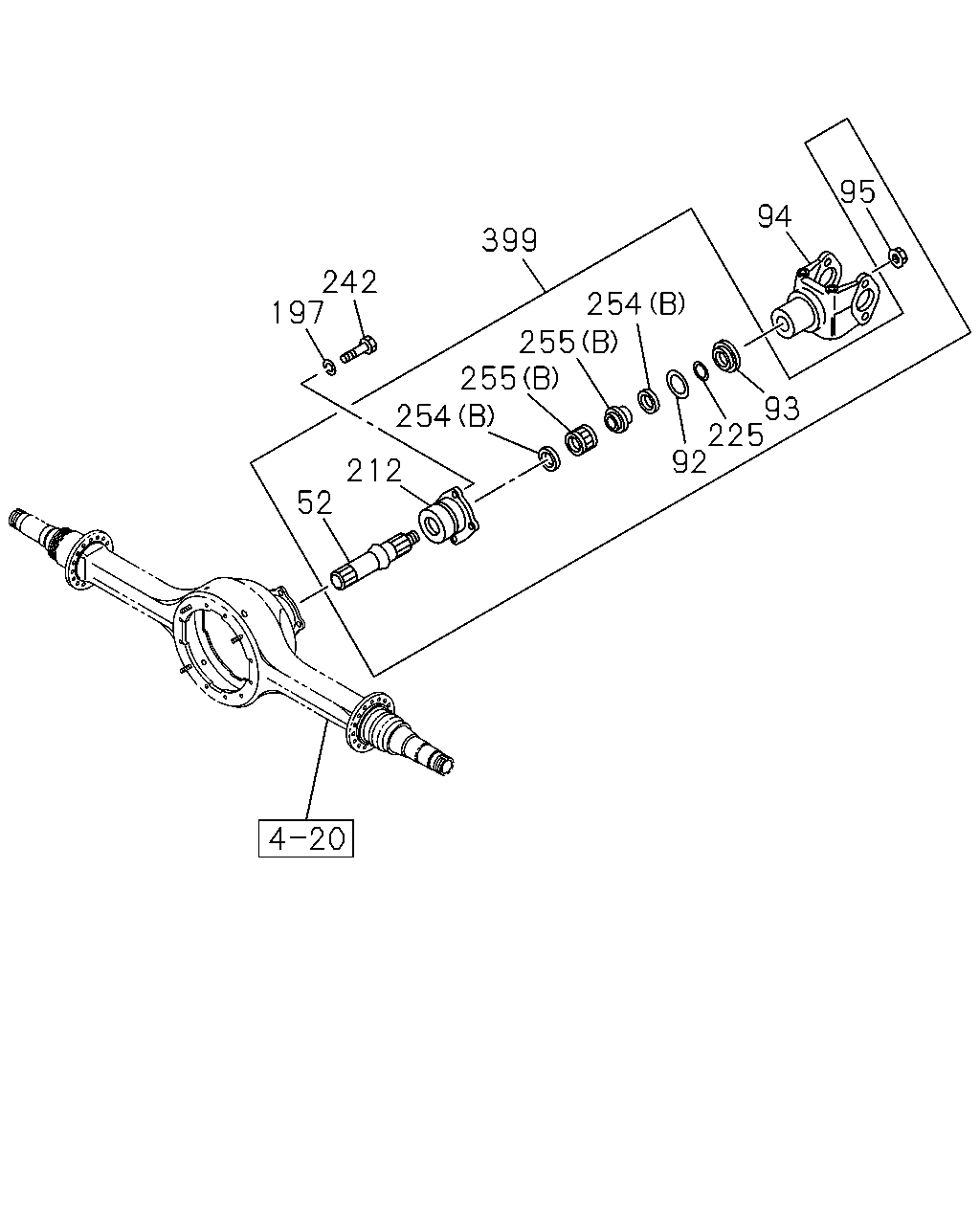

197 242 399 254 52 212 255 255 254 92 225 93 94 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	SHAFT; OUTPUT	1-41343-025-0	01	1	1511-	●	●	●	●
92	RING; SNAP,BRG,OUTPUT SHAFT	1-41349-161-0	01	1	1511-	●	●	●	●
93	SEAL; OIL,OUTPUT SHAFT	1-41349-191-0	01	1	1511-	●	●	●	●
94	FLANGE ASM; OUTPUT SHAFT	1-37245-315-0	01	1	1511-	●	●	●	●
95	NUT; OUTPUT SHAFT	1-41349-164-0	01	1	1511-	●	●	●	●
197	COVER; HELICAL GEAR CASE	1-41329-037-0	04	1	1511-	●	●	●	●
212	COVER	1-41519-049-0	01	1	1511-	●	●	●	●
225	WASHER; THRUST	1-41349-162-0	01	1	1511-	●	●	●	●
242	BOLT; COVER	1-42119-226-0	04	1	1511-	●	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1511-	●	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1511-	●	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1511-	●	●	●	●
254	CUP; DIFF BRG (D)	8-98248-390-0	02	1	1511-	●	●	●	●
255	CONE; DIFF BRG (B)	1-41519-051-0	02	1	1511-	●	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1511-	●	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1511-	●	●	●	●
255	CONE; DIFF BRG (D)	8-98248-391-0	02	1	1511-	●	●	●	●
399	SHAFT ASM; OUTPUT	1-41343-024-0	01	1	1511-	●	●	●	●

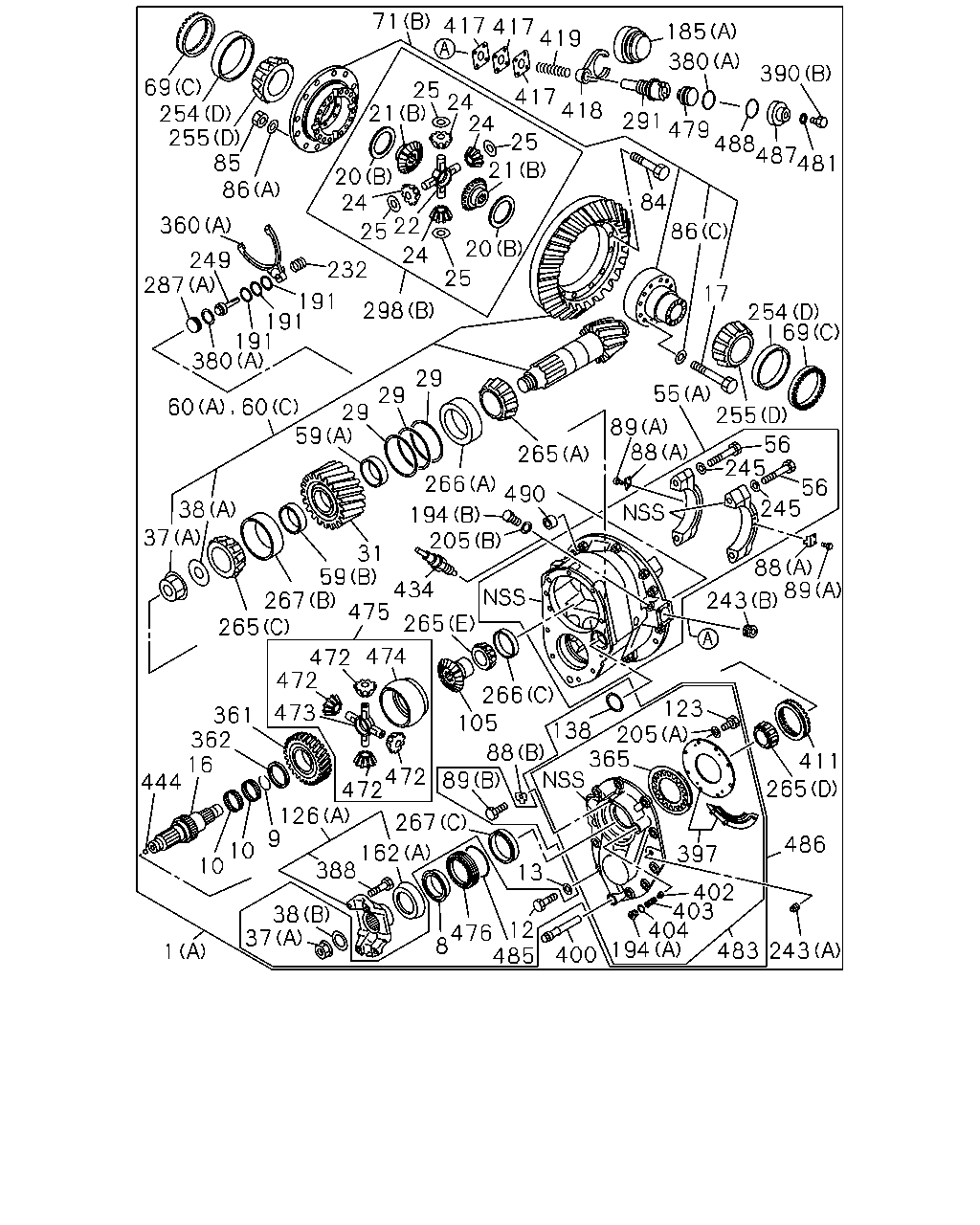

85 249 232 191 191 191 24 22 25 24 25 25 24 24 25 417 417 17 291 488 479 481 487 17 84 56 245 245 490 31 475 472 474 473 472 472 472 16 444 361 362 10 10 388 400 483 403 397 486 411 485 476 8 13 105 434 29 29 29 138 365 123 56 419 418 9 402 12 69 254 255 86 360 287 380 60 60 38 37 59 266 194 205 265 21 20 71 185 380 390 86 254 69 55 255 89 88 88 89 243 265 243 404 194 59 267 265 265 266 88 89 267 162 38 37 1 205 298 20 126 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR (B) 37/7	1-41003-351-0	01	1	1511-	●
1	DRIVE ASM; FINAL,RR (A) 37/7	8-98326-184-0	01	1	1511-	●
1	DRIVE ASM; FINAL,RR (B) 43/7	1-41003-352-0	01	1	1511-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 43/7	8-98326-189-0	01	1	1511-		●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 43/7	8-98326-185-0	01	1	1511-		●
1	DRIVE ASM; FINAL,RR (B) 45/7	1-41003-316-0	01	1	1511-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 45/7	8-98326-190-0	01	1	1511-			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 45/7	8-98326-186-0	01	1	1511-			●
1	DRIVE ASM; FINAL,RR (B) 41/6	1-41003-353-0	01	1	1511-				●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> (A) 41/6	8-98326-191-0	01	1	1511-				●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> (A) 41/6	8-98326-187-0	01	1	1511-				●
8	SEAL; OIL,INPUT SHAFT	1-41349-190-0	01	1	1511-	●	●	●	●
9	RING; SNAP,BRG,INPUT	1-41519-085-0	01	1	1511-	●	●	●	●
10	BEARING; INPUT SHAFT	8-98248-371-0	02	1	1511-	●	●	●	●
12	BOLT; COVER TO CASE	8-98248-338-0	10	1	1511-	●	●	●	●
13	WASHER; COVER TO CASE	1-41329-084-0	10	1	1511-	●	●	●	●
16	SHAFT ASM; INPUT	8-98248-369-0	01	1	1511-	●	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-042-0	32	1	1511-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (A)	1-41559-003-0	02	1	1511-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR (B)	8-98248-435-0	02	1	1511-	●	●	●	●
21	GEAR; SIDE,DIFF (A)	1-41561-118-0	02	1	1511-	●	●	●	●
21	GEAR; SIDE,DIFF (B)	8-98248-447-0	02	1	1511-	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-056-0	02	1	1511-	●	●	●	●
24	GEAR; PINION,DIFF	1-41551-037-0	08	1	1511-	●	●	●	●
25	WASHER; THRUST,PINION	1-41552-038-0	08	1	1511-	●	●	●	●
29	SHIM; BRG RET	8-98248-388-0	01	1	1511-	●	●	●	●
31	GEAR; DRIVEN,HELICAL	8-98248-386-0	01	1	1511-	●	●	●	●
37	NUT; DRIVING PINION (A)	1-41219-028-0	02	1	1511-	●	●	●	●
37	NUT; DRIVING PINION (B)	1-41219-040-0	01	1	1511-	●	●	●	●
38	WASHER; PL,DRIVING PINION (A)	1-41219-048-0	01	1	1511-	●	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	1511-	●	●	●	●
55	CARRIER; DIFF (B)	1-41110-123-0	01	1	1511-	●	●	●	●
55	CARRIER; DIFF (A)	8-98323-322-0	01	1	1511-	●	●	●	●
56	BOLT; BRG CAP	1-41119-070-0	08	1	1511-	●	●	●	●
59	SPACER; FINAL PINION (A)	1-41219-049-0	01	1	1511-	●	●	●	●
59	SPACER; FINAL PINION (B)	1-41229-296-0	01	1	1511-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR (B) 37/7	1-41210-591-0	01	1	1511-	●
60	GEAR SET; FINAL DRIVE,RR (A) 37/7	1-41210-596-0	01	1	1511-	●
60	GEAR SET; FINAL DRIVE,RR (B) 43/7	1-41210-592-0	01	1	1511-		●
60	GEAR SET; FINAL DRIVE,RR (A) 43/7	1-41210-597-0	01	1	1511-		●
60	GEAR SET; FINAL DRIVE,RR (C) 45/7	1-41210-717-0	02	1	1511-			●
60	GEAR SET; FINAL DRIVE,RR (B) 41/6	1-41210-733-0	01	1	1511-				●
60	GEAR SET; FINAL DRIVE,RR (A) 41/6	1-41210-734-0	01	1	1511-				●
69	NUT; ADJ,DIFF CAGE (A)	1-41121-042-0	01	1	1511-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (B)	1-41121-047-0	01	1	1511-	●	●	●	●
69	NUT; ADJ,DIFF CAGE (C)	8-98248-389-0	02	1	1511-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (A)	1-41510-263-0	01	1	1511-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE (B)	8-98248-396-0	01	1	1511-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41219-050-0	24	1	1511-	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	24	1	1511-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	24	1	1511-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41329-034-0	16	1	1511-	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (C)	1-41329-084-0	16	1	1511-	●	●	●	●
88	PLATE; LK,ADJ NUT (A)	8-98248-329-0	02	1	1511-	●	●	●	●
88	PLATE; LK,ADJ NUT (B)	8-98248-367-0	01	1	1511-	●	●	●	●
89	BOLT; LK PLATE (A)	8-98248-327-0	04	1	1511-	●	●	●	●
89	BOLT; LK PLATE (B)	8-98248-700-0	01	1	1511-	●	●	●	●
105	GEAR; SIDE	8-98248-384-0	01	1	1511-	●	●	●	●
123	BOLT; BAFFLE PLATE	8-98248-700-0	08	1	1511-	●	●	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-364-0	01	1	1511-	●
126	COUPLING; DRIVING PINION ZF9S1110 M/T(Y5E) (A)	1-37245-364-0	01	1	1511-		●	●	●
126	COUPLING; DRIVING PINION (B)	1-37245-316-0	01	1	1511-	●	●	●	●
126	COUPLING; DRIVING PINION ALLISON MD3560P A/T(Y3B) (A)	1-37245-301-0	01	1	1511-		●	●	●
138	GASKET; CARRIER COVER	8-98248-336-0	01	1	1511-	●	●	●	●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-190-0	01	1	1511-	●
162	COVER; DUST,INPUT FLANGE ZF9S1110 M/T(Y5E) (A)	1-37249-190-0	01	1	1511-		●	●	●
162	COVER; DUST,INPUT FLANGE (B)	1-37249-164-0	01	1	1511-	●	●	●	●
162	COVER; DUST,INPUT FLANGE ALLISON MD3560P A/T(Y3B) (A)	1-37249-161-0	01	1	1511-		●	●	●
185	COLLAR; SHIFT FORK DIFF LOCK<C3N> (B)	1-41379-003-0	01	1	1511-		●	●	●
185	COLLAR; SHIFT FORK DIFF LOCK<C3N> (A)	8-98248-492-0	01	1	1511-		●	●	●
191	SHIM; SHIFT ROD SLEEVE	8-98248-333-0	AR	1	1511-	●	●	●	●
194	PLUG (B)	1-41119-072-0	01	1	1511-	●
194	PLUG EXC. DIFF LOCK<C3N> (B)	1-41119-072-0	01	1	1511-		●	●	●
194	PLUG (C)	1-41119-077-0	01	1	1511-	●
194	PLUG EXC. DIFF LOCK<C3N> (C)	1-41119-077-0	01	1	1511-		●	●	●
194	PLUG (A)	1-41329-077-0	01	1	1511-	●	●	●	●
205	WASHER; PL (B)	1-41229-168-0	01	1	1511-	●
205	WASHER; PL EXC. DIFF LOCK<C3N> (B)	1-41229-168-0	01	1	1511-		●	●	●
205	WASHER; PL (A)	1-41329-016-0	08	1	1511-	●	●	●	●
232	SPRING; PISTON	1-48265-008-0	01	1	1511-	●	●	●	●
243	PLUG; COVER (B)	8-98323-334-0	01	1	1511-	●
243	PLUG; COVER EXC. DIFF LOCK<C3N> (B)	8-98323-334-0	01	1	1511-		●	●	●
243	PLUG; COVER (A)	8-98248-342-0	01	1	1511-	●	●	●	●
245	WASHER; PL,BRG CAP	1-41119-069-0	08	1	1511-	●	●	●	●
249	SHAFT; SHIFT FORK	8-98248-335-0	01	1	1511-	●	●	●	●
254	CUP; DIFF BRG (B)	1-41519-050-0	02	1	1511-	●	●	●	●
254	CUP; DIFF BRG (A)	1-41519-106-0	01	1	1511-	●	●	●	●
254	CUP; DIFF BRG (C)	1-41519-107-0	01	1	1511-	●	●	●	●
254	CUP; DIFF BRG (D)	8-98248-390-0	02	1	1511-	●	●	●	●
255	CONE; DIFF BRG (B)	1-41519-051-0	02	1	1511-	●	●	●	●
255	CONE; DIFF BRG (A)	1-41519-108-0	01	1	1511-	●	●	●	●
255	CONE; DIFF BRG (C)	1-41519-109-0	01	1	1511-	●	●	●	●
255	CONE; DIFF BRG (D)	8-98248-391-0	02	1	1511-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-030-0	01	1	1511-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-042-0	01	1	1511-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (C)	1-41219-044-0	02	1	1511-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (D)	1-41349-157-0	01	1	1511-	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (E)	1-41519-088-0	01	1	1511-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (A)	1-41219-031-0	01	1	1511-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (B)	1-41219-045-0	01	1	1511-	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER (C)	1-41519-089-0	01	1	1511-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (A)	1-41219-043-0	01	1	1511-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (B)	1-41219-045-0	01	1	1511-	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER (C)	1-41349-156-0	01	1	1511-	●	●	●	●
287	PISTON; SHIFT UNIT (A)	8-98248-337-0	01	1	1511-	●	●	●	●
287	PISTON; SHIFT UNIT DIFF LOCK<C3N> (B)	1-48262-013-0	01	1	1511-		●	●	●
291	ROD; PUSH DIFF LOCK<C3N>	8-98248-335-0	01	1	1511-		●	●	●
298	GEAR KIT; DIFF,RR AXLE (A)	1-41550-031-0	01	1	1511-	●	●	●	●
298	GEAR KIT; DIFF,RR AXLE (B)	8-98248-398-0	01	1	1511-	●	●	●	●
360	FORK; SHIFT (A)	8-98248-330-0	01	1	1511-	●	●	●	●
360	FORK; SHIFT DIFF LOCK<C3N> (B)	1-41371-007-0	01	1	1511-		●	●	●
361	GEAR; DRIVE	8-98248-376-0	01	1	1511-	●	●	●	●
362	BEARING; THRUST	8-98248-373-0	01	1	1511-	●	●	●	●
365	PUMP ASM; OIL	8-98248-340-0	01	1	1511-	●	●	●	●
380	GASKET; PISTON (A)	1-48269-215-0	01	1	1511-	●
380	GASKET; PISTON EXC. DIFF LOCK<C3N> (A)	1-48269-215-0	01	1	1511-		●	●	●
380	GASKET; PISTON DIFF LOCK<C3N> (B)	1-48269-075-0	01	1	1511-		●	●	●
380	GASKET; PISTON DIFF LOCK<C3N> (A)	1-48269-215-0	02	1	1511-		●	●	●
388	BOLT; COUPLING	1-37249-204-0	04	1	1511-	●
388	BOLT; COUPLING ZF9S1110 M/T(Y5E)	1-37249-204-0	04	1	1511-		●	●	●
388	BOLT; COUPLING ALLISON MD3560P A/T(Y3B)	1-37249-160-0	04	1	1511-		●	●	●
390	BOLT; CAGING DIFF LOCK<C3N> (A)	1-48269-071-0	01	1	1511-		●	●	●
390	BOLT; CAGING DIFF LOCK<C3N> (B)	8-98248-487-0	01	1	1511-		●	●	●
397	BAFFLE; OIL	8-98248-341-0	01	1	1511-	●	●	●	●
400	SCREEN; FILTER	1-41383-005-0	01	1	1511-	●	●	●	●
402	VALVE; RELIEF,OIL	1-41329-074-0	01	1	1511-	●	●	●	●
403	SPRING; RELIEF VALVE	1-41329-075-0	01	1	1511-	●	●	●	●
404	WASHER; RELIEF VALVE	1-41329-076-0	01	1	1511-	●	●	●	●
411	SLEEVE; CLU	8-98248-368-0	01	1	1511-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N>	8-98248-333-0	03	1	1511-		●	●	●
418	SHIFT FORK; DIFF LK DIFF LOCK<C3N>	8-98248-481-0	01	1	1511-		●	●	●
419	SPRING; DIFF LK DIFF LOCK<C3N>	1-48265-008-0	01	1	1511-		●	●	●
434	SWITCH; DIFF LOCK DIFF LOCK<C3N>	8-98248-478-0	01	1	1511-		●	●	●
444	BALL	8-98248-495-0	01	1	1511-	●	●	●	●
472	GEAR; PINION,IAD	8-98248-379-0	04	1	1511-	●	●	●	●
473	SPIDER; PINION,IAD	8-98248-380-0	01	1	1511-	●	●	●	●
474	CASE; IAD	8-98248-381-0	01	1	1511-	●	●	●	●
475	DIFF ASM; INTER,AXLE	8-98248-377-0	01	1	1511-	●	●	●	●
476	ADJUSTING RING; INPUT SHAFT	8-98323-326-0	01	1	1511-	●	●	●	●
479	PISTON; DIFF LOCK DIFF LOCK<C3N>	8-98248-337-0	01	1	1511-		●	●	●
481	GASKET; CAGING DIFF LOCK<C3N>	1-48269-254-0	01	1	1511-		●	●	●
483	COVER ASM; COVER,W/PUMP	8-98323-323-0	01	1	1511-	●	●	●	●
485	GASKET; ADJUSTING RING	8-98323-332-0	01	1	1511-	●	●	●	●
486	RETROFIT KIT; CARRIER	8-98323-329-0	01	1	1511-	●	●	●	●
487	COVER; SCREW,DIFF LOCK	8-98323-330-0	01	1	1511-	●	●	●	●
488	GASKET; COVER,SCREW	8-98323-333-0	01	1	1511-	●	●	●	●
490	DOWEL; TAPERED,CASE	1-42319-162-0	04	1	1511-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
